linearize

Linear approximation of Simulink model or subsystem

Syntax

linsys = linearize(model,io)

linsys = linearize(model,io,op)

linsys = linearize(model,io,param)

linsys = linearize(model,io,blocksub)

linsys = linearize(model,io,options)

linsys = linearize(model,io,op,param,blocksub,options)

linsys = linearize(___,'StateOrder',stateorder)

[linsys,linop] = linearize(___)

[linsys,linop,info] = linearize(___)

Description

linsys = linearize(model,io) returns a linear approximation of the nonlinear Simulink^® model model at the model operating point using the analysis points specified in io. Using io, you can specify individual analysis points or you can specify a block or subsystem to linearize. If you omit io, then linearize uses the root-level inports and outports of the model as analysis points.

linsys = linearize(model,io,op) linearizes the model at operating point op.

linsys = linearize(model,io,param) linearizes the model using the parameter value variations specified in param. You can vary any model parameter with a value given by a variable in the model workspace, the MATLAB^® workspace, or a data dictionary.

linsys = linearize(model,io,blocksub) linearizes the model using the substitute block or subsystem linearizations specified in blocksub.

linsys = linearize(model,io,options) linearizes the model using additional linearization options.

linsys = linearize(model,io,op,param,blocksub,options) linearizes the model using any combination of op, param, blocksub, and options in any order.

linsys = linearize(___,'StateOrder',stateorder) specifies the order of the states in the linearized model for any of the previous syntaxes.

[linsys,linop] = linearize(___) returns the operating point at which the model was linearized. Use this syntax when linearizing at simulation snapshots or when varying parameters during linearization.

[linsys,linop,info] = linearize(___) returns additional linearization information. To select the linearization information to return in info, enable the corresponding option in options.

Examples

Linearize Model Using Specified I/O Set

Open the Simulink model.

mdl = 'watertank';
open_system(mdl)

Specify a linearization input at the output of the PID Controller block, which is the input signal for the Water-Tank System block.

io(1) = linio('watertank/PID Controller',1,'input');

Specify a linearization output point at the output of the Water-Tank System block. Specifying the output point as open-loop removes the effects of the feedback signal on the linearization without changing the model operating point.

io(2) = linio('watertank/Water-Tank System',1,'openoutput');

Linearize the model using the specified I/O set.

linsys = linearize(mdl,io);

linsys is the linear approximation of the plant at the model operating point.

Linearize Model at Specified Operating Point

Open the Simulink model.

mdl = 'magball';
open_system(mdl)

Find a steady-state operating point at which the ball height is 0.05. Create a default operating point specification, and set the height state to a known value.

opspec = operspec(mdl);
opspec.States(5).Known = 1;
opspec.States(5).x = 0.05;

Trim the model to find the operating point.

options = findopOptions('DisplayReport','off');
op = findop(mdl,opspec,options);

Specify linearization input and output signals to compute the closed-loop transfer function.

io(1) = linio('magball/Desired Height',1,'input');
io(2) = linio('magball/Magnetic Ball Plant',1,'output');

Linearize the model at the specified operating point using the specified I/O set.

linsys = linearize(mdl,io,op);

Linearize Model at Simulation Snapshot Time

Open the Simulink model.

mdl = 'watertank';
open_system(mdl)

To compute the closed-loop transfer function, first specify the linearization input and output signals.

io(1) = linio('watertank/PID Controller',1,'input');
io(2) = linio('watertank/Water-Tank System',1,'output');

Simulate sys for 10 seconds and linearize the model.

linsys = linearize(mdl,io,10);

Batch Linearize Model for Parameter Variations

Open the Simulink model.

mdl = 'scdcascade';
open_system(mdl)

Specify parameter variations for the outer-loop controller gains, Kp1 and Ki1. Create parameter grids for each gain value.

Kp1_range = linspace(Kp1*0.8,Kp1*1.2,6);
Ki1_range = linspace(Ki1*0.8,Ki1*1.2,4);
[Kp1_grid,Ki1_grid] = ndgrid(Kp1_range,Ki1_range);

Create a parameter value structure with fields Name and Value.

params(1).Name = 'Kp1';
params(1).Value = Kp1_grid;
params(2).Name = 'Ki1';
params(2).Value = Ki1_grid;

params is a 6-by-4 parameter value grid, where each grid point corresponds to a unique combination of Kp1 and Ki1 values.

Define linearization input and output points for computing the closed-loop response of the system.

io(1) = linio('scdcascade/setpoint',1,'input');
io(2) = linio('scdcascade/Sum',1,'output');

Linearize the model at the model operating point using the specified parameter values.

linsys = linearize(mdl,io,params);

Specify Substitute Block Linearization and Linearize Model

Open the Simulink model.

mdl = 'scdpwm';
open_system(mdl)

Extract linearization input and output from the model.

io = getlinio(mdl);

Linearize the model at the model operating point.

linsys = linearize(mdl,io)

linsys =

  D =
                Step
   Plant Model     0

Static gain.

The discontinuities in the Voltage to PWM block cause the model to linearize to zero. To treat this block as a unit gain during linearization, specify a substitute linearization for this block.

blocksub.Name = 'scdpwm/Voltage to PWM';
blocksub.Value = 1;

Linearize the model using the specified block substitution.

linsys = linearize(mdl,blocksub,io)

linsys =

  A =
                 State Space(  State Space(
   State Space(        0.9999       -0.0001
   State Space(        0.0001             1

  B =
                   Step
   State Space(  0.0001
   State Space(   5e-09

  C =
                State Space(  State Space(
   Plant Model             0             1

  D =
                Step
   Plant Model     0

Sample time: 0.0001 seconds
Discrete-time state-space model.

Specify Sample Time of Linearized Model

Open the Simulink model.

mdl = 'watertank';
open_system(mdl)

To linearize the Water-Tank System block, specify a linearization input and output.

io(1) = linio('watertank/PID Controller',1,'input');
io(2) = linio('watertank/Water-Tank System',1,'openoutput');

Create a linearization option set, and specify the sample time for the linearized model.

options = linearizeOptions('SampleTime',0.1);

Linearize the plant using the specified options.

linsys = linearize(mdl,io,options)

linsys =

  A =
          H
   H  0.995

  B =
      PID Controll
   H       0.02494

  C =
                 H
   Water-Tank S  1

  D =
                 PID Controll
   Water-Tank S             0

Sample time: 0.1 seconds
Discrete-time state-space model.

The linearized plant is a discrete-time state-space model with a sample time of 0.1.

Linearize Block or Subsystem at Model Operating Point

Open the Simulink model.

mdl = 'watertank';
open_system(mdl)

Specify the full block path for the block you want to linearize.

blockpath = 'watertank/Water-Tank System';

Linearize the specified block at the model operating point.

linsys = linearize(mdl,blockpath);

Linearize Block or Subsystem at Trimmed Operating Point

Open Simulink model.

mdl = 'magball';
open_system(mdl)

Find a steady-state operating point at which the ball height is 0.05. Create a default operating point specification, and set the height state to a known value.

opspec = operspec(mdl);
opspec.States(5).Known = 1;
opspec.States(5).x = 0.05;

options = findopOptions('DisplayReport','off');
op = findop(mdl,opspec,options);

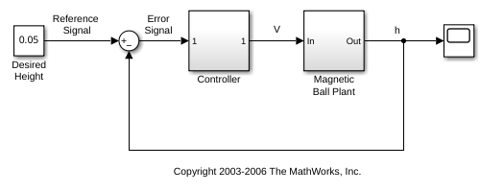

Specify the block path for the block you want to linearize.

blockpath = 'magball/Magnetic Ball Plant';

Linearize the specified block at the specified operating point.

linsys = linearize(mdl,blockpath,op);

Specify State Order in Linearized Model

Open the Simulink model.

mdl = 'magball';
open_system(mdl)

Linearize the plant at the model operating point.

blockpath = 'magball/Magnetic Ball Plant';
linsys = linearize(mdl,blockpath);

View the default state order for the linearized plant.

linsys.StateName

ans =

  3x1 cell array

    {'height' }
    {'Current'}
    {'dhdt'   }

Linearize the plant and reorder the states in the linearized model. Set the rate of change of the height as the second state.

stateorder = {'magball/Magnetic Ball Plant/height';...
              'magball/Magnetic Ball Plant/dhdt';...
              'magball/Magnetic Ball Plant/Current'};
linsys = linearize(mdl,blockpath,'StateOrder',stateorder);

View the new state order.

linsys.StateName

ans =

  3x1 cell array

    {'height' }
    {'dhdt'   }
    {'Current'}

Linearize Model at Multiple Snapshot Times

Open the Simulink model.

mdl = 'watertank';
open_system(mdl)

To compute the closed-loop transfer function, first specify the linearization input and output signals.

io(1) = linio('watertank/PID Controller',1,'input');
io(2) = linio('watertank/Water-Tank System',1,'output');

Simulate sys and linearize the model at 0 and 10 seconds. Return the operating points that correspond to these snapshot times; that is, the operating points at which the model was linearized.

[linsys,linop] = linearize(mdl,io,[0,10]);

Batch Linearize Plant Model and Obtain Linearization Offsets

Open the Simulink model.

mdl = 'watertank';
open_system(mdl)

Vary parameters A and b within 10% of their nominal values.

[A_grid,b_grid] = ndgrid(linspace(0.9*A,1.1*A,3),...
                         linspace(0.9*b,1.1*b,4));

Create a parameter structure array, specifying the name and grid points for each parameter.

params(1).Name = 'A';
params(1).Value = A_grid;
params(2).Name = 'b';
params(2).Value = b_grid;

Create a default operating point specification for the model.

opspec = operspec(mdl);

Trim the model using the specified operating point specification, parameter grid. Suppress the display of the operating point search report.

opt = findopOptions('DisplayReport','off');
[op,opreport] = findop(mdl,opspec,params,opt);

op is a 3-by-4 array of operating point objects that correspond to the specified parameter grid points.

Specify the block path for the plant model.

blockpath = 'watertank/Desired  Water Level';

To store offsets during linearization, create a linearization option set and set StoreOffsets to true.

options = linearizeOptions('StoreOffsets',true);

Batch linearize the plant at the trimmed operating points, using the specified I/O points and parameter variations.

[linsys,linop,info] = linearize(mdl,blockpath,op,params,options);

You can use the offsets in info.Offsets when configuring an LPV System block.

info.Offsets

ans =

  3x4 struct array with fields:

    x
    dx
    u
    y
    StateName
    InputName
    OutputName
    Ts

Input Arguments

model — Simulink model name

character vector | string

Simulink model name, specified as a character vector or string. The model must be in the current working folder or on the MATLAB path.

io — Analysis points

linearization I/O object | vector of linearization I/O objects | string | character vector

Analysis points for linearizing model, specified as one of the following:

• Linearization I/O object or a vector of linearization I/O objects — Specify a list of one or more inputs, outputs, and loop openings. To create the list of analysis points:

  • Define the inputs, outputs, and openings using the linio function.

  • If the inputs, outputs, and openings are specified in the Simulink model, extract these points from the model using the getlinio function.

• String or character vector — Specify the full path of a block or subsystem to linearize. The software treats the inports and outports of the specified block as open-loop inputs and outputs, which isolates the block from the rest of the model before linearization.

The analysis points defined in io must correspond to the Simulink model model or some normal-mode model reference in the model hierarchy.

If you omit io, then linearize uses the root-level inports and outports of the model as analysis points.

For more information on specifying linearization inputs, outputs, and openings, see Specify Portion of Model to Linearize.

op — Operating point

OperatingPoint object | array of OperatingPoint objects | vector of positive scalars

Operating point for linearization, specified as one of the following:

• OperatingPoint object, created using:

  • operpoint

  • findop with either a single operating point specification, or a single snapshot time.

• Array of OperatingPoint objects, specifying multiple operating points. To create an array of OperatingPoint objects, you can:

  • Extract operating points at multiple snapshot times using findop.

  • Batch trim your model using multiple operating point specifications. For more information, see Batch Compute Steady-State Operating Points for Multiple Specifications.

  • Batch trim your model using parameter variations. For more information, see Batch Compute Steady-State Operating Points for Parameter Variation.

• Vector of positive scalars representing one or more simulation snapshot times. The software simulates sys and linearizes the model at the specified snapshot times.

  If you also specify parameter variations using param, the software simulates the model for each snapshot time and parameter grid point combination. This operation can be computationally expensive.

If you specify parameter variations using param, and the parameters:

• Affect the model operating point, then specify op as an array of operating points with the same dimensions as the parameter value grid. To obtain the operating points that correspond to the parameter value combinations, batch trim your model using param before linearization. For more information, see Batch Linearize Model at Multiple Operating Points Derived from Parameter Variations.

• Do not affect the model operating point, then specify op as a single operating point.

blocksub — Substitute linearizations for blocks and subsystems

structure | structure array

Substitute linearizations for blocks and subsystems, specified as a structure or an n-by-1 structure array, where n is the number of blocks for which you want to specify a linearization. Use blocksub to specify a custom linearization for a block or subsystem. For example, you can specify linearizations for blocks that do not have analytic linearizations, such as blocks with discontinuities or triggered subsystems.

To study the effects of varying the linearization of a block on the model dynamics, you can batch linearize your model by specifying multiple substitute linearizations for a block.

If you substitute a linearization with a sample time that differs from that of the original block or subsystem, it is best practice to set the overall linearization sample time (options.SampleTime) to a nondefault value.

Each substitute linearization structure has the following fields.

Name — Block path

character vector | string

Block path of the block for which you want to specify the linearization, specified as a character vector or string.

Value — Substitute linearization

double | double array | LTI model | model array | structure

Substitute linearization for the block, specified as one of the following:

• Double — Specify the linearization of a SISO block as a gain.

• Array of doubles — Specify the linearization of a MIMO block as an n_u-by-n_y array of gain values, where n_u is the number of inputs and n_y is the number of outputs.

• LTI model, uncertain state-space model, or uncertain real object — The I/O configuration of the specified model must match the configuration of the block specified by Name. Using an uncertain model requires Robust Control Toolbox™ software.

• Array of LTI models, uncertain state-space models, or uncertain real objects — Batch linearize the model using multiple block substitutions. The I/O configuration of each model in the array must match the configuration of the block for which you are specifying a custom linearization. If you:

  • Vary model parameters using param and specify Value as a model array, the dimensions of Value must match the parameter grid size.

  • Specify op as an array of operating points and Value as a model array, the dimensions of Value must match the size of op.

  • Define block substitutions for multiple blocks, and specify Value as an array of LTI models for one or more of these blocks, the dimensions of the arrays must match.

• Structure with the following fields.

  Field	Description
  Specification	Block linearization, specified as a character vector that contains one of the following: MATLAB expression Name of a Custom Linearization Function in your current working folder or on the MATLAB path The specified expression or function must return one of the following: Linear model in the form of a D-matrix Control System Toolbox™ LTI model object Uncertain state-space model or uncertain real object (requires Robust Control Toolbox software) The I/O configuration of the returned model must match the configuration of the block specified by Name.
  Type	Specification type, specified as one of the following: 'Expression' 'Function'
  ParameterNames	Linearization function parameter names, specified as a cell array of character vectors. Specify ParameterNames only when Type = 'Function' and your block linearization function requires input parameters. These parameters only impact the linearization of the specified block. You must also specify the corresponding blocksub.Value.ParameterValues field.
  ParameterValues	Linearization function parameter values, specified as a vector of doubles. The order of parameter values must correspond to the order of parameter names in blocksub.Value.ParameterNames. Specify ParameterValues only when Type = 'Function' and your block linearization function requires input parameters.

param — Parameter samples

structure | structure array

Parameter samples for linearization, specified as one of the following:

• Structure — Vary the value of a single parameter by specifying parameters as a structure with the following fields.

  • Name — Parameter name, specified as a character vector or string. You can specify any model parameter that is a variable in the model workspace, the MATLAB workspace, or a data dictionary. If the variable used by the model is not a scalar variable, specify the parameter name as an expression that resolves to a numeric scalar value. For example, use the first element of vector V as a parameter.

    parameters.Name = 'V(1)';

  • Value — Parameter sample values, specified as a double array.

  For example, vary the value of parameter A in the 10% range.

  parameters.Name = 'A';
  parameters.Value = linspace(0.9*A,1.1*A,3);

• Structure array — Vary the value of multiple parameters. For example, vary the values of parameters A and b in the 10% range.

  [A_grid,b_grid] = ndgrid(linspace(0.9*A,1.1*A,3),...
                           linspace(0.9*b,1.1*b,3));
  parameters(1).Name = 'A';
  parameters(1).Value = A_grid;
  parameters(2).Name = 'b';
  parameters(2).Value = b_grid;

For more information, see Specify Parameter Samples for Batch Linearization.

If param specifies tunable parameters only, the software batch linearizes the model using a single model compilation.

To compute the offsets required by the LPV System block, specify param, and set options.StoreOffsets to true. You can then return additional linearization information in info, and extract the offsets using getOffsetsForLPV.

stateorder — State order in linearization results

cell array of character vectors

State order in linearization results, specified as a cell array of block paths or state names. The order of the block paths and states in stateorder indicates the order of the states in linsys.

You can specify block paths for any blocks in model that have states, or any named states in model.

You do not have to specify every block and state from model in stateorder. The states you specify appear first in linsys, followed by the remaining states in their default order.

options — Linearization algorithm options

linearizeOptions option set

Linearization algorithm options, specified as a linearizeOptions option set.

Output Arguments

linsys — Linearization result

state-space model | array of state-space models

Linearization result, returned as a state-space model or an array of state-space models.

For most models, linsys is returned as an ss object or an array of ss objects. However, if model contains one of the following blocks in the linearization path defined by io, then linsys returns the specified type of state-space model.

Block	linsys Type
Block with a substitution specified as a genss object or tunable model object	genss
Block with a substitution specified as an uncertain model, such as uss	uss (Robust Control Toolbox)
Sparse Second Order block	mechss
Descriptor State-Space block configured to linearize to a sparse model	sparss

The dimensions of linsys depend on the specified parameter variations and block substitutions, and the operating points at which you linearize the model.

Note

If you specify more than one of op, param, or blocksub.Value as an array, then their dimensions must match.

Parameter Variation	Block Substitution	Linearize At...	Resulting linsys Dimensions
No parameter variation	No block substitution	Model operating point	Single state-space model
		Single operating point, specified as an OperatingPoint object or snapshot time using op
		N1-by-...-by-Nm array of OperatingPoint objects, specified by op	N1-by-...-by-Nm
		Ns snapshots, specified as a vector of snapshot times using op	Column vector of length Ns
	N1-by-...-by-Nm model array for at least one block, specified by blocksub.Value	Model operating point	N1-by-...-by-Nm
		Single operating point, specified as an OperatingPoint object or snapshot time using op
		N1-by-...-by-Nm array of operating points, specified as an array of OperatingPoint objects using op
		Ns snapshots, specified as a vector of snapshot times using op	Ns-by-N1-by-...-by-Nm
N1-by-...-by-Nm parameter grid, specified by param	Either no block substitution or an N1-by-...-by-Nm model array for at least one block, specified by blocksub.Value	Model operating point	N1-by-...-by-Nm
		Single operating point, specified as an OperatingPoint object or snapshot time using op
		N1-by-...-by-Nm array of OperatingPoint objects, specified by op
		Ns snapshots, specified as a vector of snapshot times using op	Ns-by-N1-by-...-by-Nm

For example, suppose:

• op is a 4-by-3 array of OperatingPoint objects and you do not specify parameter variations or block substitutions. In this case, linsys is a 4-by-3 model array.

• op is a single OperatingPoint object and param specifies a 3-by-4-by-2 parameter grid. In this case, linsys is a 3-by-4-by-2 model array.

• op is a row vector of positive scalars with two elements and you do not specify param. In this case, linsys is a column vector with two elements.

• op is a column vector of positive scalars with three elements and param specifies a 5-by-6 parameter grid. In this case, linsys is a 3-by-5-by-6 model array.

• op is a single operating point object, you do not specify parameter variations, and blocksub.Value is a 2-by-3 model array for one block in the model. In this case, linsys is a 2-by-3 model array.

• op is a column vector of positive scalars with four elements, you do not specify parameter variations, and blocksub.Value is a 1-by-2 model array for one block in the model. In this case, linsys is a 4-by-1-by-2 model array.

For more information on model arrays, see Model Arrays.

linop — Operating point

OperatingPoint object | array of OperatingPoint objects

Operating point at which the model was linearized, returned as an OperatingPoint object or an array of OperatingPoint objects with the same dimensions as linsys. Each element of linop is the operating point at which the corresponding linsys model was obtained.

If you specify op as a single OperatingPoint object or an array of OperatingPoint objects, then linop is a copy of op. If you specify op as a single operating point object and also specify parameter variations using param, then linop is an array with the same dimensions as the parameter grid. In this case, the elements of linop are scalar expanded copies of op.

To determine whether the model was linearized at a reasonable operating point, view the states and inputs in linop.

info — Linearization information

structure

Linearization information, returned as a structure with the following fields:

Offsets — Linearization offsets

[] (default) | structure | structure array

Linearization offsets that correspond to the operating point at which the model was linearized, returned as [] if options.StoreOffsets is false. Otherwise, Offsets is returned as one of the following:

• If linsys is a single state-space model, then Offsets is a structure.

• If linsys is an array of state-space models, then Offsets is a structure array with the same dimensions as linsys.

Each offset structure has the following fields:

Field	Description
x	State offsets used for linearization, returned as a column vector of length nx, where nx is the number of states in linsys.
y	Output offsets used for linearization, returned as a column vector of length ny, where ny is the number of outputs in linsys.
u	Input offsets used for linearization, returned as a column vector of length nu, where nu is the number of inputs in linsys.
dx	Derivative offsets for continuous time systems or updated state values for discrete-time systems, returned as a column vector of length nx.
StateName	State names, returned as a cell array that contains nx elements that match the names in linsys.StateName.
InputName	Input names, returned as a cell array that contains nu elements that match the names in linsys.InputName.
OutputName	Output names, returned as a cell array that contains ny elements that match the names in linsys.OutputName.
Ts	Sample time of the linearized system, returned as a scalar that matches the sample time in linsys.Ts. For continuous-time systems, Ts is 0.

If Offsets is a structure array, you can configure an LPV System block using the offsets. To do so, first convert them to the required format using getOffsetsForLPV. For an example, see Approximate Nonlinear Behavior Using Array of LTI Systems.

Advisor — Linearization diagnostic information

[] (default) | LinearizationAdvisor object | array of LinearizationAdvisor objects

Linearization diagnostic information, returned as [] if options.StoreAdvisor is false. Otherwise, Advisor is returned as one of the following:

• If linsys is a single state-space model, Advisor is a LinearizationAdvisor object.

• If linsys is an array of state-space models, Advisor is an array of LinearizationAdvisor objects with the same dimensions as linsys.

LinearizationAdvisor objects store linearization diagnostic information for individual linearized blocks. For an example of troubleshooting linearization results using a LinearizationAdvisor object, see Troubleshoot Linearization Results at Command Line.

Limitations

• Linearization is not supported for model hierarchies that contain referenced models configured to use a local solver.

• Linearization is not supported for Simscape™ networks configured to use a local solver.

More About

Custom Linearization Function

You can specify a substitute linearization for a block or subsystem in your Simulink model using a custom function on the MATLAB path.

Your custom linearization function must have one BlockData input argument, which is a structure that the software creates and passes to the function. BlockData has the following fields:

Field	Description
BlockName	Name of the block for which you are specifying a custom linearization.
Parameters	Block parameter values, specified as a structure array with Name and Value fields. Parameters contains the names and values of the parameters you specify in the blocksub.Value.ParameterNames and blocksub.Value.ParameterValues fields.
Inputs	Input signals to the block for which you are defining a linearization, specified as a structure array with one structure for each block input. Each structure in Inputs has the following fields: Field Description BlockName Full block path of the block whose output connects to the corresponding block input. PortIndex Output port of the block specified by BlockName that connects to the corresponding block input. Values Value of the signal specified by BlockName and PortIndex. If this signal is a vector signal, then Values is a vector with the same dimension.
ny	Number of output channels of the block linearization.
nu	Number of input channels of the block linearization.
BlockLinearization	Current default linearization of the block, specified as a state-space model. You can specify a block linearization that depends on the default linearization using BlockLinearization.

Your custom function must return a model with nu inputs and ny outputs. This model must be one of the following:

• Linear model in the form of a D-matrix

• Control System Toolbox LTI model object

• Uncertain state-space model or uncertain real object (requires Robust Control Toolbox software)

For example, the following function multiplies the current default block linearization, by a delay of Td = 0.5 seconds. The delay is represented by a Thiran filter with sample time Ts = 0.1. The delay and sample time are parameters stored in BlockData.

function sys = myCustomFunction(BlockData)
    Td = BlockData.Parameters(1).Value;
    Ts = BlockData.Parameters(2).Value;
    sys = BlockData.BlockLinearization*Thiran(Td,Ts);
end

Save this function to a location on the MATLAB path.

To use this function as a custom linearization for a block or subsystem, specify the blocksub.Value.Specification and blocksub.Value.Type fields.

blocksub.Value.Specification = 'myCustomFunction';
blocksub.Value.Type = 'Function';

To set the delay and sample time parameter values, specify the blocksub.Value.ParameterNames and blocksub.Value.ParameterValues fields.

blocksub.Value.ParameterNames = {'Td','Ts'};
blocksub.Value.ParameterValues = [0.5 0.1];

Algorithms

Model Properties for Linearization

By default, linearize automatically sets the following Simulink model properties.

• BufferReuse = 'off'

• BlockReductionOpt = 'off'

• SaveFormat = 'StructureWithTime'

After linearization, Simulink restores the original model properties.

Block-by-Block Linearization

Simulink Control Design™ software linearizes models using a block-by-block approach. The software individually linearizes each block in your Simulink model and produces the linearization of the overall system by combining the individual block linearizations.

The software determines the input and state levels for each block from the operating point, and obtains the Jacobian for each block at these levels.

For some blocks, the software cannot compute an analytical linearization in this manner. For example:

• Some nonlinearities do not have a defined Jacobian.

• Some discrete blocks, such as state charts and triggered subsystems, tend to linearize to zero.

• Some blocks do not implement a Jacobian.

• Custom blocks, such as S-Function blocks and MATLAB Function blocks, do not have analytical Jacobians.

You can specify a custom linearization for any such blocks for which you know the expected linearization. If you do not specify a custom linearization, the software linearizes the model by perturbing the block inputs and states and measuring the response to these perturbations. For each input and state, the default perturbation level is:

• $${10}^{-5}\left(1+\left|x\right|\right)$$ for double-precision values.

• $$0.005\left(1+\left|x\right|\right)$$ for single-precision values.

Here, x is the value of the corresponding input or state at the operating point. For information on how to change perturbation levels for individual blocks, see Change Perturbation Level of Blocks Perturbed During Linearization.

For more information, see Linearize Nonlinear Models and Exact Linearization Algorithm.

Full-Model Numerical Perturbation

You can linearize your system using full-model numerical perturbation, where the software computes the linearization of the full model by perturbing the values of root-level inputs and states. To do so, create a linearizeOptions object and set the LinearizationAlgorithm property to one of the following:

• 'numericalpert' — Perturb the inputs and states using forward differences; that is, by adding perturbations to the input and state values. This perturbation method is typically faster than the 'numericalpert2' method.

• 'numericalpert2' — Perturb the inputs and states using central differences; that is, by perturbing the input and state values in both positive and negative directions. This perturbation method is typically more accurate than the 'numericalpert' method.

For each input and state, the software perturbs the model and computes a linear model based on the model response to these perturbations. You can configure the state and input perturbation levels using the NumericalPertRel linearization options.

Block-by-block linearization has several advantages over full-model numerical perturbation:

• Most Simulink blocks have a preprogrammed linearization that provides an exact linearization of the block.

• You can use linear analysis points to specify a portion of the model to linearize.

• You can configure blocks to use custom linearizations without affecting your model simulation.

• Structurally nonminimal states are automatically removed.

• You can specify linearizations that include uncertainty (requires Robust Control Toolbox software).

• You can obtain detailed diagnostic information.

• When linearizing multirate models, you can use different rate conversion methods. Full-model numerical perturbation can only use zero-order-hold rate conversion.

For more information, see Linearize Nonlinear Models and Exact Linearization Algorithm.

Alternatives

As an alternative to the linearize function, you can linearize models using one of the following methods.

• To interactively linearize models, use the Model Linearizer app. For an example, see Linearize Simulink Model at Model Operating Point.

• To obtain multiple transfer functions without modifying the model or creating an analysis point set for each transfer function, use an slLinearizer interface. For an example, see Vary Parameter Values and Obtain Multiple Transfer Functions.

Although both Simulink Control Design software and the Simulink linmod function perform block-by-block linearization, Simulink Control Design linearization functionality has a more flexible user interface and uses Control System Toolbox numerical algorithms. For more information, see Linearization Using Simulink Control Design Versus Simulink.

Version History

Introduced in R2006a

R2020b: Linearize Simulink model to a sparse state-space model

You can linearize and obtain a sparse model from a Simulink model that contains a Sparse Second Order or Descriptor State-Space block.

• mechss model when you use a Sparse Second Order in your Simulink model.

• sparss model when you use a Descriptor State-Space block and select the Linearize to sparse model block parameter.

For more information, see Sparse Model Basics. For an example, see Linearize Simulink Model to a Sparse Second-Order Model Object.

R2016b: Compute operating point offsets for model inputs, outputs, states, and state derivatives during linearization

You can compute operating point offsets for model inputs, outputs, states, and state derivatives when linearizing Simulink models. Thee offsets streamline the creation of linear parameter-varying (LPV) systems.

To obtain operating point offsets, first create a linearizeOptions object and set the StoreOffsets option to true. Then, linearize the model.

You can extract the offsets from the info output argument and convert them into the required format for the LPV System block using the getOffsetsForLPV function.

R2014a: Block substitution input argument

You can specify a substitute linearization for a Simulink block or subsystem using the blocksub input argument of the linearize function.
