uss
Uncertain state-space model
Description
Use uss
model objects to represent uncertain dynamic systems.
The two dominant forms of model uncertainty are:
Uncertainty in parameters of the underlying differential equation models (uncertain state-space matrices)
Frequency-domain uncertainty, which often quantifies model uncertainty by describing absolute or relative uncertainty in the frequency response (uncertain or unmodeled linear dynamics)
uss
model objects can represent dynamic systems with either or both
forms of uncertainty. You can use uss
to perform robust stability and
performance analysis and to test the robustness of controller designs.
Creation
There are several ways to create a uss
model object,
including:
Use
tf
with one or more uncertain real parameters (ureal
). For example:p = ureal('p',1); usys = tf(p,[1 p]);

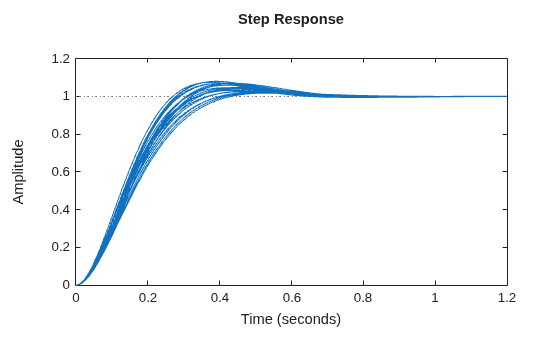

For another example, see Transfer Function with Uncertain Coefficients.
Use
ss
with uncertain state-space matrices (umat
). For example:p = ureal('p',1); A = [0 3*p; -p p^2]; B = [0; p]; C = ones(2); D = zeros(2,1); usys = ss(A,B,C,D);
For another example, see Uncertain State-Space Model.
Combine numeric LTI models with uncertain elements using model interconnection commands such as
connect
,series
, orparallel
, or model arithmetic operators such as *, +, or -. For example:sys = tf(1,[1 1]); p = ureal('p',1); D = ultidyn('Delta',[1 1]); usys = p*sys*(1 + 0.1*D);

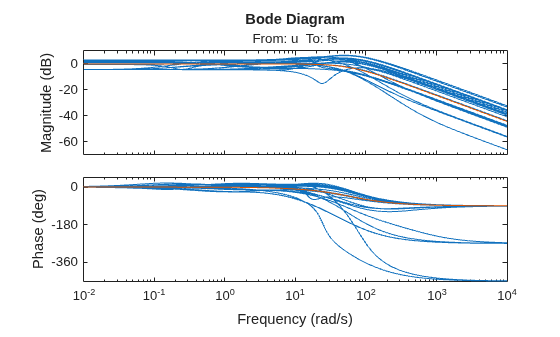

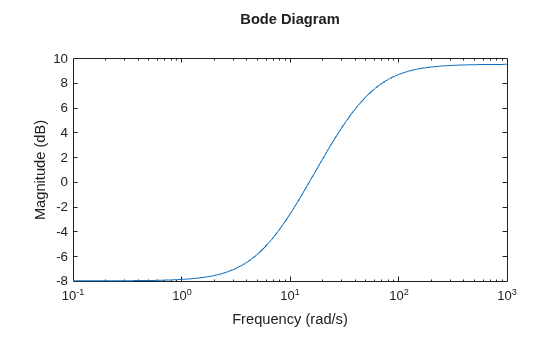

For another example, see System with Uncertain Dynamics.
Convert a double array or a numeric LTI model to
uss
form usingusys = uss(sys)
. In this case, the resultinguss
model object has no uncertain elements. For example:M = tf(1,[1 1 1]); usys = uss(M);
Use
ucover
to create auss
model whose range of possible frequency responses includes all responses in an array of numeric LTI models. The resulting model expresses the range of behaviors as dynamic uncertainty (ultidyn
).
Properties
NominalValue
— Nominal value of uncertain model
ss
model object
Nominal value of the uncertain model, specified as a state-space
(ss
) model object. The state-space model is
obtained by setting all the uncertain control design blocks of the uncertain
model to their nominal values.
Uncertainty
— Uncertain elements
structure
Uncertain elements of the model, specified as a structure whose fields are
the names of the uncertain blocks, and whose values are the control design
blocks themselves. Thus, the values stored in the structure can be
ureal
, umat
,
ultidyn
, or other uncertain control design blocks.
For instance, the following commands create an uncertain model
usys
with two uncertain parameters,
p1
and p2
.
p1 = ureal('p1',1); p2 = ureal('p2',3); A = [0 3*p1; -p1 p1^2]; B = [0; p2]; C = ones(2); D = zeros(2,1); usys = ss(A,B,C,D);
The Uncertainty
property of usys
is a structure with two fields, p1
and
p2
, whose values are the corresponding
ureal
uncertain parameters.
usys.Uncertainty
ans = struct with fields: p1: [1×1 ureal] p2: [1×1 ureal]
You can access or examine each uncertain parameter individually. For example:
get(usys.Uncertainty.p1)
NominalValue: 1 Mode: 'PlusMinus' Range: [0 2] PlusMinus: [-1 1] Percentage: [-100 100] AutoSimplify: 'basic' Name: 'p1'
A, B, C, D, E
— State-space matrices
numeric matrix | uncertain matrix
This property is read-only.
State-space matrices, specified as numeric matrices or uncertain matrices
(umat
). The state-space matrices are evaluated by
fixing all dynamic uncertainty blocks (udyn
,
ultidyn
) to their nominal values.
A
— State matrix A, specified as a square matrix orumat
with as many rows and columns as there are system states.B
— Input-to-state matrix B, specified as a matrix orumat
with as many rows as there are system states and as many columns as there are system inputs.C
— State-to-output matrix C, specified as a matrix orumat
with as many rows as there are system outputs and as many columns as there are system states.D
— Feedthrough matrix D, specified as a matrix orumat
with as many rows as there are system outputs and as many columns as there are system inputs.E
— E matrix for implicit (descriptor) state-space models, specified as a matrix orumat
of the same dimensions asA
. By defaultE = []
, meaning that the state equation is explicit. To specify an implicit state equation E dx/dt = Ax + Bu, set this property to a square matrix of the same size asA
. Seedss
for more information about descriptor state-space models.
StateName
— State names
{''}
(default) | character vector | cell array of character vectors | string | string array
State names, specified as:
A character vector or string — For first-order models
A cell array of character vectors or string array — For models with two or more states
''
— For unnamed states
If you specify StateName
using a string, such as
"velocity"
, the state name is stored as a
character vector, 'velocity'
.
Example: 'velocity'
Example: {'x1','x2'}
StateUnit
— State units
{''}
(default) | character vector | cell array of character vectors or stings | string | string array
State units, specified as:
A character vector or string — For first-order models
A cell array of character vectors or string array — For models with two or more states
''
— For states without specified units
Use StateUnit
to keep track of the units each state is expressed in. StateUnit
has no effect on system behavior.
If you specify StateUnit
using a string, such as
"mph"
, the state units are stored as a character
vector, 'mph'
.
Example: 'mph'
Example: {'rpm','rad/s'}
InternalDelay
— Internal delays
scalar | vector
Internal delays, specified as a scalar or vector. For continuous-time models, internal delays
are expressed in the time unit specified by the TimeUnit
property
of the model object. For discrete-time models, internal delays are expressed as integer
multiples of the sample time Ts
. For example,
InternalDelay = 3
means a delay of three sampling periods.
You can modify the values of internal delays. However, the number of entries in InternalDelay
cannot change, because it is a structural property of the model.
Internal delays arise, for example, when closing feedback loops on systems with delays, or when connecting delayed systems in series or parallel. For more information about internal delays, see Closing Feedback Loops with Time Delays.
InputDelay
— Delay at inputs
0 (default) | scalar | vector
Delay at each input, specified as a scalar or a vector. For a system with
Nu
inputs, set InputDelay
to an
Nu
-by-1 vector. Each entry of this vector is a numerical value
that represents the input delay for the corresponding input channel. For continuous-time
models, specify input delays in the time unit stored in the
TimeUnit
property of the model object. For discrete-time
models, specify input delays in integer multiples of the sample time
Ts
. For example, InputDelay = 3
means a
delay of three sample times.
Set InputDelay
to a scalar value to apply the same delay to all channels.
OutputDelay
— Delay at outputs
0 (default) | scalar | vector
Delay at each output, specified as a scalar or a vector. For a system with Ny
outputs, set OutputDelay
to an Ny
-by-1 vector. Each entry of this vector is a numerical value that represents the output delay for the corresponding output channel. For continuous-time models, specify output delays in the time unit stored in the TimeUnit
property of the model object. For discrete-time models, specify output delays in integer multiples of the sample time Ts
. For example, OutputDelay = 3
means a delay of three sample times.
Set OutputDelay
to a scalar value to apply the same delay to all channels.
Ts
— Sample time
0 (default) | –1 | positive scalar
Sample time, specified as:
0 — For continuous-time models.
Positive scalar value — For discrete-time models. Specify the sample time in the units given in the
TimeUnit
property of the model.–1 — For discrete-time models with unspecified sample time.
Changing this property does not discretize or resample the model.
TimeUnit
— Model time units
'seconds'
(default) | 'minutes'
| 'milliseconds'
| ...
Model time units, specified as:
'nanoseconds'
'microseconds'
'milliseconds'
'seconds'
'minutes'
'hours'
'days'
'weeks'
'months'
'years'
If you specify TimeUnit
using a string, such as
"hours"
, the time units are stored as a character vector,
'hours'
.
Model properties such as sample time Ts
,
InputDelay
, OutputDelay
, and other time
delays are expressed in the units specified by TimeUnit
. Changing
this property has no effect on other properties, and therefore changes the overall
system behavior. Use to
convert between time units without modifying system behavior.
InputName
— Names of input channels
{''}
(default) | character vector | cell array of character vectors | string | string array
Names of input channels, specified as:
A character vector or string — For single-input models
A cell array of character vectors or a string array — For models with two or more inputs
''
— For inputs without specified names
You can use automatic vector expansion to assign input names for multi-input models. For
example, if sys
is a two-input model, you can specify
InputName
as follows.
sys.InputName = 'controls';
The input names automatically expand to {'controls(1)';'controls(2)'}
.
You can use the shorthand notation u
to refer to the InputName
property. For example, sys.u
is equivalent to sys.InputName
.
Input channel names have several uses, including:
Identifying channels on model display and plots
Extracting subsystems of MIMO systems
Specifying connection points when interconnecting models
If you specify InputName
using a string or string array, such as
"voltage"
, the input name is stored as a character vector,
'voltage'
.
InputUnit
— Units of input signals
{''}
(default) | character vector | cell array of character vectors | string | string array
Units of input signals, specified as:
A character vector or string — For single-input models
A cell array of character vectors or string array — For models with two or more inputs
''
— For inputs without specified units
Use InputUnit
to keep track of the units each input signal is expressed in. InputUnit
has no effect on system behavior.
If you specify InputUnit
using a string, such as
"voltage"
, the input units are
stored as a character vector,
'voltage'
.
Example: 'voltage'
Example: {'voltage','rpm'}
InputGroup
— Input channel groups
structure with no fields (default) | structure
Input channel groups, specified as a structure where the fields are the group names and the values are the indices of the input channels belonging to the corresponding group. When you use InputGroup
to assign the input channels of MIMO systems to groups, you can refer to each group by name when you need to access it. For example, suppose you have a five-input model sys
, where the first three inputs are control inputs and the remaining two inputs represent noise. Assign the control and noise inputs of sys
to separate groups.
sys.InputGroup.controls = [1:3]; sys.InputGroup.noise = [4 5];
Use the group name to extract the subsystem from the control inputs to all outputs.
sys(:,'controls')
Example: struct('controls',[1:3],'noise',[4 5])
OutputName
— Names of output channels
{''}
(default) | character vector | cell array of character vectors or strings | string | string array
Names of output channels, specified as:
A character vector or string— For single-output models
A cell array of character vectors or string array — For models with two or more outputs
''
— For outputs without specified names
You can use automatic vector expansion to assign output names for multi-output models. For
example, if sys
is a two-output model, you can specify
OutputName
as follows.
sys.OutputName = 'measurements';
The output names automatically expand to {'measurements(1)';'measurements(2)'}
.
You can use the shorthand notation y
to refer to the OutputName
property. For example, sys.y
is equivalent to sys.OutputName
.
Output channel names have several uses, including:
Identifying channels on model display and plots
Extracting subsystems of MIMO systems
Specifying connection points when interconnecting models
If you specify OutputName
using a string, such as
"rpm"
, the output name is
stored as a character vector,
'rpm'
.
OutputUnit
— Units of output signals
{''}
(default) | character vector | cell array of character vectors | string | string array
Units of output signals, specified as:
A character vector or string — For single-output models
A cell array of character vectors or string array — For models with two or more outputs
''
— For outputs without specified units
Use OutputUnit
to keep track of the units each output signal is expressed in. OutputUnit
has no effect on system behavior.
If you specify OutputUnit
using a string, such as
"voltage"
, the output units are stored as a character vector,
'voltage'
.
Example: 'voltage'
Example: {'voltage','rpm'}
OutputGroup
— Output channel groups
structure with no fields (default) | structure
Output channel groups, specified as a structure where the fields are the group names and the values are the indices of the output channels belonging to the corresponding group. When you use OutputGroup
to assign the output channels of MIMO systems to groups, you can refer to each group by name when you need to access it. For example, suppose you have a four-output model sys
, where the second output is a temperature, and the rest are state measurements. Assign these outputs to separate groups.
sys.OutputGroup.temperature = [2]; sys.OutputGroup.measurements = [1 3 4];
Use the group name to extract the subsystem from all inputs to the measurement outputs.
sys('measurements',:)
Example: struct('temperature',[2],'measurement',[1 3 4])
Notes
— Text notes about model
[0×1 string]
(default) | string | character vector | cell array of character vectors or strings | string array
Text notes about the model, specified as a string or character vector. The property stores
whichever of these two data types you provide. For instance, suppose that
sys1
and sys2
are dynamic system models. You
can set their Notes
properties to a string and a character vector,
respectively.
sys1.Notes = "sys1 has a string."; sys2.Notes = 'sys2 has a character vector.'; sys1.Notes sys2.Notes
ans = "sys1 has a string." ans = 'sys2 has a character vector.'
You can also specify Notes
as string array or a cell array of
character vectors or strings.
UserData
— Data associated with model
[]
(default) | any data type
Data of any kind that you want to associate and store with the model, specified as any MATLAB® data type.
Name
— Model name
''
(default) | character vector | string
Model name, stored as a character vector or string. If you specify Name
using a string, such as "DCmotor"
, the string is stored as a
character vector, 'DCmotor'
.
Example: 'system_1'
SamplingGrid
— Sampling grid for model arrays
structure with no fields (default) | structure
Sampling grid for model arrays, specified as a structure. For model arrays that are derived by sampling one or more independent variables, this property tracks the variable values associated with each model in the array. This information appears when you display or plot the model array. Use this information to trace results back to the independent variables.
Set the field names of the data structure to the names of the sampling variables. Set the field values to the sampled variable values associated with each model in the array. All sampling variables should be numeric and scalar valued, and all arrays of sampled values should match the dimensions of the model array.
For example, suppose you create a 11-by-1 array of linear
models, sysarr
, by taking snapshots of a linear
time-varying system at times t = 0:10
. The following code
stores the time samples with the linear models.
sysarr.SamplingGrid = struct('time',0:10)
Similarly, suppose you create a 6-by-9 model array,
M
, by independently sampling two variables,
zeta
and w
. The following code
attaches the (zeta,w)
values to
M
.
[zeta,w] = ndgrid(<6 values of zeta>,<9 values of w>) M.SamplingGrid = struct('zeta',zeta,'w',w)
When you display M
, each entry in the array
includes the corresponding zeta
and w
values.
M
M(:,:,1,1) [zeta=0.3, w=5] = 25 -------------- s^2 + 3 s + 25 M(:,:,2,1) [zeta=0.35, w=5] = 25 ---------------- s^2 + 3.5 s + 25 ...
For model arrays generated by linearizing a Simulink® model at multiple parameter values or operating points, the software populates SamplingGrid
automatically with the variable values that correspond to each entry in the array. For example, the Simulink
Control Design™ commands linearize
(Simulink Control Design) and slLinearizer
(Simulink Control Design) populate SamplingGrid
in this way.
Object Functions
Most functions that work on numeric LTI models also work on uss
models. These include model interconnection functions such as
connect
and feedback
, and linear analysis
functions such as bode
and stepinfo
. Some
functions that generate plots, such as bode
and
step
, plot random samples of the uncertain model to give you a
sense of the distribution of uncertain dynamics. When you use these commands to return
data, however, they operate on the nominal value of the system only.
In addition, you can use functions such as robstab
and
wcgain
to perform robustness and worst-case analysis of
uncertain systems represented by uss
models. You can also use tuning
functions such as systune
for robust controller tuning.
The following lists contain a representative subset of the functions you can use with
uss
models.
Model Interconnection
Linear Analysis
step | Step response of dynamic system |
bode | Bode frequency response of dynamic system |
sigma | Singular values of frequency response of dynamic system |
margin | Gain margin, phase margin, and crossover frequencies |
diskmargin | Disk-based stability margins of feedback loops |
Robustness and Worst-Case Analysis
usample | Generate random samples of uncertain model or element |
robstab | Robust stability of uncertain system |
robgain | Robust performance of uncertain system |
wcgain | Worst-case gain of uncertain system |
wcsigmaplot | Plot worst-case gain of uncertain system |
Examples
Transfer Function with Uncertain Coefficients
Create a second-order transfer function with uncertain natural frequency and damping coefficient.
w0 = ureal('w0',10); zeta = ureal('zeta',0.7,'Range',[0.6,0.8]); usys = tf(w0^2,[1 2*zeta*w0 w0^2])
Uncertain continuous-time state-space model with 1 outputs, 1 inputs, 2 states. The model uncertainty consists of the following blocks: w0: Uncertain real, nominal = 10, variability = [-1,1], 5 occurrences zeta: Uncertain real, nominal = 0.7, range = [0.6,0.8], 1 occurrences Type "usys.NominalValue" to see the nominal value and "usys.Uncertainty" to interact with the uncertain elements.
usys
is an uncertain state-space (uss
) model with two Control Design Blocks. The uncertain real parameter w0
occurs five times in the transfer function, twice in the numerator and three times in the denominator. To reduce the number of occurrences, you can rewrite the transfer function by dividing numerator and denominator by w0^2
.
usys = tf(1,[1/w0^2 2*zeta/w0 1])
Uncertain continuous-time state-space model with 1 outputs, 1 inputs, 2 states. The model uncertainty consists of the following blocks: w0: Uncertain real, nominal = 10, variability = [-1,1], 3 occurrences zeta: Uncertain real, nominal = 0.7, range = [0.6,0.8], 1 occurrences Type "usys.NominalValue" to see the nominal value and "usys.Uncertainty" to interact with the uncertain elements.
In the new formulation, there are only three occurrences of the uncertain parameter w0
. Reducing the number of occurrences of a Control Design Block in a model can improve the performance of calculations involving the model.
Examine the step response of the system to get a sense of the range of responses that the uncertainty represents.
step(usys)
When you use linear analysis commands like step
and bode
to create response plots of uncertain systems, they automatically plot random samples of the system. While these samples give you a sense of the range of responses that fall within the uncertainty, they do not necessarily include the worst-case response. To analyze worst-case responses of uncertain systems, use wcgain
or wcsigmaplot
.
Uncertain State-Space Model
To create an uncertain state-space model, you first use Control Design Blocks to create uncertain elements. Then, use the elements to specify the state-space matrices of the system.
For instance, create three uncertain real parameters and build state-spaces matrices from them.
p1 = ureal('p1',10,'Percentage',50); p2 = ureal('p2',3,'PlusMinus',[-.5 1.2]); p3 = ureal('p3',0); A = [-p1 p2; 0 -p1]; B = [-p2; p2+p3]; C = [1 0; 1 1-p3]; D = [0; 0];
The matrices constructed with uncertain parameters, A
, B
, and C
, are uncertain matrix (umat
) objects. Using them as inputs to ss
results in a 2-output, 1-input, 2-state uncertain system.
sys = ss(A,B,C,D)
Uncertain continuous-time state-space model with 2 outputs, 1 inputs, 2 states. The model uncertainty consists of the following blocks: p1: Uncertain real, nominal = 10, variability = [-50,50]%, 2 occurrences p2: Uncertain real, nominal = 3, variability = [-0.5,1.2], 2 occurrences p3: Uncertain real, nominal = 0, variability = [-1,1], 2 occurrences Type "sys.NominalValue" to see the nominal value and "sys.Uncertainty" to interact with the uncertain elements.
The display shows that the system includes the three uncertain parameters.
System with Uncertain Dynamics
Create an uncertain system comprising a nominal model with a frequency-dependent amount of uncertainty. You can model such uncertainty using ultidyn
and a weighting function that represents the frequency profile of the uncertainty. Suppose that at low frequency, below 3 rad/s, the model can vary up to 40% from its nominal value. Around 3 rad/s, the percentage variation starts to increase. The uncertainty crosses 100% at 15 rad/s and reaches 2000% at approximately 1000 rad/s. Create a transfer function with an appropriate frequency profile, Wunc
, to use as a weighting function that modulates the amount of uncertainty with frequency.
Wunc = makeweight(0.40,15,3); bodemag(Wunc)
Next, create a transfer function representing the nominal value of the system. For this example, use a transfer function with a single pole at s = –60 rad/s. Then, create a ultidyn
model to represent 1-input, 1-output uncertain dynamics, and add the weighted uncertainty to the nominal transfer function.
sysNom = tf(1,[1/60 1]); unc = ultidyn('unc',[1 1],'SampleStateDim',3); % samples of uncertain dynamics have three states usys = sysNom*(1 + Wunc*unc); % Set properties of usys usys.InputName = 'u'; usys.OutputName = 'fs';
Examine random samples of usys to see the effect of the uncertain dynamics.
bode(usys,usys.Nominal)
Properties of uss Objects
uss
models, like all model objects, include properties that store dynamics and model metadata. View the properties of an uncertain state-space model.
p1 = ureal('p1',10,'Percentage',50); p2 = ureal('p2',3,'PlusMinus',[-.5 1.2]); p3 = ureal('p3',0); A = [-p1 p2; 0 -p1]; B = [-p2; p2+p3]; C = [1 0; 1 1-p3]; D = [0; 0]; sys = ss(A,B,C,D); % create uss model get(sys)
NominalValue: [2x1 ss] Uncertainty: [1x1 struct] A: [2x2 umat] B: [2x1 umat] C: [2x2 umat] D: [2x1 double] E: [] StateName: {2x1 cell} StateUnit: {2x1 cell} InternalDelay: [0x1 double] InputDelay: 0 OutputDelay: [2x1 double] InputName: {''} InputUnit: {''} InputGroup: [1x1 struct] OutputName: {2x1 cell} OutputUnit: {2x1 cell} OutputGroup: [1x1 struct] Notes: [0x1 string] UserData: [] Name: '' Ts: 0 TimeUnit: 'seconds' SamplingGrid: [1x1 struct]
Most of the properties behave similarly to how they behave for ss
model objects. The NominalValue
property is itself an ss
model object. You can therefore analyze the nominal value as you would any state-space model. For instance, compute the poles and step response of the nominal system.
pole(sys.NominalValue)
ans = 2×1
-10
-10
step(sys.NominalValue)
As with the uncertain matrices (umat
), the Uncertainty
property is a structure containing the uncertain elements. You can use this property for direct access to the uncertain elements. For instance, check the Range
of the uncertain element named p2
within sys
.
sys.Uncertainty.p2.Range
ans = 1×2
2.5000 4.2000
Change the uncertainty range of p2
within sys
.
sys.Uncertainty.p2.Range = [2 4];
This command changes only the range of the parameter called p2
in sys
. It does not change the variable p2
in the MATLAB® workspace.
p2.Range
ans = 1×2
2.5000 4.2000
Version History
Introduced before R2006a
MATLAB 명령
다음 MATLAB 명령에 해당하는 링크를 클릭했습니다.
명령을 실행하려면 MATLAB 명령 창에 입력하십시오. 웹 브라우저는 MATLAB 명령을 지원하지 않습니다.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
