estimateMonoCameraParameters
Estimate extrinsic monocular camera parameters using calibration pattern
Syntax
Description
[
estimates the extrinsic parameters of a monocular camera by using the intrinsic parameters
of the camera and a calibration pattern. The returned extrinsic parameters define the yaw,
pitch, and roll rotation angles between the camera
coordinate system and vehicle coordinate system
axes. The function also returns the height of the camera above the ground. Specify the
intrinsic parameters, the image and world coordinates of the calibration pattern key points,
and the height of the calibration pattern's origin above the ground. The calibration pattern
can be a checkerboard or a circle grid pattern.pitch
,yaw
,roll
,height
] = estimateMonoCameraParameters(intrinsics
,imagePoints
,worldPoints
,patternOriginHeight
)
By default, the function assumes that the camera is facing forward and that the calibration pattern is parallel with the ground. For all possible camera and calibration pattern placements, see Calibrate a Monocular Camera.
[
specifies options using one or more name-value pairs, in addition to the inputs and outputs
from the previous syntax. For example, you can specify the orientation or position of the
calibration pattern.pitch
,yaw
,roll
,height
] = estimateMonoCameraParameters(___,Name,Value
)
Examples
Configure Monocular Camera Using Checkerboard Pattern
Configure a monocular fisheye camera by removing lens distortion and then estimating the camera's extrinsic parameters. Use an image of a checkerboard as the calibration pattern. For a more detailed look at how to configure a monocular camera that has a fisheye lens, see the Configure Monocular Fisheye Camera example.
Load the intrinsic parameters of a monocular camera that has a fisheye lens. intrinsics
is a fisheyeIntrinsics
object.
ld = load('fisheyeCameraIntrinsics');
intrinsics = ld.intrinsics;

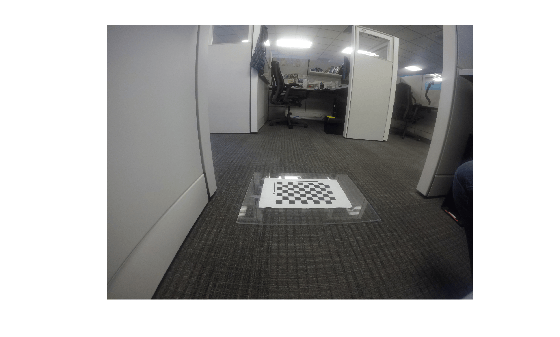

Load an image of a checkerboard pattern that is placed flat on the ground. This image is for illustrative purposes and was not taken from a camera mounted to the vehicle. In a camera mounted to the vehicle, the X-axis of the pattern points to the right of the vehicle, and the Y-axis of the pattern points to the camera. Display the image.
imageFileName = fullfile(toolboxdir('driving'),'drivingdata','checkerboard.png'); I = imread(imageFileName); imshow(I)
Detect the coordinates of the checkerboard corners in the image.
[imagePoints,boardSize] = detectCheckerboardPoints(I);
Generate the corresponding world coordinates of the corners.
squareSize = 0.029; % Square size in meters worldPoints = patternWorldPoints('checkerboard',boardSize,squareSize);
Estimate the extrinsic parameters required to configure the monoCamera
object. Because the checkerboard pattern is directly on the ground, set the height of the pattern's origin to 0.
patternOriginHeight = 0;
[pitch,yaw,roll,height] = estimateMonoCameraParameters(intrinsics, ...
imagePoints,worldPoints,patternOriginHeight);
Because monoCamera
does not accept fisheyeIntrinsics
objects, remove distortion from the image and compute new intrinsic parameters from the undistorted image. camIntrinsics
is an cameraIntrinsics

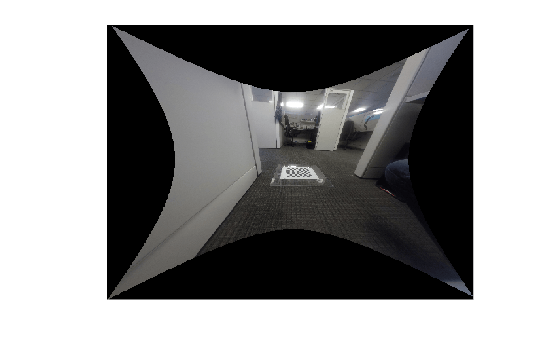

object. Display the image to confirm distortion is removed.
[undistortedI,camIntrinsics] = undistortFisheyeImage(I,intrinsics,'Output','full'); imshow(undistortedI)
Configure the monocular camera using the estimated parameters.
monoCam = monoCamera(camIntrinsics,height,'Pitch',pitch,'Yaw',yaw,'Roll',roll)
monoCam = monoCamera with properties: Intrinsics: [1x1 cameraIntrinsics] WorldUnits: 'meters' Height: 0.4447 Pitch: 21.8459 Yaw: -3.6130 Roll: -3.1707 SensorLocation: [0 0]
Configure Monocular Camera Using Circle Grid Pattern and Generate Bird's-Eye View
Configure a monocular camera using a circle grid pattern and then estimate the camera's extrinsic parameters. Use an image of an asymmetric circle grid as the calibration pattern.
Load the intrinsic parameters of a monocular camera. intrinsics
is a cameraIntrinsics
object.
ld = load('IRCameraIntrinsics');
intrinsics = ld.intrinsics;

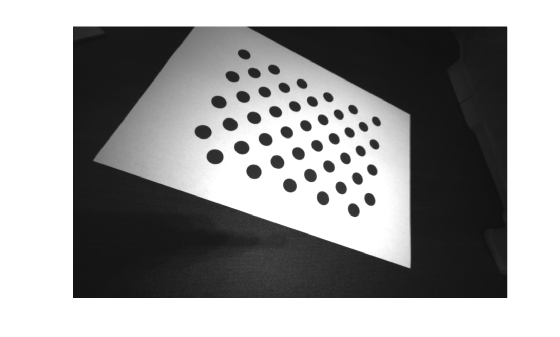

Load an image of an asymmetric circle grid pattern that is placed parallel to the ground placed at a height. This image is for illustrative purposes and was not taken from a camera mounted to the vehicle. In a camera mounted to the vehicle, the X-axis of the pattern points to the right of the vehicle, and the Y-axis of the pattern points to the camera. Display the image.
imageFileName = fullfile(toolboxdir('vision'),'visiondata', ... 'calibration','circleGrid','stereo','left','left07.jpg'); I = imread(imageFileName); imshow(I)
Define the circle grid pattern dimensions and detect the centers of the circles in the image.
patternDims = [4 11]; imagePoints = detectCircleGridPoints(I,patternDims);
Generate the corresponding world coordinates of the corners.
centerDistance = 0.0365; % Center-to-center distance in meters worldPoints = patternWorldPoints('circle-grid-asymmetric',patternDims,centerDistance);
Estimate the extrinsic parameters required to configure the monoCamera
object. Because the checkerboard pattern is placed at a height of 1.2 m from the ground, set the height of the pattern's origin to 1.2 m.
patternOriginHeight = 1.2;
[pitch,yaw,roll,height] = estimateMonoCameraParameters(intrinsics, ...
imagePoints,worldPoints,patternOriginHeight);
Configure the monocular camera using the estimated parameters.
monoCam = monoCamera(intrinsics,height,'Pitch',pitch,'Yaw',yaw,'Roll',roll)
monoCam = monoCamera with properties: Intrinsics: [1x1 cameraIntrinsics] WorldUnits: 'meters' Height: 1.3869 Pitch: 60.2886 Yaw: -26.5963 Roll: -45.7440 SensorLocation: [0 0]
Define the area in front of the camera that you want to transform into a bird's-eye view. Set an area from 0 to 2.5 meters in front of the camera, with 1.75 meters to either side of the camera.
bottomOffset = 0; distAhead = 2.5; spaceToOneSide = 1.75; outView = [bottomOffset,distAhead,-spaceToOneSide,spaceToOneSide];
Set the output image width to 250 pixels. Compute the output length automatically from the width by setting the length to NaN
.
outImageSize = [NaN,250];
Create an object for performing bird's-eye-view transforms, using the previously defined parameters.
birdsEye = birdsEyeView(monoCam,outView,outImageSize);

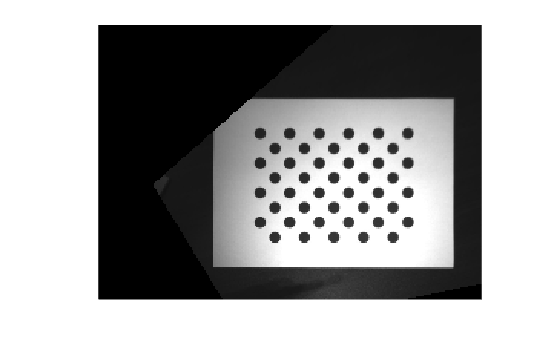

Transform the input image into a bird's-eye-view image and display the result.
BEV = transformImage(birdsEye,I); imshow(BEV)
Input Arguments
intrinsics
— Intrinsic camera parameters
cameraIntrinsics
object |
fisheyeIntrinsics
object | cameraIntrinsicskb
object
Intrinsic camera parameters, specified as a cameraIntrinsics
, fisheyeIntrinsics
, or a cameraIntrinsicskb
object.
Calibration pattern images produced by these cameras can include lens distortion, which can affect the accuracy of corner point detections. To remove lens distortion and compute new intrinsic parameters, use these functions:
For
cameraIntrinsics
orcameraIntrinsicskb
objects, useundistortImage
.For
fisheyeIntrinsics
objects, useundistortFisheyeImage
.
imagePoints
— Image coordinates of calibration pattern key points
M-by-2 matrix
Image coordinates of calibration pattern key points, specified as an
M-by-2 matrix of M number of
[x
y] vectors. These points must come from an image captured by a
monocular camera. To detect these points in an image, use the detectCheckerboardPoints
function.
estimateMonoCameraParameters
assumes that all points in
worldPoints
are in the
(XP,
YP) plane and that M is
greater than or equal to 4. To specify the height of the
(XP,
YP) plane above the ground, use
patternOriginHeight
.
Data Types: single
| double
worldPoints
— World coordinates of key points in calibration pattern
M-by-2 matrix
World coordinates of the key points in the calibration pattern, specified as an M-by-2 matrix of M number of [x y] vectors.
estimateMonoCameraParameters
assumes that all points in
worldPoints
are in the
(XP,
YP) plane and that M is
greater than or equal to 4. To specify the height of the
(XP,
YP) plane above the ground, use
patternOriginHeight
.
Point (0,0) corresponds to the bottom-right corner of the top-left square of the checkerboard.
Data Types: single
| double
patternOriginHeight
— Height of calibration pattern's origin
nonnegative real scalar
Height of the calibration pattern's origin above the ground, specified as a nonnegative real scalar. The origin is the bottom-right corner of the top-left square of the checkerboard.
The measurement of patternOriginHeight
depends on the
orientation of the calibration pattern, as shown in these diagrams.
Horizontal Orientation | Vertical Orientation |
---|---|
|
|
To specify the pattern orientation, use the
'PatternOrientation'
name-value pair. If you set
'PatternOrientation'
to 'horizontal'
(default), and the pattern is on the ground, then set
patternOriginHeight
to 0
.
Data Types: single
| double
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: 'PatternOrientation','vertical','PatternPosition','right'
PatternOrientation
— Orientation of calibration pattern
'horizontal'
(default) | 'vertical'
Orientation of the calibration pattern relative to the ground, specified as the
comma-separated pair consisting of 'PatternOrientation'
and one of
the following:
'horizontal'
— Calibration pattern is parallel to the ground.'vertical'
— Calibration pattern is perpendicular to the ground.
PatternPosition
— Position of calibration pattern
'front'
(default) | 'back'
| 'left'
| 'right'
Position of the calibration pattern relative to the ground, specified as the
comma-separated pair consisting of 'PatternPosition'
and one of the
following:
'front'
— Calibration pattern is in front of the vehicle.'back'
— Calibration pattern is behind the vehicle.'left'
— Calibration pattern is to the left of the vehicle.'right'
— Calibration pattern is to the right of the vehicle.
Output Arguments
pitch
— Pitch angle
real scalar
Pitch angle between the horizontal plane of the vehicle and the optical axis of the
camera, returned as a real scalar in degrees. pitch
uses the ISO
convention for rotation, with a clockwise positive angle direction when looking in the
positive direction of the vehicle's YV-axis.
For more details, see Angle Directions.
yaw
— Yaw angle
real scalar
Yaw angle between the XV-axis of the
vehicle and the optical axis of the camera, returned as a real scalar in degrees.
yaw
uses the ISO convention for rotation, with a clockwise
positive angle direction when looking in the positive direction of the vehicle's
ZV-axis.
For more details, see Angle Directions.
roll
— Roll angle
real scalar
Roll angle of the camera around its optical axis, returned as a real scalar in
degrees. roll
uses the ISO convention for rotation, with a
clockwise positive angle direction when looking in the positive direction of the
vehicle's XV-axis.
For more details, see Angle Directions.
height
— Perpendicular height from ground to camera
nonnegative real scalar
Perpendicular height from the ground to the focal point of the camera, returned as a nonnegative real scalar in world units, such as meters.
More About
Vehicle Coordinate System
In the vehicle coordinate system
(XV,
YV,
ZV) defined by a monoCamera
object:
The XV-axis points forward from the vehicle.
The YV-axis points to the left, as viewed when facing forward.
The ZV-axis points up from the ground to maintain the right-handed coordinate system.
By default, the origin of this coordinate system is on the road surface, directly below the camera center (focal point of camera).
To obtain more reliable results from estimateMonoCameraParameters
, the calibration
pattern must be placed in precise locations relative to this coordinate system. For more
details, see Calibrate a Monocular Camera.
Angle Directions
The monocular camera sensor uses clockwise positive angle directions when looking in the positive direction of the Z-, Y-, and X-axes, respectively.
Version History
Introduced in R2018b
