# varm

Create vector autoregression (VAR) model

## Description

Use `varm` to specify a p-order, multivariate vector autoregression model (VAR(p)) model. The `varm` function returns a `varm` object specifying the functional form of the VAR(p) and storing its parameter values.

The key components of a `varm` object include the number of time series (response-variable dimensionality) and the order of the multivariate autoregressive polynomial, which is denoted p. That is, p is the maximum lag with a nonzero coefficient matrix. Other model components include a regression component to associate the same exogenous predictor variables to each response series, and constant and time trend terms.

All coefficient matrices are unknown (matrices of `NaN` values) and estimable unless you specify their values using name-value pair argument syntax. To estimate models containing all or partially unknown parameter values given data, use `estimate`. For completely specified models (models in which all parameter values are known), simulate or forecast responses using `simulate` or `forecast`, respectively.

## Creation

### Syntax

``Mdl = varm``
``Mdl = varm(numseries,numlags)``
``Mdl = varm(Name,Value)``

### Description

example

````Mdl = varm` creates a VAR(0) model composed of one response series.```

example

````Mdl = varm(numseries,numlags)` creates a VAR(`numlags`) model composed of `numseries` response series. The maximum nonzero lag is `numlags`. All lags have `numseries`-by-`numseries` coefficient matrices composed of `NaN` values.This shorthand syntax allows for easy model template creation. The model template is suited for unrestricted parameter estimation, that is, estimation without parameter equality constraints. However, after creating a model, you can alter property values using dot notation.```

example

````Mdl = varm(Name,Value)` sets properties or additional options using name-value pair arguments. Enclose each name in quotes. For example, `'Lags',[1 4],'AR',AR` specifies the two autoregressive coefficient matrices in `AR` at lags `1` and `4`.This longhand syntax allows for creating more flexible models. `varm` infers the number of series (`NumSeries`) and autoregressive polynomial degree (`P`) from the properties that you set. Therefore, property values that correspond to the number of series or autoregressive polynomial degree must be consistent with each other.```

### Input Arguments

expand all

The shorthand syntax provides an easy way for you to create model templates that are suitable for unrestricted parameter estimation. For example, to create a VAR(2) model composed of three response series, enter:

`Mdl = varm(3,2);`

Number of time series, specified as a positive integer. `numseries` specifies the dimensionality of the multivariate response variable and innovation, yt and εt, respectively.

Data Types: `double`

Number of lagged responses to include in the model, specified as a nonnegative integer. The resulting model is a VAR(`numlags`) model. All lags have `numseries`-by-`numseries` coefficient matrices composed of `NaN` values.

Data Types: `double`

#### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

The longhand syntax enables you to create models in which some or all coefficients are known. During estimation, `estimate` imposes equality constraints on any known parameters.

Example: `'Lags',[4 8]` specifies a VAR(8) model with nonzero autoregressive coefficient matrices at lags `4` and `8`.

To set values for writable properties, use `Name,Value` pair argument syntax. For example, `'Constant',[1; 2],'AR',{[0.1 -0.2; -0.3 0.5]}` sets `Constant` to `[1; 2]` and `AR` to `{[0.1 -0.2; -0.3 0.5]}`.

Autoregressive polynomial lags, specified as the comma-separated pair consisting of `'Lags'` and a numeric vector containing at most `P` elements of unique positive integers.

The lengths of `Lags` and `AR` must be equal. `Lags(j)` is the lag corresponding to the coefficient matrix `AR{j}`.

Example: `'Lags',[1 4]`

Data Types: `double`

## Properties

expand all

You can set writable property values when you create the model object by using name-value pair argument syntax, or after you create model object by using dot notation. For example, to create a VAR(1) model composed of two response series, and then specify an unknown time trend term, enter:

```Mdl = varm('AR',{NaN(2)}); Mdl.Trend = NaN;```

Number of time series, specified as a positive integer. `NumSeries` specifies the dimensionality of the multivariate response variable and innovation, yt and εt, respectively.

Data Types: `double`

Multivariate autoregressive polynomial order, specified as a nonnegative integer. `P` is the maximum lag that has a nonzero coefficient matrix. Lags that are less than `P` can have coefficient matrices composed entirely of zeros.

`P` specifies the number of presample observations required to initialize the model.

Data Types: `double`

Model intercepts (or constants), specified as a `NumSeries`-by-1 numeric vector.

Example: `'Constant',[1; 2]`

Data Types: `double`

Autoregressive coefficient matrices associated with the lagged responses, specified as a cell vector of `NumSeries`-by-`NumSeries` numeric matrices.

Specify coefficient signs corresponding to those coefficients in the VAR model expressed in difference-equation notation.

• If you set the `Lags` name-value pair argument to `Lags`, then the following conditions apply.

• The lengths of `AR` and `Lags` are equal.

• `AR{j}` is the coefficient matrix of lag `Lags(j)`.

• By default, `AR` is a `numel(Lags)`-by-1 cell vector of matrices composed of `NaN` values.

• Otherwise, the following conditions apply.

• The length of `AR` is `P`.

• `AR{j}` is the coefficient matrix of lag `j`.

• By default, `AR` is a `P`-by-1 cell vector of matrices composed of `NaN` values.

Example: `'AR',{[0.5 -0.1; 0.1 0.2]}`

Data Types: `cell`

Linear time trend term, specified as a `NumSeries`-by-1 numeric vector. The default value specifies no linear time trend in the model.

Example: `'Trend',[0.1; 0.2]`

Data Types: `double`

Regression coefficient matrix associated with the predictor variables, specified as a `NumSeries`-by-`NumPreds` numeric matrix. `NumPreds` is the number of predictor variables, that is, the number of columns in the predictor data.

`Beta(j,:)` contains the regression coefficients for each predictor in the equation of response y`j`,t. `Beta(:,k)` contains the regression coefficient in each response equation for predictor xk. By default, all predictor variables are in the regression component of all response equations. You can exclude certain predictors from certain equations by specifying equality constraints to 0.

Example: In a model that includes 3 responses and 4 predictor variables, to exclude the second predictor from the third equation and leave the others unrestricted, specify `[NaN NaN NaN NaN; NaN NaN NaN NaN; NaN 0 NaN NaN]`.

The default value specifies no regression coefficient in the model. However, if you specify predictor data when you estimate the model using `estimate`, then MATLAB® sets `Beta` to an appropriately sized matrix of `NaN` values.

Example: `'Beta',[2 3 -1 2; 0.5 -1 -6 0.1]`

Data Types: `double`

Innovations covariance matrix of the `NumSeries` innovations at each time t = 1,...,T, specified as a `NumSeries`-by-`NumSeries` numeric, positive definite matrix.

Example: `'Covariance',eye(2)`

Data Types: `double`

Model description, specified as a string scalar or character vector. By default, this property describes the parametric form of the model, for example, `"2-Dimensional VAR(3) Model"`.

Example: `'Description','Model 1'`

Data Types: `string` | `char`

Response series names, specified as a `NumSeries` length string vector. The default is ```['Y1' 'Y2' ... 'YNumSeries']```.

Example: `'SeriesNames',{'CPI' 'Unemployment'}`

Data Types: `string`

## Object Functions

 `estimate` Fit vector autoregression (VAR) model to data `fevd` Generate vector autoregression (VAR) model forecast error variance decomposition (FEVD) `filter` Filter disturbances through vector autoregression (VAR) model `forecast` Forecast vector autoregression (VAR) model responses `infer` Infer vector autoregression model (VAR) innovations `irf` Generate vector autoregression (VAR) model impulse responses `simulate` Monte Carlo simulation of vector autoregression (VAR) model `summarize` Display estimation results of vector autoregression (VAR) model `vecm` Convert vector autoregression (VAR) model to vector error-correction (VEC) model

## Examples

collapse all

Create a zero-degree VAR model composed of one response series.

`Mdl = varm`
```Mdl = varm with properties: Description: "1-Dimensional VAR(0) Model" SeriesNames: "Y" NumSeries: 1 P: 0 Constant: NaN AR: {} Trend: 0 Beta: [1×0 matrix] Covariance: NaN ```

`Mdl` is a `varm` model object. It contains one response series, an unknown constant, and an unknown innovation variance. Properties of the model appear at the command line.

Suppose your problem has an autoregressive coefficient at lag 1. To create such a model, set the autoregressive coefficient property (`AR`) to a cell containing a `NaN` value using dot notation.

`Mdl.AR = {NaN}`
```Mdl = varm with properties: Description: "1-Dimensional VAR(1) Model" SeriesNames: "Y" NumSeries: 1 P: 1 Constant: NaN AR: {NaN} at lag [1] Trend: 0 Beta: [1×0 matrix] Covariance: NaN ```

If your problem contains multiple response series, then use a different `varm` syntax for model creation.

Create a VAR(4) model for the consumer price index (CPI) and unemployment rate.

Load the `Data_USEconModel` data set. Declare variables for the CPI (`CPI`) and unemployment rate (`UNRATE`) series.

```load Data_USEconModel cpi = DataTable.CPIAUCSL; unrate = DataTable.UNRATE;```

Create a default VAR(4) model using the shorthand syntax.

`Mdl = varm(2,4)`
```Mdl = varm with properties: Description: "2-Dimensional VAR(4) Model" SeriesNames: "Y1" "Y2" NumSeries: 2 P: 4 Constant: [2×1 vector of NaNs] AR: {2×2 matrices of NaNs} at lags [1 2 3 ... and 1 more] Trend: [2×1 vector of zeros] Beta: [2×0 matrix] Covariance: [2×2 matrix of NaNs] ```

`Mdl` is a `varm` model object. It serves as a template for model estimation. MATLAB® considers any `NaN` values as unknown parameter values to be estimated. For example, the `Constant` property is a 2-by-1 vector of `NaN` values. Therefore, model constants are active model parameters to be estimated.

Include an unknown linear time trend term by setting the `Trend` property to `NaN` using dot notation.

`Mdl.Trend = NaN`
```Mdl = varm with properties: Description: "2-Dimensional VAR(4) Model with Linear Time Trend" SeriesNames: "Y1" "Y2" NumSeries: 2 P: 4 Constant: [2×1 vector of NaNs] AR: {2×2 matrices of NaNs} at lags [1 2 3 ... and 1 more] Trend: [2×1 vector of NaNs] Beta: [2×0 matrix] Covariance: [2×2 matrix of NaNs] ```

MATLAB expands `NaN` to the appropriate length, that is, a 2-by-1 vector of `NaN` values.

Create a VAR model for three arbitrary response series. Specify the parameter values in this system of equations.

`$\begin{array}{l}{y}_{1,t}=1+0.2{y}_{1,t-1}-0.1{y}_{2,t-1}+0.5{y}_{3,t-1}+1.5t+{\epsilon }_{1,t}\\ {y}_{2,t}=1-0.4{y}_{1,t-1}+0.5{y}_{2,t-1}+2t+{\epsilon }_{2,t}\\ {y}_{3,t}=-0.1{y}_{1,t-1}+0.2{y}_{2,t-1}+0.3{y}_{3,t-1}+{\epsilon }_{3,t}.\end{array}$`

Assume the innovations are multivariate Gaussian with a mean of 0 and the covariance matrix

`$\Sigma =\left[\begin{array}{ccc}0.1& 0.01& 0.3\\ 0.01& 0.5& 0\\ 0.3& 0& 1\end{array}\right].$`

Create variables for the parameter values.

```c = [1; 1; 0]; Phi1 = {[0.2 -0.1 0.5; -0.4 0.2 0; -0.1 0.2 0.3]}; delta = [1.5; 2; 0]; Sigma = [0.1 0.01 0.3; 0.01 0.5 0; 0.3 0 1];```

Create a VAR(1) model object representing the system of dynamic equations using the appropriate name-value pair arguments.

`Mdl = varm('Constant',c,'AR',Phi1,'Trend',delta,'Covariance',Sigma)`
```Mdl = varm with properties: Description: "AR-Stationary 3-Dimensional VAR(1) Model with Linear Time Trend" SeriesNames: "Y1" "Y2" "Y3" NumSeries: 3 P: 1 Constant: [1 1 0]' AR: {3×3 matrix} at lag [1] Trend: [1.5 2 0]' Beta: [3×0 matrix] Covariance: [3×3 matrix] ```

`Mdl` is a fully specified `varm` model object. By default, `varm` attributes the autoregressive coefficient to the first lag.

You can adjust model properties using dot notation. For example, consider another VAR model that attributes the autoregressive coefficient matrix `Phi1` to the second lag term, specifies a matrix of zeros for the first lag coefficient, and treats all else as being equal to `Mdl`. Create this VAR(2) model.

```Mdl2 = Mdl; Phi = [zeros(3,3) Phi1]; Mdl2.AR = Phi```
```Mdl2 = varm with properties: Description: "AR-Stationary 3-Dimensional VAR(2) Model with Linear Time Trend" SeriesNames: "Y1" "Y2" "Y3" NumSeries: 3 P: 2 Constant: [1 1 0]' AR: {3×3 matrix} at lag [2] Trend: [1.5 2 0]' Beta: [3×0 matrix] Covariance: [3×3 matrix] ```

Alternatively, you can create another model object using `varm` and the same syntax as for `Mdl`, but additionally specify `'Lags',2`.

Fit a VAR(4) model to the consumer price index (CPI) and unemployment rate data.

Load the `Data_USEconModel` data set.

`load Data_USEconModel`

Plot the two series on separate plots.

```figure; plot(DataTable.Time,DataTable.CPIAUCSL); title('Consumer Price Index'); ylabel('Index'); xlabel('Date');```

```figure; plot(DataTable.Time,DataTable.UNRATE); title('Unemployment Rate'); ylabel('Percent'); xlabel('Date');```

Stabilize the CPI by converting it to a series of growth rates. Synchronize the two series by removing the first observation from the unemployment rate series.

```rcpi = price2ret(DataTable.CPIAUCSL); unrate = DataTable.UNRATE(2:end);```

Create a default VAR(4) model using the shorthand syntax.

`Mdl = varm(2,4)`
```Mdl = varm with properties: Description: "2-Dimensional VAR(4) Model" SeriesNames: "Y1" "Y2" NumSeries: 2 P: 4 Constant: [2×1 vector of NaNs] AR: {2×2 matrices of NaNs} at lags [1 2 3 ... and 1 more] Trend: [2×1 vector of zeros] Beta: [2×0 matrix] Covariance: [2×2 matrix of NaNs] ```

`Mdl` is a `varm` model object. All properties containing `NaN` values correspond to parameters to be estimated given data.

Estimate the model using the entire data set.

`EstMdl = estimate(Mdl,[rcpi unrate])`
```EstMdl = varm with properties: Description: "AR-Stationary 2-Dimensional VAR(4) Model" SeriesNames: "Y1" "Y2" NumSeries: 2 P: 4 Constant: [0.00171639 0.316255]' AR: {2×2 matrices} at lags [1 2 3 ... and 1 more] Trend: [2×1 vector of zeros] Beta: [2×0 matrix] Covariance: [2×2 matrix] ```

`EstMdl` is an estimated `varm` model object. It is fully specified because all parameters have known values. The description indicates that the autoregressive polynomial is stationary.

Display summary statistics from the estimation.

`summarize(EstMdl)`
``` AR-Stationary 2-Dimensional VAR(4) Model Effective Sample Size: 241 Number of Estimated Parameters: 18 LogLikelihood: 811.361 AIC: -1586.72 BIC: -1524 Value StandardError TStatistic PValue ___________ _____________ __________ __________ Constant(1) 0.0017164 0.0015988 1.0735 0.28303 Constant(2) 0.31626 0.091961 3.439 0.0005838 AR{1}(1,1) 0.30899 0.063356 4.877 1.0772e-06 AR{1}(2,1) -4.4834 3.6441 -1.2303 0.21857 AR{1}(1,2) -0.0031796 0.0011306 -2.8122 0.004921 AR{1}(2,2) 1.3433 0.065032 20.656 8.546e-95 AR{2}(1,1) 0.22433 0.069631 3.2217 0.0012741 AR{2}(2,1) 7.1896 4.005 1.7951 0.072631 AR{2}(1,2) 0.0012375 0.0018631 0.6642 0.50656 AR{2}(2,2) -0.26817 0.10716 -2.5025 0.012331 AR{3}(1,1) 0.35333 0.068287 5.1742 2.2887e-07 AR{3}(2,1) 1.487 3.9277 0.37858 0.705 AR{3}(1,2) 0.0028594 0.0018621 1.5355 0.12465 AR{3}(2,2) -0.22709 0.1071 -2.1202 0.033986 AR{4}(1,1) -0.047563 0.069026 -0.68906 0.49079 AR{4}(2,1) 8.6379 3.9702 2.1757 0.029579 AR{4}(1,2) -0.00096323 0.0011142 -0.86448 0.38733 AR{4}(2,2) 0.076725 0.064088 1.1972 0.23123 Innovations Covariance Matrix: 0.0000 -0.0002 -0.0002 0.1167 Innovations Correlation Matrix: 1.0000 -0.0925 -0.0925 1.0000 ```

This example follows from Estimate VAR(4) Model.

Create and estimate a VAR(4) model for the CPI growth rate and unemployment rates. Treat the last ten periods as the forecast horizon.

```load Data_USEconModel cpi = DataTable.CPIAUCSL; unrate = DataTable.UNRATE; rcpi = price2ret(cpi); unrate = unrate(2:end); Y = [rcpi unrate]; Mdl = varm(2,4); EstMdl = estimate(Mdl,Y(1:(end-10),:));```

Forecast 10 responses using the estimated model and in-sample data as presample observations.

`YF = forecast(EstMdl,10,Y(1:(end-10),:));`

Plot the part of the series with their forecasted values on separate plots.

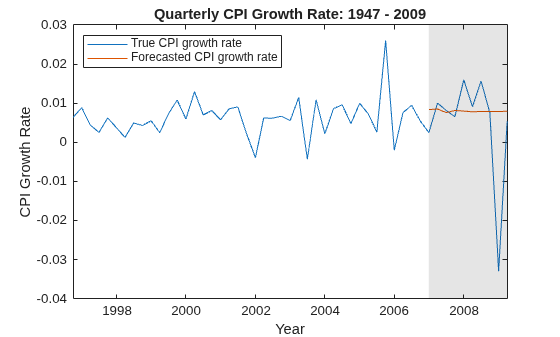

```figure; plot(DataTable.Time(end - 50:end),rcpi(end - 50:end)); hold on plot(DataTable.Time((end - 9):end),YF(:,1)) h = gca; fill(DataTable.Time([end - 9 end end end - 9]),h.YLim([1,1,2,2]),'k',... 'FaceAlpha',0.1,'EdgeColor','none'); legend('True CPI growth rate','Forecasted CPI growth rate',... 'Location','NW') title('Quarterly CPI Growth Rate: 1947 - 2009'); ylabel('CPI growth rate'); xlabel('Year'); hold off```

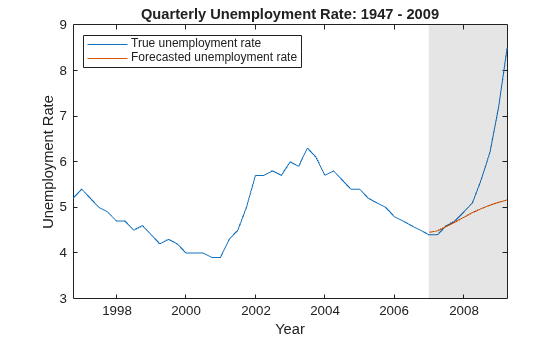

```figure; plot(DataTable.Time(end - 50:end),unrate(end - 50:end)); hold on plot(DataTable.Time((end - 9):end),YF(:,2)) h = gca; fill(DataTable.Time([end - 9 end end end - 9]),h.YLim([1,1,2,2]),'k',... 'FaceAlpha',0.1,'EdgeColor','none'); legend('True unemployment rate','Forecasted unemployment rate',... 'Location','NW') title('Quarterly Unemployment Rate: 1947 - 2009'); ylabel('Unemployment rate'); xlabel('Year'); hold off```
