wthcoef

1-D wavelet coefficient thresholding

    Description

    wthcoef thresholds wavelet coefficients for the denoising or compression of a 1-D signal.

    example

    nc = wthcoef("a",c,l) returns coefficients obtained from the multilevel wavelet decomposition structure [c,l] by setting the approximation coefficients to zero. For information about the decomposition structure, see wavedec.

    nc = wthcoef("d",c,l,n) returns coefficients obtained from [c,l] by setting all the coefficients at detail levels specified in n to zero.

    example

    nc = wthcoef("d",c,l,n,p) returns coefficients obtained from [c,l] by rate compression defined in vectors n and p. n specifies the detail levels to be compressed and p the corresponding percentages of lower coefficients to set to zero. n and p must be of the same length.

    nc = wthcoef("t",c,l,n,t,sorh) returns coefficients obtained from [c,l] by thresholding specified in thr. n specifies the detail levels to be thresholded and t the corresponding thresholds. n and t must be of the same length.

    Examples

    collapse all

    Load and plot a 1-D signal.

    load wecg

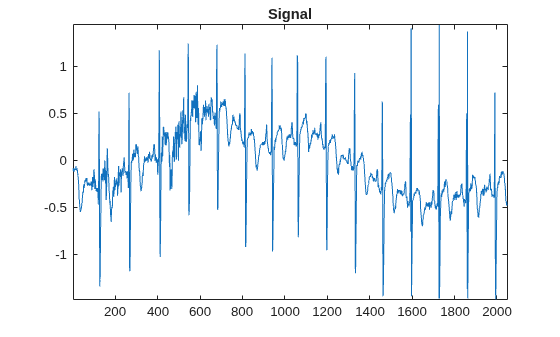

    plot(wecg)
    title("Signal")
    axis tight

    Obtain a level 3 wavelet decomposition of the signal using the Daubechies db4 wavelet.

    wv = "db4";
    [c,l] = wavedec(wecg,3,wv);

    Use wthcoef to modify the wavelet decomposition c. Set the approximation coefficients to zero and plot the difference between the original and modified wavelet decompositions.

    nc = wthcoef("a",c,l);

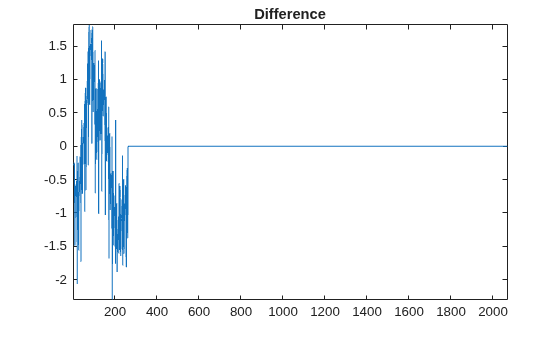

    plot(c-nc)
    title("Difference")
    axis tight

    Reconstruct a signal using the modified wavelet decomposition.

    xrec = waverec(nc,l,wv);
    plot(xrec)
    title("Reconstruction")
    axis tight

    Save the current extension mode. Change the extension mode to periodized extension.

    origmode = dwtmode("status","nodisplay");
    dwtmode("per","nodisplay")

    Load and plot a 1-D signal. The signal has 2048 samples.

    load wecg
    plot(wecg)
    title("Signal")
    axis tight

    Obtain a level 2 wavelet decomposition of the signal using the Haar wavelet. Display the bookkeeping vector. Confirm there are 1024 detail coefficients at level 1, and 512 detail coefficients at level 2.

    wv = "haar";
    [c,l] = wavedec(wecg,2,wv);
    l
    l = 4×1

             512
             512
            1024
            2048



    Use wthcoef to threshold the level 1 and level 2 detail coefficients in the wavelet decomposition c. Set 75% of the level 1 detail coefficients to zero, and set 50% of the level 2 detail coefficients to zero.

    nc = wthcoef("d",c,l,[1 2],[75 50]);

    Confirm there are 256 nonzero wavelet coefficients at levels 1 and 2 in the modified wavelet decomposition nc.

    [level1,level2] = detcoef(nc,l,[1 2]);
    [nnz(level1) 1024*0.25]
    ans = 1×2

       256   256


    [nnz(level2) 512*0.5]
    ans = 1×2

       256   256



    Reconstruct a signal using the modified wavelet decomposition.

    xrec = waverec(nc,l,wv);

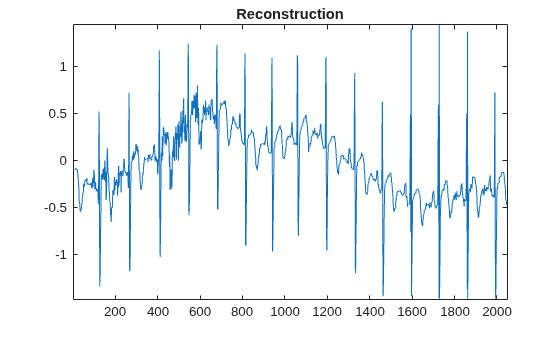

    plot(xrec)
    title("Reconstruction")
    axis tight

    Restore the original extension mode.

    dwtmode(origmode,"nodisplay")

    Input Arguments

    collapse all

    Wavelet decomposition, specified as a vector. The vector contains the wavelet coefficients. The bookkeeping vector l contains the number of coefficients by level. c is the output of wavedec.

    Data Types: single | double
    Complex Number Support: Yes

    Bookkeeping vector, specified as a vector of positive integers. The bookkeeping vector is used to parse the coefficients in the wavelet decomposition c by level. l is the output of wavedec.

    Data Types: single | double

    Detail levels, specified as a vector of positive integers less than or equal to N, where N is the level of the wavelet decomposition used to obtain [c,l]. Specifically, N = length(l)-2.

    Data Types: double

    Percentages of coefficients to set to zero, specified as a vector of positive integers less than or equal to 100. p and n must be the same length.

    Data Types: double

    Thresholds to apply to detail coefficients, specified as a real-valued vector. t and n must be the same length.

    Data Types: double

    Type of thresholding to perform:

    • "s" — Soft thresholding

    • "h" — Hard thresholding

    Output Arguments

    collapse all

    Modified wavelet decomposition, returned as a vector. nc and c have equal length.

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Version History

    Introduced before R2006a
