Wavelet packet decomposition 2-D


T = wpdec2(X,N,wname,E,P)
T = wpdec2(X,N,wname)
T = wpdec2(X,N,wname,'shannon')


wpdec2 is a two-dimensional wavelet packet analysis function.

T = wpdec2(X,N,wname,E,P) returns a wavelet packet tree T corresponding to the wavelet packet decomposition of the matrix X, at level N, with the specified wavelet wname (see wfilters for more information).

T = wpdec2(X,N,wname) is equivalent to T = wpdec2(X,N,wname,'shannon').

E is a character vector or string scalar containing the type of entropy and P is an optional parameter depending on the value of T (see wentropy for more information).

Entropy Type Name (E)Parameter (P)Comments
'shannon' P is not used.
'log energy' P is not used.
'threshold'0PP is the threshold.
'sure'0PP is the threshold.
'norm'1PP is the power.
'user'Character vector or string scalarP is a character vector or string scalar containing the file name of your own entropy function, with a single input X.
FunNameNo constraints on P

FunName is any other character vector or string scalar except those used for the previous Entropy Type Names listed above.

FunName contains the file name of your own entropy function, with X as input and P as additional parameter to your entropy function.


The 'user' option is historical and still kept for compatibility, but it is obsoleted by the last option described in the preceding table. The FunName option does the same as the 'user' option and in addition, allows you to pass a parameter to your own entropy function.

See wpdec for a more complete description of the wavelet packet decomposition.


% The current extension mode is zero-padding (see dwtmode).

% Load image.
load tire

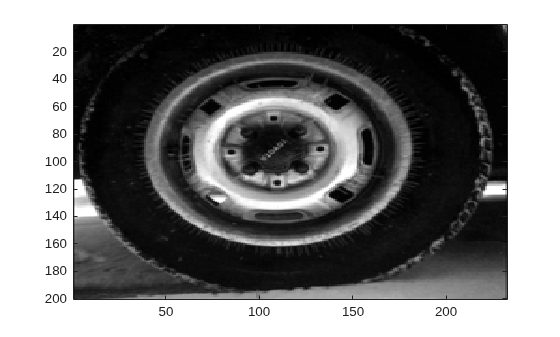

% X contains the loaded image.

% For an image the decomposition is performed using:
t = wpdec2(X,2,'db1');
% The default entropy is shannon.

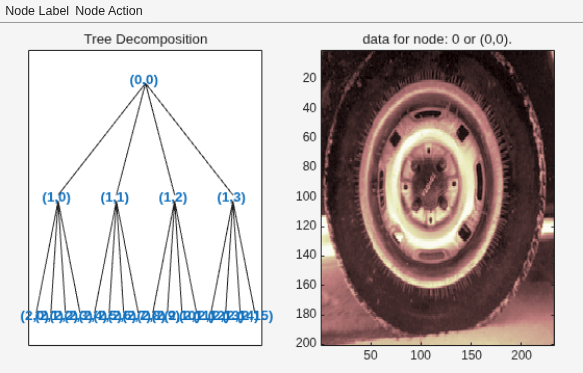

% Plot wavelet packet tree
% (quarternary tree, or tree of order 4).


When X represents an indexed image, X is an m-by-n matrix. When X represents a truecolor image, it is an m-by-n-by-3 array, where each m-by-n matrix represents a red, green, or blue color plane concatenated along the third dimension.

For more information on image formats, see the image and imfinfo reference pages.


The algorithm used for the wavelet packets decomposition follows the same line as the wavelet decomposition process (see dwt2 and wavedec2 for more information).
