insertObjectMask

Insert masks in image or video stream

Since R2020b

    Description

    example

    RGB = insertObjectMask(I,BW) inserts a mask BW into the specified image I and returns the result as a truecolor image RGB.

    example

    RGB = insertObjectMask(I,maskstack) inserts a set of masks maskstack into the specified image I and returns the result as a truecolor image RGB.

    RGB = insertObjectMask(___,Name=Value) specifies options using one or more name-value arguments in addition to any combination of arguments from previous syntaxes. For example, (MaskColor="red") sets the color of the mask to red.

    Examples

    collapse all

    Read an image into the workspace.

    I = imread("visionteam1.jpg");

    Load a stack of binary masks into the workspace.

    load("visionteam1Maskstack.mat")

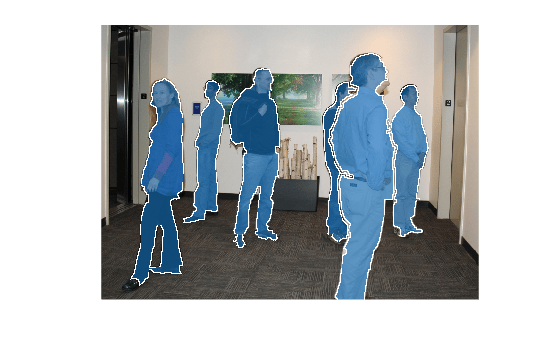

    Insert the masks with white outlines into the image.

    RGB = insertObjectMask(I,maskstack,LineColor="white",LineWidth=2);

    Display the image with the masks inserted.

    figure
    imshow(RGB)

    Read an image into the workspace.

    I = imread("visionteam1.jpg");

    Load a stack of binary mask images.

    load("visionteam1Maskstack.mat");

    Insert the masks into the image and specify a unique color for each mask.

    numMasks = size(maskstack,3);
    RGB = insertObjectMask(I,maskstack,MaskColor=lines(numMasks));

    Display the image with the inserted masks.

    figure
    imshow(RGB)

    Input Arguments

    collapse all

    Input image, specified as a truecolor (RGB) image, m-by-n-by-3 array, or a grayscale image, m-by-n array.

    Data Types: single | double | int16 | uint8 | uint16

    Input mask image, specified as an m-by-n logical matrix.

    Data Types: logical

    Stack of mask images, specified as an m-by-n-by-P logical array, where P is the total number of masks in the stack.

    maskstack has the same width and height as I.

    Data Types: logical

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

    Example: LineColor="white" set the inserted line color to white.

    Mask color, specified as a character vector, cell array of character vectors, vector, or M-by-3 matrix of RGB values.

    An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7]. When using a data type of uint8, which is defined within the range of [0,255], conversions are necessary to ensure that the expected range is met. For example, to specify the previous vector, you must convert it by using uint8(255*[0.4 0.6 0.7]).

    You can specify a different color for each mask or one color for all masks. To specify one color for all masks, set MaskColor to a color string or an [R G B] vector.

    SpecificationFormatExample
    Specify one color for all shapes (or markers)

    Short color name or color name

    "r"

    "red"

    RGB triplet

    [1 0 0]1-by-3 grid, with columns labeled r,g,b respectively.

    Specify a color for each shape (or marker)

    Vector of color names

    ["red","yellow","blue"]

    Three-column matrix of RGB triplets

    [1 0 0
     0 1 1
     1 0 1
     1 1 1]
    M-by-3 grid, with columns labeled r,g,b respectively.

    Supported colors are listed in the table.

    Color NameShort NameRGB TripletAppearance
    "red""r"[1 0 0]

    Sample of the color red

    "green""g"[0 1 0]

    Sample of the color green

    "blue""b"[0 0 1]

    Sample of the color blue

    "cyan" "c"[0 1 1]

    Sample of the color cyan

    "magenta""m"[1 0 1]

    Sample of the color magenta

    "yellow""y"[1 1 0]

    Sample of the color yellow

    "black""k"[0 0 0]

    Sample of the color black

    "white""w"[1 1 1]

    Sample of the color white

    Color values must be specified in the range of the data type support that you use to specify them. For example, if you specify an input of double datatype, then values must be in the range [0,1]. If you specify an input of uint8 datatype, then values must be in the range [0 255]. For example, [0,0,1] and uint8([0,0,255]) are two formats for the same color blue.

    Data Types: logical | uint8 | uint16 | int16 | double | single

    Opacity of mask, specified as a scalar value in the range [0 1]. The value 1 makes the mask completely opaque and the value 0 makes the mask completely transparent.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Color of mask borders, specified as one of these values:

    • "auto"LineColor uses the same value or values as MaskColor.

    • P-by-3 matrix of RGB triplets, where P is the total number of masks

    • P-element vector of MATLAB® ColorSpec names

    • 1-by-3 RGB triplet or scalar MATLAB ColorSpec name, specifying the color to use for all masks.

      For a description of RGB color and how to specify it, see MaskColor.

    Data Types: single | double | int16 | uint8 | uint16 | logical | char | string

    Opacity of the mask borders, specified as a scalar value in the range of [0 1].

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Width of mask borders, specified as a positive scalar in pixels.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Output Arguments

    collapse all

    Output image, returned as a truecolor image of same datatype as the input image, with the same m-by-n dimensions as I.

    Tips

    • When masks overlap and the same pixel is in more than one mask, maskstack(:,:,i) takes precedence over maskstack(:,:,j), where i < j.

    • For better performance, set LineOpacity to 0 to disable drawing of the edges.

    Extended Capabilities

    Version History

    Introduced in R2020b
