checkGradients
Check first derivative function against finitedifference approximation
Since R2023b
Syntax
Description
compares the value of the supplied first derivative function in valid
= checkGradients(fun
,x0
)fun
at a
point near x0
against a finitedifference approximation. By default, the
comparison assumes that the function is an objective function. To check constraint
functions, set the IsConstraint
namevalue argument to
true
.
specifies additional options using one or more namevalue arguments, in addition to any of
the input argument combinations in the previous syntaxes. For example, you can set the
tolerance for the comparison, or specify that the comparison is for nonlinear constraint
functions.valid
= checkGradients(___,Name=Value
)
Examples
Check Objective Gradient
The rosen
function at the end of this example computes the Rosenbrock objective function and its gradient for a 2D variable x
.
Check that the computed gradient in rosen
matches a finitedifference approximation near the point [2,4].
x0 = [2,4]; valid = checkGradients(@rosen,x0)
valid = logical
1
function [f,g] = rosen(x) f = 100*(x(1)  x(2)^2)^2 + (1  x(2))^2; if nargout > 1 g(1) = 200*(x(1)  x(2)^2); g(2) = 400*x(2)*(x(1)  x(2)^2)  2*(1  x(2)); end end
Check LeastSquares Objective Gradient
The vecrosen
function at the end of this example computes the Rosenbrock objective function in leastsquares form and its Jacobian (gradient).
Check that the computed gradient in vecrosen
matches a finitedifference approximation near the point [2,4].
x0 = [2,4]; valid = checkGradients(@vecrosen,x0)
valid = logical
1
function [f,g] = vecrosen(x) f = [10*(x(1)  x(2)^2),1x(1)]; if nargout > 1 g = zeros(2); % Allocate g g(1,1) = 10; % df(1)/dx(1) g(1,2) = 20*x(2); % df(1)/dx(2) g(2,1) = 1; % df(2)/dx(1) g(2,2) = 0; % df(2)/dx(2) end end
Modify FiniteDifference Options
The rosen
function at the end of this example computes the Rosenbrock objective function and its gradient for a 2D variable x
.
For some initial points, the default forward finite differences cause checkGradients
to mistakenly indicate that the rosen
function has incorrect gradients. To see result details, set the Display
option to "on"
.
x0 = [0,0];
valid = checkGradients(@rosen,x0,Display="on")
____________________________________________________________ Objective function derivatives: Maximum relative difference between supplied and finitedifference derivatives = 1.48826e06. Supplied derivative element (1,1): 0.126021 Finitedifference derivative element (1,1): 0.126023 checkGradients failed. Supplied derivative and finitedifference approximation are not within 'Tolerance' (1e06). ____________________________________________________________
valid = logical
0
checkGradients
reports a mismatch, with a difference of just over 1 in the sixth decimal place. Use central finite differences and check again.
opts = optimoptions("fmincon",FiniteDifferenceType="central"); valid = checkGradients(@rosen,x0,opts,Display="on")
____________________________________________________________ Objective function derivatives: Maximum relative difference between supplied and finitedifference derivatives = 1.29339e11. checkGradients successfully passed. ____________________________________________________________
valid = logical
1
Central finite differences are generally more accurate. checkGradients
reports that the gradient and central finitedifference approximation match to about 11 decimal places.
function [f,g] = rosen(x) f = 100*(x(1)  x(2)^2)^2 + (1  x(2))^2; if nargout > 1 g(1) = 200*(x(1)  x(2)^2); g(2) = 400*x(2)*(x(1)  x(2)^2)  2*(1  x(2)); end end
Check Gradients of Nonlinear Constraints
The tiltellipse
function at the end of this example imposes the constraint that the 2D variable x
is confined to the interior of the tilted ellipse
$$\frac{xy}{2}+(x+2{)}^{2}+\frac{(y2{)}^{2}}{2}\le 2$$.

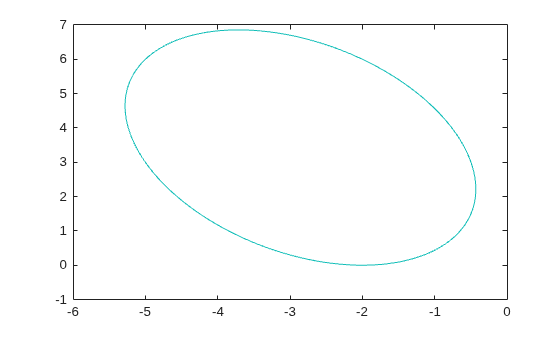

Visualize the ellipse.
f = @(x,y) x.*y/2+(x+2).^2+(y2).^2/22; fcontour(f,LevelList=0) axis([6 0 1 7])
Check the gradient of this nonlinear inequality constraint function.
x0 = [2,6]; valid = checkGradients(@tiltellipse,x0,IsConstraint=true)
valid = 1x2 logical array
1 1
function [c,ceq,gc,gceq] = tiltellipse(x) c = x(1)*x(2)/2 + (x(1) + 2)^2 + (x(2) 2)^2/2  2; ceq = []; if nargout > 2 gc = [x(2)/2 + 2*(x(1) + 2); x(1)/2 + x(2)  2]; gceq = []; end end
Examine Differences Between Gradients and FiniteDifference Approximations
The fungrad
function at the end of this example correctly calculates the gradient of some components of the leastsquares objective, and incorrectly calculates others.
Examine the second output of checkGradients
to see which components do not match well at the point [2,4]. To see result details, set the Display
option to "on"
.
x0 = [2,4];
[valid,err] = checkGradients(@fungrad,x0,Display="on")
____________________________________________________________ Objective function derivatives: Maximum relative difference between supplied and finitedifference derivatives = 0.749797. Supplied derivative element (3,2): 19.9838 Finitedifference derivative element (3,2): 5 checkGradients failed. Supplied derivative and finitedifference approximation are not within 'Tolerance' (1e06). ____________________________________________________________
valid = logical
0
err = struct with fields:
Objective: [3x2 double]
The output shows that element [3,2] is incorrect. But is that the only problem? Examine err.Objective
and look for entries that are far from 0.
err.Objective
ans = 3×2
0.0000 0.0000
0.0000 0
0.5000 0.7498
Both the [3,1] and [3,2] elements of the derivative are incorrect. The fungrad2
function at the end of this example corrects the errors.
[valid,err] = checkGradients(@fungrad2,x0,Display="on")
____________________________________________________________ Objective function derivatives: Maximum relative difference between supplied and finitedifference derivatives = 2.2338e08. checkGradients successfully passed. ____________________________________________________________
valid = logical
1
err = struct with fields:
Objective: [3x2 double]
err.Objective
ans = 3×2
10^{7} ×
0.2234 0.0509
0.0003 0
0.0981 0.0042
All the differences between the gradient and finitedifference approximations are less than 1e7 in magnitude.
This code creates the fungrad
helper function.
function [f,g] = fungrad(x) f = [10*(x(1)  x(2)^2),1  x(1),5*(x(2)  x(1)^2)]; if nargout > 1 g = zeros(3,2); g(1,1) = 10; g(1,2) = 20*x(2); g(2,1) = 1; g(3,1) = 20*x(1); g(3,2) = 5*x(2); end end
This code creates the fungrad2
helper function.
function [f,g] = fungrad2(x) f = [10*(x(1)  x(2)^2),1  x(1),5*(x(2)  x(1)^2)]; if nargout > 1 g = zeros(3,2); g(1,1) = 10; g(1,2) = 20*x(2); g(2,1) = 1; g(3,1) = 10*x(1); g(3,2) = 5; end end
Input Arguments
fun
— Function to check
function handle
Function to check, specified as a function handle.
If
fun
represents an objective function, thenfun
must have the following signature.[fval,grad] = fun(x)
checkGradients
compares the value ofgrad(x)
to a finitedifference approximation for a pointx
nearx0
. The comparison is$$\left\frac{\text{grad}\_\text{fd}\text{grad}}{\text{max}\left(\text{1},\left\text{grad}\right\right)}\right,$$
where
grad
represents the value of the gradient function, andgrad_fd
represents the value of the finitedifference approximation.checkGradients
performs this division componentwise.If
fun
represents a leastsquares objective, thenfun
is a vector, andgrad(x)
is a matrix representing the Jacobian offun
.If
fun
returns an array ofm
components andx
hasn
elements, wheren
is the number of elements ofx0
, the JacobianJ
is anm
byn
matrix whereJ(i,j)
is the partial derivative ofF(i)
with respect tox(j)
. (The JacobianJ
is the transpose of the gradient ofF
.)If
fun
represents a nonlinear constraint, thenfun
must have the following signature.[c,ceq,gc,gceq] = fun(x)
c
represents the nonlinear inequality constraints. Solvers attempt to achievec <= 0
. Thec
output can be a vector of any length.ceq
represents the nonlinear equality constraints. Solvers attempt to achieveceq = 0
. Theceq
output can be a vector of any length.gc
represents the gradient of the nonlinear inequality constraints.gceq
represents the gradient of the nonlinear equality constraints.
Data Types: function_handle
x0
— Location to check gradient
double array  1by2 cell array
Location at which to check the gradient, specified as a double array for all solvers
except lsqcurvefit
. For lsqcurvefit
,
x0
is a 1by2 cell array
{x0array,xdata}
.
checkGradients
checks the gradient at a point near the specified
x0
. The function adds a small random direction to
x0
, no more than 1e3
in absolute value. This
perturbation attempts to protect the check against a point where an incorrect gradient
function might pass because of cancellations.
Example: randn(5,1)
Data Types: double
Complex Number Support: Yes
options
— Finite differencing options
output of optimoptions
Finite differencing options, specified as the output of
optimoptions
. The following options affect finite
differencing.
Option  Description

FiniteDifferenceStepSize
Scalar or vector step size factor for finite differences. When
you set
sign′(x) = sign(x) except sign′(0) = 1 .
Central finite differences are
FiniteDifferenceStepSize expands to a vector. The default
is sqrt(eps) for forward finite differences, and eps^(1/3)
for central finite differences.

FiniteDifferenceType  Finite differences used to estimate gradients
are either
TypicalX  Typical
DiffMaxChange (discouraged)  Maximum change in variables for
finitedifference gradients (a positive scalar). The default is

DiffMinChange (discouraged)  Minimum change in variables for
finitedifference gradients (a nonnegative scalar). The default is

Example: optimoptions("fmincon",FiniteDifferenceStepSize=1e4)
NameValue Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Namevalue arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: IsConstraint=true,Tolerance=5e4
Display
— Flag to display results at command line
"off"
(default)  "on"
Flag to display results at command line, specified as "off"
(do
not display the results) or "on"
(display the results).
Example: "off"
Data Types: char
 string
IsConstraint
— Flag to check nonlinear constraint gradients
false
(default)  true
Flag to check nonlinear constraint gradients, specified as
false
(the function is an objective function) or
true
(the function is a nonlinear constraint function).
Example: true
Data Types: logical
Tolerance
— Tolerance for gradient approximation
1e6
(default)  nonnegative scalar
Tolerance for the gradient approximation, specified as a nonnegative scalar. The
returned value valid
is true
for each
component where the absolute relative difference between the gradient of
fun
and its finitedifference approximation is less than or
equal to Tolerance
.
Example: 1e3
Data Types: double
Output Arguments
valid
— Indication that finitedifference approximation matches gradient
logical scalar  twoelement logical vector
Indication that the finitedifference approximation matches the gradient, returned
as a logical scalar for objective functions or a twoelement logical vector for
nonlinear constraint functions [c,ceq]
. The returned value
valid
is true
when the absolute relative
difference between the gradient of fun
and its finitedifference
approximation is less than or equal to Tolerance
for all components
of the gradient. Otherwise, valid
is false
.
When a nonlinear constraint c
or ceq
is empty,
the returned value of valid
for that constraint is
true
.
err
— Relative differences between gradients and finitedifference approximations
structure
Relative differences between the gradients and finitedifference approximations,
returned as a structure. For objective functions, the field name is
Objective
. For nonlinear constraint functions, the field names are
Inequality
(corresponding to c
) and
Equality
(corresponding to ceq
). Each component
of err
has the same shape as the supplied derivatives from
fun
.
Version History
Introduced in R2023b
