Convert label matrix into RGB image



RGB = label2rgb(L) converts a label matrix, L, such as those returned by labelmatrix, bwlabel, bwlabeln, or watershed, into an RGB color image for the purpose of visualizing the labeled regions. The label2rgb function determines the color to assign to each object based on the number of objects in the label matrix. The label2rgb function picks colors from the entire range of the color map.

RGB = label2rgb(L,cmap) specifies the colormap cmap to be used in the RGB image.

RGB = label2rgb(L,cmap,zerocolor) specifies the RGB color of the background elements (pixels labeled 0).

RGB = label2rgb(L,cmap,zerocolor,order) controls how label2rgb assigns colors to regions in the label matrix.


collapse all

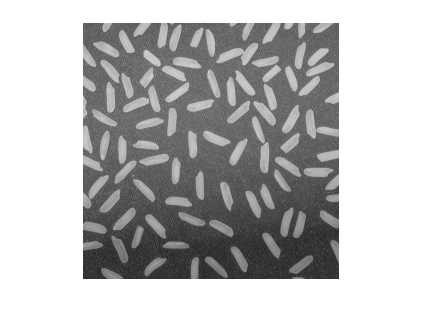

Read an image and display it.

I = imread('rice.png');

Create a label matrix from the image.

BW = imbinarize(I);
CC = bwconncomp(BW);
L = labelmatrix(CC);

Convert the label matrix into RGB image, using default settings.

RGB = label2rgb(L);

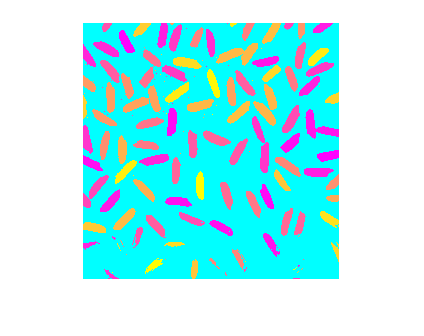

Convert the label matrix into an RGB image, specifying optional parameters. This example uses the 'spring' colormap, sets background pixels to the color cyan, and randomizes how colors are assigned to the labels.

RGB2 = label2rgb(L,'spring','c','shuffle');

Input Arguments

collapse all

Label matrix of contiguous regions, specified as an m-by-n matrix of nonnegative integers. Pixels labeled 0 are the background. Pixels labeled 1 make up one object; pixels labeled 2 make up a second object; and so on.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Color map, specified as one of the following.


c-by-3 matrix of data type double

Color map matrix specifying c colors, each as an RGB triple. c must be greater than or equal to the number of labels, numlabels, in label matrix L. You can compute the number of labels as numlabels = max(L(:)).

If c is greater than numlabels, then label2rgb creates the RGB image using only the first numlabels rows in the matrix.

colormap function

Name of a MATLAB® colormap function, such as 'jet' or 'gray'. See colormap for a list of supported colormaps.

colormap handle

Handle of a colormap function, such as @jet or @gray.

Label matrix of contiguous regions, specified as a 3-element vector representing an RGB triple, or one of the following color abbreviations.



'g' Green

Color order, specified as 'noshuffle' or 'shuffle'. The 'noshuffle' order arranges colormap colors to label matrix regions in numerical order. The 'shuffle' order assigns colormap colors pseudorandomly.

Output Arguments

collapse all

RGB image, returned as an m-by-n-by-3 numeric matrix.

Data Types: uint8

Extended Capabilities

Introduced before R2006a
