# getSensitivity

Sensitivity function from generalized model of control system

## Description

returns the sensitivity function at
the specified location for a generalized model of a control system.`S`

= getSensitivity(`T`

,`location`

)

specifies additional loop openings for the sensitivity function calculation. Use an
opening, for example, to calculate the sensitivity function of an inner loop, with
the outer loop open.`S`

= getSensitivity(`T`

,`location`

,`opening`

)

If `opening`

and `location`

list the same
point, the software opens the loop after measuring the signal at the
point.

## Examples

### Sensitivity Function at a Location

Compute the sensitivity at the plant input, marked by the analysis point `X`

.

Create a model of the system by specifying and connecting a numeric LTI plant model `G`

, a tunable controller `C`

, and the `AnalysisPoint`

block `X`

. Use the `AnalysisPoint`

block to mark the location where you assess the sensitivity (plant input in this example).

G = tf([1],[1 5]); C = tunablePID('C','p'); C.Kp.Value = 3; X = AnalysisPoint('X'); T = feedback(G*X*C,1);

`T`

is a `genss`

model that represents the closed-loop response of the control system from $$r$$ to $$y$$. The model contains the `AnalysisPoint`

block, `X`

, that identifies the analysis point.

Calculate the sensitivity, $$S$$, at `X`

.

```
S = getSensitivity(T,'X');
tf(S)
```

ans = From input "X" to output "X": s + 5 ----- s + 8 Continuous-time transfer function.

### Specify Additional Loop Opening for Sensitivity Function Calculation

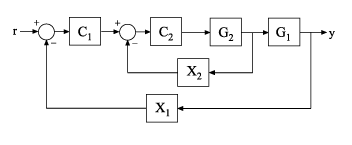

Calculate the inner-loop sensitivity at the output of `G2`

, with the outer loop open.

Create a model of the system by specifying and connecting the numeric plant models, tunable controllers, and `AnalysisPoint`

blocks. `G1`

and `G2`

are plant models, `C1`

and `C2`

are tunable controllers, and `X1`

and `X2`

are `AnalysisPoint`

blocks that mark potential loop-opening locations.

G1 = tf(10,[1 10]); G2 = tf([1 2],[1 0.2 10]); C1 = tunablePID('C','pi'); C2 = tunableGain('G',1); X1 = AnalysisPoint('X1'); X2 = AnalysisPoint('X2'); T = feedback(G1*feedback(G2*C2,X2)*C1,X1);

Calculate the sensitivity, $$S$$, at `X2`

, with the outer loop open at `X1`

.

S = getSensitivity(T,'X2','X1'); tf(S)

ans = From input "X2" to output "X2": s^2 + 0.2 s + 10 ---------------- s^2 + 1.2 s + 12 Continuous-time transfer function.

## Input Arguments

`T`

— Model of control system

generalized state-space model

Model of a control system, specified as a generalized state-space model
(`genss`

).

Locations at which you can perform sensitivity analysis or open loops are
marked by `AnalysisPoint`

blocks in
`T`

. Use `getPoints(T)`

to get the
list of such locations.

`location`

— Location

character vector | cell array of character vectors

Location at which you calculate the sensitivity function, specified as a character vector or cell array of character vectors. To extract the sensitivity function at multiple locations, use a cell array of character vectors.

Each specified location must match an analysis point in
`T`

. Analysis points are marked using
`AnalysisPoint`

blocks. To get the list of available
analysis points in `T`

, use
`getPoints(T)`

.

**Example: **`'u'`

or
`{'u','y'}`

`opening`

— Additional loop opening

character vector | cell array of character vectors

Additional loop opening used to calculate the sensitivity function, specified as a character vector or cell array of character vectors. To open the loop at multiple locations, use a cell array of character vectors.

Each specified opening must match an analysis point in
`T`

. Analysis points are marked using
`AnalysisPoint`

blocks. To get the list of available
analysis points in `T`

, use
`getPoints(T)`

.

Use an opening, for example, to calculate the sensitivity function of an inner loop, with the outer loop open.

If `opening`

and `location`

list the
same point, the software opens the loop after measuring the signal at the
point.

**Example: **`'y_outer'`

or
`{'y_outer','y_outer2'}`

## Output Arguments

`S`

— Sensitivity function

generalized state-space model

Sensitivity
function of the control system, `T`

, measured
at `location`

, returned as a generalized state-space
model (`genss`

).

If

`location`

specifies a single analysis point, then`S`

is a SISO`genss`

model.If

`location`

is a vector signal, or specifies multiple analysis points, then`S`

is a MIMO`genss`

model.

## More About

### Sensitivity Function

The *sensitivity function*, also referred to
simply as *sensitivity*, measures how sensitive a signal is to
an added disturbance. Feedback reduces the sensitivity in the frequency band where
the open-loop gain is greater than `1`

.

Consider the following model:

The sensitivity, *S _{u}*, at

`u`

is defined as the transfer function from
`du`

to `u`

:$$\begin{array}{l}u=du-KGu\\ \to (I+KG)u=du\\ \to u=\underset{{S}_{u}}{\underbrace{{(I+KG)}^{-1}}}du.\end{array}$$

Here, *I* is an identity matrix of the same size as *K**G*.

Sensitivity at multiple locations, for example, `u`

and
`y`

, is defined as the MIMO transfer function from the
disturbances to sensitivity measurements:

$$S=\left[\begin{array}{cc}{S}_{du\to u}& {S}_{dy\to u}\\ {S}_{du\to y}& {S}_{dy\to y}\end{array}\right].$$

## Version History

**Introduced in R2014a**

## See Also

`getPoints`

| `AnalysisPoint`

| `genss`

| `getLoopTransfer`

| `systune`

| `getIOTransfer`

| `getCompSensitivity`

| `getValue`

| `getSensitivity`

(Simulink Control Design)
