# wavemngr

Wavelet manager

## Syntax

``wavemngr('add',FN,FSN,WT,NUMS,FILE)``
``wavemngr('add',FN,FSN,WT,{NUMS,TYPNUMS},FILE)``
``wavemngr(___,B)``
``wavemngr('del',WN)``
``wavemngr('restore')``
``wavemngr('restore',IN2)``
``out = wavemngr('read')``
``out = wavemngr('read',IN2)``
``out = wavemngr('read_asc')``

## Description

Use `wavemngr` to add, delete, restore, or read wavelets.

example

````wavemngr('add',FN,FSN,WT,NUMS,FILE)` adds a wavelet family to the toolbox. These parameters define the wavelet family: `FN` — Family name`FSN` — Family short name`WT` — Wavelet family type`NUMS` — Wavelet parameters`FILE` — Wavelet definition file NoteWhen you use `wavemngr` to add a wavelet family, three wavelet extension files are created in the current folder: the two ASCII files `wavelets.asc` and `wavelets.prv`, and the MAT-file `wavelets.inf`. If you add a new wavelet family, it is available in this folder only. ```
````wavemngr('add',FN,FSN,WT,{NUMS,TYPNUMS},FILE)` adds a wavelet family with parameter `NUMS` with input format type `TYPNUMS`.```
````wavemngr(___,B)` adds a wavelet family, where `B` specifies the effective support for the wavelets. The `B` input argument is valid only for wavelets of type `WT` = 3, 4, and 5. You can use this syntax with any of the previous syntaxes.```

example

````wavemngr('del',WN)` deletes the wavelet family specified by `WN`.```

example

````wavemngr('restore')` restores the previous `wavelets.asc` ASCII file```
````wavemngr('restore',IN2)` restores the initial `wavelets.asc` ASCII file. Here `IN2` is a dummy argument.```
````out = wavemngr('read')` returns all wavelet family names in a character array.```
````out = wavemngr('read',IN2)` returns all wavelet names in a character array. Here `IN2` is a dummy argument.```
````out = wavemngr('read_asc')` reads the `wavelets.asc` ASCII file and returns all wavelet information.```

## Examples

collapse all

List the wavelet families available by default.

`wavemngr('read')`
```ans = 18x35 char array '===================================' 'Haar ->->haar ' 'Daubechies ->->db ' 'Symlets ->->sym ' 'Coiflets ->->coif ' 'BiorSplines ->->bior ' 'ReverseBior ->->rbio ' 'Meyer ->->meyr ' 'DMeyer ->->dmey ' 'Gaussian ->->gaus ' 'Mexican_hat ->->mexh ' 'Morlet ->->morl ' 'Complex Gaussian ->->cgau ' 'Shannon ->->shan ' 'Frequency B-Spline->->fbsp ' 'Complex Morlet ->->cmor ' 'Fejer-Korovkin ->->fk ' '===================================' ```

List all wavelets.

`wavemngr('read',1)`
```ans = 71x44 char array '=================================== ' 'Haar ->->haar ' '=================================== ' 'Daubechies ->->db ' '------------------------------ ' 'db1->db2->db3->db4-> ' 'db5->db6->db7->db8-> ' 'db9->db10->db**-> ' '=================================== ' 'Symlets ->->sym ' '------------------------------ ' 'sym2->sym3->sym4->sym5-> ' 'sym6->sym7->sym8->sym**-> ' '=================================== ' 'Coiflets ->->coif ' '------------------------------ ' 'coif1->coif2->coif3->coif4-> ' 'coif5-> ' '=================================== ' 'BiorSplines ->->bior ' '------------------------------ ' 'bior1.1->bior1.3->bior1.5->bior2.2-> ' 'bior2.4->bior2.6->bior2.8->bior3.1-> ' 'bior3.3->bior3.5->bior3.7->bior3.9-> ' 'bior4.4->bior5.5->bior6.8-> ' '=================================== ' 'ReverseBior ->->rbio ' '------------------------------ ' 'rbio1.1->rbio1.3->rbio1.5->rbio2.2-> ' 'rbio2.4->rbio2.6->rbio2.8->rbio3.1-> ' 'rbio3.3->rbio3.5->rbio3.7->rbio3.9-> ' 'rbio4.4->rbio5.5->rbio6.8-> ' '=================================== ' 'Meyer ->->meyr ' '=================================== ' 'DMeyer ->->dmey ' '=================================== ' 'Gaussian ->->gaus ' '------------------------------ ' 'gaus1->gaus2->gaus3->gaus4-> ' 'gaus5->gaus6->gaus7->gaus8-> ' '=================================== ' 'Mexican_hat ->->mexh ' '=================================== ' 'Morlet ->->morl ' '=================================== ' 'Complex Gaussian ->->cgau ' '------------------------------ ' 'cgau1->cgau2->cgau3->cgau4-> ' 'cgau5->cgau6->cgau7->cgau8-> ' '=================================== ' 'Shannon ->->shan ' '------------------------------ ' 'shan1-1.5->shan1-1->shan1-0.5->shan1-0.1-> ' 'shan2-3->shan**-> ' '=================================== ' 'Frequency B-Spline->->fbsp ' '------------------------------ ' 'fbsp1-1-1.5->fbsp1-1-1->fbsp1-1-0.5->fbsp2-1-1->' 'fbsp2-1-0.5->fbsp2-1-0.1->fbsp**-> ' '=================================== ' 'Complex Morlet ->->cmor ' '------------------------------ ' 'cmor1-1.5->cmor1-1->cmor1-0.5->cmor1-1-> ' 'cmor1-0.5->cmor1-0.1->cmor**-> ' '=================================== ' 'Fejer-Korovkin ->->fk ' '------------------------------ ' 'fk4->fk6->fk8->fk14-> ' 'fk18->fk22-> ' '=================================== ' ```

This example shows how to add new compactly supported orthogonal wavelets to the toolbox. These wavelets, which are a slight generalization of the Daubechies wavelets, are based on the use of Bernstein polynomials and are due to Kateb and Lemarié.

Add a new family of orthogonal wavelets. You must define:

• Family Name: `Lemarie`

• Family Short Name: `lem`

• Type of wavelet: `1 (orth)`

• Wavelet numbers: `1 2 3 4 5`

• File driver: `lemwavf`

The source code for `lemwavf.m` is provided at the end of the example. The input argument of `lemwavf` is a character vector of the form `lem`N, where N = 1, 2, 3, 4, or 5.

`wavemngr('add','Lemarie','lem',1,'1 2 3 4 5','lemwavf')`

The ASCII file `wavelets.asc` is saved as `wavelets.prv`, then information defining the new family is added to `wavelets.asc`, and the MAT-file `wavelets.inf` is generated.

Note that `wavemngr` works on the current folder. If you add a new wavelet family, it is available in this folder only.

List the available wavelet families.

`wavemngr('read')`
```ans = 19×35 char array '===================================' 'Haar →→haar ' 'Daubechies →→db ' 'Symlets →→sym ' 'Coiflets →→coif ' 'BiorSplines →→bior ' 'ReverseBior →→rbio ' 'Meyer →→meyr ' 'DMeyer →→dmey ' 'Gaussian →→gaus ' 'Mexican_hat →→mexh ' 'Morlet →→morl ' 'Complex Gaussian →→cgau ' 'Shannon →→shan ' 'Frequency B-Spline→→fbsp ' 'Complex Morlet →→cmor ' 'Fejer-Korovkin →→fk ' 'Lemarie →→lem ' '===================================' ```

Remove the added family. Regenerate the list of wavelet families.

```wavemngr('del','Lemarie') wavemngr('read')```
```ans = 18×35 char array '===================================' 'Haar →→haar ' 'Daubechies →→db ' 'Symlets →→sym ' 'Coiflets →→coif ' 'BiorSplines →→bior ' 'ReverseBior →→rbio ' 'Meyer →→meyr ' 'DMeyer →→dmey ' 'Gaussian →→gaus ' 'Mexican_hat →→mexh ' 'Morlet →→morl ' 'Complex Gaussian →→cgau ' 'Shannon →→shan ' 'Frequency B-Spline→→fbsp ' 'Complex Morlet →→cmor ' 'Fejer-Korovkin →→fk ' '===================================' ```

Restore the previous ASCII file `wavelets.prv`, then build the MAT-file `wavelets.inf`. List the restored wavelets.

```wavemngr('restore') wavemngr('read',1)```
```ans = 76×44 char array '=================================== ' 'Haar →→haar ' '=================================== ' 'Daubechies →→db ' '------------------------------ ' 'db1→db2→db3→db4→ ' 'db5→db6→db7→db8→ ' 'db9→db10→db**→ ' '=================================== ' 'Symlets →→sym ' '------------------------------ ' 'sym2→sym3→sym4→sym5→ ' 'sym6→sym7→sym8→sym**→ ' '=================================== ' 'Coiflets →→coif ' '------------------------------ ' 'coif1→coif2→coif3→coif4→ ' 'coif5→ ' '=================================== ' 'BiorSplines →→bior ' '------------------------------ ' 'bior1.1→bior1.3→bior1.5→bior2.2→ ' 'bior2.4→bior2.6→bior2.8→bior3.1→ ' 'bior3.3→bior3.5→bior3.7→bior3.9→ ' 'bior4.4→bior5.5→bior6.8→ ' '=================================== ' 'ReverseBior →→rbio ' '------------------------------ ' 'rbio1.1→rbio1.3→rbio1.5→rbio2.2→ ' 'rbio2.4→rbio2.6→rbio2.8→rbio3.1→ ' 'rbio3.3→rbio3.5→rbio3.7→rbio3.9→ ' 'rbio4.4→rbio5.5→rbio6.8→ ' '=================================== ' 'Meyer →→meyr ' '=================================== ' 'DMeyer →→dmey ' '=================================== ' 'Gaussian →→gaus ' '------------------------------ ' 'gaus1→gaus2→gaus3→gaus4→ ' 'gaus5→gaus6→gaus7→gaus8→ ' '=================================== ' 'Mexican_hat →→mexh ' '=================================== ' 'Morlet →→morl ' '=================================== ' 'Complex Gaussian →→cgau ' '------------------------------ ' 'cgau1→cgau2→cgau3→cgau4→ ' 'cgau5→cgau6→cgau7→cgau8→ ' '=================================== ' 'Shannon →→shan ' '------------------------------ ' 'shan1-1.5→shan1-1→shan1-0.5→shan1-0.1→ ' 'shan2-3→shan**→ ' '=================================== ' 'Frequency B-Spline→→fbsp ' '------------------------------ ' 'fbsp1-1-1.5→fbsp1-1-1→fbsp1-1-0.5→fbsp2-1-1→' 'fbsp2-1-0.5→fbsp2-1-0.1→fbsp**→ ' '=================================== ' 'Complex Morlet →→cmor ' '------------------------------ ' 'cmor1-1.5→cmor1-1→cmor1-0.5→cmor1-1→ ' 'cmor1-0.5→cmor1-0.1→cmor**→ ' '=================================== ' 'Fejer-Korovkin →→fk ' '------------------------------ ' 'fk4→fk6→fk8→fk14→ ' 'fk18→fk22→ ' '=================================== ' 'Lemarie →→lem ' '------------------------------ ' 'lem1→lem2→lem3→lem4→ ' 'lem5→ ' '=================================== ' ```

Restore the initial wavelets. Restore the initial ASCII file `wavelets.ini` and the initial MAT-file `wavelets.bin`. Regenerate the list of wavelet families.

```wavemngr('restore',0) wavemngr('read')```
```ans = 18×35 char array '===================================' 'Haar →→haar ' 'Daubechies →→db ' 'Symlets →→sym ' 'Coiflets →→coif ' 'BiorSplines →→bior ' 'ReverseBior →→rbio ' 'Meyer →→meyr ' 'DMeyer →→dmey ' 'Gaussian →→gaus ' 'Mexican_hat →→mexh ' 'Morlet →→morl ' 'Complex Gaussian →→cgau ' 'Shannon →→shan ' 'Frequency B-Spline→→fbsp ' 'Complex Morlet →→cmor ' 'Fejer-Korovkin →→fk ' '===================================' ```

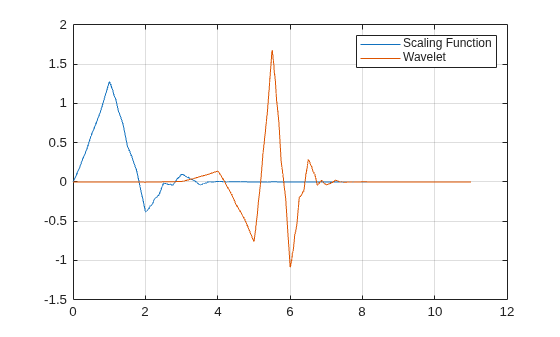

All command line capabilities are available for new families of wavelets. Create a new family. Compute the four associated filters and the scale and wavelet functions.

```wavemngr('add','Lemarie','lem',1,'1 2 3','lemwavf'); [Lo_D,Hi_D,Lo_R,Hi_R] = wfilters('lem3'); [phi,psi,xval] = wavefun('lem3'); plot(xval,[phi;psi]); legend('Scaling Function','Wavelet') grid on```

Remove the added family.

`wavemngr('del','Lemarie')`

lemwavf.m

```function F = lemwavf(wname) % This function is only for use in the "Add Wavelet Families" example. It % may change or be removed in a future release. % % Lemarie wavelet filters. % F = lemwavf(W) returns the scaling filter % associated with Lemarie wavelet specified % by the string W, where W = 'lemN'. % Possible values for N are: % N = 1, 2, 3, 4 or 5. num = str2double(wname(4:end)); switch num case 1 F = [... 0.46069299844871 0.53391629051346 0.03930700681965 -0.03391629578182 ... ]; case 2 F = [... 0.31555164655258 0.59149765057882 0.20045477817080 -0.10034811856888 ... -0.01528128420694 0.00846362066021 -0.00072514051618 0.00038684732960 ... ]; case 3 F = [... 0.23108942231941 0.56838231367966 0.33173980738190 -0.09447000132310 ... -0.06203683305244 0.02661631105889 -0.00209952890579 0.00001769381066 ... 0.00128429679795 -0.00053703458679 0.00002283826072 -0.00000928544107 ... ]; case 4 F = [... 0.17565337503255 0.52257484913870 0.42429244721660 -0.04601056550580 ... -0.11292720306517 0.03198741803409 0.00813124691980 -0.00743764392677 ... 0.00548090619143 -0.00140066128481 -0.00054200083128 0.00025607264164 ... -0.00008795126642 0.00003025515674 -0.00000082014466 0.00000027569334 ... ]; case 5 F = [... 0.13807658847623 0.47310642622099 0.48217097800239 0.02112933622031 ... -0.15081998732499 0.01935767268926 0.02716532750995 -0.01588522540421 ... 0.00671209165995 0.00120022744496 -0.00321203819186 0.00115266788547 ... -0.00018266213413 -0.00002953360842 0.00008433396295 -0.00002997969339 ... 0.00000534552866 -0.00000159098026 0.00000003069431 -0.00000000895816 ... ]; otherwise fprintf('Order: %d not supported\m',num); end end ```

This example shows how to take analysis and synthesis filters associated with a biorthogonal wavelet and make them compatible with Wavelet Toolbox™. Wavelet Toolbox requires that analysis and synthesis lowpass and highpass filters have equal even length. This example uses the nearly orthogonal biorthogonal wavelets based on the Laplacian pyramid scheme of Burt and Adelson (Table 8.4 on page 283 in [1]). The example also demonstrates how to examine properties of the biorthogonal wavelets.

Define the analysis and synthesis filter coefficients of the biorthogonal wavelet.

```Hd = [-1 5 12 5 -1]/20*sqrt(2); Gd = [3 -15 -73 170 -73 -15 3]/280*sqrt(2); Hr = [-3 -15 73 170 73 -15 -3]/280*sqrt(2); Gr = [-1 -5 12 -5 -1]/20*sqrt(2);```

`Hd` and `Gd` are the lowpass and highpass analysis filters, respectively. `Hr` and `Gr` are the lowpass and highpass synthesis filters. They are all finite impulse response (FIR) filters. Confirm the lowpass filter coefficients sum to `sqrt(2)` and the highpass filter coefficients sum to 0.

`sum(Hd)/sqrt(2)`
```ans = 1.0000 ```
`sum(Hr)/sqrt(2)`
```ans = 1.0000 ```
`sum(Gd)`
```ans = -1.0061e-16 ```
`sum(Gr)`
```ans = -9.7145e-17 ```

The z-transform of an FIR filter $h$ is a Laurent polynomial $h\left(z\right)$ given by $h\left(z\right)=\sum _{k={k}_{b}}^{{k}_{e}}{h}_{k}{z}^{-k}$. The degree $|h|$ of a Laurent polynomial is defined as $|h|={k}_{e}-{k}_{b}$. Therefore, the length of the filter $h$ is $1+|h|$. Examine the Laurent expansion of the scaling and wavelet filters.

`PHd = laurpoly(Hd,'dmin',-2)`
``` PHd(z) = - 0.07071*z^(+2) + 0.3536*z^(+1) + 0.8485 + 0.3536*z^(-1) - 0.07071*z^(-2) ```
`PHr = laurpoly(Hr,'dmin',-3)`
``` PHr(z) = ... - 0.01515*z^(+3) - 0.07576*z^(+2) + 0.3687*z^(+1) + 0.8586 + 0.3687*z^(-1) ... - 0.07576*z^(-2) - 0.01515*z^(-3) ```
`PGd = laurpoly(Gd,'dmin',-3)`
``` PGd(z) = ... + 0.01515*z^(+3) - 0.07576*z^(+2) - 0.3687*z^(+1) + 0.8586 - 0.3687*z^(-1) ... - 0.07576*z^(-2) + 0.01515*z^(-3) ```
`PGr = laurpoly(Gr,'dmin',-2)`
``` PGr(z) = - 0.07071*z^(+2) - 0.3536*z^(+1) + 0.8485 - 0.3536*z^(-1) - 0.07071*z^(-2) ```

Since the filters are associated with biorthogonal wavelet, confirm $PHd\left(z\right)\phantom{\rule{0.16666666666666666em}{0ex}}\phantom{\rule{0.16666666666666666em}{0ex}}PHr\left(z\right)+PG\left(z\right)\phantom{\rule{0.16666666666666666em}{0ex}}\phantom{\rule{0.16666666666666666em}{0ex}}PGr\left(z\right)=2$.

`PHd*PHr + PGd*PGr`
``` ans(z) = 2 ```

Wavelet Toolbox requires that filters associated with the wavelet have even equal length. To use the Laplacian wavelet filters in the toolbox, you must include the missing powers of the Laurent series as zeros.

The degrees of `PHd` and `PHr` are 4 and 6, respectively. The minimum even-length filter that can accommodate the four filters has length 8, which corresponds to a Laurent polynomial of degree 7. The strategy is to prepend and append 0s as evenly as possible so that all filters are of length 8. Prepend 0 to all the filters, and then append two 0s to `Hd` and `Gr`.

```Hd = [0 Hd 0 0]; Gd = [0 Gd]; Hr = [0 Hr]; Gr = [0 Gr 0 0];```

You can examine properties of the biorthogonal wavelets by creating DWT filter banks. Create two custom DWT filter banks using the filters, one for analysis and the other for synthesis. Confirm the filter banks are biorthogonal.

```fb = dwtfilterbank('Wavelet','Custom',... 'CustomScalingFilter',[Hd' Hr'],... 'CustomWaveletFilter',[Gd' Gr']); fb2 = dwtfilterbank('Wavelet','Custom',... 'CustomScalingFilter',[Hd' Hr'],... 'CustomWaveletFilter',[Gd' Gr'],... 'FilterType','Synthesis'); fprintf('fb: isOrthogonal = %d\tisBiorthogonal = %d\n',... isOrthogonal(fb),isBiorthogonal(fb));```
```fb: isOrthogonal = 0 isBiorthogonal = 1 ```
```fprintf('fb2: isOrthogonal = %d\tisBiorthogonal = %d\n',... isOrthogonal(fb2),isBiorthogonal(fb2));```
```fb2: isOrthogonal = 0 isBiorthogonal = 1 ```

Plot the scaling and wavelet functions associated with the filter banks at the coarsest scale.

```[phi,t] = scalingfunctions(fb); [psi,~] = wavelets(fb); [phi2,~] = scalingfunctions(fb2); [psi2,~] = wavelets(fb2); subplot(2,2,1) plot(t,phi(end,:)) grid on title('Scaling Function - Analysis') subplot(2,2,2) plot(t,psi(end,:)) grid on title('Wavelet - Analysis') subplot(2,2,3) plot(t,phi2(end,:)) grid on title('Scaling Function - Synthesis') subplot(2,2,4) plot(t,psi2(end,:)) grid on title('Wavelet - Synthesis')```

Compute the filter bank framebounds.

`[analysisLowerBound,analysisUpperBound] = framebounds(fb)`
```analysisLowerBound = 0.9505 ```
```analysisUpperBound = 1.0211 ```
`[synthesisLowerBound,synthesisUpperBound] = framebounds(fb2)`
```synthesisLowerBound = 0.9800 ```
```synthesisUpperBound = 1.0528 ```

## Input Arguments

collapse all

Wavelet family name, specified as a character vector or string scalar.

Wavelet family short name, specified as a character vector or string scalar. The number of characters in `FSN` must be less than or equal to 4.

Wavelet family type, specified as one of the following:

• `1` – Orthogonal wavelets

• `2` – Biorthogonal wavelets

• `3` – Wavelet with a scaling function

• `4` – Wavelet without a scaling function

• `5` – Complex wavelet without a scaling function

Wavelet parameters, specified as:

• If the family consists of a single wavelet, `NUMS` is the empty string `''`. For example, the `mexh` and `morl` families each contain a single wavelet.

• If the wavelet is member of a finite family of wavelets, `NUMS` contains a space-separated list of items representing wavelet parameters. For example, for the biorthogonal wavelet family `bior`, ```NUMS = '1.1 1.3 1.5 2.2 2.4 2.6 2.8 3.1 3.3 3.5 3.7 3.9 4.4 5.5 6.8'```.

• If the wavelet is member of an infinite family of wavelets, `NUMS` contains a space-separated list of items representing wavelet parameters, terminated by the special sequence `**`. Two examples are listed in the following table.

Wavelet Family`NUMS`
`db````NUMS = '1 2 3 4 5 6 7 8 9 10 **'```
`shan````NUMS = '1-1.5 1-1 1-0.5 1-0.1 2-3 **'```

Wavelet parameter input format, specified as:

• `'integer'` — Use this option when the parameter is an integer. For example, the Daubechies wavelet family `db` uses an integer parameter.

• `'real'` — Use this option when the parameter is real. For example, the biorthogonal wavelet family `bior` uses a real parameter.

• `'charactervector'` — Use this option when the parameter is a character vector. For example, the Shannon wavelet family uses a character vector.

Wavelet definition file, specified as a character vector or string scalar. `FILE` is the name of a MAT-file or a code file name that defines the wavelet family.

Effective support for wavelets with family type `WT` equal to 3, 4, or 5, specified as a two-element real-valued vector. If `B = [lb ub]`, then `lb` specifies the lower bound, and `ub` specifies the upper bound.

Data Types: `double`

Wavelet family, specified by the character vector or string scalar `WN`. The value of `WN` is either the wavelet family name or wavelet family short name.

Example: `wavemngr('del','Lemarie')`

## Limitations

• `wavemngr` allows you to add a wavelet. You must verify that it is truly a wavelet. No check is performed to confirm the addition is a wavelet or to confirm the type of the new wavelet. You can use `dwtfilterbank` to verify if a wavelet is orthogonal or biorthogonal.

## References

[1] Daubechies, I. Ten Lectures on Wavelets. CBMS-NSF Regional Conference Series in Applied Mathematics. Philadelphia, PA: Society for Industrial and Applied Mathematics, 1992.
