# kfoldPredict

Classify observations in cross-validated kernel classification model

## Description

returns class labels predicted by the cross-validated, binary kernel model (`label`

= kfoldPredict(`CVMdl`

)`ClassificationPartitionedKernel`

) `CVMdl`

. For every fold,
`kfoldPredict`

predicts class labels for validation-fold observations
using a model trained on training-fold observations.

`[`

also returns classification scores
for both classes.`label`

,`score`

] = kfoldPredict(`CVMdl`

)

## Examples

### Classify Observations Using Cross-Validation

Classify observations using a cross-validated, binary kernel classifier, and display the confusion matrix for the resulting classification.

Load the `ionosphere`

data set. This data set has 34 predictors and 351 binary responses for radar returns, which are labeled either bad (`'b'`

) or good (`'g'`

).

`load ionosphere`

Cross-validate a binary kernel classification model using the data.

rng(1); % For reproducibility CVMdl = fitckernel(X,Y,'Crossval','on')

CVMdl = ClassificationPartitionedKernel CrossValidatedModel: 'Kernel' ResponseName: 'Y' NumObservations: 351 KFold: 10 Partition: [1x1 cvpartition] ClassNames: {'b' 'g'} ScoreTransform: 'none'

`CVMdl`

is a `ClassificationPartitionedKernel`

model. By default, the software implements 10-fold cross-validation. To specify a different number of folds, use the `'KFold'`

name-value pair argument instead of `'Crossval'`

.

Classify the observations that `fitckernel`

does not use in training the folds.

label = kfoldPredict(CVMdl);

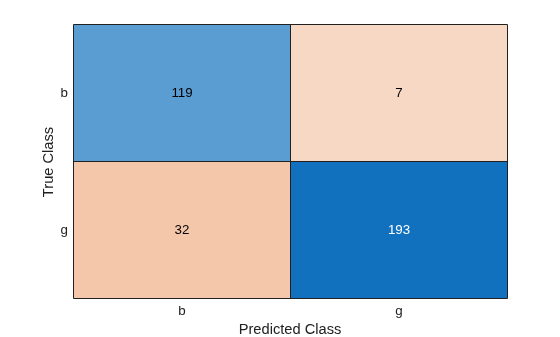

Construct a confusion matrix to compare the true classes of the observations to their predicted labels.

C = confusionchart(Y,label);

The `CVMdl`

model misclassifies 32 good (`'g'`

) radar returns as being bad (`'b'`

) and misclassifies 7 bad radar returns as being good.

### Estimate *k*-Fold Cross-Validation Posterior Class Probabilities

Estimate posterior class probabilities using a cross-validated, binary kernel classifier, and determine the quality of the model by plotting a receiver operating characteristic (ROC) curve. Cross-validated kernel classification models return posterior probabilities for logistic regression learners only.

Load the `ionosphere`

data set. This data set has 34 predictors and 351 binary responses for radar returns, which are labeled either bad (`'b'`

) or good (`'g'`

).

`load ionosphere`

Cross-validate a binary kernel classification model using the data. Specify the class order, and fit logistic regression learners.

rng(1); % For reproducibility CVMdl = fitckernel(X,Y,'Crossval','on', ... 'ClassNames',{'b','g'},'Learner','logistic')

CVMdl = ClassificationPartitionedKernel CrossValidatedModel: 'Kernel' ResponseName: 'Y' NumObservations: 351 KFold: 10 Partition: [1x1 cvpartition] ClassNames: {'b' 'g'} ScoreTransform: 'none'

`CVMdl`

is a `ClassificationPartitionedKernel`

model. By default, the software implements 10-fold cross-validation. To specify a different number of folds, use the `'KFold'`

name-value pair argument instead of `'Crossval'`

.

Predict the posterior class probabilities for the observations that `fitckernel`

does not use in training the folds.

[~,posterior] = kfoldPredict(CVMdl);

The output `posterior`

is a matrix with two columns and `n`

rows, where `n`

is the number of observations. Column `i`

contains posterior probabilities of `CVMdl.ClassNames(i)`

given a particular observation.

Compute the performance metrics (true positive rates and false positive rates) for a ROC curve and find the area under the ROC curve (AUC) value by creating a `rocmetrics`

object.

rocObj = rocmetrics(Y,posterior,CVMdl.ClassNames);

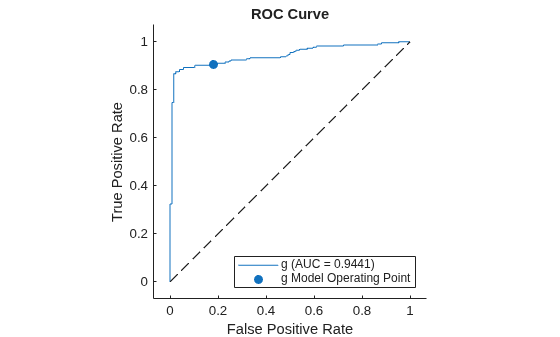

Plot the ROC curve for the second class by using the `plot`

function of `rocmetrics`

.

plot(rocObj,ClassNames=CVMdl.ClassNames(2))

The AUC is close to `1`

, which indicates that the model predicts labels well.

## Input Arguments

`CVMdl`

— Cross-validated, binary kernel classification model

`ClassificationPartitionedKernel`

model object

Cross-validated, binary kernel classification model, specified as a `ClassificationPartitionedKernel`

model object. You can create a
`ClassificationPartitionedKernel`

model by using `fitckernel`

and specifying any one of the cross-validation name-value pair arguments.

To obtain estimates, `kfoldPredict`

applies the same data used to
cross-validate the kernel classification model (`X`

and
`Y`

).

## Output Arguments

`label`

— Predicted class labels

categorical array | character array | logical matrix | numeric matrix | cell array of character vectors

Predicted class labels, returned as a categorical or character array, logical or numeric matrix, or cell array of character vectors.

`label`

has *n* rows, where *n*
is the number of observations in `X`

, and has the same data type as the
observed class labels (`Y`

) used to train `CVMdl`

.
(The software treats string arrays as cell arrays of character
vectors.)

`kfoldPredict`

classifies observations into the class yielding
the highest score.

`score`

— Classification scores

numeric array

Classification
scores, returned as an *n*-by-2 numeric array, where
*n* is the number of observations in `X`

.
`score(i,j)`

is the score for classifying observation
`i`

into class `j`

. The order of the classes is
stored in `CVMdl.ClassNames`

.

If `CVMdl.Trained{1}.Learner`

is `'logistic'`

,
then classification scores are posterior probabilities.

## More About

### Classification Score

For kernel classification models, the raw *classification
score* for classifying the observation *x*, a row vector,
into the positive class is defined by

$$f\left(x\right)=T(x)\beta +b.$$

$$T(\xb7)$$ is a transformation of an observation for feature expansion.

*β*is the estimated column vector of coefficients.*b*is the estimated scalar bias.

The raw classification score for classifying *x* into the negative class is −*f*(*x*). The software classifies observations into the class that yields a
positive score.

If the kernel classification model consists of logistic regression learners, then the
software applies the `'logit'`

score transformation to the raw
classification scores (see `ScoreTransform`

).

## Version History

**Introduced in R2018b**

### R2023b: Observations with missing predictor values are used in resubstitution and cross-validation computations

Starting in R2023b, the following classification model object functions use observations with missing predictor values as part of resubstitution ("resub") and cross-validation ("kfold") computations for classification edges, losses, margins, and predictions.

In previous releases, the software omitted observations with missing predictor values from the resubstitution and cross-validation computations.
