Inverse Fourier synchrosqueezed transform
the synchrosqueezed transform along the time-frequency ridges specified
by the index vector or matrix
x = ifsst(
a matrix, then
ifsst initially performs the inversion
along the first column of
iridge and then proceeds
iteratively along the subsequent columns. The output is a vector or
matrix with the same size as
Inverse Fourier Synchrosqueezed Transform of Speech Signal
Load a speech signal sampled at . The file contains a recording of a female voice saying the word "MATLAB®." Compute the Fourier synchrosqueezed transform of the signal.
load mtlb % To hear, type sound(mtlb,Fs) [sst,f] = fsst(mtlb,Fs);

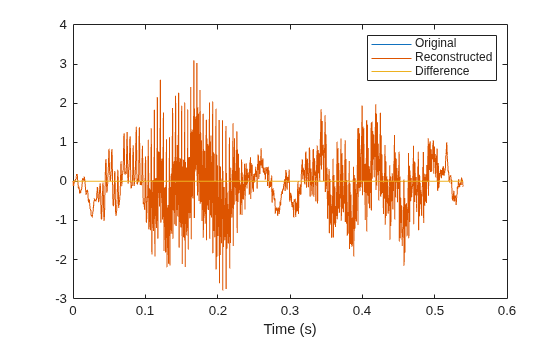

Invert the transform to reconstruct the signal. Plot the original and reconstructed signals, as well as the difference between them.
xrec = ifsst(sst); t = (0:length(mtlb)-1)/Fs; plot(t,mtlb,t,xrec,t,mtlb-xrec) xlabel('Time (s)') legend('Original','Reconstructed','Difference')
Check the accuracy of the reconstruction by computing the norm of the difference between the original signal and the inverse transform.
Linf = norm(abs(mtlb-xrec),Inf)
Linf = 1.9762e-14
% To hear, type sound(mtlb-xrec,Fs)
Fourier Synchrosqueezed Transform and Its Inverse
Generate a signal sampled at 1024 Hz for 2 seconds.
nSamp = 2048; Fs = 1024; t = (0:nSamp-1)'/Fs;
During the first second, the signal consists of a 400 Hz sinusoid and a concave quadratic chirp. Specify a chirp that is symmetric about the interval midpoint, starts and ends at a frequency of 250 Hz, and attains a minimum of 150 Hz.
t1 = t(1:nSamp/2); x11 = sin(2*pi*400*t1); x12 = chirp(t1-t1(nSamp/4),150,nSamp/Fs,1750,'quadratic'); x1 = x11+x12;
The rest of the signal consists of two linear chirps of decreasing frequency. One chirp has an initial frequency of 250 Hz that decreases to 100 Hz. The other chirp has an initial frequency of 400 Hz that decreases to 250 Hz.
t2 = t(nSamp/2+1:nSamp); x21 = chirp(t2,400,nSamp/Fs,100); x22 = chirp(t2,550,nSamp/Fs,250); x2 = x21+x22;

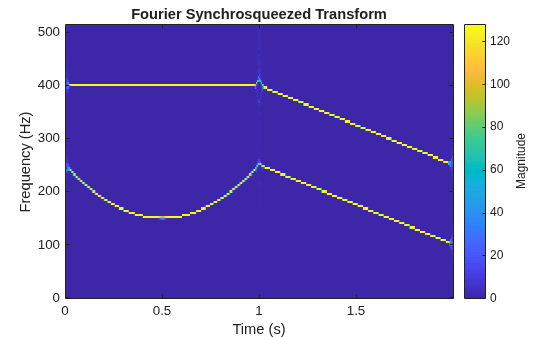

Compute the Fourier synchrosqueezed transform of the signal. Specify a 256-sample Kaiser window with a shape parameter β = 100. Use the plotting functionality of
fsst to display the result.
sig = [x1;x2]; wind = kaiser(256,120); [sigtr,ftr,ttr] = fsst(sig,Fs,wind); fsst(sig,Fs,wind,'yaxis')

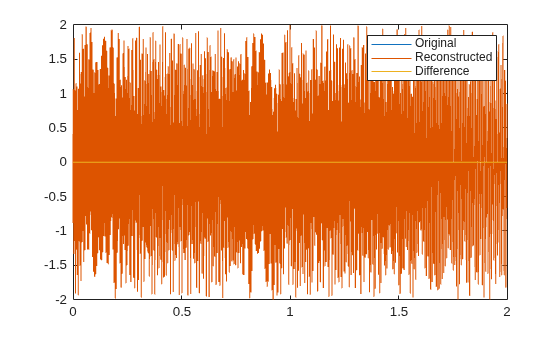

Invert the transform to reconstruct the function. Plot the original and inverted signals and the difference between them.
x = ifsst(sigtr,wind); plot(t,sig,t,x,t,x-sig) legend('Original','Reconstructed','Difference')
diffnorm = norm(x-sig)
diffnorm = 3.9026e-13
Reconstruction of Linear Chirps
Generate a signal that consists of two chirps. The signal is sampled at 3 kHz for one second. The first chirp has an initial frequency of 400 Hz and reaches 800 Hz at the end of the sampling. The second chirp starts at 500 Hz and reaches 1000 Hz at the end. The second chirp has twice the amplitude of the first chirp.
fs = 3000; t = 0:1/fs:1-1/fs; x1 = chirp(t,400,t(end),800); x2 = 2*chirp(t,500,t(end),1000);

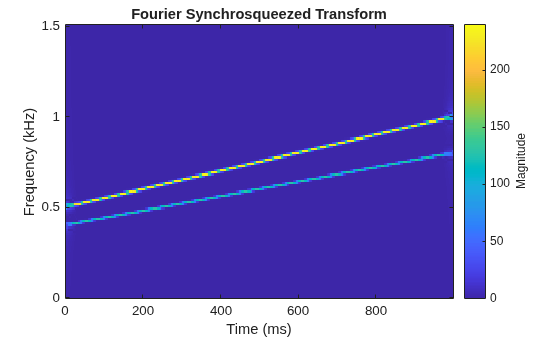

Compute and plot the Fourier synchrosqueezed transform of the signal. Display the time on the x-axis and the frequency on the y-axis.
[sst,f] = fsst(x1+x2,fs); fsst(x1+x2,fs,'yaxis')
Extract the ridge corresponding to the higher-energy component of the signal, which is the chirp with the larger amplitude. Use the ridge to reconstruct the signal.
[~,iridge] = tfridge(sst,f); xrec = ifsst(sst,,iridge);
Plot the spectrogram for the higher-energy component. Divide the component into 256-sample sections and specify an overlap of 255 samples. Use 512 DFT points and a rectangular window.

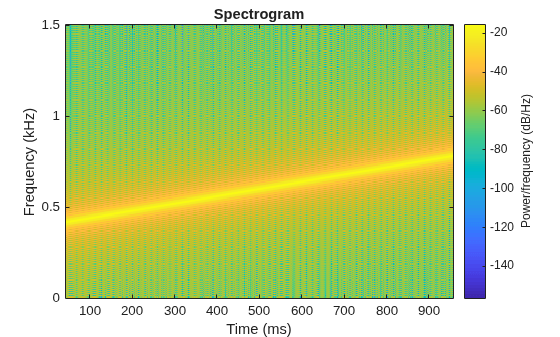

To extract the second chirp, specify that
tfridge search for two ridges. The second column of the output is the lower-energy component of the signal.
[~,iridge] = tfridge(sst,f,'NumRidges',2); xrec = ifsst(sst,,iridge(:,2)); spectrogram(xrec,rectwin(256),255,512,fs,'yaxis')
s — Input synchrosqueezed transform
Input synchrosqueezed transform, specified as a matrix.
the synchrosqueezed transform of a sinusoid.
Complex Number Support: Yes
window — Spectral window
kaiser(256,10) (default) | integer | vector |
Spectral window, specified as an integer or as a row or column vector.
windowis an integer, then
ifsstassumes that the synchrosqueezed transform,
s, was computed using a Kaiser window of length
windowand β = 10.
windowis a vector, then
swas computed by windowing each segment of the original signal using
windowis not specified, then
swas computed using a Kaiser window of length 256 and β = 10. If the signal to be reconstructed,
x, has fewer than 256 samples, then you must provide a window length or window vector consistent with the length of
For a list of available windows, see Windows.
specify a Hann window of length
N + 1.
f — Sampling frequencies
Sampling frequencies, specified as a vector. The length of
equal the number of elements in
freqrange — Frequency range
Frequency range, specified as a two-element vector. The values
freqrange must be strictly increasing and
must lie in the range comprised by
iridge — Time-frequency ridge indices
vector | matrix
Time-frequency ridge indices, specified as a vector or matrix.
an output of
nbins — Number of neighboring bins
4 (default) | positive integer scalar
Number of neighboring bins on either side of the time-frequency
ridges of interest, specified as the comma-separated pair consisting
'NumFrequencyBins' and a positive integer scalar.
Indices close to the frequency edges that have fewer than
on one side are reconstructed using a smaller number of bins.
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
sis variable size, you must extract the real part of
xbefore inputting it to an audio plugin.
GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.
Usage notes and limitations:
The length of the window must be smaller than or equal to the length of the input signal.
Introduced in R2016b
