자동차

미래의 모빌리티 설계, 시뮬레이션 및 배포

MathWorks^® 자동차 제품을 사용하여 엔지니어는 차량 개발 공정을 가속화하고 안전성, 안락감 및 성능에 관한 시장의 요구 사항을 충족하는 차량을 출시할 수 있습니다. 자동차 엔지니어는 소프트웨어를 사용하여 다음을 수행할 수 있습니다.

자동차 관련 제품

Model and calibrate complex powertrain systems

Model and simulate automotive powertrain systems

Model and simulate vehicle dynamics in a virtual 3D environment

Design, simulate, and test ADAS and autonomous driving systems

Qualify software tools for ISO 26262 and IEC 61508 certification

Communicate with in-vehicle networks using CAN, J1939, and XCP protocols

Design and simulate AUTOSAR software

Design 3D scenes for automated driving simulation

Simulate and visualize dynamic systems in a 3D environment

Develop, Resize, and Calibrate Motors with Dynamometer Test Harness (Powertrain Blockset)
Develop a control test bench, resize e-motors, and calibrate controllers using the motor dynamometer reference application.

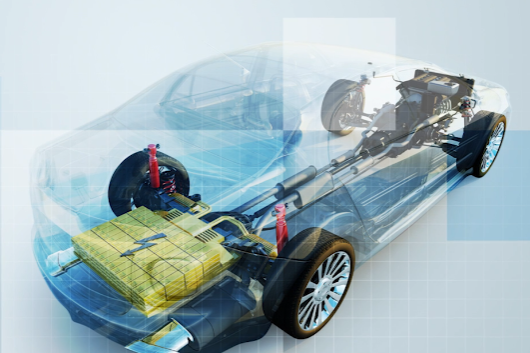

Build Full Electric Vehicle Model (Powertrain Blockset)
Build a vehicle with a motor-generator, battery, direct-drive transmission, and powertrain control algorithms using the electric vehicle (EV) reference application.
Generate Optimal Current Controller Calibration Tables for Permanent Magnet Synchronous Motors (Powertrain Blockset)
Generate optimized current controller and flux parameters for permanent magnet synchronous motor (PMSM) blocks.
Hybrid and Electric Vehicle Reference Application Projects (Powertrain Blockset)
Start building your own hybrid and electric vehicle models with reference application projects.

Code Generation for Path Planning and Vehicle Control (Automated Driving Toolbox)
Generate C++ code for a path planning and vehicle control algorithm, and verify the code using software-in-the-loop simulation.
Create Roads Around Imported GIS Assets (RoadRunner)
Use geographic information system assets as a reference to construct your road network.
Forward Collision Warning Application with CAN FD and TCP/IP (Automated Driving Toolbox)
Execute a forward collision warning application with sensor and vision data replayed live via CAN FD and TCP/IP protocols.
Get Started with Ground Truth Labelling (Automated Driving Toolbox)
Interactively label multiple lidar and video signals simultaneously.

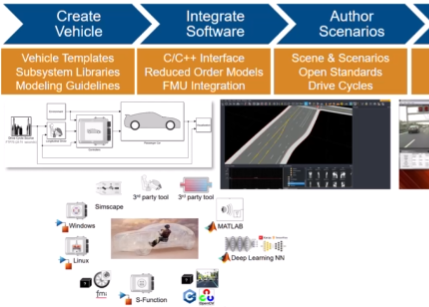

Get Started with the Virtual Vehicle Composer (Vehicle Dynamics Blockset)
Use the Virtual Vehicle Composer app to configure, build, test, and analyze a virtual vehicle.
Double-Lane Change Maneuver (Vehicle Dynamics Blockset)
Analyze vehicle ride and handling, including yaw stability, using this reference application.
Kinematics and Compliance Virtual Test Laboratory (Vehicle Dynamics Blockset)
Virtually calibrate suspension blocks using this reference application.
Longitudinal Motorcycle Braking Test (Vehicle Dynamics Blockset)
Analyze motorcycle ride and handling during a braking test using this reference application.

Internal Combustion Engine Reference Application Projects (Powertrain Blockset)
Use these reference applications as a starting point for your own internal combustion engine vehicle models.
Optimize Transmission Control Module Shift Schedules (Powertrain Blockset)
Use the conventional vehicle reference application to optimize the transmission control module (TCM) shift schedules.
Detect Misfires Using On-Board Diagnostics (Powertrain Blockset)
Implement onboard-diagnostics (OBD) to detect and report engine misfires.
Predict Engine Torque Using Two-Stage Modeling (Model-Based Calibration Toolbox)
Create a statistical engine model that predicts engine brake torque as a function of spark angle.

Develop AUTOSAR Software Component Model (AUTOSAR Blockset)
Learn the basics of developing AUTOSAR classic software components in the Simulink^® environment.
Generate Drive Cycles for Real Driving Emissions (Powertrain Blockset)
Meet the Real Driving Emissions standard required by the European Union.

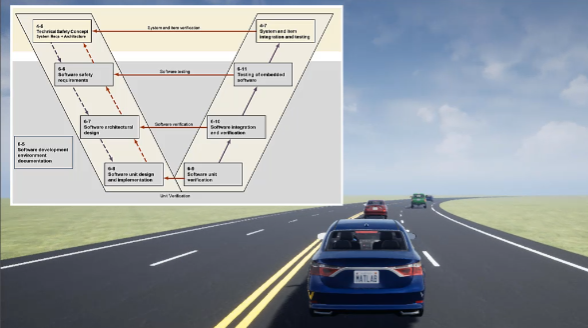

Highway Lane Following: A Model-Based Design Example for ISO 26262:2018 (IEC Certification Kit)
Demonstrates the use of Simulink to apply a Model-Based Design workflow to an ISO 26262 ASIL D project.
Implement Distributed ECU Network over CAN in Simulink (Vehicle Network Toolbox)
Use Vehicle Network Toolbox™ and Simulink to implement a distributed Electronic Control Unit (ECU) network over CAN for an automobile.
