Generate Parameters for Flux-Based Blocks
This table provides a description of the process to generate the parameters and links to examples.
|For Block||To Generate||Description||Example|
|Flux-Based PM Controller||
Current Controller parameters:
Use the Model-Based Calibration Toolbox™ to generate optimized current controller tables for flux-based motor controllers.
Based on nonlinear motor flux data, the calibration tables optimize:
Use MATLAB® scripts available with Powertrain Blockset™ to load flux motor data, visualize the flux surface, and create plots of flux as a function of current.
Use MATLAB scripts available with Powertrain Blockset to load flux motor data, invert the flux, and create plots of current as a function of flux.
|Generate Parameters for Flux-Based PMSM Block|

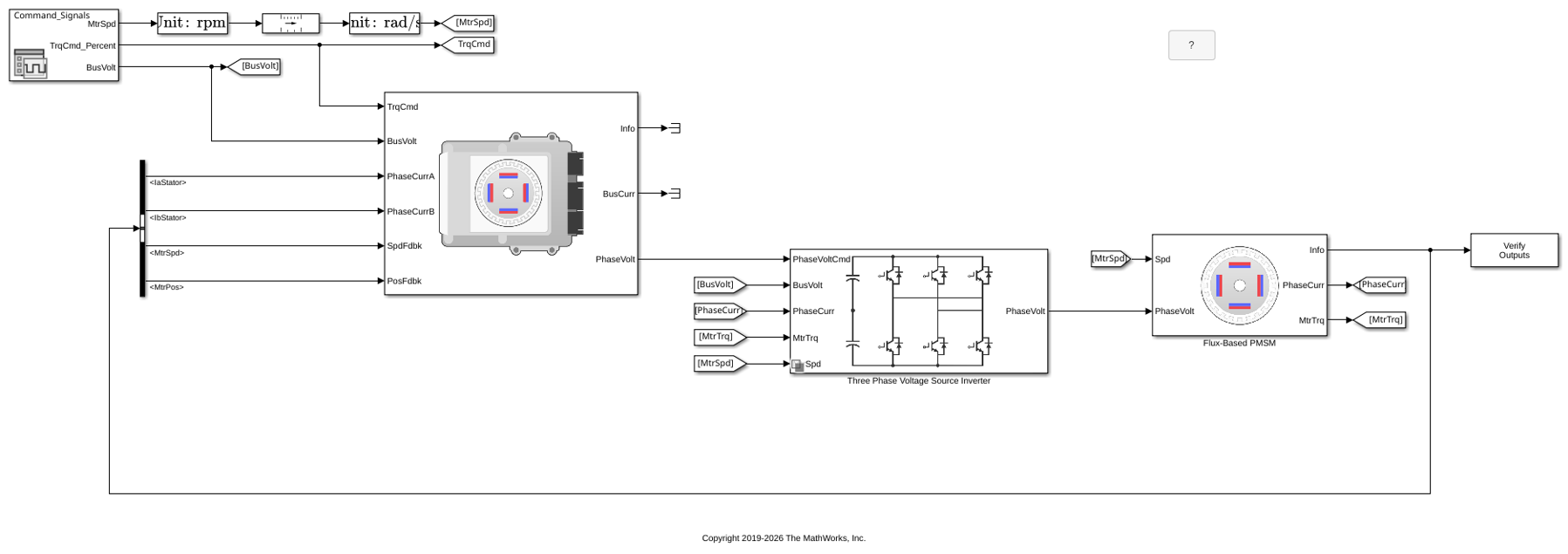

To open a model with optimized parameters for the Flux-Based PM Controller
and Flux-Based PMSM blocks, on the command-line, type
 Hu, Dakai, Yazan Alsmadi, and Longya Xu. “High fidelity nonlinear IPM modeling based on measured stator winding flux linkage.” IEEE® Transactions on Industry Applications, Vol. 51, No. 4, July/August 2015.
 Chen, Xiao, Jiabin Wang, Bhaskar Sen, Panagiotis Lasari, Tianfu Sun. “A High-Fidelity and Computationally Efficient Model for Interior Permanent-Magnet Machines Considering the Magnetic Saturation, Spatial Harmonics, and Iron Loss Effect.” IEEE Transactions on Industrial Electronics, Vol. 62, No. 7, July 2015.
 Ottosson, J., M. Alakula. “A compact field weakening controller implementation.” International Symposium on Power Electronics, Electrical Drives, Automation and Motion, July, 2006.
