You can generate a SystemVerilog DPI component from Simulink®
verify statements. When using the Test Assessment or Test Sequence blocks, you can assess model
behavior by including
verify statements in the test sequence. To map
verify statements to a SystemVerilog assertion, generate a
SystemVerilog DPI component from the Test Assessment or Test Sequence block. Use the SystemVerilog
DPI component in your HDL test environment.
In Simulink, create a model for the device under test (DUT), and create a test
bench for the model using Test Assessment or Test Sequence blocks. Use the Test Sequence Editor (Simulink Test) to create and
edit test steps. In the test sequence, use
verify statements to
assess the simulation, as described in Test Sequence and Assessment Syntax (Simulink Test).
verify statement along with the Test
Sequence block represents a temporal check in Simulink. When generating a SystemVerilog DPI component, the temporal logic
is located in the generated C code. The SystemVerilog wrapper contains an
immediate assertion that triggers when the verify condition is violated.
When simulating your design in Simulink, the simulation emits a warning if the
You can view and inspect the simulation results by using the Simulation Data Inspector. Open the Simulation Data Inspector by entering this code at the MATLAB® command line.
In the Configuration Parameters dialog box, select Code
Generation in the left pane. Under Target
Selection, set System Target File to
systemverilog_dpi_grt.tlc, or alternatively to
systemverilog_dpi_ert.tlc when using Embedded
Select SystemVerilog DPI in the left pane. Under SystemVerilog Ports,set the data type and connection settings. Click OK.
To generate a DPI Component, the Test Assessment block or Test Sequence block must be inside a Simulink subsystem.
In Simulink, right-click on the subsystem block, which contains the test sequence, and select C/C++ Code > Build This Subsystem. Click Build in the dialog box that opens.
Command-line alternative: Use the
rtwbuild function to build the system. For example, to
build a subsystem named "My_verify_tst", enter this code at the MATLAB command
Change your current folder to the
dpi_tb folder, which is under
the code generation folder in your HDL simulator installation. Start your HDL
simulator, and run the generated script to start the simulation. The simulation
output is consistent with the Simulink output.
For additional information on running the HDL simulation, see Verify Generated Component Against Simulink Data.
After running a SystemVerilog simulation with a generated test sequence, your log
file displays warnings and errors. To identify which block originated a specific
warning or error output, use the Simulink Identifier (SID)
Each generated error or warning displays a unique name identifying its origin.
That number is the SID of that block. For example, the output in the previous figure
shows an error that was generated by a test sequence block with SID

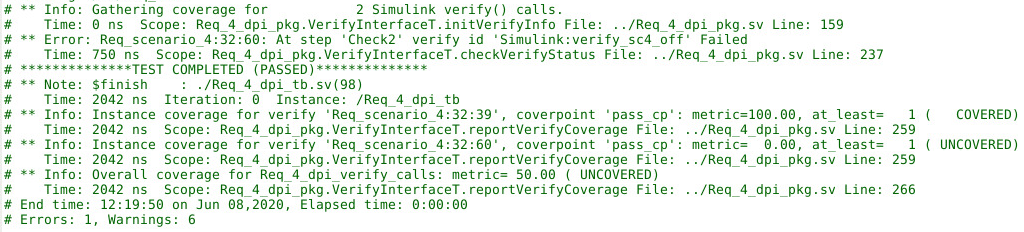

# ** Error: Req_scenario_4:32:60: At step 'Check2' verify id 'Simulink:verify_sc4_off' Failed
To highlight the block that generated this warning, enter this code at the MATLAB command line.
The figure highlights both the verify statement and the test sequence block that created this warning.
For additional information about Simulink Identifiers, see Locate Diagram Components Using Simulink Identifiers (Simulink).
By default, the generated DPI component outputs an error when the
verify assessment is tested and fails. To see additional
output generated by the
verify assessment, use the argument
+VERBOSE_VERIFY in the HDL simulation command line. This
argument adds information showing when the
verify assessment was
not tested, and when it was tested and passed. For example, when using ModelSim® enter the following at the command line.
vsim -classdebug -c -voptargs=+acc -sv_lib ../Req_4 work.Req_4_dpi_tb +VERBOSE_VERIFY
This command outputs a verbose log, which includes details about when the
verify assessments were tested and whether they passed or
You may have several steps in a test sequence that utilize a
verify assessment or several DPI components logging warnings
from a simulation. In your test model, you can filter the generated output for
verify steps by specifying the associated SID as a plus
argument on the command line. For example, to turn off all output for SID
Req_scenario_4:32:60, enter this code at the HDL command
vsim -classdebug -c -voptargs=+acc -sv_lib ../Req_4 work.Req_4_dpi_tb +Req_scenario_4:32:60
