dsp.FIRFilter

Static or time-varying FIR filter

Description

The dsp.FIRFilter System object™ filters each channel of the input using static or time-varying FIR filter implementations.

To filter each channel of the input:

  1. Create the dsp.FIRFilter object and set its properties.

  2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

This object supports C/C++ code generation and SIMD code generation under certain conditions. For more information, see Code Generation.

Creation

Description

fir = dsp.FIRFilter returns a finite impulse response (FIR) filter object, fir, which independently filters each channel of the input over time using a specified FIR filter implementation.

fir = dsp.FIRFilter(num) returns an FIR filter System object, fir, with the Numerator property set to num.

example

fir = dsp.FIRFilter(Name,Value) returns an FIR filter System object, fir, with each property set to the specified value.

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

Specify the filter structure. You can specify the filter structure as one of Direct form | Direct form symmetric | Direct form antisymmetric | Direct form transposed | Lattice MA.

Specify the source of the filter coefficients as Property or Input port. When you specify Input port, the filter object updates the time-varying filter once every frame.

Dependencies

This applies when you set the Structure to Direct form | Direct form symmetric | Direct form antisymmetric | Direct form transposed.

Specify the source of the Lattice filter coefficients as Property or Input port. When you specify Input port, the filter object updates the time-varying filter once every frame.

Dependencies

This applies when you set the Structure to Lattice MA.

Specify the filter coefficients as a real or complex numeric row vector.

Tunable: Yes

Dependencies

This property applies when you set the NumeratorSource property to Property, and the Structure property is set to Direct form, Direct form symmetric, Direct form antisymmetric, or Direct form transposed.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64
Complex Number Support: Yes

Specify the reflection coefficients of a lattice filter as a real or complex numeric row vector.

Tunable: Yes

Dependencies

This property applies when you set the Structure property to Lattice MA, and the ReflectionCoefficientsSource property to Property.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64
Complex Number Support: Yes

Specify the initial conditions of the filter states. The number of states or delay elements equals the number of reflection coefficients for the lattice structure, or the number of filter coefficients–1 for the other direct form structures.

You can specify the initial conditions as a scalar, vector, or matrix. If you specify a scalar value, the FIR filter object initializes all delay elements in the filter to that value. If you specify a vector whose length equals the number of delay elements in the filter, each vector element specifies a unique initial condition for the corresponding delay element. The object applies the same vector of initial conditions to each channel of the input signal.

If you specify a vector whose length equals the product of the number of input channels and the number of delay elements in the filter, each element specifies a unique initial condition for the corresponding delay element in the corresponding channel.

If you specify a matrix with the same number of rows as the number of delay elements in the filter, and one column for each channel of the input signal, each element specifies a unique initial condition for the corresponding delay element in the corresponding channel.

Tunable: Yes

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Fixed-Point Properties

Specify whether to use full precision rules. If you set FullPrecisionOverride to true, which is the default, the object computes all internal arithmetic and output data types using full precision rules. These rules provide the most accurate fixed-point numerics. It also turns off the display of other fixed-point properties because they do not apply individually. These rules guarantee that no quantization occurs within the object. Bits are added, as needed, to ensure that no roundoff or overflow occurs. If you set FullPrecisionOverride to false, fixed-point data types are controlled through individual fixed-point property settings. For more information, see Full Precision for Fixed-Point System Objects.

Specify the rounding method.

Dependencies

This property applies only if the object is not in full precision mode.

Specify the overflow action as Wrap or Saturate.

Dependencies

This property applies only if the object is not in full precision mode.

Specify the coefficients fixed-point data type as Same word length as input or Custom.

Dependencies

This property applies when you set the NumeratorSource property to Property.

Specify the coefficients fixed-point type as a signed or unsigned numerictype (Fixed-Point Designer) object.

Dependencies

This property applies when you set the CoefficientsDataType property to Custom.

Specify the reflection coefficients fixed-point data type as Same word length as input or Custom.

Dependencies

This property applies when you set the ReflectionCoefficientsSource property to Property.

Specify the reflection coefficients fixed-point type as a signed or unsigned numerictype (Fixed-Point Designer) object.

Dependencies

This property applies when you set the ReflectionCoefficientsDataType property to Custom.

Specify the product fixed-point data type as Full precision, Same as input, or Custom.

Specify the product fixed-point type as a signed or unsigned scaled numerictype (Fixed-Point Designer) object.

Dependencies

This property applies when you set the ProductDataType property to Custom.

Specify the accumulator fixed-point data type to Full precision, Same as input, Same as product, or Custom.

Specify the accumulator fixed-point type as a signed or unsigned scaled numerictype (Fixed-Point Designer) object.

Dependencies

This property applies when you set the AccumulatorDataType property to Custom.

Specify the state fixed-point data type as one of Same as input, Same as accumulator, or Custom.

Dependencies

This property does not apply to any of the direct form or direct form I filter structures.

Specify the state fixed-point type as a signed or unsigned scaled numerictype (Fixed-Point Designer) object.

Dependencies

This property applies when you set the StateDataType property to Custom.

Specify the output fixed-point data type as one of Same as input, Same as accumulator, or Custom.

Specify the output fixed-point type as a signed or unsigned scaled numerictype (Fixed-Point Designer) object.

Dependencies

This property applies when you set the OutputDataType property to Custom.

Usage

Description

y = fir(x) applies an FIR filter to the real or complex input signal x to produce the output y.

example

y = fir(x,coeff) uses the time-varying coefficients, coeff , to filter the input signal x and produce the output y. You can use this option when you set the NumeratorSource or ReflectionCoefficientsSource property to Input port.

example

Input Arguments

expand all

Data input, specified as a vector or a matrix. When the input data is of a fixed-point type, it must be signed when the structure is set to Direct form symmetric or Direct form antisymmetric. The FIR filter object operates on each channel of the input signal independently over successive calls to the object.

This System object supports variable-size input.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | fi
Complex Number Support: Yes

Time-varying filter coefficients, specified as a row vector. The data and coefficient inputs must have the same data type.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | fi
Complex Number Support: Yes

Output Arguments

expand all

Filtered output, returned as a vector or a matrix. The output has the same size as the input. For single and double inputs, the output data type matches the input data type. For integer and fixed-point inputs, the output data type depends on the setting of the FullPrecisionOverride and OutputDataType properties.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | fi
Complex Number Support: Yes

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

freqzFrequency response of discrete-time filter System object
filterAnalyzerAnalyze filters with Filter Analyzer app
impzImpulse response of discrete-time filter System object
infoInformation about filter System object
coeffsReturns the filter System object coefficients in a structure
costEstimate cost of implementing filter System object
grpdelayGroup delay response of discrete-time filter System object
generatehdlGenerate HDL code for quantized DSP filter (requires Filter Design HDL Coder)
outputDelayDetermine output delay of single-rate or multirate filter
stepRun System object algorithm
releaseRelease resources and allow changes to System object property values and input characteristics
resetReset internal states of System object

Examples

collapse all

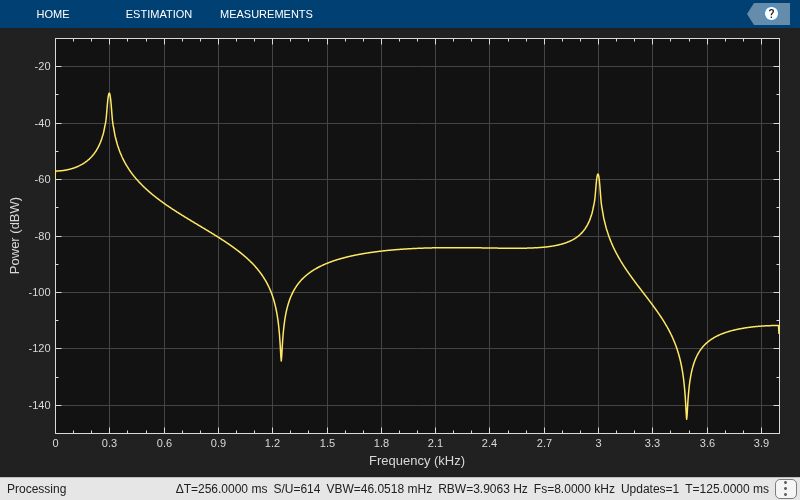

Use an FIR filter to apply a lowpass filter to a waveform with two sinusoidal components.

 t = (0:1000)'/8e3;
 xin = sin(2*pi*0.3e3*t)+sin(2*pi*3e3*t);

 sr = dsp.SignalSource;
 sr.Signal = xin;
 sink = dsp.SignalSink;

 fir = dsp.FIRFilter(designLowpassFIR(FilterOrder=10,CutoffFrequency=0.5));

sa = spectrumAnalyzer(...
     SampleRate=8e3,...
     Method='welch',...
     PlotAsTwoSidedSpectrum=false,...
     OverlapPercent=80,...
     SpectrumUnits='dBW',...
     YLimits=[-150 -10]);

 while ~isDone(sr)
      input = sr();
      filteredOutput = fir(input);
      sink(filteredOutput);
      sa(filteredOutput)
 end

 filteredResult = sink.Buffer;

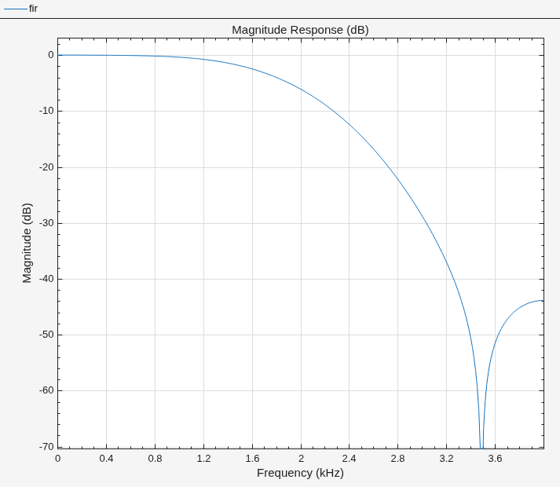

 filterAnalyzer(fir,SampleRates=8000)

Design an FIR filter as a System object.

N = 10;
Fc = 0.4;
firFiltObj = designLowpassFIR(FilterOrder=N,CutoffFrequency=Fc,SystemObject=true)
firFiltObj =
  dsp.FIRFilter with properties:

            Structure: 'Direct form'
      NumeratorSource: 'Property'
            Numerator: [-1.2414e-18 -0.0126 -0.0247 0.0635 0.2748 0.3981 0.2748 0.0635 -0.0247 -0.0126 -1.2414e-18]
    InitialConditions: 0

  Use get to show all properties

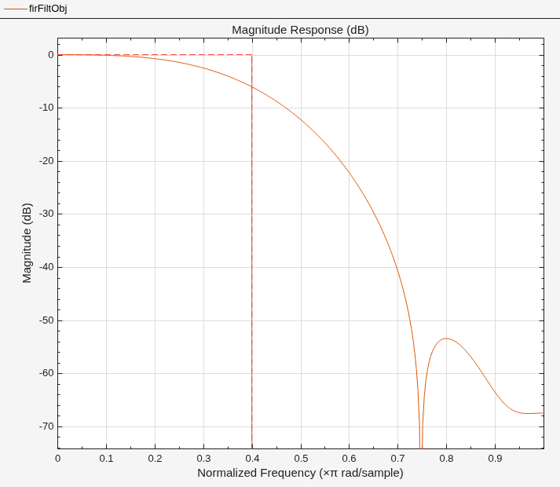

filterAnalyzer(firFiltObj)

Create a dsp.FIRFilter object, and set the NumeratorSource property to 'Input port' so that you can vary the coefficients of the FIR filter through the input port during simulation.

firFilt = dsp.FIRFilter(NumeratorSource="Input port")
firFilt =
  dsp.FIRFilter with properties:

            Structure: 'Direct form'
      NumeratorSource: 'Input port'
    InitialConditions: 0

  Use get to show all properties

Create a spectrumAnalyzer object to visualize the spectra of the input and output signals.

spectrumScope = spectrumAnalyzer(SampleRate=44100,PlotAsTwoSidedSpectrum=false,...
    ChannelNames=["Input Signal","Filtered Signal"]);

Create a dsp.DynamicFilterVisualizer object to visualize the magnitude response of the varying filter.

filterViz = dsp.DynamicFilterVisualizer(NormalizedFrequency=true);

Stream in random data and filter the signal using the dsp.FIRFilter object. Use the designLowpassFIR function to design the filter coefficients. By default, this function returns a vector of FIR filter coefficients. Assign these coefficients to the dsp.FIRFilter object.

Vary the cutoff frequency of the filter during simulation. The designLowpassFIR function redesigns the coefficients based on the updated filter specifications. Pass these updated coefficients to the FIR filter. Visualize the spectra of the input and filtered signals using the spectrum analyzer.

Fcut = 0.5;
for idx = 1:500
    num = designLowpassFIR(FilterOrder=30,CutoffFrequency=Fcut,Window="hann");
    x = randn(1024,1);
    y = firFilt(x,num);
    spectrumScope(x,y);
    filterViz(num);
    Fcut = Fcut + 0.0005;
end

Design and implement a lowpass FIR filter object using the designLowpassFIR function. The function returns a dsp.FIRFilter object when you set the SystemObject argument to true. To design the filter in single-precision, use the Datatype or like argument. Alternatively, you can specify any of the numerical arguments in single-precision.

firFilt = designLowpassFIR(FilterOrder=30,CutoffFrequency=0.5,Window="hann",...
        Datatype="single",SystemObject=true)
firFilt =
  dsp.FIRFilter with properties:

            Structure: 'Direct form'
      NumeratorSource: 'Property'
            Numerator: [0 2.1297e-19 0.0011 -1.8613e-18 -0.0048 4.8729e-18 0.0122 -8.7270e-18 -0.0251 1.2757e-17 0.0477 -1.6267e-17 -0.0960 1.8649e-17 0.3148 0.5000 0.3148 1.8649e-17 -0.0960 -1.6267e-17 0.0477 1.2757e-17 -0.0251 ... ] (1x31 single)
    InitialConditions: 0

  Use get to show all properties

Create a dsp.DynamicFilterVisualizer object to visualize the magnitude response of the filter.

filterViz = dsp.DynamicFilterVisualizer(NormalizedFrequency=true);
filterViz(firFilt)

Create a spectrumAnalyzer object to visualize the spectra of the input and output signals.

spectrumScope = spectrumAnalyzer(SampleRate=44100,PlotAsTwoSidedSpectrum=false,...
    ChannelNames=["Input Signal","Filtered Signal"]);

Stream in random data and filter the signal using the dsp.FIRFilter object. Visualize the spectra of the input and filtered signals using the spectrum analyzer.

for idx = 1:500
    x = randn(1024,1);
    y = firFilt(x);
    spectrumScope(x,y);
end

Design an equiripple FIR halfband filter with the order of 24 and a transition width of 0.1 using the designHalfbandFIR function. Assign the filter coefficients to a dsp.FIRFilter System object.

b = designHalfbandFIR(FilterOrder=24,DesignMethod='equiripple');
hbFIR = dsp.FIRFilter(b);

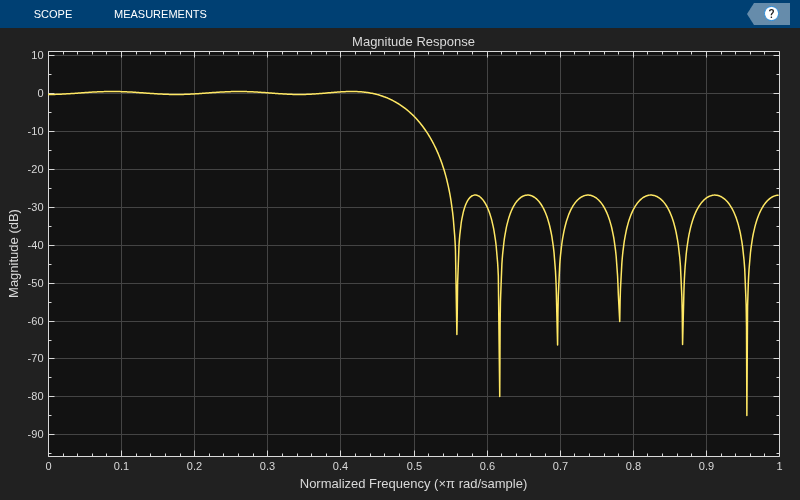

Create a dsp.DynamicFilterVisualizer object and visualize the magnitude response of the filter.

dfv = dsp.DynamicFilterVisualizer(NormalizedFrequency=true);
dfv(hbFIR);

Create a spectrumAnalyzer object to visualize the spectra of the input and output signals.

scope = spectrumAnalyzer(SampleRate=2, PlotAsTwoSidedSpectrum=false,...
    ChannelNames=["Input Signal","Filtered Signal"]);

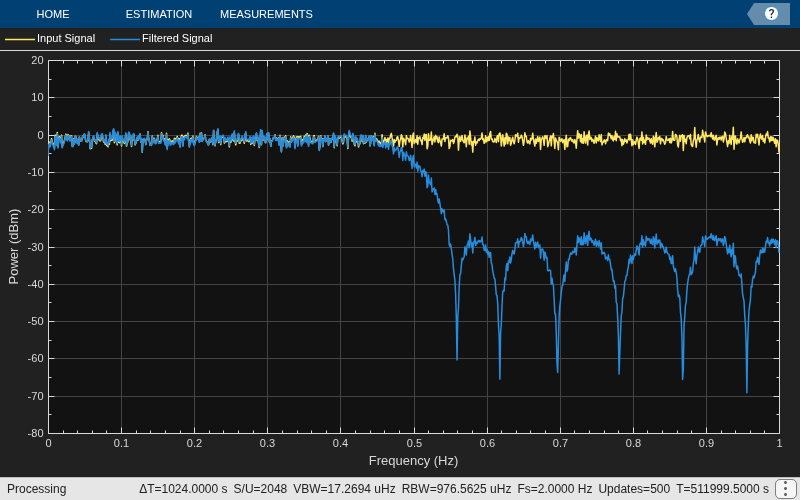

Stream in random data and filter the signal using the FIR halfband filter.

for i = 1:1000
    x = randn(1024, 1);
    y = hbFIR(x);
    scope(x,y);
end

Since R2023b

Design a lowpass FIR filter using the designfilt function.

The filter is a minimum order filter with a passband frequency of 0.45 and a stopband frequency of 0.55 in normalized frequency units. The passband ripple is 1 dB and the stopband attenuation is 60 dB. Use the Kaiser window design method and set the SystemObject argument to true.

With these specifications, the designfilt function generates a dsp.FIRFilter System object™.

lpFIRFilter = designfilt('lowpassfir', ...
    'PassbandFrequency',0.45,'StopbandFrequency',0.55, ...
    'PassbandRipple',1,'StopbandAttenuation',60, ...
    'DesignMethod','kaiserwin','SystemObject',true)
lpFIRFilter =
  dsp.FIRFilter with properties:

            Structure: 'Direct form'
      NumeratorSource: 'Property'
            Numerator: [1.2573e-04 -1.9141e-04 -2.7282e-04 3.7207e-04 4.9141e-04 -6.3325e-04 -8.0016e-04 9.9490e-04 0.0012 -0.0015 -0.0018 0.0021 0.0025 -0.0029 -0.0034 0.0040 0.0046 -0.0053 -0.0060 0.0069 0.0079 -0.0090 -0.0102 0.0116 ... ] (1x74 double)
    InitialConditions: 0

  Use get to show all properties

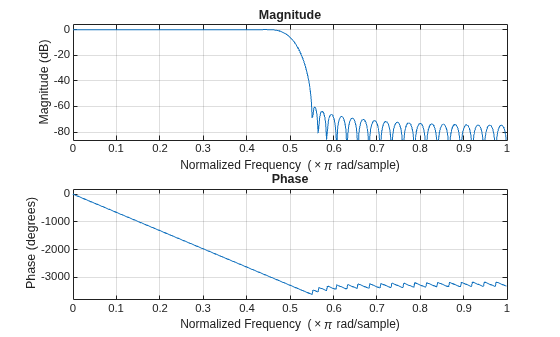

Visualize the magnitude and phase responses of this filter using freqz.

freqz(lpFIRFilter.Numerator)

Figure contains 2 axes objects. Axes object 1 with title Phase, xlabel Normalized Frequency (\times\pi rad/sample), ylabel Phase (degrees) contains an object of type line. Axes object 2 with title Magnitude, xlabel Normalized Frequency (\times\pi rad/sample), ylabel Magnitude (dB) contains an object of type line.

Algorithms

This object implements the algorithm, inputs, and outputs described on the Discrete FIR Filter (Simulink) block reference page. The object properties correspond to the block parameters.
