openl3

(Not recommended) OpenL3 neural network

Since R2021a

openl3 is not recommended. Use the audioPretrainedNetwork function instead.

Syntax

net = openl3

net = openl3(Name,Value)

Description

net = openl3 returns a pretrained OpenL3 model.

This function requires both Audio Toolbox™ and Deep Learning Toolbox™.

net = openl3(Name,Value) specifies options using one or more Name, Value arguments. For example, net = openl3('EmbeddingLength',6144) specifies the output embedding length as 6144.

Examples

Download OpenL3 Network

Download and unzip the Audio Toolbox™ model for OpenL3.

Type openl3 at the Command Window. If the Audio Toolbox model for OpenL3 is not installed, the function provides a link to the location of the network weights. To download the model, click the link. Unzip the file to a location on the MATLAB path.

Alternatively, execute these commands to download and unzip the OpenL3 model to your temporary directory.

downloadFolder = fullfile(tempdir,'OpenL3Download');
loc = websave(downloadFolder,'https://ssd.mathworks.com/supportfiles/audio/openl3.zip');
OpenL3Location = tempdir;
unzip(loc,OpenL3Location)
addpath(fullfile(OpenL3Location,'openl3'))

Check that the installation is successful by typing openl3 at the Command Window. If the network is installed, then the function returns a DAGNetwork (Deep Learning Toolbox) object.

openl3

ans =
  DAGNetwork with properties:

         Layers: [30×1 nnet.cnn.layer.Layer]
    Connections: [29×2 table]
     InputNames: {'in'}
    OutputNames: {'out'}

Load Pretrained OpenL3 Network

Load a pretrained OpenL3 convolutional neural network and examine the layers and classes.

Use openl3 to load the pretrained OpenL3 network. The output net is a DAGNetwork (Deep Learning Toolbox) object.

net = openl3

net =
  DAGNetwork with properties:

         Layers: [30×1 nnet.cnn.layer.Layer]
    Connections: [29×2 table]
     InputNames: {'in'}
    OutputNames: {'out'}

View the network architecture using the Layers property. The network has 30 layers. There are 16 layers with learnable weights, of which eight are batch normalization layers and eight are convolutional layers.

net.Layers

ans =
  30×1 Layer array with layers:

     1   'in'                       Image Input           128×199×1 images
     2   'batch_normalization_81'   Batch Normalization   Batch normalization with 1 channels
     3   'conv2d_71'                Convolution           64 3×3×1 convolutions with stride [1  1] and padding 'same'
     4   'batch_normalization_82'   Batch Normalization   Batch normalization with 64 channels
     5   'activation_71'            ReLU                  ReLU
     6   'conv2d_72'                Convolution           64 3×3×64 convolutions with stride [1  1] and padding 'same'
     7   'batch_normalization_83'   Batch Normalization   Batch normalization with 64 channels
     8   'activation_72'            ReLU                  ReLU
     9   'max_pooling2d_41'         Max Pooling           2×2 max pooling with stride [2  2] and padding [0  0  0  0]
    10   'conv2d_73'                Convolution           128 3×3×64 convolutions with stride [1  1] and padding 'same'
    11   'batch_normalization_84'   Batch Normalization   Batch normalization with 128 channels
    12   'activation_73'            ReLU                  ReLU
    13   'conv2d_74'                Convolution           128 3×3×128 convolutions with stride [1  1] and padding 'same'
    14   'batch_normalization_85'   Batch Normalization   Batch normalization with 128 channels
    15   'activation_74'            ReLU                  ReLU
    16   'max_pooling2d_42'         Max Pooling           2×2 max pooling with stride [2  2] and padding [0  0  0  0]
    17   'conv2d_75'                Convolution           256 3×3×128 convolutions with stride [1  1] and padding 'same'
    18   'batch_normalization_86'   Batch Normalization   Batch normalization with 256 channels
    19   'activation_75'            ReLU                  ReLU
    20   'conv2d_76'                Convolution           256 3×3×256 convolutions with stride [1  1] and padding 'same'
    21   'batch_normalization_87'   Batch Normalization   Batch normalization with 256 channels
    22   'activation_76'            ReLU                  ReLU
    23   'max_pooling2d_43'         Max Pooling           2×2 max pooling with stride [2  2] and padding [0  0  0  0]
    24   'conv2d_77'                Convolution           512 3×3×256 convolutions with stride [1  1] and padding 'same'
    25   'batch_normalization_88'   Batch Normalization   Batch normalization with 512 channels
    26   'activation_77'            ReLU                  ReLU
    27   'audio_embedding_layer'    Convolution           512 3×3×512 convolutions with stride [1  1] and padding 'same'
    28   'max_pooling2d_44'         Max Pooling           16×24 max pooling with stride [16  24] and padding 'same'
    29   'flatten'                  Keras Flatten         Flatten activations into 1-D assuming C-style (row-major) order
    30   'out'                      Regression Output     mean-squared-error

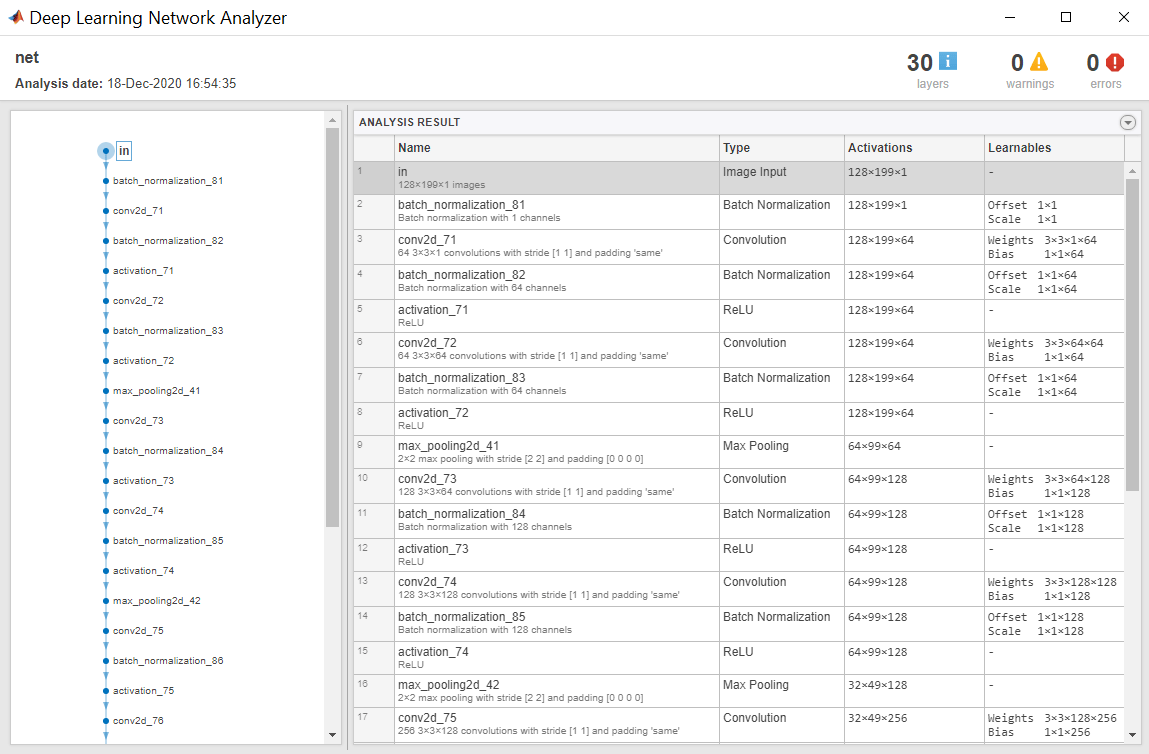

Use analyzeNetwork (Deep Learning Toolbox) to visually explore the network.

analyzeNetwork(net)

Extract OpenL3 Embeddings from Audio Signal

Use openl3Preprocess to extract embeddings from an audio signal.

Read in an audio signal.

[audioIn,fs] = audioread("Counting-16-44p1-mono-15secs.wav");

To extract spectrograms from the audio, call the openl3Preprocess function with the audio and sample rate. Use 50% overlap and set the spectrum type to linear. The openl3Preprocess function returns an array of 30 spectrograms produced using an FFT length of 512.

features = openl3Preprocess(audioIn,fs,OverlapPercentage=50,SpectrumType="linear");
[posFFTbinsOvLap50,numHopsOvLap50,~,numSpectOvLap50] = size(features)

posFFTbinsOvLap50 = 257

numHopsOvLap50 = 197

numSpectOvLap50 = 30

Call openl3Preprocess again, this time using the default overlap of 90%. The openl3Preprocess function now returns an array of 146 spectrograms.

features = openl3Preprocess(audioIn,fs,SpectrumType="linear");
[posFFTbinsOvLap90,numHopsOvLap90,~,numSpectOvLap90] = size(features)

posFFTbinsOvLap90 = 257

numHopsOvLap90 = 197

numSpectOvLap90 = 146

Visualize one of the spectrograms at random.

randSpect = randi(numSpectOvLap90);
viewRandSpect = features(:,:,:,randSpect);
N = size(viewRandSpect,2);
binsToHz = (0:N-1)*fs/N;
nyquistBin = round(N/2);
semilogx(binsToHz(1:nyquistBin),mag2db(abs(viewRandSpect(1:nyquistBin))))
xlabel("Frequency (Hz)")
ylabel("Power (dB)");
title([num2str(randSpect),"th Spectrogram"])
axis tight
grid on

Create an OpenL3 network using the same SpectrumType.

net = audioPretrainedNetwork("openl3",SpectrumType="linear");

Extract and visualize the audio embeddings.

embeddings = predict(net,features);
surf(embeddings,EdgeColor="none")
view([90,-90])
axis([1 numSpectOvLap90 1 numSpectOvLap90])
xlabel("Embedding Length")
ylabel("Spectrum Number")
title("OpenL3 Feature Embeddings")
axis tight

Input Arguments

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: openl3('EmbeddingLength',6144)

SpectrumType — Spectrum type

'mel128' (default) | 'mel256' | 'linear'

Spectrum type generated from audio and used as input to the neural network, specified as 'mel128', 'mel256', or 'linear'.

When using 'SpectrumType' and:

• 'mel128' –– The network accepts mel spectrograms with 128 mel bands as input. The input dimensions to the network are 128-by-199-by-1-by-K, where 128 is the number of mel bands and 199 is the number of time hops.

• 'mel256' –– The network accepts mel spectrograms with 256 mel bands as input. The input dimensions to the network are 256-by-199-by-1-by-K, where 256 is the number of mel bands and 199 is the number of time hops.

• 'linear' –– The network accepts positive one-sided spectrograms with an FFT length of 257. The input dimensions to the network are 257-by-197-by-1-by-K, where 257 is the positive one-sided FFT length and 197 is the number of time hops.

K represents the number of spectrograms. When preprocessing your data with openl3Preprocess, you must use the same 'SpectrumType'.

Data Types: char | string

EmbeddingLength — Embedding length

512 (default) | 6144

Length of the output audio embedding, specified as 512 or 6144.

Data Types: single | double

ContentType — Audio content type

'env' (default) | 'music'

Audio content type the neural network is trained on, specified as 'env' or 'music'.

Set ContentType to:

• 'env' when you want to use a model trained on environmental data.

• 'music' when you want to use a model trained on musical data.

Data Types: char | string

Output Arguments

net — Pretrained OpenL3 neural network

DAGNetwork object

Pretrained OpenL3 neural network, returned as a DAGNetwork (Deep Learning Toolbox) object.

References

[1] Cramer, Jason, et al. "Look, Listen, and Learn More: Design Choices for Deep Audio Embeddings." In ICASSP 2019 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2019, pp. 3852-56. DOI.org (Crossref), doi:/10.1109/ICASSP.2019.8682475.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• To create a SeriesNetwork or DAGNetwork object for code generation, see Load Pretrained Networks for Code Generation (MATLAB Coder).

GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

• To create a SeriesNetwork or DAGNetwork object for code generation, see Load Pretrained Networks for Code Generation (GPU Coder).

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Version History

Introduced in R2021a
