systemcomposer.arch.ComponentPort

Component port

Description

A ComponentPort object represents the input, output, and physical ports of a System Composer™ component. This class inherits from systemcomposer.arch.BasePort. This class is derived from systemcomposer.arch.Element.

Creation

A component port is constructed by creating an architecture port on the architecture of the component using the addPort function, then getting the component port using the getPort function.

addPort(compObj.Architecture,'portName','in');
compPortObj = getPort(compObj,'portName');

Properties

Name — Name of port

character vector

Name of port, specified as a character vector.

Example: 'portName'

Data Types: char

Direction — Port direction

'Input' | 'Output' | 'Physical' | 'Client' | 'Server'

Port direction, specified as a character vector.

Data Types: char

InterfaceName — Name of interface associated with port

character vector

Name of interface associated with port, specified as a character vector. When you specify InterfaceName as '' and InheritsInterface as 1, this port inherits interfaces across connections. When you specify InterfaceName as '' with an Interface object defined, this port has owned interfaces.

Data Types: char

Interface — Interface associated with port

data interface object | value type object | physical interface object | service interface object

Interface associated with port, specified as a systemcomposer.interface.DataInterface, systemcomposer.ValueType, systemcomposer.interface.PhysicalInterface, or systemcomposer.interface.ServiceInterface object.

InheritsInterface — Whether port inherits interfaces

1 (true) | 0 (false)

Whether port inherits interfaces across connections, specified as 1 (true) or 0 (false).

Data Types: logical

Connectors — Port connectors

array of connector objects

Port connectors, specified as an array of systemcomposer.arch.Connector or systemcomposer.arch.PhysicalConnector objects.

Connected — Whether port has connections

1 (true) | 0 (false)

Whether port has connections, specified as 1 (true) or 0 (false).

Data Types: logical

Parent — Component that owns port

architecture object

Component that owns port, specified as a systemcomposer.arch.Architecture object.

ArchitecturePort — Architecture port

architecture port object

Architecture port within the component that maps to port, specified as a systemcomposer.arch.ArchitecturePort object.

Model — Parent System Composer model

model object

Parent System Composer model, specified as a systemcomposer.arch.Model object.

SimulinkHandle — Simulink handle

double

Simulink^® handle, specified as a double.

This property is necessary for several Simulink workflows and for using Requirements Toolbox™ programmatic interfaces.

Example: handle = get(object,'SimulinkHandle')

Data Types: double

SimulinkModelHandle — Simulink handle to parent model

double

Simulink handle to parent System Composer model, specified as a double.

This property is necessary for several Simulink workflows and for using Requirements Toolbox programmatic interfaces.

Example: handle = get(object,'SimulinkModelHandle')

Data Types: double

ExternalUID — Unique external identifier

character vector

Unique external identifier, specified as a character vector. The external ID is preserved over the lifespan of the element and through all operations that preserve the UUID.

Data Types: char

UUID — Universal unique identifier

character vector

Universal unique identifier, specified as a character vector.

Example: '91d5de2c-b14c-4c76-a5d6-5dd0037c52df'

Data Types: char

Object Functions

setName	Set name for port
connect	Create architecture model connections
getConnectorTo	Find connector between ports
setInterface	Set interface for port
createInterface	Create and set owned interface for port
applyStereotype	Apply stereotype to model element
getStereotypes	Get stereotypes applied on model element
changeStereotype	Change currently applied stereotype to new stereotype in its stereotype hierarchy
removeStereotype	Remove stereotype from model element
setProperty	Set property value corresponding to stereotype applied to element
getProperty	Get property value corresponding to stereotype applied to element
getPropertyValue	Get value of architecture property
getEvaluatedPropertyValue	Get evaluated value of property from element
getStereotypeProperties	Get stereotype property names on element
hasStereotype	Find if element has stereotype applied
hasProperty	Find if element has property
getQualifiedName	Get model element qualified name
lookup	Search for architectural element
current	Get object of currently selected element

Examples

Build Architecture Models Programmatically

To build an architecture model programmatically using System Composer™, add a data dictionary with data interfaces, data elements, a value type, and a physical interface, and then add components, ports, and connections. Create a profile with stereotypes and properties, and then apply those stereotypes to model elements. Assign an owned interface to a port. After the model is built, you can create custom views to focus on specific considerations. You can also query the model to collect different model elements according to criteria you specify.

Add Components, Ports, Connections, and Interfaces

Create a model and extract its architecture.

model = systemcomposer.createModel("mobileRobotAPI");
arch = model.Architecture;

Create a data dictionary and add a data interface. Add a data element to the data interface. Add a value type to the data dictionary. Assign the type of the data element to the value type. Add a physical interface and physical element with a physical domain type. Link the data dictionary to the model.

dictionary = systemcomposer.createDictionary("SensorInterfaces.sldd");
interface = dictionary.addInterface("GPSInterface");
element = interface.addElement("SignalStrength");
valueType = dictionary.addValueType("SignalStrengthType",Units="dB", ...
    Description="GPS Signal Strength");
element.setType(valueType);
physicalInterface = dictionary.addPhysicalInterface("PhysicalInterface");
physicalElement = addElement(physicalInterface,"ElectricalElement", ...
    Type="electrical.electrical");
linkDictionary(model,"SensorInterfaces.sldd");

Save the changes to the data dictionary.

dictionary.save

Save the model.

model.save

Open the model.

systemcomposer.openModel("mobileRobotAPI");

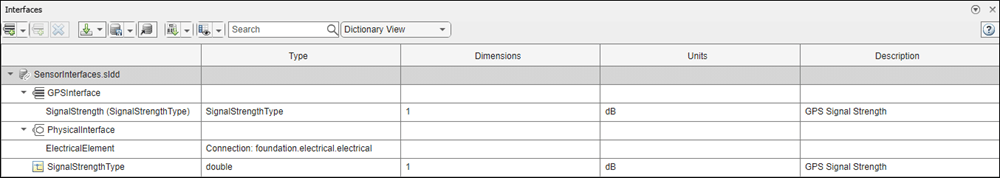

View the interfaces in the Interface Editor.

Add components, ports, and connections. Set the physical interface to the physical ports, which you connect later.

componentSensor = addComponent(arch,"Sensor");
sensorPorts = addPort(componentSensor.Architecture,{'MotionData','SensorPower'}, ...
    {'in','physical'});
sensorPorts(2).setInterface(physicalInterface)

componentPlanning = addComponent(arch,"Planning");
planningPorts = addPort(componentPlanning.Architecture, ...
    {'Command','SensorPower1','MotionCommand'}, ...
    {'in','physical','out'});
planningPorts(2).setInterface(physicalInterface)

componentMotion = addComponent(arch,"Motion");
motionPorts = addPort(componentMotion.Architecture,{'MotionCommand','MotionData'}, ...
    {'in','out'});

Create an owned interface on the MotionData port. Add an owned data element under the owned data interface. Assign the data element Rotation to a value type with units set to degrees.

ownedInterface = motionPorts(2).createInterface("DataInterface");
ownedElement = ownedInterface.addElement("Rotation");
subInterface = ownedElement.createOwnedType(Units="degrees");

View the interfaces in the Interface Editor. Select the MotionData port on the Motion component. In the Interface Editor, switch from Dictionary View to Port Interface View.

Connect components with an interface rule and the default name rule. The interface rule connects ports on components that share the same interface. By default, the name rule connects ports on components that share the same name.

c_sensorData = connect(arch,componentSensor,componentPlanning,Rule="interface");
c_motionData = connect(arch,componentMotion,componentSensor);
c_motionCommand = connect(arch,componentPlanning,componentMotion);

Add and Connect Architecture Port

Add an architecture port on the architecture.

archPort = addPort(arch,"Command","in");

The connect command requires a component port as an argument. Obtain the component port, and then connect it.

compPort = getPort(componentPlanning,"Command");
c_Command = connect(archPort,compPort);

Save the model.

model.save

Arrange the layout by pressing Ctrl+Shift+A, or use this command.

Simulink.BlockDiagram.arrangeSystem("mobileRobotAPI");

Create and Apply Profile with Stereotypes

Profiles are XML files that you can apply to any model. You can add stereotypes with properties to profiles and then populate the properties with specific values in the Profile Editor. Along with the built-in analysis capabilities of System Composer, stereotypes help you optimize your system for performance, cost, and reliability.

Create Profile and Add Stereotypes

Create a profile.

profile = systemcomposer.createProfile("GeneralProfile");

Create a stereotype that applies to all element types.

elemSType = addStereotype(profile,"projectElement");

Create stereotypes for different types of components. You select these types according to your design needs.

pCompSType = addStereotype(profile,"physicalComponent",AppliesTo="Component");
sCompSType = addStereotype(profile,"softwareComponent",AppliesTo="Component");

Create a stereotype for connections.

sConnSType = addStereotype(profile,"standardConn",AppliesTo="Connector");

Add Properties

Add properties to the stereotypes. You can use properties to capture metadata for model elements and analyze nonfunctional requirements. These properties are added to all elements to which the stereotype is applied, in any model that imports the profile.

addProperty(elemSType,'ID',Type="uint8");
addProperty(elemSType,'Description',Type="string");
addProperty(pCompSType,'Cost',Type="double",Units="USD");
addProperty(pCompSType,'Weight',Type="double",Units="g");
addProperty(sCompSType,'develCost',Type="double",Units="USD");
addProperty(sCompSType,'develTime',Type="double",Units="hour");
addProperty(sConnSType,'unitCost',Type="double"',Units="USD");
addProperty(sConnSType,'unitWeight',Type="double",Units="g");
addProperty(sConnSType,'length',Type="double",Units="m");

Save Profile

profile.save;

Apply Profile to Model

Apply the profile to the model.

applyProfile(model,"GeneralProfile");

Apply stereotypes to components. Some components are physical components, while others are software components.

applyStereotype(componentPlanning,"GeneralProfile.softwareComponent")
applyStereotype(componentSensor,"GeneralProfile.physicalComponent")
applyStereotype(componentMotion,"GeneralProfile.physicalComponent")

Apply the connector stereotype to all connections.

batchApplyStereotype(arch,'Connector',"GeneralProfile.standardConn");

Apply the general element stereotype to all connectors and ports.

batchApplyStereotype(arch,'Component',"GeneralProfile.projectElement");
batchApplyStereotype(arch,'Connector',"GeneralProfile.projectElement");

Set properties for each component.

setProperty(componentSensor,'GeneralProfile.projectElement.ID','001');
setProperty(componentSensor,'GeneralProfile.projectElement.Description', ...
    'Central unit for all sensors');
setProperty(componentSensor,'GeneralProfile.physicalComponent.Cost','200');
setProperty(componentSensor,'GeneralProfile.physicalComponent.Weight','450');
setProperty(componentPlanning,'GeneralProfile.projectElement.ID','002');
setProperty(componentPlanning,'GeneralProfile.projectElement.Description', ...
    'Planning computer');
setProperty(componentPlanning,'GeneralProfile.softwareComponent.develCost','20000');
setProperty(componentPlanning,'GeneralProfile.softwareComponent.develTime','300');
setProperty(componentMotion,'GeneralProfile.projectElement.ID','003');
setProperty(componentMotion,'GeneralProfile.projectElement.Description', ...
    'Motor and motor controller');
setProperty(componentMotion,'GeneralProfile.physicalComponent.Cost','4500');
setProperty(componentMotion,'GeneralProfile.physicalComponent.Weight','2500');

Set the properties of connections to be identical.

connections = [c_sensorData c_motionData c_motionCommand c_Command];
for k = 1:length(connections)
    setProperty(connections(k),'GeneralProfile.standardConn.unitCost','0.2');
    setProperty(connections(k),'GeneralProfile.standardConn.unitWeight','100');
    setProperty(connections(k),'GeneralProfile.standardConn.length','0.3');
end

Add Hierarchy

Add two components named Controller and Scope inside the Motion component. Define the ports. Connect the components to the architecture and to each other, applying a connector stereotype. Hierarchy in an architecture diagram creates an additional level of detail that specifies how components behave internally.

motionArch = componentMotion.Architecture;

motionController = motionArch.addComponent('Controller');
controllerPorts = addPort(motionController.Architecture,{'controlIn','controlOut'}, ...
    {'in','out'});
controllerCompPortIn = motionController.getPort('controlIn');
controllerCompPortOut = motionController.getPort('controlOut');

motionScope = motionArch.addComponent('Scope');
scopePorts = addPort(motionScope.Architecture,{'scopeIn','scopeOut'},{'in','out'});
scopeCompPortIn = motionScope.getPort('scopeIn');
scopeCompPortOut = motionScope.getPort('scopeOut');

c_planningController = connect(motionPorts(1),controllerCompPortIn);

For output port connections, you can specify the destination data element.

c_planningScope = connect(scopeCompPortOut,motionPorts(2),DestinationElement="Rotation");
c_planningConnect = connect(controllerCompPortOut,scopeCompPortIn, ...
    "GeneralProfile.standardConn");

Save the model.

model.save

Arrange the layout by pressing Ctrl+Shift+A, or use this command.

Simulink.BlockDiagram.arrangeSystem("mobileRobotAPI/Motion");

Create Model Reference

Model references can help you organize large models hierarchically and define architectures or behaviors once that you can then reuse. When a component references another model, any existing ports on the component are removed, and ports that exist on the referenced model appear on the component.

Create a new System Composer model. Convert the Controller component into a reference component to reference the new model. To add ports on the Controller component, you must update the referenced model mobileMotion.

referenceModel = systemcomposer.createModel("mobileMotion");
referenceArch = referenceModel.Architecture;
newComponents = addComponent(referenceArch,"Gyroscope");
referenceModel.save

linkToModel(motionController,"mobileMotion");

Save the models.

referenceModel.save
model.save

Make Variant Component

You can convert the Motion component to a variant component by using the makeVariant function. The original component is embedded within a variant component as one of the available variant choices. You can design other variant choices within the variant component and toggle the active choice. Variant components allow you to choose behavioral designs programmatically in an architecture model to perform trade studies and analysis.

[variantComp,choice1] = makeVariant(componentMotion);

Add a variant choice named MotionAlt. The second argument defines the name, and the third argument defines the label. The label identifies the choice. The active choice is controlled by the label.

choice2 = addChoice(variantComp,{'MotionAlt'},{'MotionAlt'});

Create the necessary ports on MotionAlt.

motionAltPorts = addPort(choice2.Architecture,{'MotionCommand','MotionData'},{'in','out'});

Make MotionAlt the active variant.

setActiveChoice(variantComp,"MotionAlt")

Arrange the layout by pressıng Ctrl+Shift+A, or use this command.

Simulink.BlockDiagram.arrangeSystem("mobileRobotAPI/Motion");

Save the model.

model.save

Clean Up

To remove generated artifacts before you run this example again, run this script.

cleanUpArtifacts

More About

Definitions

Term	Definition	Application	More Information
Architecture	A System Composer architecture represents a system of components and how they interface with each other structurally and behaviorally.	Different types of architectures describe different aspects of systems. You can use views to visualize a subset of components in an architecture. You can define parameters on the architecture level using the Parameter Editor.	Compose Architectures Visually Author Parameters in System Composer Using Parameter Editor
Root	A root is at the top of an architecture hierarchy. A root architecture has a boundary defined by its architecture ports that surround the system of interest.	The root architecture has a system boundary surrounding your architecture model. You can add architecture ports that define interfaces across the boundary.	Compose Architectures Visually
Model	A System Composer model is the file that contains architectural information, such as components, ports, connectors, interfaces, and behaviors.	Perform operations on a model including extracting root-level architecture, applying profiles, linking interface data dictionaries, or generating instances from model architecture. A System Composer model is stored as an SLX file.	Create Architecture Model with Interfaces and Requirement Links
Component	A component is a replaceable part of a system that fulfills a clear function in the context of an architecture. A component defines an architectural element, such as a function, another system, hardware, software, or other conceptual entity. A component can also be a subsystem or subfunction.	Represented as a block, a component is a part of an architecture model that can be separated into reusable artifacts. Transfer information between components using port interfaces and parameters. Port interfaces and parameters can be configured using the Interface Editor and the Parameter Editor.	Compose Architectures Visually
Port	A port is a node on a component or architecture that represents a point of interaction with its environment. A port permits the flow of information to and from other components or systems.	Component ports are interaction points on the component to other components. Architecture ports are ports on the boundary of the system, whether the boundary is within a component or the overall architecture model. The root architecture has a boundary defined by its ports.	Compose Architectures Visually
Connector	Connectors are lines that provide connections between ports. Connectors describe how information flows between components or architectures.	A connector allows two components to interact without defining the nature of the interaction. Set an interface on a port to define how the components interact.	Compose Architectures Visually

Version History

Introduced in R2019a
