Logarithmic integral function

## Description

example

A = logint(x) evaluates the logarithmic integral function (integral logarithm).

## Examples

### Integral Logarithm for Numeric and Symbolic Arguments

logint returns floating-point or exact symbolic results depending on the arguments you use.

Compute integral logarithms for these numbers. Because these numbers are not symbolic objects, logint returns floating-point results.

A = logint([-1, 0, 1/4, 1/2, 1, 2, 10])
A =
0.0737 + 3.4227i   0.0000 + 0.0000i  -0.1187 + 0.0000i  -0.3787 + 0.0000i...
-Inf + 0.0000i   1.0452 + 0.0000i   6.1656 + 0.0000i

Compute integral logarithms for the numbers converted to symbolic objects. For many symbolic (exact) numbers, logint returns unresolved symbolic calls.

symA = logint(sym([-1, 0, 1/4, 1/2, 1, 2, 10]))
symA =

Use vpa to approximate symbolic results with floating-point numbers:

A = vpa(symA)
A =
[ 0.07366791204642548599010096523015...
+ 3.4227333787773627895923750617977i,...
0,...
-0.11866205644712310530509570647204,...
-0.37867104306108797672720718463656,...
-Inf,...
1.0451637801174927848445888891946,...
6.1655995047872979375229817526695]

### Plot Integral Logarithm

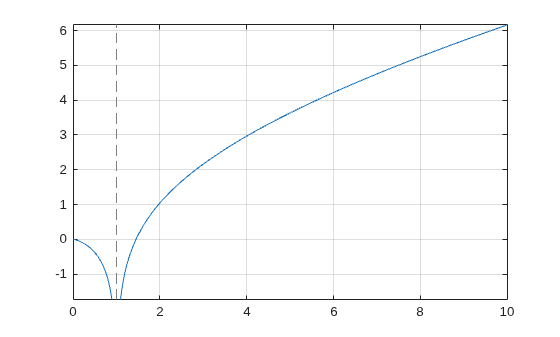

Plot the integral logarithm function on the interval from 0 to 10.

syms x
grid on

### Handle Expressions Containing Integral Logarithm

Many functions, such as diff and limit, can handle expressions containing logint.

Find the first and second derivatives of the integral logarithm:

syms x
dA =
1/log(x)

dA =
-1/(x*log(x)^2)

Find the right and left limits of this expression involving logint:

A_r = limit(exp(1/x)/logint(x + 1), x, 0, 'right')
A_r =
Inf
A_l = limit(exp(1/x)/logint(x + 1), x, 0, 'left')
A_l =
0

## Input Arguments

collapse all

Input, specified as a symbolic number, variable, expression, or function, or as a vector or matrix of symbolic numbers, variables, expressions, or functions.

collapse all

### Logarithmic Integral Function

The logarithmic integral function, also called the integral logarithm, is defined as follows:

$\text{logint}\left(x\right)=\text{li}\left(x\right)=\underset{0}{\overset{x}{\int }}\frac{1}{\mathrm{ln}\left(t\right)}\text{\hspace{0.17em}}dt$
