occupancyMatrix
점유 그리드를 행렬로 변환
설명
예제
이진 점유 맵을 행렬로 변환하기

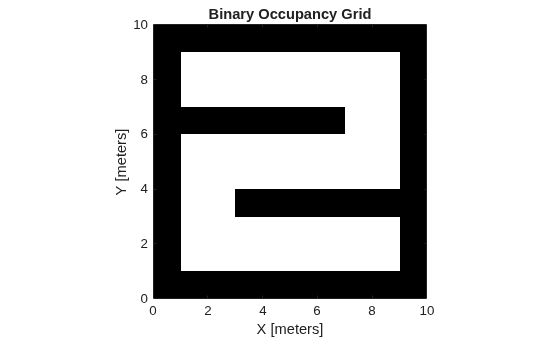

무작위 2차원 미로 맵을 생성합니다.
map = mapMaze(2,MapSize=[10 10],MapResolution=1); show(map)
이진 점유 맵을 점유 값 행렬로 변환합니다.
occupancyMatrix(map)
ans = 10x10 logical array
1 1 1 1 1 1 1 1 1 1
1 0 0 0 0 0 0 0 0 1
1 0 0 0 0 0 0 0 0 1
1 1 1 1 1 1 1 0 0 1
1 0 0 0 0 0 0 0 0 1
1 0 0 0 0 0 0 0 0 1
1 0 0 1 1 1 1 1 1 1
1 0 0 0 0 0 0 0 0 1
1 0 0 0 0 0 0 0 0 1
1 1 1 1 1 1 1 1 1 1
입력 인수
map
— 맵 표현
binaryOccupancyMap
객체
맵 표현으로, binaryOccupancyMap
객체로 지정됩니다. 이 객체는 로봇의 환경을 표현합니다. 이 객체에는 장애물을 true
(1
)로 나타내고 비어 있는 위치를 false
(0
)로 나타내는 이진 값을 가진 행렬 그리드가 포함되어 있습니다.
출력 인수
mat
— 점유 값
행렬
점유 값으로, h×w 행렬로 반환됩니다. 여기서 h와 w는 점유 그리드 객체의 GridSize
속성에 있는 두 요소에 의해 정의됩니다.
데이터형: double
확장 기능
C/C++ 코드 생성
MATLAB® Coder™를 사용하여 C 코드나 C++ 코드를 생성할 수 있습니다.
버전 내역
R2016b에 개발됨
