GeographicGlobe
Description
Use a geographic globe to plot 3-D lines and markers over basemaps and terrain.
Creation
Create a geographic globe object using the geoglobe
function.
Properties
Maps
Basemap
— Map to plot data on
'satellite'
(default) | 'streets'
| 'streets-light'
| 'streets-dark'
| custom basemap | ...
Map on which to plot data, specified as one of the values listed in the table. Six of the basemaps in the table are tiled data sets created using Natural Earth. Five of the basemaps are high-zoom-level maps hosted by Esri®.
|
Full global basemap composed of high-resolution satellite imagery. Hosted by Esri. |
|
General-purpose road map that emphasizes accurate, legible styling of roads and transit networks. Hosted by Esri. |
|
Map designed to provide geographic context while highlighting user data on a light background. Hosted by Esri. |
|
Map designed to provide geographic context while highlighting user data on a dark background. Hosted by Esri. |
|
General-purpose map with styling to depict topographic features. Hosted by Esri. |
|
Map that combines satellite-derived land cover data, shaded relief, and ocean-bottom relief. The light, natural palette is suitable for thematic and reference maps. Created using Natural Earth. |
|
Shaded relief map blended with a land cover palette. Humid lowlands are green and arid lowlands are brown. Created using Natural Earth. |
|
Terrain map in shades of gray. Shaded relief emphasizes both high mountains and micro-terrain found in lowlands. Created using Natural Earth. |
|
Two-tone, land-ocean map with light green land areas and light blue water areas. Created using Natural Earth. |
|
Two-tone, land-ocean map with gray land areas and white water areas. Created using Natural Earth. |
|
Two-tone, land-ocean map with light gray land areas and dark gray water areas. This basemap is installed with MATLAB®. Created using Natural Earth. | Not applicable. | Custom basemap added using the |
All basemaps except 'darkwater'
require Internet access. The
'darkwater'
basemap is included with MATLAB and Mapping Toolbox™.
If you do not have consistent access to the Internet, you can download the basemaps created using Natural Earth onto your local system by using the Add-On Explorer. The basemaps hosted by Esri are not available for download. For more about downloading basemaps and changing the default basemap on your local system, see Access Basemaps and Terrain for Geographic Globe.
The basemaps hosted by Esri update periodically. As a result, you might see differences in your visualizations over time.
Alignment of boundaries and region labels are a presentation of the feature provided by the data vendors and do not imply endorsement by MathWorks®.
Example: g = geoglobe(uifigure,'Basemap','bluegreen')
Example: g.Basemap = 'bluegreen'
Data Types: char
| string
Terrain
— Terrain data
'gmted2010'
(default) | 'none'
| string scalar | character vector
Terrain data, specified as one of these values:
'gmted2010'
– Global terrain derived from the GMTED2010 model created by the U.S. Geological Survey (USGS) and National Geospatial-Intelligence Agency (NGA).'none'
- No terrain.string scalar or character vector – Name of custom terrain added using the
addCustomTerrain
function.
Multiple Plots
ColorOrder
— Color order
seven predefined colors (default) | three-column matrix of RGB triplets
Color order for lines plotted on the globe, specified as a three-column matrix of RGB triplets. This property defines the palette of colors MATLAB uses to create plot objects such as lines. Each row of the array is an RGB triplet. An RGB triplet is a three-element vector whose elements specify the intensities of the red, green, and blue components of a color. The intensities must be in the range [0, 1]. This table lists the default colors.
Colors | ColorOrder Matrix |
---|---|
|
[ 0 0.4470 0.7410 0.8500 0.3250 0.0980 0.9290 0.6940 0.1250 0.4940 0.1840 0.5560 0.4660 0.6740 0.1880 0.3010 0.7450 0.9330 0.6350 0.0780 0.1840] |
MATLAB assigns colors to objects according to their order of creation. For example, when plotting lines, the first line uses the first color, the second line uses the second color, and so on. If there are more lines than colors, then the cycle repeats.
Change the color order in either of the following ways:
Call the
colororder
function to change the color order for all globe objects in a UI figure. The colors of existing plots in the UI figure update immediately. If you place additional globe objects into the figure, those globe objects also use the new color order. If you continue to call plotting commands, those commands also use the new colors.Set the
ColorOrder
property on the globe, call thehold
function to set the globe hold state to'on'
, and then call the desired plotting functions. This is like calling thecolororder
function, but in this case you are setting the color order for the specific globe, not the entire UI figure. Setting thehold
state to'on'
is necessary to ensure that subsequent plotting commands do not reset the globe to use the default color order.
NextSeriesIndex
— SeriesIndex
value for next object
whole number
This property is read-only.
SeriesIndex
value for the next plot object added to the
globe, returned as a whole number greater than or equal to 0
. This
property is useful when you want to track how the objects cycle through the colors in
the color order. This property maintains a count of the objects in the globe that have
a SeriesIndex
property. MATLAB uses it to assign the value of the SeriesIndex
property for each new object. The count starts at 1
when you create
the globe, and it increases by 1
for each additional object. Thus,
the count is typically n+1, where n is the
number of objects in the globe.
NextPlot
— Properties to reset
'replace'
(default) | 'add'
| 'replacechildren'
| 'replaceall'
Properties to reset when adding a new plot to the globe, specified as one of these values:
'add'
— Add new plots to the existing globe. Do not delete existing plots or reset globe properties before displaying the new plot.'replacechildren'
— Delete existing plots before displaying the new plot. Reset theColorOrderIndex
property to1
, but do not reset other globe properties. The next plot added to the globe uses the first color based on theColorOrder
property.'replace'
— Delete existing plots and reset globe properties, exceptPosition
,Units
,Basemap
, andTerrain
, to their default values before displaying the new plot.'replaceall'
— Delete existing plots and reset globe properties, exceptPosition
andUnits
, to their default values before displaying the new plot.
Position
Position
— Size and location
[0 0 1 1]
(default) | four-element vector of form [left bottom width height]
Size and location, specified as a four-element vector of the form [left
bottom width height]
. By default, MATLAB measures the values in units normalized to the container. To change the
units, set the Units
property.
The
left
andbottom
elements define the distance from the lower left corner of the container UI figure, panel, or tab to the lower left corner of the position boundary.The
width
andheight
elements are the position boundary dimensions.
Units
— Position units
'normalized'
(default) | 'inches'
| 'centimeters'
| 'points'
| 'pixels'
| 'characters'
Position units, specified as one of these values.
Units | Description |
---|---|
'normalized' (default) | Units normalized with respect to the container, which is typically the figure or a panel. The
lower left corner of the container is (0,0) and
the upper right corner is (1,1) . |
'inches' | Inches. |
'centimeters' | Centimeters. |
'characters' | Units based on the default
|
'points' | Typography points. One point equals 1/72 inch. |
'pixels' | Pixels. Distances in pixels are independent of your system resolution on Windows® and Macintosh systems.
|
When specifying the units as a name-value pair during object creation, specify the
Units
name-value pair before specifying name-value pairs that
use those units, for example Position
.
Interactivity
Visible
— State of visibility
'on'
(default) | on/off logical value
State of visibility, specified as 'on'
or 'off'
,
or as numeric or logical 1
(true
) or
0
(false
). A value of 'on'
is equivalent to true
, and 'off'
is equivalent to
false
. Thus, you can use the value of this property as a logical
value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState
.
'on'
— Display the object.'off'
— Hide the object without deleting it. You still can access the properties of an invisible object.
Parent/Child
Parent
— Parent container
Figure
object created using
uifigure
| Panel
object | Tab
object
Parent container, specified as a Figure
object created using the
uifigure
function, a Panel
object within a UI
figure, or a Tab
object within a UI figure.
Children
— Children
empty GraphicsPlaceholder
array | array of Line
objects
Children, returned as an array of graphics objects. Use this property to view a list of the children or to reorder the children by setting the property to a permutation of itself.
You cannot add or remove children using the Children
property.
To add a child to this list, set the Parent
property of the child
graphics object to the GeographicGlobe
object.
HandleVisibility
— Visibility of object handle
'on'
(default) | 'off'
| 'callback'
Visibility of the object handle in the Children
property of the
parent, specified as one of these values:
'on'
— Object handle is always visible.'off'
— Object handle is invisible at all times. This option is useful for preventing unintended changes by another function. Set theHandleVisibility
to'off'
to temporarily hide the handle during the execution of that function.'callback'
— Object handle is visible from within callbacks or functions invoked by callbacks, but not from within functions invoked from the command line. This option blocks access to the object at the command line, but permits callback functions to access it.
If the object is not listed in the Children
property of the
parent, then functions that obtain object handles by searching the object
hierarchy or querying handle properties cannot return it. Examples of such
functions include the get
, findobj
, gca
, gcf
, gco
, newplot
, cla
, clf
, and close
functions.
Hidden object handles are still valid. Set the root
ShowHiddenHandles
property to 'on'
to list all object handles regardless of their
HandleVisibility
property setting.
Identifiers
Type
— Type of graphics object
'globe'
This property is read-only.
Type of graphics object returned as 'globe'
.
Tag
— Object identifier
''
(default) | character vector | string scalar
Object identifier, specified as a character vector or string scalar. You can specify a unique Tag
value to serve as an identifier for an object. When you need access to the object elsewhere in your code, you can use the findobj
function to search for the object based on the Tag
value.
UserData
— User data
[]
(default) | array
User data, specified as any MATLAB array. For example, you can specify a scalar, vector, matrix, cell array, character array, table, or structure. Use this property to store arbitrary data on an object.
If you are working in App Designer, create public or private properties in the app to share data instead of using the UserData
property. For more information, see Share Data Within App Designer Apps.
Object Functions
Change Hold State and Basemap
hold | These
|
geobasemap | This
|
Change View
campos | Set or query position of camera for geographic globe |
camheight | Set or query height of camera for geographic globe |
camheading | Set or query heading angle of camera for geographic globe |
campitch | Set or query pitch angle of camera for geographic globe |
camroll | Set or query roll angle of camera for geographic globe |
Examples
Display Geographic Globe

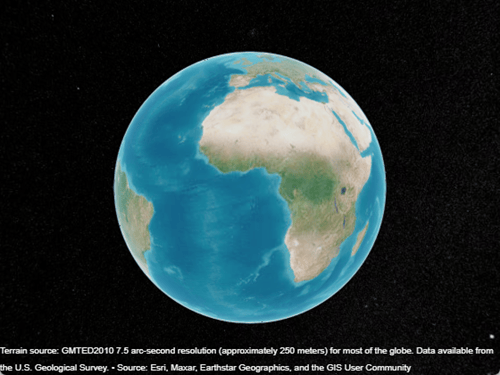

Display a geographic globe in a figure created using the uifigure
function.
uif = uifigure; g = geoglobe(uif);
Version History
Introduced in R2020aR2023b: Some basemaps have improved appearance at high zoom levels
The "streets-light"
, "streets-dark"
, "streets"
, and "topographic"
basemaps hosted by Esri have an improved visual appearance at high zoom levels. For example, this image compares a basemap at zoom level 21 in R2023a with the same basemap and zoom level in R2023b.
The basemaps can also have different appearances at other zoom levels. For example, this image compares a basemap at zoom level 15 in R2023a with the same basemap and zoom level in R2023b.
R2022b: When NextPlot
is 'replace'
, adding new plots to
geographic globe does not reset basemap or terrain
When the value of the NextPlot
property is
'replace'
, adding new plots does not reset the
Basemap
or Terrain
properties. As a result, when
you add a plot to a geographic globe by using the geoplot3
function,
MATLAB does not reset the basemap or terrain. In R2022a and earlier releases, the
basemap and terrain reset when you add new plots.
As a result, you can specify the basemap or terrain and then visualize data without
using the hold
function. For example, this code creates a globe using
the "streets"
basemap and no terrain data. Then, it displays a plot and
adjusts the camera view. In R2022b, the basemap and terrain do not reset. In R2022a and
earlier releases, the basemap reset to the default "satellite"
and the
terrain reset to the default "gmted2010"
.
lat = [42.3501 42.3515 42.3598 42.3584 42.3529 42.3626]; lon = [-71.0870 -71.0926 -71.0662 -71.0598 -71.0662 -71.0789]; uif = uifigure; g = geoglobe(uif,Basemap="streets",Terrain="none"); p = geoplot3(g,lat,lon,0,"ro",LineWidth=3); campos(g,42.33,-71.0756,2113) campitch(g,-42.2458)
This change does not affect existing code that sets the hold state to
"on"
between commands.
To reset the basemap and terrain, set the Basemap
and
Terrain
properties to the defaults after you create the plot.
g.Basemap = "satellite"; g.Terrain = "gmted2010";
For more information about changing the basemap and terrain of geographic globes, see Access Basemaps and Terrain for Geographic Globe.
MATLAB 명령
다음 MATLAB 명령에 해당하는 링크를 클릭했습니다.
명령을 실행하려면 MATLAB 명령 창에 입력하십시오. 웹 브라우저는 MATLAB 명령을 지원하지 않습니다.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
