tracking.scenario.airplaneMesh
Description
returns
an mesh
= tracking.scenario.airplaneMeshextendedObjectMesh
object
defining an airplane mesh that can be used with the trackingScenario
object.
Examples
Create and Visualize Airplane Mesh
Create the airplane mesh.
mesh = tracking.scenario.airplaneMesh;

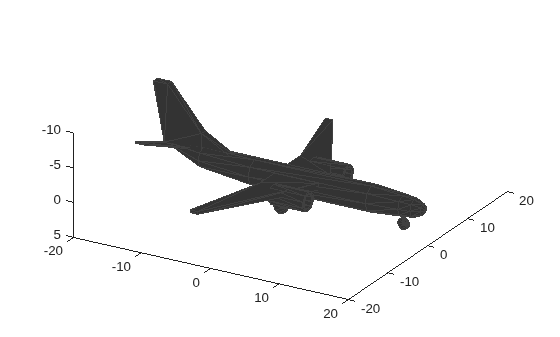

Visualize the mesh.
ax = axes('ZDir','reverse'); show(mesh,ax); view(30,50);
Simulate Lidar Detection with Airplane Mesh
Create a tracking scenario object and an airplane mesh object.
scene = trackingScenario; mesh = tracking.scenario.airplaneMesh;
Create two tower platforms.
% Create the first tower. tower = platform(scene); h = 50; tower.Trajectory.Position = [0 0 -h]; tower.Dimensions = struct('Length',10,'Width',10,'Height',h,'OriginOffset',[0 0 -h/2]); tower.Sensors = monostaticLidarSensor('SensorIndex',1,... 'MaxRange',200,... 'HasINS',true,... 'DetectionCoordinates','scenario',... 'AzimuthLimits',[-75 75],... 'ElevationLimits',[-10 30]); % Create the second tower. tower2 = platform(scene); h = 50; tower2.Trajectory.Position = [0 500 -h]; tower2.Dimensions = struct('Length',10,'Width',10,'Height',h,'OriginOffset',[0 0 -h/2]); tower2.Sensors = monostaticLidarSensor('SensorIndex',2,... 'MaxRange',200,... 'HasINS',true,... 'DetectionCoordinates','scenario',... 'AzimuthLimits',[-75 75],... 'ElevationLimits',[-10 30]);
Create the airplane target with associated mesh.
airplane = platform(scene); airplane.Mesh = mesh; % Set the dimensions of the plane which automatically adjust the size of the mesh. airplane.Dimensions = struct('Length',40,... 'Width',40,... 'Height',12.5,... 'OriginOffset',[0 0 12.5/2]);
Create a landing trajectory for the plane.
x = 50*ones(10,1); y = linspace(-500,1000,10)'; yToLand = max(0,-y); z = -1e4*(2.*(yToLand./50e3).^3 + 3*(yToLand./50e3).^2); wps = [x y z]; toa = linspace(0,30,10)'; traj = waypointTrajectory(wps,toa); airplane.Trajectory = traj;
Create a plotter to visualize the scenario.
lp = scatter3(nan,nan,nan,6,nan,'o','DisplayName','Lidar data'); tp = theaterPlot('Parent',lp.Parent,... 'XLimits',[0 100],... 'YLimits',[-500 1000],... 'ZLimits',[-75 0]); lp.Parent.ZDir = 'reverse'; view(lp.Parent,169,5); pp = platformPlotter(tp,'DisplayName','Platforms','Marker','^'); cp = coveragePlotter(tp,'DisplayName','Lidar coverage'); hold on;

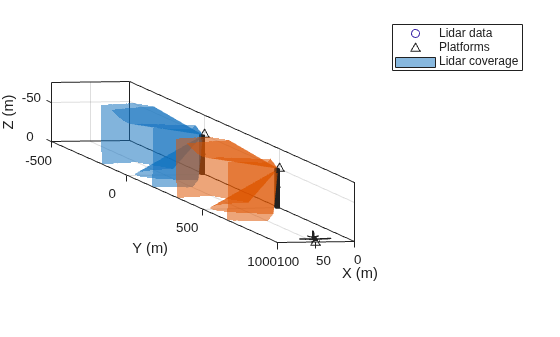

Advance the simulation, generate data, and visualize the results.
scene.UpdateRate = 0; % Automatic update rate while advance(scene) % Generate point cloud. ptCloud = lidarDetect(scene); % Obtain coverage configurations. cfgs = coverageConfig(scene); % Plot coverage. cp.plotCoverage(cfgs); % Plot platforms. platPoses = platformPoses(scene); pos = vertcat(platPoses.Position); mesh = cellfun(@(x)x.Mesh,scene.Platforms); orient = vertcat(platPoses.Orientation); pp.plotPlatform(pos,mesh,orient); % Concatenate all point clouds. s = vertcat(ptCloud{:}); % Plot lidar data. set(lp,'XData',s(:,1),... 'YData',s(:,2),... 'ZData',s(:,3),... 'CData',s(:,3)); drawnow; end
Output Arguments
mesh
— Airplane mesh
extendedObjectMesh
object
Airplane mesh, returned as an extendedObjectMesh
object
defining the mesh of an airplane.
Version History
Introduced in R2020b
