# customblm

Bayesian linear regression model with custom joint prior distribution

## Description

The Bayesian linear regression model object `customblm` contains a log of the probability density function (P.D.F.) of the joint prior distribution of (β,σ2). The log P.D.F. is a custom function that you declare.

The data likelihood is $\prod _{t=1}^{T}\varphi \left({y}_{t};{x}_{t}\beta ,{\sigma }^{2}\right),$ where ϕ(yt;xtβ,σ2) is the Gaussian probability density evaluated at yt with mean xtβ and variance σ2. MATLAB® treats the prior distribution function as if it is unknown, and so the resulting posterior distributions are not analytically tractable. Hence, to estimate or simulate from posterior distributions, MATLAB implements the slice sampler.

In general, when you create a Bayesian linear regression model object, it specifies the joint prior distribution and characteristics of the linear regression model only. That is, the model object is a template intended for further use. Specifically, to incorporate data into the model for posterior distribution analysis, pass the model object and data to the appropriate object function.

## Creation

### Syntax

``PriorMdl = customblm(NumPredictors,'LogPDF',LogPDF)``
``PriorMdl = customblm(NumPredictors,'LogPDF',LogPDF,Name,Value)``

### Description

example

````PriorMdl = customblm(NumPredictors,'LogPDF',LogPDF)` creates a Bayesian linear regression model object (`PriorMdl`) composed of `NumPredictors` predictors and an intercept. `LogPDF` is a function representing the log of the joint prior distribution of (β,σ2). `PriorMdl` is a template defining the prior distributions and dimensionality of β.```

example

````PriorMdl = customblm(NumPredictors,'LogPDF',LogPDF,Name,Value)` uses additional options specified by one or more `Name,Value` pair arguments. `Name` is a property name, except `NumPredictors`, and `Value` is the corresponding value. `Name` must appear inside single quotes (`''`). You can specify several `Name,Value` pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.```

## Properties

expand all

You can set property values when you create the model object using name-value pair argument syntax, or after model creation using dot notation. For example, to specify that there is no model intercept in `PriorMdl`, a Bayesian linear regression model containing three model coefficients, enter

`PriorMdl.Intercept = false;`

Number of predictor variables in the Bayesian multiple linear regression model, specified as a nonnegative integer.

`NumPredictors` must be the same as the number of columns in your predictor data, which you specify during model estimation or simulation.

When specifying `NumPredictors`, exclude any intercept term for the value.

After creating a model, if you change the value `NumPredictors` using dot notation, then `VarNames` reverts to its default value.

Data Types: `double`

Indicate whether to include regression model intercept, specified as the comma-separated pair consisting of `'Intercept'` and a value in this table.

ValueDescription
`false`Exclude an intercept from the regression model. Hence, β is a `p`-dimensional vector, where `p` is the value of the `NumPredictors` property.
`true`Include an intercept in the regression model. Hence, β is a (`p` + 1)-dimensional vector. During estimation, simulation, and forecasting, MATLAB prepends the predictor data with an appropriately-sized vector of ones.

If you include a column of ones in the predictor data for an intercept term, then set `Intercept` to `false`.

Example: `'Intercept',false`

Data Types: `logical`

Predictor variable names for displays, specified as a string vector or cell vector of character vectors. `VarNames`  must contain `NumPredictors` elements. `VarNames(j)` is the name of variable in column `j` of the predictor data set, which you specify during estimation, simulation, and forecasting.

The default is `{'Beta(1)','Beta(2),...,Beta(p)}`, where `p` is the value of `NumPredictors`.

Example: `'VarNames',["UnemploymentRate"; "CPI"]`

Data Types: `string` | `cell` | `char`

Log of the joint probability density function of (β,σ2), specified as a function handle in the form `@fcnName`, where `fcnName` is the function name.

Suppose `logprior` is the name of the MATLAB function defining the joint prior distribution of (β,σ2). Then, `logprior` must have this form.

```function [logpdf,glpdf] = logprior(params) ... end```

• `logpdf` is a numeric scalar representing the log of the joint probability density of (β,σ2).

• `glpdf` is an (`Intercept` + `NumPredictors` + 1)-by-1 numeric vector representing the gradient of `logpdf`. Elements correspond to the elements of `params`.

`glpdf` is an optional output argument, and only the Hamiltonian Monte Carlo sampler (see `hmcSampler`) applies it. If you know the analytical partial derivative with respect to some parameters, but not others, then set the elements of `glpdf` corresponding to the unknown partial derivatives to `NaN`. MATLAB computes the numerical gradient for missing partial derivatives, which is convenient, but slows sampling.

• `params` is an (`Intercept` + `NumPredictors` + 1)-by-1 numeric vector. The first `Intercept` + `NumPredictors` elements must correspond to values of β, and the last element must correspond to the value of σ2. The first element of β is the intercept, if one exists. All other elements correspond to predictor variables in the predictor data, which you specify during estimation, simulation, or forecasting.

Example: `'LogPDF',@logprior`

## Object Functions

 `estimate` Fit parameters of Bayesian linear regression model to data `simulate` Simulate regression coefficients and disturbance variance of Bayesian linear regression model `forecast` Forecast responses of Bayesian linear regression model `plot` Visualize prior and posterior densities of Bayesian linear regression model parameters `summarize` Distribution summary statistics of standard Bayesian linear regression model

## Examples

collapse all

Consider the multiple linear regression model that predicts U.S. real gross national product (`GNPR`) using a linear combination of industrial production index (`IPI`), total employment (`E`), and real wages (`WR`).

For all , is a series of independent Gaussian disturbances with a mean of 0 and variance . Assume that the prior distributions are:

• is 4-dimensional t distribution with 50 degrees of freedom for each component and the identity matrix for the correlation matrix. Also, the distribution is centered at and each component is scaled by the corresponding elements of the vector .

• .

`bayeslm` treats these assumptions and the data likelihood as if the corresponding posterior is analytically intractable.

Declare a MATLAB® function that:

• Accepts values of and together in a column vector, and values of the hyperparameters.

• Returns the value of the joint prior distribution, , given the values of and .

```function logPDF = priorMVTIG(params,ct,st,dof,C,a,b) %priorMVTIG Log density of multivariate t times inverse gamma % priorMVTIG passes params(1:end-1) to the multivariate t density % function with dof degrees of freedom for each component and positive % definite correlation matrix C. priorMVTIG returns the log of the product of % the two evaluated densities. % % params: Parameter values at which the densities are evaluated, an % m-by-1 numeric vector. % % ct: Multivariate t distribution component centers, an (m-1)-by-1 % numeric vector. Elements correspond to the first m-1 elements % of params. % % st: Multivariate t distribution component scales, an (m-1)-by-1 % numeric (m-1)-by-1 numeric vector. Elements correspond to the % first m-1 elements of params. % % dof: Degrees of freedom for the multivariate t distribution, a % numeric scalar or (m-1)-by-1 numeric vector. priorMVTIG expands % scalars such that dof = dof*ones(m-1,1). Elements of dof % correspond to the elements of params(1:end-1). % % C: correlation matrix for the multivariate t distribution, an % (m-1)-by-(m-1) symmetric, positive definite matrix. Rows and % columns correspond to the elements of params(1:end-1). % % a: Inverse gamma shape parameter, a positive numeric scalar. % % b: Inverse gamma scale parameter, a positive scalar. % beta = params(1:(end-1)); sigma2 = params(end); tVal = (beta - ct)./st; mvtDensity = mvtpdf(tVal,C,dof); igDensity = sigma2^(-a-1)*exp(-1/(sigma2*b))/(gamma(a)*b^a); logPDF = log(mvtDensity*igDensity); end ```

Create an anonymous function that operates like `priorMVTIG`, but accepts only the parameter values, and holds the hyperparameter values fixed to their values.

```dof = 50; C = eye(4); ct = [-25; 4; 0; 3]; st = ones(4,1); a = 3; b = 1; logPDF = @(params)priorMVTIG(params,ct,st,dof,C,a,b); ```

Create a custom joint prior model for the linear regression parameters. Specify the number of predictors, `p`. Also, specify the function handle for `priorMVTIG` and the variable names.

```p = 3; PriorMdl = bayeslm(p,'ModelType','custom','LogPDF',logPDF,... 'VarNames',["IPI" "E" "WR"]) ```
```PriorMdl = customblm with properties: NumPredictors: 3 Intercept: 1 VarNames: {4x1 cell} LogPDF: @(params)priorMVTIG(params,ct,st,dof,C,a,b) The priors are defined by the function: @(params)priorMVTIG(params,ct,st,dof,C,a,b) ```

`PriorMdl` is a `customblm` Bayesian linear regression model object representing the prior distribution of the regression coefficients and disturbance variance. Unlike other Bayesian linear regression model objects, `bayeslm` does not display a summary of the prior distributions at the command window.

This example is based on Create Custom Multivariate t Prior Model for Coefficients.

Create an anonymous function that operates like `priorMVTIG`, but accepts the parameter values only and holds the hyperparameter values fixed to their values.

```dof = 50; C = eye(4); ct = [-25; 4; 0; 3]; st = ones(4,1); a = 3; b = 1; logPDF = @(params)priorMVTIG(params,ct,st,dof,C,a,b);```

Create a custom joint prior model for the linear regression parameters. Specify the number of predictors, `p`. Also, specify the function handle for `priorMVTIG` and the variable names.

```p = 3; PriorMdl = bayeslm(p,'ModelType','custom','LogPDF',logPDF,... 'VarNames',["IPI" "E" "WR"])```
```PriorMdl = customblm with properties: NumPredictors: 3 Intercept: 1 VarNames: {4x1 cell} LogPDF: @(params)priorMVTIG(params,ct,st,dof,C,a,b) The priors are defined by the function: @(params)priorMVTIG(params,ct,st,dof,C,a,b) ```

Load the Nelson-Plosser data set. Create variables for the response and predictor series.

```load Data_NelsonPlosser X = DataTable{:,PriorMdl.VarNames(2:end)}; y = DataTable{:,'GNPR'};```

Estimate the marginal posterior distributions of and . Specify a width for the slice sampler that is close to the posterior standard deviation of the parameters assuming a diffuse prior model. Reduce serial correlation by specifying a thinning factor of 10, and, reduce the effective default number of draws by a factor of 10.

```width = [20,0.5,0.01,1,20]; thin = 10; numDraws = 1e5/thin; rng(1) % For reproducibility PosteriorMdl = estimate(PriorMdl,X,y,'Width',width,'Thin',thin,... 'NumDraws',numDraws);```
```Method: MCMC sampling with 10000 draws Number of observations: 62 Number of predictors: 4 | Mean Std CI95 Positive Distribution -------------------------------------------------------------------------- Intercept | -25.0069 0.9919 [-26.990, -23.065] 0.000 Empirical IPI | 4.3544 0.1083 [ 4.143, 4.562] 1.000 Empirical E | 0.0011 0.0002 [ 0.001, 0.001] 1.000 Empirical WR | 2.5613 0.3293 [ 1.939, 3.222] 1.000 Empirical Sigma2 | 47.0593 8.7570 [32.690, 67.115] 1.000 Empirical ```

`PosteriorMdl` is an `empiricalblm` model object storing draws from the posterior distributions of and given the data. `estimate` displays a summary of the marginal posterior distributions to the command window. Rows of the summary correspond to regression coefficients and the disturbance variance, and columns to characteristics of the posterior distribution. The characteristics include:

• `CI95`, which contains the 95% Bayesian equitailed credible intervals for the parameters. For example, the posterior probability that the regression coefficient of `WR` is in [1.939, 3.222] is 0.95.

• `Positive`, which contains the posterior probability that the parameter is greater than 0. For example, the probability that the intercept is greater than 0 is 0.

`estimate` derives the posterior characteristics from draws from the posterior distributions, which MATLAB® stores as matrices in the properties `BetaDraws` and `Sigma2Draws`.

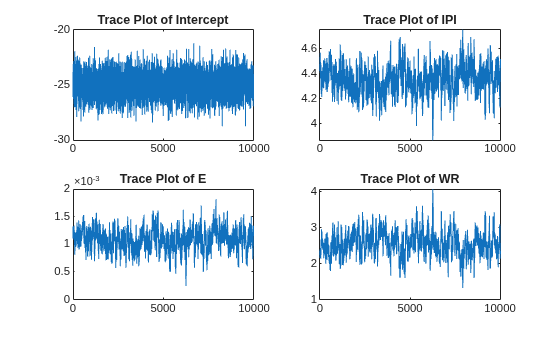

To monitor mixing and convergence of the MCMC sample, construct trace plots. In the `BetaDraws` property, draws correspond to columns and parameters to rows.

```figure; for j = 1:4 subplot(2,2,j) plot(PosteriorMdl.BetaDraws(j,:)) title(sprintf('Trace Plot of %s',PosteriorMdl.VarNames{j})); end```

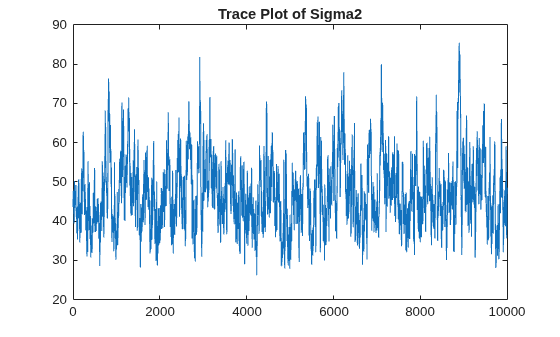

```figure; plot(PosteriorMdl.Sigma2Draws) title('Trace Plot of Sigma2');```

The trace plots indicate adequate mixing and convergence, and there are no transient effects to remove.

This example is based on Create Custom Multivariate t Prior Model for Coefficients.

Create an anonymous function that operates like `priorMVTIG`, but accepts the parameter values only and holds the hyperparameter values fixed to their values.

```dof = 50; C = eye(4); ct = [-25; 4; 0; 3]; st = ones(4,1); a = 3; b = 1; logPDF = @(params)priorMVTIG(params,ct,st,dof,C,a,b);```

Create a custom joint prior model for the linear regression parameters. Specify the number of predictors, `p`. Also, specify the function handle for `priorMVTIG` and the variable names.

```p = 3; PriorMdl = bayeslm(p,'ModelType','custom','LogPDF',logPDF,... 'VarNames',["IPI" "E" "WR"])```
```PriorMdl = customblm with properties: NumPredictors: 3 Intercept: 1 VarNames: {4x1 cell} LogPDF: @(params)priorMVTIG(params,ct,st,dof,C,a,b) The priors are defined by the function: @(params)priorMVTIG(params,ct,st,dof,C,a,b) ```

Load the Nelson-Plosser data set. Create variables for the response and predictor series.

```load Data_NelsonPlosser X = DataTable{:,PriorMdl.VarNames(2:end)}; y = DataTable{:,'GNPR'};```

Estimate the conditional posterior distributions of given and the data. Specify a width for the slice sampler that is close to the posterior standard deviation of the parameters assuming a diffuse prior model. Reduce serial correlation by specifying a thinning factor of 10, and, reduce the effective default number of draws by a factor of 10.

```width = [20,0.5,0.01,1]; thin = 10; numDraws = 1e5/thin; rng(1) % For reproducibility [Mdl,condPostMeanBeta,CondPostCovBeta] = estimate(PriorMdl,X,y,'Sigma2',2,... 'Width',width,'Thin',thin,'NumDraws',numDraws);```
```Method: MCMC sampling with 10000 draws Conditional variable: Sigma2 fixed at 2 Number of observations: 62 Number of predictors: 4 | Mean Std CI95 Positive Distribution -------------------------------------------------------------------------- Intercept | -24.7820 0.8767 [-26.483, -23.054] 0.000 Empirical IPI | 4.3825 0.0254 [ 4.332, 4.431] 1.000 Empirical E | 0.0011 0.0000 [ 0.001, 0.001] 1.000 Empirical WR | 2.4752 0.0724 [ 2.337, 2.618] 1.000 Empirical Sigma2 | 2 0 [ 2.000, 2.000] 1.000 Empirical ```
```Warning: Current syntax supports 6 output arguments, and will be removed in a future release. For supported output arguments, see <a href="matlab:helpview(fullfile(docroot,'econ','econ.map'),'blmestimate')">estimate</a>. ```

`estimate` returns the 4-by-1 vector of means and the 4-by-4 covariance matrix of the conditional posterior distribution of the in `condPostMeanBeta` and `CondPostCovBeta`, respectively. Also, `estimate` displays a summary of the conditional posterior distribution of .

The warning indicates that, in a future release, the syntaxes of `estimate` will change. At this time, do not update your code. For more details, see Replacing Discouraged Syntaxes of estimate.

Display `Mdl`.

`Mdl`
```Mdl = customblm with properties: NumPredictors: 3 Intercept: 1 VarNames: {4x1 cell} LogPDF: @(params)priorMVTIG(params,ct,st,dof,C,a,b) The priors are defined by the function: @(params)priorMVTIG(params,ct,st,dof,C,a,b) ```

Because `estimate` computes the conditional posterior distribution, it returns the original prior model, not the posterior, in the first position of the output argument list. Also, `estimate` does not return the MCMC sample. Hence, to monitor convergence of the MCMC sample, use `simulate` instead specifying the same random number seed before invoking simulate.

This example is based on Estimate Marginal Posterior Distributions.

Create a prior model for the regression coefficients and disturbance variance, then estimate the marginal posterior distributions. Turn the estimation display off.

```dof = 50; C = eye(4); ct = [-25; 4; 0; 3]; st = ones(4,1); a = 3; b = 1; logPDF = @(params)priorMVTIG(params,ct,st,dof,C,a,b); p = 3; PriorMdl = bayeslm(p,'ModelType','custom','LogPDF',logPDF,... 'VarNames',["IPI" "E" "WR"]); load Data_NelsonPlosser X = DataTable{:,PriorMdl.VarNames(2:end)}; y = DataTable{:,'GNPR'}; width = [20,0.5,0.01,1,20]; thin = 10; numDraws = 1e5/thin; rng(1) % For reproducibility PosteriorMdl = estimate(PriorMdl,X,y,'Width',width,'Thin',thin,... 'NumDraws',numDraws,'Display',false);```

Estimate posterior distribution summary statistics for by using the draws from the posterior distribution stored in posterior model.

```estBeta = mean(PosteriorMdl.BetaDraws,2); EstBetaCov = cov(PosteriorMdl.BetaDraws');```

Suppose that if the coefficient of real wages is below 2.5, then a policy is enacted. Although the posterior distribution of `WR` is known, and so you can calculate probabilities directly, you can estimate the probability using Monte Carlo simulation instead.

Draw `1e6` samples from the marginal posterior distribution of .

```NumDraws = 1e6; BetaSim = simulate(PosteriorMdl,'NumDraws',NumDraws);```

`BetaSim` is a 4-by- `1e6` matrix containing the draws. Rows correspond to the regression coefficient and columns to successive draws.

Isolate the draws corresponding to the coefficient of real wages, and then identify which draws are less than 2.5.

```isWR = PosteriorMdl.VarNames == "WR"; wrSim = BetaSim(isWR,:); isWRLT2p5 = wrSim < 2.5;```

Find the marginal posterior probability that the regression coefficient of `WR` is below 2.5 by computing the proportion of draws that are less than 2.5.

`probWRLT2p5 = mean(isWRLT2p5)`
```probWRLT2p5 = 0.4430 ```

The posterior probability that the coefficient of real wages is less than 2.5 is about `0.4430`.

This example is based on Estimate Marginal Posterior Distributions.

Create a prior model for the regression coefficients and disturbance variance, then estimate the marginal posterior distributions. Hold out the last 10 periods of data from estimation so that they can be used for forecasting real GNP. Turn the estimation display off.

```load Data_NelsonPlosser VarNames = {'IPI'; 'E'; 'WR'}; fhs = 10; % Forecast horizon size X = DataTable{1:(end - fhs),VarNames}; y = DataTable{1:(end - fhs),'GNPR'}; XF = DataTable{(end - fhs + 1):end,VarNames}; % Future predictor data yFT = DataTable{(end - fhs + 1):end,'GNPR'}; % True future responses dof = 50; C = eye(4); ct = [-25; 4; 0; 3]; st = ones(4,1); a = 3; b = 1; logPDF = @(params)priorMVTIG(params,ct,st,dof,C,a,b); p = 3; PriorMdl = bayeslm(p,'ModelType','custom','LogPDF',logPDF,... 'VarNames',VarNames); width = [20,0.5,0.01,1,20]; thin = 10; numDraws = 1e5/thin; rng(1) % For reproducibility PosteriorMdl = estimate(PriorMdl,X,y,'Width',width,'Thin',thin,... 'NumDraws',numDraws,'Display',false);```

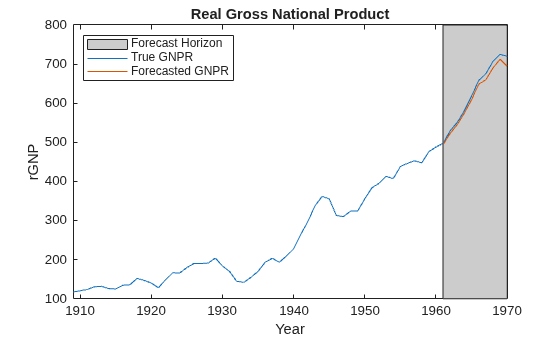

Forecast responses using the posterior predictive distribution and using the future predictor data `XF`. Plot the true values of the response and the forecasted values.

```yF = forecast(PosteriorMdl,XF); figure; plot(dates,DataTable.GNPR); hold on plot(dates((end - fhs + 1):end),yF) h = gca; hp = patch([dates(end - fhs + 1) dates(end) dates(end) dates(end - fhs + 1)],... h.YLim([1,1,2,2]),[0.8 0.8 0.8]); uistack(hp,'bottom'); legend('True GNPR','Forecasted GNPR','Forecast Horizon','Location','NW') title('Real Gross National Product: 1909 - 1970'); ylabel('rGNP'); xlabel('Year'); hold off```

`yF` is a 10-by-1 vector of future values of real GNP corresponding to the future predictor data.

Estimate the forecast root mean squared error (RMSE).

`frmse = sqrt(mean((yF - yFT).^2))`
```frmse = 12.8148 ```

Forecast RMSE is a relative measure of forecast accuracy. Specifically, you estimate several models using different assumptions. The model with the lowest forecast RMSE is the best performing model of the ones being compared.

expand all

## Alternatives

The `bayeslm` function can create any supported prior model object for Bayesian linear regression.
