# simulate

Monte Carlo simulation of ARIMA or ARIMAX models

## Description

`[`

specifies additional options using one or more name-value arguments. For example,
`Y`

,`E`

] = simulate(`Mdl`

,`numObs`

,`Name=Value`

)`simulate(Mdl,10,NumPaths=1000,Y0=y0)`

simulates `1000`

sample paths of length `10`

from the ARIMA model `Mdl`

,
and uses the observations in `y0`

as a presample to initialize each
generated path.

## Examples

### Simulate Response Path from ARIMA Model

Consider the ARIMA(4,1,1) model

$$(1-0.75{L}^{4})(1-L){y}_{t}=2+(1+0.1L){\epsilon}_{t},$$

where ${\epsilon}_{\mathit{t}}$ is a Gaussian innovations series with a mean of 0 and a variance of 1.

Create the ARIMA(4,1,1) model.

Mdl = arima('AR',-0.75,'ARLags',4,'MA',0.1,... 'Constant',2,'Variance',1)

Mdl = arima with properties: Description: "ARIMA(4,0,1) Model (Gaussian Distribution)" Distribution: Name = "Gaussian" P: 4 D: 0 Q: 1 Constant: 2 AR: {-0.75} at lag [4] SAR: {} MA: {0.1} at lag [1] SMA: {} Seasonality: 0 Beta: [1×0] Variance: 1

`Mdl`

is a fully specified `arima`

object representing the ARIMA(4,1,1) model.

Simulate a 100-period random response path from the ARIMA(4,1,1) model.

```
rng(1) % For reproducibility
y = simulate(Mdl,100);
```

`y`

is a 100-by-1 vector containing the random response path.

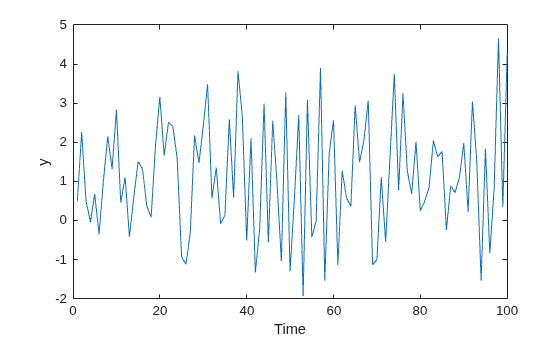

Plot the simulated path.

plot(y) ylabel('y') xlabel('Period')

### Simulate Predictors and Responses

Simulate three predictor series and a response series.

Specify and simulate a path of length 20 for each of the three predictor series modeled by

$$(1-0.2L){x}_{it}=2+(1+0.5L-0.3{L}^{2}){\eta}_{it},$$

where $${\eta}_{it}$$ follows a Gaussian distribution with mean 0 and variance 0.01, and $$i$$ = {1,2,3}.

[MdlX1,MdlX2,MdlX3] = deal(arima('AR',0.2,'MA',... {0.5,-0.3},'Constant',2,'Variance',0.01)); rng(4); % For reproducibility simX1 = simulate(MdlX1,20); simX2 = simulate(MdlX2,20); simX3 = simulate(MdlX3,20); SimX = [simX1 simX2 simX3];

Specify and simulate a path of length 20 for the response series modeled by

$$(1-0.05L+0.02{L}^{2}-0.01{L}^{3})(1-L{)}^{1}{y}_{t}=0.05+{x}_{t}^{\prime}\left[\begin{array}{c}0.5\\ -0.03\\ -0.7\end{array}\right]+(1+0.04L+0.01{L}^{2}){\epsilon}_{t},$$

where $${\epsilon}_{t}$$ follows a Gaussian distribution with mean 0 and variance 1.

MdlY = arima('AR',{0.05 -0.02 0.01},'MA',... {0.04,0.01},'D',1,'Constant',0.5,'Variance',1,... 'Beta',[0.5 -0.03 -0.7]); simY = simulate(MdlY,20,'X',SimX);

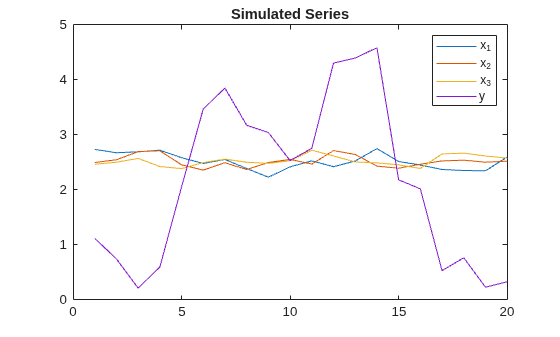

Plot the series together.

figure plot([SimX simY]) title('Simulated Series') legend('{X_1}','{X_2}','{X_3}','Y')

### Forecast a Process Using Simulations

Forecast the daily NASDAQ Composite Index using Monte Carlo simulations.

Load the NASDAQ data included with the toolbox. Extract the first 1500 observations for fitting.

```
load Data_EquityIdx
nasdaq = DataTable.NASDAQ(1:1500);
n = length(nasdaq);
```

Specify, and then fit an ARIMA(1,1,1) model.

NasdaqModel = arima(1,1,1); NasdaqFit = estimate(NasdaqModel,nasdaq);

ARIMA(1,1,1) Model (Gaussian Distribution): Value StandardError TStatistic PValue _________ _____________ __________ __________ Constant 0.43031 0.18555 2.3191 0.020392 AR{1} -0.074391 0.081985 -0.90737 0.36421 MA{1} 0.31126 0.077266 4.0284 5.6158e-05 Variance 27.826 0.63625 43.735 0

Simulate 1000 paths with 500 observations each. Use the observed data as presample data.

rng default; Y = simulate(NasdaqFit,500,'NumPaths',1000,'Y0',nasdaq);

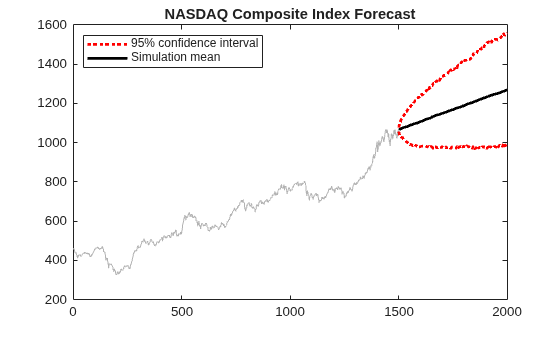

Plot the simulation mean forecast and approximate 95% forecast intervals.

lower = prctile(Y,2.5,2); upper = prctile(Y,97.5,2); mn = mean(Y,2); figure plot(nasdaq,'Color',[.7,.7,.7]) hold on h1 = plot(n+1:n+500,lower,'r:','LineWidth',2); plot(n+1:n+500,upper,'r:','LineWidth',2) h2 = plot(n+1:n+500,mn,'k','LineWidth',2); legend([h1 h2],'95% Interval','Simulation Mean',... 'Location','NorthWest') title('NASDAQ Composite Index Forecast') hold off

### Simulate Responses and Innovations

Simulate response and innovation paths from a multiplicative seasonal model.

Specify the model

$$(1-L)(1-{L}^{12}){y}_{t}=(1-0.5L)(1+0.3{L}^{12}){\epsilon}_{t},$$

where $${\epsilon}_{t}$$ follows a Gaussian distribution with mean 0 and variance 0.1.

Mdl = arima('MA',-0.5,'SMA',0.3,... 'SMALags',12,'D',1,'Seasonality',12,... 'Variance',0.1,'Constant',0);

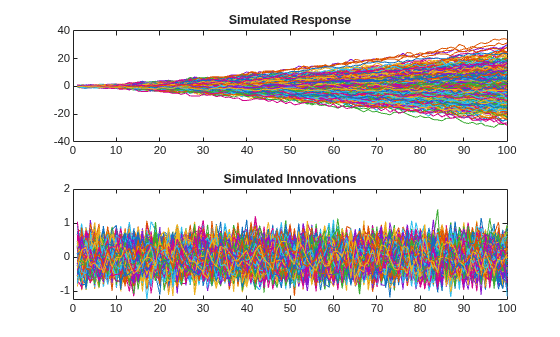

Simulate 500 paths with 100 observations each.

rng default % For reproducibility [Y,E] = simulate(Mdl,100,'NumPaths',500); figure subplot(2,1,1); plot(Y) title('Simulated Response') subplot(2,1,2); plot(E) title('Simulated Innovations')

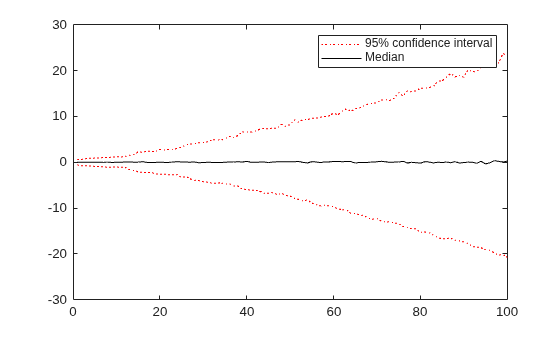

Plot the 2.5th, 50th (median), and 97.5th percentiles of the simulated response paths.

lower = prctile(Y,2.5,2); middle = median(Y,2); upper = prctile(Y,97.5,2); figure plot(1:100,lower,'r:',1:100,middle,'k',... 1:100,upper,'r:') legend('95% Interval','Median')

Compute statistics across the second dimension (across paths) to summarize the sample paths.

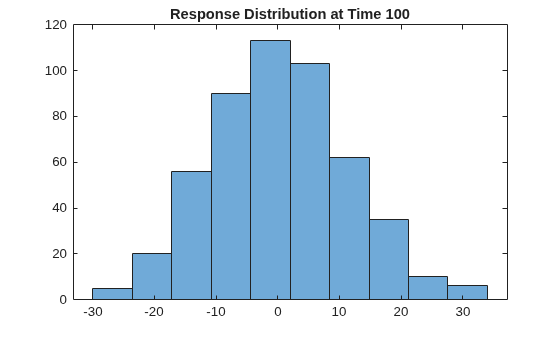

Plot a histogram of the simulated paths at time 100.

```
figure
histogram(Y(100,:),10)
title('Response Distribution at Time 100')
```

## Input Arguments

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`simulate(Mdl,10,NumPaths=1000,Y0=y0)`

simulates
`1000`

sample paths of length `10`

from the ARIMA model
`Mdl`

, and uses the observations in `y0`

as a presample
to initialize each generated path.

`Y0`

— Presample response data

numeric column vector | numeric matrix

Presample response data used as initial values for the model, specified as a numeric column vector or a numeric matrix.

Each row of `Y0`

corresponds to a period in the presample. The
following conditions apply:

The last row contains the latest presample responses.

To initialize the AR components,

`Y0`

must have at least`Mdl.P`

rows.If

`Y0`

has more rows than is required to initialize the model,`simulate`

uses only the latest required rows.

Each column of `Y0`

corresponds to a separate, independent
presample path. The following conditions apply:

If

`Y0`

is a column vector,`simulate`

applies it to each path. In this case, the AR components and conditional variance model of all paths in`Y`

derive from common initial responses.If

`Y0`

is a matrix,`simulate`

applies`Y0(:,`

to initialize path)`j`

.`j`

`Y0`

must have at least`NumPaths`

columns;`simulate`

uses only the first`NumPaths`

columns of`Y0`

.

By default, `simulate`

sets any necessary presample
observations by using one of the following methods:

For a model with a stationary AR process and without a regression component,

`simulate`

sets all presample responses to the unconditional mean of the model.For a model that represents a nonstationary process or that contains a regression component,

`simulate`

sets all necessary presample responses to zero.

**Data Types: **`double`

`E0`

— Presample innovation data

numeric column vector | numeric matrix

Presample innovation data used to initialize either the moving average (MA)
component of the ARIMA model or the conditional variance model, specified as a numeric
column vector or a numeric matrix. `simulate`

assumes the
presample innovations have a mean of zero.

Each row of `E0`

corresponds to a period in the presample. The
following conditions apply:

The last row contains the latest presample innovations.

To initialize the MA components,

`E0`

must have at least`Mdl.Q`

rows.If

`Mdl.Variance`

is a conditional variance model (for example, a`garch`

model object),`E0`

can require more rows than`Mdl.Q`

to initialize the model.If

`E0`

has more rows than is required to initialize the model,`simulate`

uses only the latest required rows.

Each column of `E0`

corresponds to a separate, independent
presample path. The following conditions apply:

If

`E0`

is a column vector,`simulate`

applies it to each simulated path. In this case, the MA components and conditional variance model of all paths in`Y`

derive from the same initial innovations.If

`E0`

is a matrix,`simulate`

applies`E0(:,`

to initialize simulating path)`j`

.`j`

`E0`

must have at least`NumPaths`

columns;`simulate`

uses only the first`NumPaths`

columns of`E0`

.

By default, `simulate`

sets all necessary
presample innovations to `0`

.

**Data Types: **`double`

`V0`

— Presample conditional variance data

positive numeric column vector | positive numeric matrix

Presample conditional variance data used to initialize the conditional variance
model, specified as a positive numeric column vector or a positive numeric matrix. If
the conditional variance `Mdl.Variance`

is constant,
`simulate`

ignores `V0`

.

Each row of `V0`

corresponds to a period in the presample. The
following conditions apply:

The last row contains the latest presample conditional variances.

To initialize the conditional variance model,

`V0`

must have enough rows. For details, see the`simulate`

function of conditional variance models.If

`V0`

has more rows than is required to initialize the conditional variance model,`simulate`

uses only the latest required rows.

Each column of `V0`

corresponds to a separate, independent
presample path. The following conditions apply:

If

`V0`

is a column vector,`simulate`

applies it to each simulated path.If

`V0`

is a matrix,`simulate`

applies`V0(:,`

to initialize simulating path)`j`

.`j`

`V0`

must have at least`NumPaths`

columns;`simulate`

uses only the first`NumPaths`

columns of`V0`

.

By default, `simulate`

sets all necessary presample
observations to the unconditional variance of the conditional variance process.

**Data Types: **`double`

`X`

— Exogenous predictor data

numeric matrix

Exogenous predictor data for the regression component in the model, specified as a
`numObs`

-by`numPreds`

numeric matrix.

`numPreds`

is the number of predictor variables
(`numel(Mdl.Beta)`

).

Each row of `X`

corresponds to a period in the length
`numObs`

simulation sample (period for which
`simulate`

simulates observations; the period after the
presample). The following conditions apply:

The last row contains the latest predictor data.

If the specified predictor data has more than

`numObs`

rows,`simulate`

uses only the latest`numObs`

rows.`simulate`

does not use the regression component in the presample period.

Each column of `X`

corresponds to a separate predictor
variable.

`simulate`

applies `X`

to each simulated
path; that is, `X`

represents one path of observed predictors.

By default, `simulate`

excludes the regression component,
regardless of its presence in `Mdl`

.

**Data Types: **`double`

**Note**

`NaN`

s in input data indicate missing values.`simulate`

uses*listwise deletion*to delete all sampled times (rows) in the input data containing at least one missing value. Specifically,`simulate`

performs these steps:Synchronize, or merge, the presample data sets

`E0`

,`V0`

, and`Y0`

to create the set`Presample`

.Remove all rows from

`Presample`

and the predictor data`X`

containing at least one`NaN`

.

Listwise deletion applied to the in-sample data can reduce the sample size and create irregular time series.

`simulate`

assumes that you synchronize the predictor series such that the most recent observations occur simultaneously. The software also assumes that you synchronize the presample series similarly.

## Output Arguments

`Y`

— Simulated response paths

numeric column vector | numeric matrix

Simulated response paths, returned as a length `numObs`

numeric
column vector or a `numObs`

-by-`NumPaths`

numeric
matrix. `Y`

represents the continuation of the presample responses in
`Y0`

.

Each row corresponds to a period in the simulated series; the simulated series has
the periodicity of `Mdl`

. Each column is a separate simulated
path.

`V`

— Simulated conditional variance paths

numeric column vector | numeric matrix

## References

[1] Box, George E. P., Gwilym M. Jenkins, and Gregory C. Reinsel. *Time Series Analysis: Forecasting and Control*. 3rd ed. Englewood Cliffs, NJ: Prentice Hall, 1994.

[2] Enders, Walter. *Applied Econometric Time Series*. Hoboken, NJ: John Wiley & Sons, Inc., 1995.

[3] Hamilton, James D. *Time Series Analysis*. Princeton, NJ: Princeton University Press, 1994.

## Version History

**Introduced in R2012a**

## See Also

### Objects

### Functions

### Topics

- Simulate Stationary Processes
- Simulate Trend-Stationary and Difference-Stationary Processes
- Simulate Multiplicative ARIMA Models
- Simulate Conditional Mean and Variance Models
- Monte Carlo Simulation of Conditional Mean Models
- Presample Data for Conditional Mean Model Simulation
- Transient Effects in Conditional Mean Model Simulations
- Monte Carlo Forecasting of Conditional Mean Models

## MATLAB 명령

다음 MATLAB 명령에 해당하는 링크를 클릭했습니다.

명령을 실행하려면 MATLAB 명령 창에 입력하십시오. 웹 브라우저는 MATLAB 명령을 지원하지 않습니다.

# Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
