plot

Plot vehicle costmap

Description

The plot function displays a vehicle costmap. The darkness of each cell is proportional to the cost value of the cell. Cells with low cost are bright, and cells containing obstacles with high cost are dark. Inflated areas are displayed with a red hue, and cells outside the inflated area are displayed in grayscale.

example

plot(costmap) plots the vehicle costmap in the current axes.

plot(costmap,Name,Value) plots the vehicle costmap using name-value pair arguments to specify the parent axes or to adjust the display of inflated areas.

Examples

collapse all

Load a costmap from a parking lot. Display the costmap.

data = load('parkingLotCostmap.mat');
parkMap = data.parkingLotCostmap;
plot(parkMap)

Create a template polyshape object with the dimensions of the car.

carDims = parkMap.CollisionChecker.VehicleDimensions
carDims =
  vehicleDimensions with properties:

           Length: 4.7000
            Width: 1.8000
           Height: 1.4000
        Wheelbase: 2.8000
     RearOverhang: 1
    FrontOverhang: 0.9000
       WorldUnits: 'meters'

ro = carDims.RearOverhang;
fo = carDims.FrontOverhang;
wb = carDims.Wheelbase;
hw = carDims.Width/2;
X = [-ro,wb+fo,wb+fo,-ro];
Y = [-hw,-hw,hw,hw];
templateShape = polyshape(X',Y');

Create a function handle to move the template to a specified vehicle pose. This move function translates the polyshape s to the coordinate (x,y) and then rotates the polyshape by an angle theta about the point (x,y).

move = @(s,x,y,theta) rotate(translate(s,[x,y]), ...
    theta,[x,y]);

Move the car template to a pose.

carPose = [5,5,75];
carShape = move(templateShape,carPose(1),carPose(2),carPose(3));

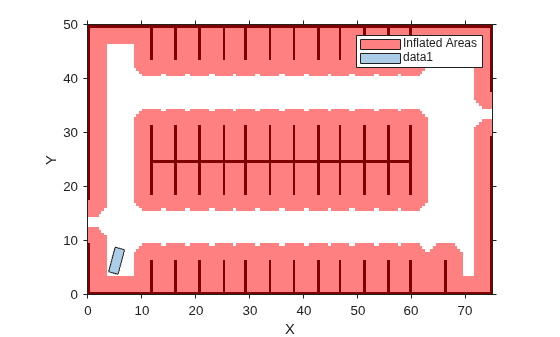

Plot the car on the costmap.

hold on
plot(carShape)

Input Arguments

collapse all

Costmap, specified as a vehicleCostmap object.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'Inflation','off'

Display inflated areas, specified as the comma-separated pair consisting of 'Inflation' and one of the following.

  • 'on'—Cells in the inflated area have a red hue.

  • 'off'—Cells containing obstacles have a red hue, but other cells in the inflated area are displayed in grayscale.

Axes on which to plot the costmap, specified as the comma-separated pair consisting of 'Parent' and an axes handle. By default, plot uses the current axes handle, which is returned by the gca function.

Version History

Introduced in R2018a
