transformImage
Transform image to bird's-eye view
Description
transforms the input image, J
= transformImage(birdsEye
,I
)I
, to a bird’s-eye-view image,
J
. The OutputView
and ImageSize
properties of the birdsEyeView
object,
birdsEye
, determine the portion of I
to transform and the size of J
, respectively.
Examples
Transform Road Image to Bird's-Eye-View Image
Create a bird's-eye-view image from an image obtained by a front-facing camera mounted on a vehicle. Display points within the bird's-eye view using the vehicle and image coordinate systems.
Define the camera intrinsics and create an object containing these intrinsics.
focalLength = [309.4362 344.2161]; principalPoint = [318.9034 257.5352]; imageSize = [480 640]; camIntrinsics = cameraIntrinsics(focalLength,principalPoint,imageSize);
Set the height of the camera to be about 2 meters above the ground. Set the pitch of the camera to 14 degrees toward the ground.
height = 2.1798; pitch = 14;
Create an object containing the camera configuration.
sensor = monoCamera(camIntrinsics,height,'Pitch',pitch);
Define the area in front of the camera that you want to transform into a bird's-eye view. Set an area from 3 to 30 meters in front of the camera, with 6 meters to either side of the camera.
distAhead = 30; spaceToOneSide = 6; bottomOffset = 3; outView = [bottomOffset,distAhead,-spaceToOneSide,spaceToOneSide];
Set the output image width to 250 pixels. Compute the output length automatically from the width by setting the length to NaN
.
outImageSize = [NaN,250];
Create an object for performing bird's-eye-view transforms, using the previously defined parameters.
birdsEye = birdsEyeView(sensor,outView,outImageSize);
Load an image that was captured by the sensor.

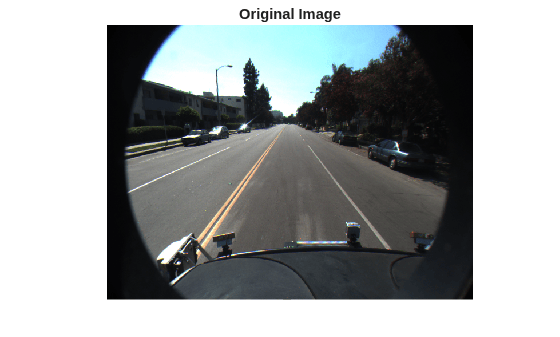

I = imread('road.png'); figure imshow(I) title('Original Image')
Transform the input image into a bird's-eye-view image.
BEV = transformImage(birdsEye,I);
In the bird's-eye-view image, place a 20-meter marker directly in front of the sensor. Use the vehicleToImage
function to specify the location of the marker in vehicle coordinates. Display the marker on the bird's-eye-view image.

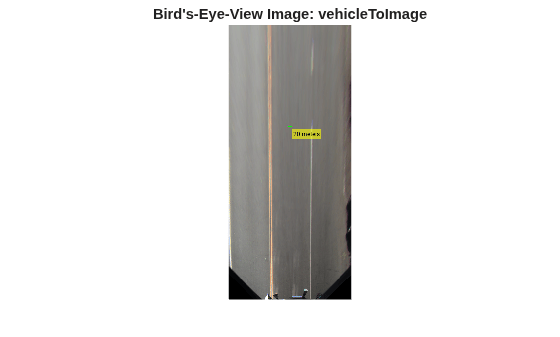

imagePoint = vehicleToImage(birdsEye,[20 0]); annotatedBEV = insertMarker(BEV,imagePoint); annotatedBEV = insertText(annotatedBEV,imagePoint + 5,'20 meters'); figure imshow(annotatedBEV) title('Bird''s-Eye-View Image: vehicleToImage')
Define a location in the original bird's-eye-view image, this time in image coordinates. Use the imageToVehicle
function to convert the image coordinates to vehicle coordinates. Display the distance between the marker and the front of the vehicle.

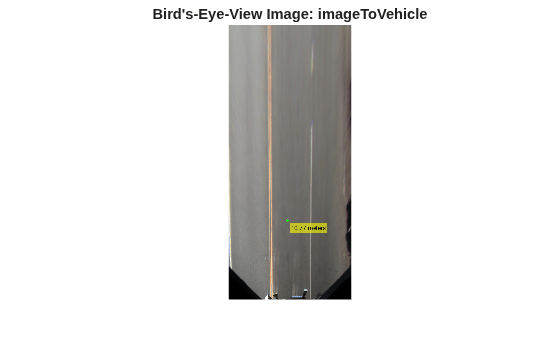

imagePoint2 = [120 400]; annotatedBEV = insertMarker(BEV,imagePoint2); vehiclePoint = imageToVehicle(birdsEye,imagePoint2); xAhead = vehiclePoint(1); displayText = sprintf('%.2f meters',xAhead); annotatedBEV = insertText(annotatedBEV,imagePoint2 + 5,displayText); figure imshow(annotatedBEV) title('Bird''s-Eye-View Image: imageToVehicle')
Input Arguments
birdsEye
— Object for transforming image to bird's-eye view
birdsEyeView
object
Object for transforming image to bird's-eye view, specified as a birdsEyeView
object.
I
— Input image
truecolor image | grayscale image
Input image, specified as a truecolor or grayscale image. The OutputView
property of
birdsEye
determines the portion of
I
to transform to a bird's-eye view.
I
must not contain lens distortion. You can remove
lens distortion by using the undistortImage
function. In
high-end optics, you can ignore distortion.
Output Arguments
J
— Bird’s-eye-view image
truecolor image | grayscale image
Bird’s-eye-view image, returned as a truecolor or grayscale image. The
ImageSize
property of
birdsEye
determines the size of
J
.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Version History
Introduced in R2017a
