initialplot

Plot initial condition response of dynamic system

    Description

    The initialplot function plots the initial condition response of a dynamic system model and returns an InitialPlot chart object. To customize the plot, modify the properties of the chart object using dot notation. For more information, see Customize Linear Analysis Plots at Command Line.

    To obtain initial condition response data, use the initial function.

    Creation

    Description

    ip = initialplot(sys,IC) plots the initial condition response of dynamic system sys and returns the corresponding chart object.

    If sys is a multi-input, multi-output (MIMO) model, then the initialplot function creates a grid of plots with each plot displaying the initial condition response of one input-output pair.

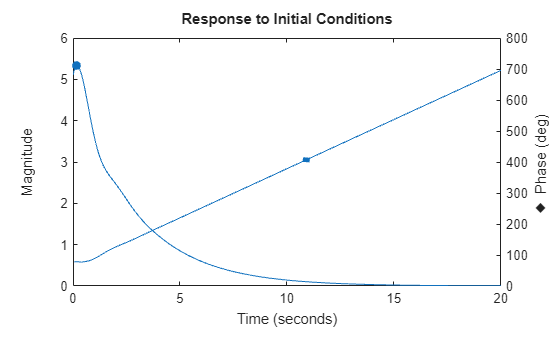

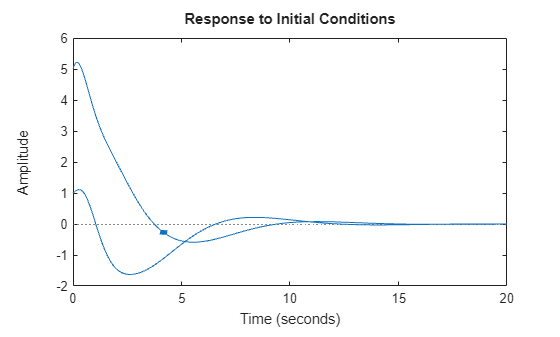

    If sys is a model with complex coefficients, then the plot shows both the real and imaginary components of the response on a single axes and indicates the imaginary component with a diamond marker. You can also view the response using magnitude-phase and complex-plane plots. (since R2025a)

    example

    ip = initialplot(sys1,sys2,...,sysN,x0) plots the initial condition response of multiple dynamic systems sys1,sys2,…,sysN on the same plot.

    example

    ip = initialplot(sys1,LineSpec1,...,sysN,LineSpecN,x0) sets the line style, marker type, and color for the initial condition response of each system.

    example

    ip = initialplot(___,t) simulates the response for the time steps specified by t. You can use t with any of the input argument combinations in previous syntaxes. To define the time steps, you can specify:

    • The final simulation time using a scalar value.

    • The initial and final simulation times using a two-element vector. (since R2023b)

    • All the time steps using a vector.

    example

    ip = initialplot(sys,IC,t,p) also specifies the parameter trajectory p for LPV models. (since R2023a)

    ip = initialplot(___,plotoptions) plots the initial condition response with the plotting options specified in plotoptions. Settings you specify in plotoptions override the plotting preferences for the current MATLAB® session. This syntax is useful when you want to write a script to generate multiple plots that look the same regardless of the local preferences.

    ip = initialplot(parent,___) plots the initial condition response in the specified parent graphics container, such as a Figure or TiledChartLayout, and sets the Parent property. Use this syntax when you want to create a plot in a specified open figure or when creating apps in App Designer.

    Input Arguments

    expand all

    Dynamic system, specified as a SISO or MIMO dynamic system model or array of dynamic system models. You can only use these types of state-space model:

    • Continuous-time or discrete-time numeric ss models.

    • Generalized or uncertain LTI models, such as genss or uss models. (Using uncertain models requires Robust Control Toolbox™ software.)

      • For tunable control design blocks, the function evaluates the model at its current value for both plotting and returning response data.

      • For uncertain control design blocks, the function plots the nominal value and random samples of the model. When you use output arguments, the function returns response data for the nominal model only.

    • Sparse state-space models, such as sparss and mechss models. You must specify final time tFinal for sparse state-space models.

    • Linear time-varying (ltvss) and linear parameter-varying (lpvss) models.

    If sys is an array of models, the function plots the responses of all models in the array on the same axes.

    Line style, marker, and color, specified as a string or character vector containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics. For example, specify the marker and omit the line style, then the plot shows only the marker and no line.

    Example: '--or' is a red dashed line with circle markers.

    Line StyleDescription
    "-"Solid line
    "--"Dashed line
    ":"Dotted line
    "-."Dash-dotted line
    MarkerDescription
    "o"Circle
    "+"Plus sign
    "*"Asterisk
    "."Point
    "x"Cross
    "_"Horizontal line
    "|"Vertical line
    "s"Square
    "d"Diamond
    "^"Upward-pointing triangle
    "v"Downward-pointing triangle
    ">"Right-pointing triangle
    "<"Left-pointing triangle
    "p"Pentagram
    "h"Hexagram
    ColorDescription
    "r"red
    "g"green
    "b"blue
    "c"cyan
    "m"magenta
    "y"yellow
    "k"black
    "w"white

    Time steps at which to compute the response, specified as one of these values:

    • Positive scalar tFinal— Compute the response from t = 0 to t = tFinal.

    • Two-element vector [t0 tFinal] — Compute the response from t = t0 to t = tFinal. (since R2023b)

    • Vector Ti:dt:Tf— Compute the response for the time points specified in t.

      • For continuous-time systems, dt is the sample time of a discrete approximation to the continuous system.

      • For discrete-time systems with a specified sample time, dt must match the sample time property Ts of sys.

      • For discrete-time systems with an unspecified sample time (Ts = -1), dt must be 1.

    • [] — Automatically select time values based on system dynamics.

    When you specify a time range using either tFinal or [t0 tFinal]:

    • For continuous-time systems, the function automatically determines the step size and number of points based on the system dynamics.

    • For discrete-time systems with a specified sample time, the function uses the sample time of sys as the step size.

    • For discrete-time systems with unspecified sample time (Ts = -1), the function interprets tFinal as the number of sampling periods to simulate with a sample time of 1 second.

    Express t using the time units specified in the TimeUnit property of sys.

    Initial condition, specified as one of the following:

    • Initial state values, specified as a vector xinit with length equal to the number of states.

    • Response configuration, specified as a RespConfig object. Use this object to specify initial state and parameter values for LPV models. (since R2024b)

    • Operating condition, specified as an object created using findop. (since R2024b)

    Since R2023a

    Parameter trajectory of the LPV model, specified as a matrix or function handle.

    • For exogenous or explicit trajectories, specify p as a matrix with dimensions N-by-Np, where N is the number of time samples and Np is the number of parameters.

      Thus, the row vector p(i,:) contains the parameter values at the ith time step.

    • For endogenous or implicit trajectories, specify p as a function handle of the form p = F(t,x,u) in continuous time and p = F(k,x,u) in discrete time that gives parameters as a function of time t or time sample k, state x, and input u. An initial parameter value is required for this input method. To specify initial conditions, use the IC argument.

    Time response plot options, specified as a timeoptions object. You can use these options to customize the plot appearance. Settings you specify in plotoptions override the preference settings for the current MATLAB session.

    Parent graphics container, specified as one of these objects:

    • Figure

    • TiledChartLayout

    • UIFigure

    • UIGridLayout

    • UIPanel

    • UITab

    You can also specify parent as an Axes or UIAxes object, which sets the plot parent to the parent of the specified axes object.

    Properties

    expand all

    Note

    The properties listed here are only a subset. For a complete list, see InitialPlot Properties.

    Model responses, specified as an InitialResponse object or an array of such objects. Use this property to modify the dynamic system model or appearance for each response in the plot. Each InitialResponse object has these properties.

    Source data for the response, specified as a structure with these fields.

    Dynamic system, specified as a SISO or MIMO dynamic system model or array of dynamic system models. You can only use these types of state-space model:

    • Continuous-time or discrete-time numeric ss models.

    • Generalized or uncertain LTI models, such as genss or uss models. (Using uncertain models requires Robust Control Toolbox software.)

      • For tunable control design blocks, the function evaluates the model at its current value for both plotting and returning response data.

      • For uncertain control design blocks, the function plots the nominal value and random samples of the model. When you use output arguments, the function returns response data for the nominal model only.

    • Sparse state-space models, such as sparss and mechss models. You must specify final time tFinal for sparse state-space models.

    • Linear time-varying (ltvss) and linear parameter-varying (lpvss) models.

    If sys is an array of models, the function plots the responses of all models in the array on the same axes.

    Time steps at which to compute the response, specified as one of these values:

    • Positive scalar tFinal— Compute the response from t = 0 to t = tFinal.

    • Two-element vector [t0 tFinal] — Compute the response from t = t0 to t = tFinal. (since R2023b)

    • Vector Ti:dt:Tf— Compute the response for the time points specified in t.

      • For continuous-time systems, dt is the sample time of a discrete approximation to the continuous system.

      • For discrete-time systems with a specified sample time, dt must match the sample time property Ts of sys.

      • For discrete-time systems with an unspecified sample time (Ts = -1), dt must be 1.

    • [] — Automatically select time values based on system dynamics.

    When you specify a time range using either tFinal or [t0 tFinal]:

    • For continuous-time systems, the function automatically determines the step size and number of points based on the system dynamics.

    • For discrete-time systems with a specified sample time, the function uses the sample time of sys as the step size.

    • For discrete-time systems with unspecified sample time (Ts = -1), the function interprets tFinal as the number of sampling periods to simulate with a sample time of 1 second.

    Express t using the time units specified in the TimeUnit property of sys.

    Baseline input signal value, specified as a scalar or vector.

    • For single-input systems, Bias is a scalar value.

    • For multi-input systems, Bias is a vector of length Nu, where Nu is the number of input channels. Each vector value corresponds to the signal value in that input channel. The functions compute the responses one input channel at a time.

    • For state-space models with offsets, set Bias = 'u0' to set the baseline signal to the offsets u0, u0(t) of the LTV model, or u0(t,p) of the LPV model. For LTV and LPV models, this is the u0 output of the data function. The total input signal is then u0 + u(t).

    Initial condition for response, specified as one of the following:

    • Operating condition obtained using findop.

    • Response configuration, specified as a RespConfig object. (since R2025a)

    Response name, specified as a string or character vector and stored as a string.

    Response visibility, specified as one of these logical on/off values:

    • "on", 1, or true — Display the response in the plot.

    • "off", 0, or false — Do not display the response in the plot.

    The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

    Option to list the response in the legend, specified as one of these logical on/off values:

    • "on", 1, or true — List the response in the legend.

    • "off", 0, or false — Do not list the response in the legend.

    The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

    Marker style, specified as one of these values.

    MarkerDescription
    "none"No marker
    "o"Circle
    "+"Plus sign
    "*"Asterisk
    "."Point
    "x"Cross
    "_"Horizontal line
    "|"Vertical line
    "s"Square
    "d"Diamond
    "^"Upward-pointing triangle
    "v"Downward-pointing triangle
    ">"Right-pointing triangle
    "<"Left-pointing triangle
    "p"Pentagram
    "h"Hexagram

    Plot color, specified as an RGB triplet or a hexadecimal color code and stored as an RGB triplet.

    Alternatively, you can specify some common colors by name. This table lists these colors and their corresponding RGB triplets and hexadecimal color codes.

    Color NameRGB TripletHexadecimal Color Code

    "red" or "r"

    [1 0 0]#FF0000

    "green" or "g"

    [0 1 0]#00FF00

    "blue" or "b"

    [0 0 1]#0000FF

    "cyan" or "c"

    [0 1 1]#00FFFF

    "magenta" or "m"

    [1 0 1]#FF00FF

    "yellow" or "y"

    [1 1 0]#FFFF00

    "black" or "k"

    [0 0 0]#000000

    "white" or "w"

    [1 1 1]#FFFFFF

    Line style, specified as one of these values.

    Line StyleDescription
    "-"Solid line
    "--"Dashed line
    ":"Dotted line
    "-."Dash-dotted line

    Marker size, specified as a positive scalar.

    Line width, specified as a positive scalar.

    Response characteristics to display in the plot, specified as a CharacteristicsManager object with these properties.

    For more information on how the peak response and transient time are computed, see lsiminfo.

    Peak response, specified as a CharacteristicOption object with this property.

    Peak response visibility, specified as one of these logical on/off values:

    • "on", 1, or true — Display the peak response.

    • "off", 0, or false — Do not display the peak response.

    The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

    Transient time, specified as a CharacteristicOption object with these properties.

    Threshold for detecting steady state, specified as a scalar value between 0 and 1. For example, to measure when the response remains with 5% of the steady-state value, set a threshold value of 0.05.

    Transient time visibility, specified as one of these logical on/off values:

    • "on", 1, or true — Display the peak response.

    • "off", 0, or false — Do not display the peak response.

    The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

    Time units, specified as one of these values:

    • "nanoseconds"

    • "microseconds"

    • "milliseconds"

    • "seconds"

    • "minutes"

    • "hours"

    • "days"

    • "weeks"

    • "months"

    • "years"

    Dependencies

    By default, the response uses the time units of the plotted linear system. You can override the default units by specifying toolbox preferences. For more information, see Specify Toolbox Preferences for Linear Analysis Plots.

    Option to normalize plot, specified as one of these logical on/off values:

    • "on", 1, or true — Normalize the plot.

    • "off", 0, or false — Do not normalize the plot.

    The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

    Chart visibility, specified as one of these logical on/off values:

    • "on", 1, or true — Display the chart.

    • "off", 0, or false — Hide the chart without deleting it. You can still access the properties of chart when it is not visible.

    The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

    Option to display outputs, specified as one of these logical on/off values or an array of such values:

    • "on", 1, or true — Display the corresponding output.

    • "off", 0, or false — Hide the corresponding output.

    OutputVisible is an array when the plotted system has multiple outputs. By default, all outputs are visible in the plot.

    The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState or an array of such values.

    Object Functions

    addResponseAdd dynamic system response to existing response plot

    Examples

    collapse all

    Generate a random state-space model with 5 states and create the initial condition response plot chart object ip.

    rng("default")
    sys = rss(5);
    x0 = [1,2,3,4,5];
    ip = initialplot(sys,x0);

    MATLAB figure

    Change the time units to minutes and turn on the grid. To do so, edit properties of chart object.

    ip.TimeUnit = "minutes";
    grid on

    MATLAB figure

    The plot automatically updates when you modify the properties of the chart object.

    Consider the following two-input, two-output dynamic system.

    sys(s)=[03ss2+s+10s+1s+52s+6].MIMO system

    Convert the sys to state-space form since initial condition plots are supported only for state-space models.

    sys = ss([0, tf([3 0],[1 1 10]) ; tf([1 1],[1 5]), tf(2,[1 6])]);
    size(sys)
    State-space model with 2 outputs, 2 inputs, and 4 states.


    The resultant state-space model has four states. Hence, provide an initial condition vector with four elements.

    x0 = [0.3,0.25,1,4];

    Plot the initial condition response. Turn on the grid and change the plot title.

    ip = initialplot(sys,x0);
    title("Initial Condition Plot of MIMO System sys(s)")
    grid on

    MATLAB figure

    For this example, consider a MIMO state-space model with 3 inputs, 3 outputs and 3 states. Create an initial condition plot with red colored grid lines.

    Create the MIMO state-space model sys_mimo.

    J = [8 -3 -3; -3 8 -3; -3 -3 8];
    F = 0.2*eye(3);
    A = -J\F;
    B = inv(J);
    C = eye(3);
    D = 0;
    sys_mimo = ss(A,B,C,D);
    size(sys_mimo)
    State-space model with 3 outputs, 3 inputs, and 3 states.


    Create an initial condition plot with chart object ip and display the grid.

    x0 = [0.35,0.1,4];
    ip = initialplot(sys_mimo,x0);
    grid on

    MATLAB figure

    Set the grid color to red.

    ip.AxesStyle.GridColor = [1 0 0];

    MATLAB figure

    The plot automatically updates when you modify the chart object. For MIMO models, initialplot produces a grid of plots, each plot displaying the initial condition response of one I/O pair.

    For this example, examine the initial condition response of the following zero-pole-gain model and limit the plot to tFinal = 15 s. Use 15-point blue text for the title.

    First, convert the zpk model to an ss model since initialplot only supports state-space models.

    sys = ss(zpk(-1,[-0.2+3j,-0.2-3j],1)*tf([1 1],[1 0.05]));
    tFinal = 15;
    x0 = [4,2,3];

    Create the initial conditions response plot and set the title properties of the chart object.

    ip = initialplot(sys,x0,tFinal);
    ip.Title.FontSize = 15;
    ip.Title.Color = [0 0 1];

    MATLAB figure

    For this example, plot the initial condition responses of three dynamic systems and use the plot handle to enable the grid.

    First, create the three models and provide the initial conditions.

    rng('default');
    sys1 = rss(4);
    sys2 = rss(4);
    sys3 = rss(4);
    x0 = [1,1,1,1];

    Plot the initial condition responses of the three models.

    t = 0:0.1:5;
    ip = initialplot(sys1,'r--',sys2,'b',sys3,'g-.',x0,t);
    legend('sys1','sys2','sys3');
    grid on

    MATLAB figure

    Since R2025a

    Create a state-space model with complex coefficients.

    A = [-2-2i -2;1 0];
    B = [2;0];
    C = [0 0.5+2.5i];
    D = 0;
    sys = ss(A,B,C,D);

    Plot the initial-condition response of the system to an arbitrary starting state.

    ic = [1 2];
    ip = initialplot(sys,ic);

    MATLAB figure

    By default, the plot shows the real and imaginary components of the response on a single axes, indicating the imaginary component using a diamond marker.

    You can also view the complex response using either a magnitude-phase plot or a complex-plane plot. For example, to view the magnitude and phase of the response, right-click the plot area and select Complex View >Magnitude-Phase.

    Alternatively, you can set the ComplexViewType parameter of the corresponding chart object.

    ip.ComplexViewType = "magnitudephase";

    MATLAB figure

    The plot shows the magnitude and phase of the response on a single axes, indicating the phase plot using a diamond marker.

    You can view response characteristics in the plot. For example, to view the peak response, right-click the plot and select Characteristics > Peak Response.

    Alternatively, you can enable the Visible property of the corresponding characteristic parameter of the chart object.

    ip.Characteristics.PeakResponse.Visible = "on";

    MATLAB figure

    Tips

    • Plots created using initialplot do not support multiline titles or labels specified as string arrays or cell arrays of character vectors. To specify multiline titles and labels, use a single string with a newline character.

      initialplot(sys)
      title("first line" + newline + "second line");

    Version History

    Introduced before R2006a

    expand all
