Designing PID Controllers with PID Tuner

In Control System Toolbox™, PID Tuner lets you perform automatic, interactive tuning of PID controllers for plants represented by LTI models.

For information about using PID Tuner to tune a PID Controller block in a Simulink^® model, see Introduction to Model-Based PID Tuning in Simulink (Simulink Control Design).

PID Tuner Overview

Use PID Tuner to interactively design a SISO PID controller in the feed-forward path of single-loop, unity-feedback control configuration.

PID Tuner automatically designs a controller for your plant. You specify the controller type (P, I, PI, PD, PDF, PID, PIDF) and form (parallel or standard).

You can also use PID Tuner to design a 2-DOF PID controller for the feedback configuration of this illustration:

PID Tuner can design 2-DOF PID controllers in which the setpoint weights can be free and tunable parameters. PID Tuner can also design controllers in which the setpoint weights are fixed in common control configurations, such as I-PD and PI-D.

You can analyze the design using a variety of response plots, and interactively adjust the design to meet your performance requirements.

To launch PID Tuner, use the pidTuner command:

pidTuner(sys,type)

where sys is a linear model of the plant you want to control, and type is indicates the controller type to design.

Alternatively, enter

pidTuner(sys,Cbase)

where Cbase is a baseline controller, allowing you to compare the performance of the designed controller to the performance of Cbase.

For more information about sys and Cbase, see the pidTuner reference page.

Note

You can also open PID Tuner from the MATLAB^® desktop, in the Apps tab. When you do so, use the Plant menu in PID Tuner to specify your plant model.

PID Controller Type

To select the controller type, use one of these methods:

Specify type when opening the app — Provide the type argument to the pidTuner command when you open PID Tuner. For example, pidTuner(G,'PIDF2') opens PID Tuner with an initial design that is a 2-DOF PID controller with a filter on the derivative term.
Specify type with an existing controller object — Provide the baseline-controller Cbase argument to the pidTuner command when you open PID Tuner. PID Tuner designs a controller of the same type as Cbase. For example, suppose C0 is a pid controller object that has proportional and derivative action only (PD controller). Then, pidTuner(G,C0) opens PID Tuner with an initial design that is a PD controller.

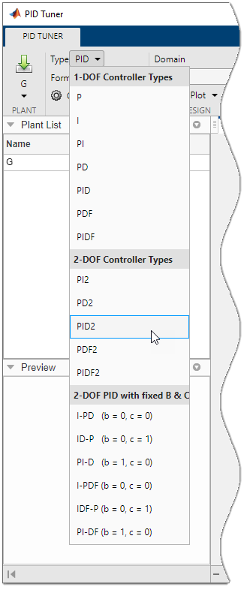

Specify controller type within the app — In PID Tuner, use the Type menu to change controller types.

The following tables summarize the available PID controller types. For more information about these controller types, see PID Controller Types for Tuning.

1-DOF Controllers

`type` input to `pidTuner`	Entry in Type menu	Controller Actions
`'P'`	`P`	Proportional only
`'I'`	`I`	Integral only
`'PI'`	`PI`	Proportional and integral
`'PD'`	`PD`	Proportional and derivative
`'PDF'`	`PDF`	Proportional and derivative with first-order filter on derivative term
`'PID'`	`PID`	Proportional, integral, and derivative
`'PIDF'`	`PIDF`	Proportional, integral, and derivative with first-order filter on derivative term

2-DOF Controllers

PID Tuner can automatically design 2-DOF PID controller types with free setpoint weights. The following table summarizes the 2-DOF controller types in PID Tuner. For more information about 2-DOF PID controllers generally, see Two-Degree-of-Freedom PID Controllers.

`type` input to `pidTuner`	Entry in Type menu	Controller Actions
`'PI2'`	`PI2`	2-DOF proportional and integral
`'PD2'`	`PD2`	2-DOF proportional and derivative
`'PDF2'`	`PDF2`	2-DOF proportional and derivative with first-order filter on derivative term
`'PID2'`	`PID2`	2-DOF proportional, integral, and derivative
`'PIDF2'`	`PIDF2`	2-DOF proportional, integral, and derivative with first-order filter on derivative term

2-DOF Controllers with Fixed Setpoint Weights

Use PID Tuner to design the fixed-setpoint-weight controller types summarized in the following table. For more information about these controller types, see PID Controller Types for Tuning.

`type` input to `pidTuner`	Entry in Type menu	Controller Actions
`'I-PD'`	`I-PD`	2-DOF PID with b = 0, c = 0
`'I-PDF'`	`I-PDF`	2-DOF PIDF with b = 0, c = 0
`'ID-P'`	`ID-P`	2-DOF PID with b = 0, c = 1
`'IDF-P'`	`IDF-P`	2-DOF PIDF with b = 0, c = 1
`'PI-D'`	`PI-D`	2-DOF PID with b = 1, c = 0
`'PI-DF'`	`PI-DF`	2-DOF PIDF with b = 1, c = 0

Discrete-Time Controller Types

If sys is a discrete-time model with sample time Ts, PID Tuner designs a discrete-time pid controller using the ForwardEuler discrete integrator formula. To design a controller that has different discrete integrator formulas, use one of the following methods:

Provide a discrete-time baseline controller Cbase to the launch command pidTuner. PID Tuner designs a controller that has the same discrete integrator formulas as Cbase.
After launching PID Tuner, click Options to open the Controller Options dialog box. Select discrete integrator formulas from the Integral Formula and Derivative Formula menus.

For more information about discrete integrator formulas, see the pid, pid2, pidstd, and pidstd2 reference pages.

PID Controller Form

When you use the type input to pidTuner, PID Tuner designs a controller in parallel form. To design a controller in standard form, use one of the following methods:

Provide a standard-form baseline controller Cbase to the launch command pidTuner. PID Tuner designs a controller of the same form as Cbase.
Use the Form menu to change controller form after launching PID Tuner.

For more information about parallel and standard controller forms, see the pid, pid2, pidstd, and pidstd2 reference pages.
