patchMicrostripElliptical

R2026b

Create standard or AI-based elliptical microstrip patch antenna

Description

Use the default patchMicrostripElliptical object to create a probe-fed elliptical microstrip patch antenna resonating around 5.37 GHz. The default patch is centered at the origin. Elliptical microstrip patch antennas are used in high-performance applications such as spacecraft, aircraft, missiles, and satellites. Elliptical microstrip patch antennas with optimum dimensions act as circularly polarized wave radiators.

You can perform full-wave EM-solver-based analysis on the standard patchMicrostripElliptical antenna, or you can create an AIAntenna object and use AI‑based analysis to explore the design space and tune the antenna for your application.

Creation

Syntax

ant = patchMicrostripElliptical

ant = patchMicrostripElliptical(PropertyName=Value)

Description

ant = patchMicrostripElliptical creates a standard (full-wave EM) probe-fed elliptical microstrip patch antenna with default property values. The default dimensions are chosen for an operating frequency of around 5.37 GHz.

ant = patchMicrostripElliptical(PropertyName=Value) sets properties using one or more name–value arguments. PropertyName is the property name and Value is the corresponding value. You can specify several name-value arguments in any order as PropertyName1=Value1,...,PropertyNameN=ValueN. Properties that you do not specify, retain their default values.

For example, ant = patchMicrostripElliptical(MajorAxis=0.0878) creates an elliptical microstrip patch antenna with a major axis of 0.0878 meters.

• You can create a standard patchMicrostripElliptical antenna resonating at a desired frequency using the design function. For example, to create a standard patchMicrostripElliptical antenna resonating at 5 GHz, use this code.

  >> design(patchMicrostripElliptical,5e9)


• You can also create an AI-based version of the patchMicrostripElliptical antenna resonating at a desired frequency using the same design function. Set the ForAI argument in the design function to true to create an AIAntenna object. To use this feature, you need a license for the Statistics and Machine Learning Toolbox™ in addition to the Antenna Toolbox™. For example, to create an AI-based patchMicrostripElliptical antenna resonating at 5 GHz, use this code.

  >> design(patchMicrostripElliptical,5e9,ForAI=true)


  The AI‑based patchMicrostripElliptical antenna retains the MajorAxis, MinorAxis, and Height properties of the standard antenna as tunable properties and introduces SubstrateEpsilonR as an additional tunable property. All other properties derived from the standard antenna become read‑only. To find the upper and lower bounds of the tunable properties, use the tunableRanges function.

  To create a standard patchMicrostripElliptical antenna from the AI‑based antenna, use the exportAntenna function.

Properties

MajorAxis — Major axis length

0.0300 (default) | positive scalar

Major axis length of the ellipse, specified as a scalar in meters. Conventionally, the major axis length is specified along the x-axis. You can set this property for both standard and AI-based patchMicrostripElliptical antenna.

• For the standard patchMicrostripElliptical antenna, this property does not have any upper or lower bounds.

• For AI-based patchMicrostripElliptical antenna, this property has upper and lower limits determined by the AI model. Use the tunableRanges function to query the valid range for this parameter.

Example: 0.0989

Data Types: double

MinorAxis — Minor axis length

0.0200 (default) | positive scalar

Minor axis length of the ellipse along the y-axis, specified as a scalar in meters. Conventionally, the minor axis length is specified along the y-axis. You can set this property for both standard and AI-based patchMicrostripElliptical antenna.

• For the standard patchMicrostripElliptical antenna, this property does not have any upper or lower bounds.

• For AI-based patchMicrostripElliptical antenna, this property has upper and lower limits determined by the AI model. Use the tunableRanges function to query the valid range for this parameter.

Example: 0.0898

Data Types: double

Height — Patch height

0.0016 (default) | positive scalar

Patch height above the ground plane along the z-axis, specified as a scalar in meters. You can set this property for both standard and AI-based patchMicrostripElliptical antenna.

• For the standard patchMicrostripElliptical antenna, this property does not have any upper or lower bounds.

• For AI-based patchMicrostripElliptical antenna, this property has upper and lower limits determined by the AI model. Use the tunableRanges function to query the valid range for this parameter.

Example: 0.001

Data Types: double

Substrate — Type of dielectric material

dielectric("Air") (default) | dielectric object

Type of dielectric material used as a substrate, specified as a dielectric object. You can choose any dielectric material from the DielectricCatalog or specify a dielectric material of your choice. The substrate dimensions must be equal to the ground plane dimensions. You can set this property only for a standard patchMicrostripElliptical antenna. This property is read-only for the AI-based patchMicrostripElliptical antenna. For more information on dielectric substrate meshing, see Meshing.

Example: dielectric("FR4")

SubstrateEpsilonR — Relative permittivity of dielectric material

positive scalar | tunable for AIAntenna

Since R2026a

Relative permittivity of the dielectric material, specified as a positive scalar. You can specify this property only for the AIAntenna object created using the patchMicrostripElliptical object. To enable this property, specify a substrate in the patchMicrostripElliptical object using a supported dielectric material from the DielectricCatalog before passing the object to the design function. The supported dielectric materials are "Air", "FR4", "RO4725JXR", "Teflon", "TMM3", "TMM4", and "TMM6".

Example: 4.8000

Data Types: double

GroundPlaneLength — Ground plane length

0.0450 (default) | positive scalar

Ground plane length along the x-axis, specified as a scalar in meters. Setting 'GroundPlaneLength' to Inf, uses the infinite ground plane technique for antenna analysis. You can set this property only for the standard patchMicrostripElliptical antenna. This property is read-only for the AI-based patchMicrostripElliptical antenna.

Example: 120e-3

Data Types: double

GroundPlaneWidth — Ground plane width

0.0450 (default) | positive scalar

Ground plane width along the y-axis, specified as a scalar in meters. Setting 'GroundPlaneWidth' to Inf, uses the infinite ground plane technique for antenna analysis. You can set this property only for the standard patchMicrostripElliptical antenna. This property is read-only for the AI-based patchMicrostripElliptical antenna.

Example: 120e-3

Data Types: double

PatchCenterOffset — Signed distance of patch from origin

[0 0] (default) | two-element real vector

Signed distance of the patch from the origin, specified as a two-element real vector with each element unit in meters. Use this property to adjust the location of the patch relative to the ground plane. Distances are measured along the length and width of the ground plane. You can set this property only for the standard patchMicrostripElliptical antenna. This property is read-only for the AI-based patchMicrostripElliptical antenna.

Example: [0.01 0.01]

Data Types: double

FeedOffset — Signed distance of feed from origin

[0.0047 0.0045] (default) | two-element real vector

Signed distance of the feed from the origin, specified as a two-element real vector with each element unit in meters. Use this property to adjust the location of the feed relative to the ground plane and patch. You can set this property only for the standard patchMicrostripElliptical antenna. This property is read-only for the AI-based patchMicrostripElliptical antenna.

Example: [0.01 0.01]

Data Types: double

Conductor — Type of metal

metal("PEC") (default) | metal object

Type of the metal used as a conductor, specified as a metal object. You can choose any metal from the MetalCatalog or specify a metal of your choice. You can set this property only for a standard patchMicrostripElliptical antenna. This property is read-only for the AI-based patchMicrostripElliptical antenna. For more information on metal conductor meshing, see Meshing.

Example: metal("Copper")

Load — Lumped elements

[1x1lumpedElement] (default) | lumpedElement object

Lumped elements added to the antenna feed, specified as a lumpedElement object. You can add a load anywhere on the surface of the antenna. By default, the load is at the feed. You can set this property only for a standard patchMicrostripElliptical antenna. This property is read-only for the AI-based patchMicrostripElliptical antenna.

Example: lumpedElement(Impedance=75)

Tilt — Tilt angle of antenna

0 (default) | scalar | vector

Tilt angle of the antenna in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

Data Types: double

TiltAxis — Tilt axis of antenna

[1 0 0] (default) | three-element vector | 2-by-3 matrix | "X" | "Y" | "Z"

Tilt axis of the antenna, specified as one of these values:

• Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

• Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points.

• "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Object Functions

axialRatio	Calculate and plot axial ratio of antenna or array
bandwidth	Calculate and plot absolute bandwidth of antenna or array
beamwidth	Beamwidth of antenna
charge	Charge distribution on antenna or array surface
current	Current distribution on antenna or array surface
design	Create antenna, array, or AI-based antenna resonating at specified frequency
efficiency	Calculate and plot radiation efficiency of antenna or array
EHfields	Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
feedCurrent	Calculate current at feed for antenna or array
impedance	Calculate and plot input impedance of antenna or scan impedance of array
info	Display information about antenna, array, or platform
memoryEstimate	Estimate memory required to solve antenna or array mesh
mesh	Generate and view mesh for antennas, arrays, and custom shapes
meshconfig	Change meshing mode of antenna, array, custom antenna, custom array, or custom geometry
msiwrite	Write antenna or array analysis data to MSI planet file
optimize	Optimize antenna and array catalog elements using SADEA or TR-SADEA algorithm
pattern	Plot radiation pattern of antenna, array, or embedded element of array
patternAzimuth	Azimuth plane radiation pattern of antenna or array
patternElevation	Elevation plane radiation pattern of antenna or array
peakRadiation	Calculate and mark maximum radiation points of antenna or array on radiation pattern
rcs	Calculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array
resonantFrequency	Calculate and plot resonant frequency of antenna
returnLoss	Calculate and plot return loss of antenna or scan return loss of array
show	Display antenna, array, AI-based antenna, platform, or shape
sparameters	S-parameters for antenna or array
stlwrite	Write mesh information to STL file
vswr	Calculate and plot voltage standing wave ratio (VSWR) of antenna or array element

Examples

Default Elliptical Microstrip Patch Antenna

Create and view a default elliptical microstrip patch antenna.

ant = patchMicrostripElliptical

ant =
  patchMicrostripElliptical with properties:

            MajorAxis: 0.0300
            MinorAxis: 0.0200
               Height: 0.0016
            Substrate: [1×1 dielectric]
    GroundPlaneLength: 0.0450
     GroundPlaneWidth: 0.0450
    PatchCenterOffset: [0 0]
           FeedOffset: [0.0047 0.0045]
            Conductor: [1×1 metal]
                 Tilt: 0
             TiltAxis: [1 0 0]
                 Load: [1×1 lumpedElement]

show (ant)

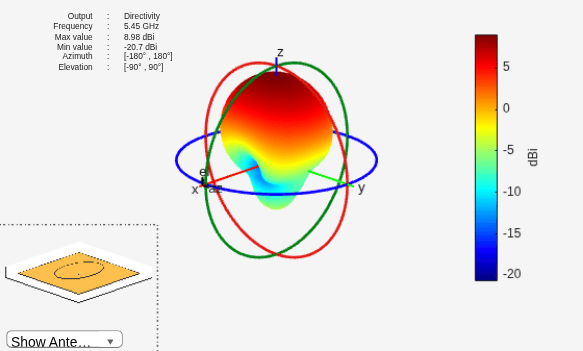

Visualize the radiation pattern of the antenna at 5.45 GHz.

pattern(ant,5.45e9)

Create and Analyze AI-Based Elliptical Microstrip Patch Antenna

Create an AI model based elliptical microstrip patch antenna operating at 5.45 GHz.

pAI = design(patchMicrostripElliptical(Substrate=dielectric("FR4")),5.45e9,ForAI=true)

pAI =
  AIAntenna with properties:

   Antenna Info
               AntennaType: 'patchMicrostripElliptical'
    InitialDesignFrequency: 5.4500e+09

   Tunable Parameters
                 MajorAxis: 0.0148
                 MinorAxis: 0.0129
                    Height: 0.0011
         SubstrateEpsilonR: 4.8000

Show read-only properties

Set the major and minor axis length of the elliptical patch, and relative permittivity of the substrate.

pAI.MajorAxis = 0.013;
pAI.MinorAxis = 0.012;
pAI.SubstrateEpsilonR = 5.5;

Calculate antenna's resonant frequency.

resonantFrequency(pAI)

ans =
5.5395e+09

Convert the AIAntenna to a standard elliptical microstrip patch.

pmC = exportAntenna(pAI)

pmC =
  patchMicrostripElliptical with properties:

            MajorAxis: 0.0130
            MinorAxis: 0.0120
               Height: 0.0011
            Substrate: [1×1 dielectric]
    GroundPlaneLength: 0.0264
     GroundPlaneWidth: 0.0264
    PatchCenterOffset: [0 0]
           FeedOffset: [0.0051 0.0021]
            Conductor: [1×1 metal]
                 Tilt: 0
             TiltAxis: [1 0 0]
                 Load: [1×1 lumpedElement]

Version History

Introduced in R2020a

R2026a: Substrate support for AI-based elliptical patch antenna

Use the new SubstrateEpsilonR property to set the relative permittivity values for the AI-based antenna designs with dielectric substrates.

R2023b: AI model based antenna analysis

Design, tune, and analyze this antenna using an AI model. Using AI-based antenna models over conventional full-wave solvers significantly reduces the simulation time required to fine-tune the antenna to meet your design goals. Set the ForAI argument in the design function to true to create a patchMicrostripElliptical type AIAntenna. To use this feature, you need license to the Statistics and Machine Learning Toolbox in addition to the Antenna Toolbox.
