Tracked Vehicle Model with Simscape™

Model a tracked vehicle driving on uneven surfaces. Model track segments or abstract model with multiple rollers per track.

https://github.com/simscape/Tracked-Vehicles-Simscape

버전 25.2.1.5 (83.2 MB)
다운로드 수: 867
(0)
2025/11/1

이 제출물을 팔로우합니다

Tracked Vehicle Model with Simscape™
This repository contains models and code to help engineers model and simulate tracked vehicles with chain or belt tracks. A set of examples shows how to assemble segments into a track that will mesh with the sprocket, rollers, and idlers in the vehicle undercarriage. Models of vehicles traveling on multiple wheels are also provided.
  • Fully parameterized models of tracked and multi-axle vehicles
  • Detailed and abstract variants for testing different systems
  • Modular library elements enable assembly of parameterized tracks.
  • Customizable contact force definition enable tracked vehicle models tailored to simulation task.
  • MATLAB enables automation of modeling, simulation, and post-processing tasks.
  • Measure mechanical loads on rollers and other components.
See Heavy Equipment Design with Simscape to learn more.
Use the "Download" button above to get files compatible with the latest release of MATLAB.
Use the links below to get files compatible with earlier releases of MATLAB.
Open the project file Tracked_Vehicle_Simscape.prj to get started.
You can also try this example in MATLAB Online.

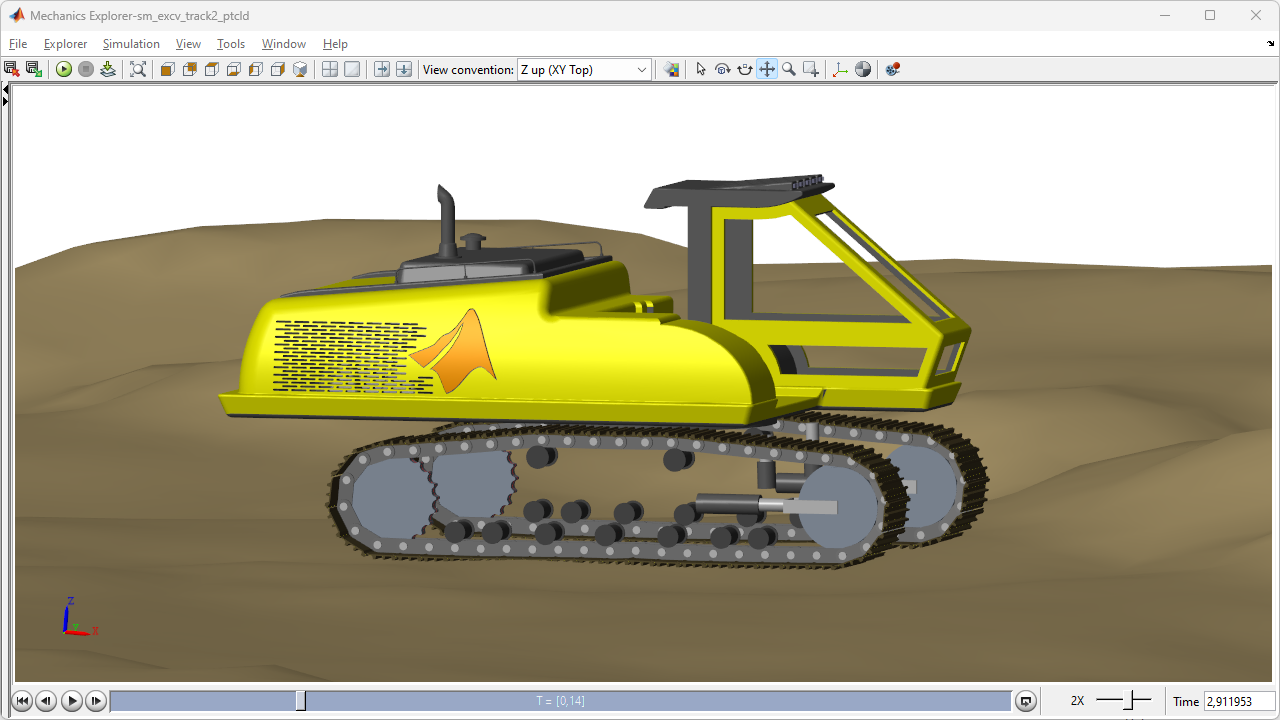

Tracked Vehicle Animation Clip
Tracked Vehicle at Varying Fidelity Levels
Use the model that best suits your needs. This repository contains abstract, fast running models and detailed models that model each segment individually.
Model of Segmented Track on Uneven Terrain
Track and Undercarriage
Track Assembly
Model of Tracked Vehicle Modeled using Rollers on Uneven Terrain
Track and Undercarriage
Model of Segmented Belts on Uneven Terrain
Track and Undercarriage
To learn more about modeling and simulation with Simscape, please visit:
Product Capabilities:
