setup
Syntax
Description
Examples
Simulate Simple UAV Scenario
Create a UAV scenario.
scene = uavScenario("UpdateRate",100,"StopTime",1);
Add the ground and a building as meshes.
addMesh(scene,"Polygon", {[-50 0; 50 0; 50 50; -50 50], [-3 0]}, [0.3 0.3 0.3]); addMesh(scene,"Cylinder", {[10 5 5], [0 10]}, [1 1 0]);
Create a UAV platform with a specified waypoint trajectory in the scenario. Define the mesh for the UAV platform.
traj = waypointTrajectory("Waypoints", [0 -20 -5; 20 0 -5], "TimeOfArrival", [0 1]); uavPlat = uavPlatform("UAV",scene,"Trajectory", traj); updateMesh(uavPlat,"quadrotor",{10},[1 0 0],eul2tform([0 0 0]));

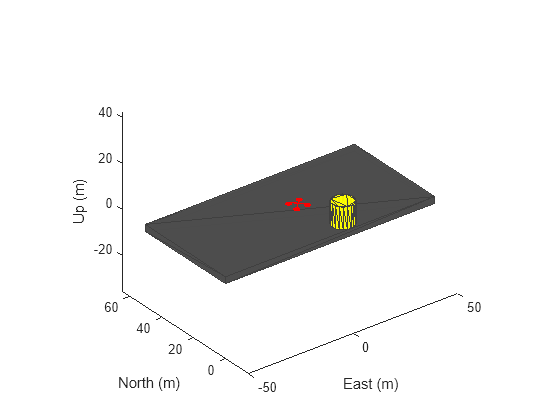

Simulate and visualize the scenario.
setup(scene); while advance(scene) show3D(scene); drawnow update end
restart(scene);
Input Arguments
scene
— UAV scenario
uavScenario
object
UAV scenario, specified as a uavScenario
object.
Version History
Introduced in R2020b
