# fitrensemble

Fit ensemble of learners for regression

## Syntax

## Description

returns a trained regression ensemble model object `Mdl`

= fitrensemble(`Tbl`

,`ResponseVarName`

)`Mdl`

. By
default, `Mdl`

contains the results of boosting 100
regression trees using LSBoost and the predictor and response data in the table
`Tbl`

. `ResponseVarName`

is the name of
the response variable in `Tbl`

.

applies `Mdl`

= fitrensemble(`Tbl`

,`formula`

)`formula`

to fit the model to the predictor and
response data in the table `Tbl`

. `formula`

is
an explanatory model of the response and a subset of predictor variables in
`Tbl`

used to fit `Mdl`

. For example,
`'Y~X1+X2+X3'`

fits the response variable
`Tbl.Y`

as a function of the predictor variables
`Tbl.X1`

, `Tbl.X2`

, and
`Tbl.X3`

.

uses additional options specified by one or more `Mdl`

= fitrensemble(___,`Name,Value`

)`Name,Value`

pair arguments and any of the input arguments in the previous syntaxes. For
example, you can specify the number of learning cycles, the ensemble aggregation
method, or to implement 10-fold cross-validation.

`[`

also returns `Mdl`

,`AggregateOptimizationResults`

] = fitrensemble(___)`AggregateOptimizationResults`

, which contains
hyperparameter optimization results when you specify the
`OptimizeHyperparameters`

and
`HyperparameterOptimizationOptions`

name-value arguments.
You must also specify the `ConstraintType`

and
`ConstraintBounds`

options of
`HyperparameterOptimizationOptions`

. You can use this
syntax to optimize on compact model size instead of cross-validation loss, and
to perform a set of multiple optimization problems that have the same options
but different constraint bounds.

## Examples

### Train Regression Ensemble

Create a regression ensemble that predicts the fuel economy of a car given the number of cylinders, volume displaced by the cylinders, horsepower, and weight. Then, train another ensemble using fewer predictors. Compare the in-sample predictive accuracies of the ensembles.

Load the `carsmall`

data set. Store the variables to be used in training in a table.

```
load carsmall
Tbl = table(Cylinders,Displacement,Horsepower,Weight,MPG);
```

Train a regression ensemble.

`Mdl1 = fitrensemble(Tbl,'MPG');`

`Mdl1`

is a `RegressionEnsemble`

model. Some notable characteristics of `Mdl1`

are:

The ensemble aggregation algorithm is

`'LSBoost'`

.Because the ensemble aggregation method is a boosting algorithm, regression trees that allow a maximum of 10 splits compose the ensemble.

One hundred trees compose the ensemble.

Because `MPG`

is a variable in the MATLAB® Workspace, you can obtain the same result by entering

`Mdl1 = fitrensemble(Tbl,MPG);`

Use the trained regression ensemble to predict the fuel economy for a four-cylinder car with a 200-cubic inch displacement, 150 horsepower, and weighing 3000 lbs.

pMPG = predict(Mdl1,[4 200 150 3000])

pMPG = 25.6467

Train a new ensemble using all predictors in `Tbl`

except `Displacement`

.

```
formula = 'MPG ~ Cylinders + Horsepower + Weight';
Mdl2 = fitrensemble(Tbl,formula);
```

Compare the resubstitution MSEs between `Mdl1`

and `Mdl2`

.

mse1 = resubLoss(Mdl1)

mse1 = 0.3096

mse2 = resubLoss(Mdl2)

mse2 = 0.5861

The in-sample MSE for the ensemble that trains on all predictors is lower.

### Speed Up Training by Binning Numeric Predictor Values

Train an ensemble of boosted regression trees by using `fitrensemble`

. Reduce training time by specifying the `'NumBins'`

name-value pair argument to bin numeric predictors. After training, you can reproduce binned predictor data by using the `BinEdges`

property of the trained model and the `discretize`

function.

Generate a sample data set.

rng('default') % For reproducibility N = 1e6; X1 = randi([-1,5],[N,1]); X2 = randi([5,10],[N,1]); X3 = randi([0,5],[N,1]); X4 = randi([1,10],[N,1]); X = [X1 X2 X3 X4]; y = X1 + X2 + X3 + X4 + normrnd(0,1,[N,1]);

Train an ensemble of boosted regression trees using least-squares boosting (`LSBoost`

, the default value). Time the function for comparison purposes.

tic Mdl1 = fitrensemble(X,y); toc

Elapsed time is 78.662954 seconds.

Speed up training by using the `'NumBins'`

name-value pair argument. If you specify the `'NumBins'`

value as a positive integer scalar, then the software bins every numeric predictor into a specified number of equiprobable bins, and then grows trees on the bin indices instead of the original data. The software does not bin categorical predictors.

```
tic
Mdl2 = fitrensemble(X,y,'NumBins',50);
toc
```

Elapsed time is 43.353208 seconds.

The process is about two times faster when you use binned data instead of the original data. Note that the elapsed time can vary depending on your operating system.

Compare the regression errors by resubstitution.

rsLoss = resubLoss(Mdl1)

rsLoss = 1.0134

rsLoss2 = resubLoss(Mdl2)

rsLoss2 = 1.0133

In this example, binning predictor values reduces training time without a significant loss of accuracy. In general, when you have a large data set like the one in this example, using the binning option speeds up training but causes a potential decrease in accuracy. If you want to reduce training time further, specify a smaller number of bins.

Reproduce binned predictor data by using the `BinEdges`

property of the trained model and the `discretize`

function.

X = Mdl2.X; % Predictor data Xbinned = zeros(size(X)); edges = Mdl2.BinEdges; % Find indices of binned predictors. idxNumeric = find(~cellfun(@isempty,edges)); if iscolumn(idxNumeric) idxNumeric = idxNumeric'; end for j = idxNumeric x = X(:,j); % Convert x to array if x is a table. if istable(x) x = table2array(x); end % Group x into bins by using the discretize function. xbinned = discretize(x,[-inf; edges{j}; inf]); Xbinned(:,j) = xbinned; end

`Xbinned`

contains the bin indices, ranging from 1 to the number of bins, for numeric predictors. `Xbinned`

values are `0`

for categorical predictors. If `X`

contains `NaN`

s, then the corresponding `Xbinned`

values are `NaN`

s.

### Estimate Generalization Error of Boosting Ensemble

Estimate the generalization error of an ensemble of boosted regression trees.

Load the `carsmall`

data set. Choose the number of cylinders, volume displaced by the cylinders, horsepower, and weight as predictors of fuel economy.

```
load carsmall
X = [Cylinders Displacement Horsepower Weight];
```

Cross-validate an ensemble of regression trees using 10-fold cross-validation. Using a decision tree template, specify that each tree should be a split once only.

rng(1); % For reproducibility t = templateTree('MaxNumSplits',1); Mdl = fitrensemble(X,MPG,'Learners',t,'CrossVal','on');

`Mdl`

is a `RegressionPartitionedEnsemble`

model.

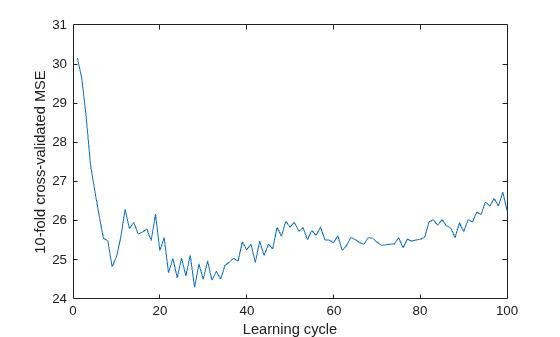

Plot the cumulative, 10-fold cross-validated, mean-squared error (MSE). Display the estimated generalization error of the ensemble.

kflc = kfoldLoss(Mdl,'Mode','cumulative'); figure; plot(kflc); ylabel('10-fold cross-validated MSE'); xlabel('Learning cycle');

estGenError = kflc(end)

estGenError = 26.2356

`kfoldLoss`

returns the generalization error by default. However, plotting the cumulative loss allows you to monitor how the loss changes as weak learners accumulate in the ensemble.

The ensemble achieves an MSE of around 23.5 after accumulating about 30 weak learners.

If you are satisfied with the generalization error of the ensemble, then, to create a predictive model, train the ensemble again using all of the settings except cross-validation. However, it is good practice to tune hyperparameters such as the maximum number of decision splits per tree and the number of learning cycles..

### Optimize Regression Ensemble

This example shows how to optimize hyperparameters automatically using `fitrensemble`

. The example uses the `carsmall`

data.

Load the data.

`load carsmall`

You can find hyperparameters that minimize five-fold cross-validation loss by using automatic hyperparameter optimization.

Mdl = fitrensemble([Horsepower,Weight],MPG,'OptimizeHyperparameters','auto')

In this example, for reproducibility, set the random seed and use the `'expected-improvement-plus'`

acquisition function. Also, for reproducibility of random forest algorithm, specify the `'Reproducible'`

name-value pair argument as `true`

for tree learners.

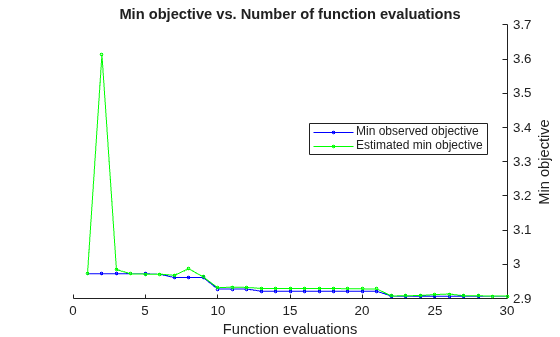

rng('default') t = templateTree('Reproducible',true); Mdl = fitrensemble([Horsepower,Weight],MPG,'OptimizeHyperparameters','auto','Learners',t, ... 'HyperparameterOptimizationOptions',struct('AcquisitionFunctionName','expected-improvement-plus'))

|===================================================================================================================================| | Iter | Eval | Objective: | Objective | BestSoFar | BestSoFar | Method | NumLearningC-| LearnRate | MinLeafSize | | | result | log(1+loss) | runtime | (observed) | (estim.) | | ycles | | | |===================================================================================================================================| | 1 | Best | 2.9726 | 13.033 | 2.9726 | 2.9726 | Bag | 413 | - | 1 | | 2 | Accept | 6.2619 | 1.1919 | 2.9726 | 3.6133 | LSBoost | 57 | 0.0016067 | 6 | | 3 | Accept | 2.9975 | 0.70247 | 2.9726 | 2.9852 | Bag | 32 | - | 2 | | 4 | Accept | 4.1897 | 0.80761 | 2.9726 | 2.972 | Bag | 55 | - | 40 | | 5 | Accept | 6.3321 | 1.4245 | 2.9726 | 2.9715 | LSBoost | 55 | 0.001005 | 2 | | 6 | Best | 2.9714 | 0.59645 | 2.9714 | 2.9715 | Bag | 39 | - | 1 | | 7 | Best | 2.9615 | 0.78661 | 2.9615 | 2.9681 | Bag | 55 | - | 1 | | 8 | Accept | 3.017 | 0.36388 | 2.9615 | 2.98 | Bag | 17 | - | 1 | | 9 | Accept | 4.1881 | 3.3792 | 2.9615 | 2.9801 | LSBoost | 164 | 0.93989 | 50 | | 10 | Accept | 3.6972 | 0.55178 | 2.9615 | 2.98 | LSBoost | 12 | 0.99469 | 1 | | 11 | Accept | 3.3742 | 0.37693 | 2.9615 | 2.9801 | LSBoost | 15 | 0.13227 | 1 | | 12 | Accept | 4.1881 | 4.3422 | 2.9615 | 2.9799 | LSBoost | 205 | 0.083595 | 48 | | 13 | Accept | 5.0943 | 0.93189 | 2.9615 | 2.9799 | LSBoost | 48 | 0.014581 | 1 | | 14 | Accept | 5.5926 | 0.88245 | 2.9615 | 2.9796 | LSBoost | 47 | 0.010771 | 50 | | 15 | Accept | 6.39 | 0.71526 | 2.9615 | 2.9793 | LSBoost | 27 | 0.0010688 | 50 | | 16 | Accept | 3.3304 | 1.8535 | 2.9615 | 2.9793 | LSBoost | 78 | 0.32479 | 7 | | 17 | Accept | 4.6487 | 0.39237 | 2.9615 | 2.9795 | LSBoost | 17 | 0.055039 | 5 | | 18 | Accept | 3.264 | 0.28574 | 2.9615 | 2.9796 | LSBoost | 11 | 0.29878 | 1 | | 19 | Accept | 4.1904 | 0.30657 | 2.9615 | 2.9621 | LSBoost | 13 | 0.26663 | 50 | | 20 | Accept | 3.5279 | 9.1509 | 2.9615 | 2.9626 | LSBoost | 499 | 0.25522 | 1 | |===================================================================================================================================| | Iter | Eval | Objective: | Objective | BestSoFar | BestSoFar | Method | NumLearningC-| LearnRate | MinLeafSize | | | result | log(1+loss) | runtime | (observed) | (estim.) | | ycles | | | |===================================================================================================================================| | 21 | Best | 2.9162 | 5.3969 | 2.9162 | 2.9178 | Bag | 423 | - | 2 | | 22 | Best | 2.9009 | 6.347 | 2.9009 | 2.9043 | Bag | 499 | - | 3 | | 23 | Accept | 2.9064 | 6.2722 | 2.9009 | 2.9053 | Bag | 499 | - | 3 | | 24 | Accept | 2.909 | 6.2395 | 2.9009 | 2.9065 | Bag | 494 | - | 3 | | 25 | Accept | 2.9011 | 6.4902 | 2.9009 | 2.9051 | Bag | 499 | - | 3 | | 26 | Accept | 3.1863 | 0.25459 | 2.9009 | 2.9048 | LSBoost | 10 | 0.99529 | 10 | | 27 | Accept | 3.5444 | 8.8448 | 2.9009 | 2.9049 | LSBoost | 476 | 0.97599 | 5 | | 28 | Accept | 3.2334 | 0.31541 | 2.9009 | 2.9048 | LSBoost | 12 | 0.55679 | 4 | | 29 | Best | 2.8547 | 6.3467 | 2.8547 | 2.8575 | Bag | 487 | - | 5 | | 30 | Best | 2.84 | 6.2865 | 2.84 | 2.8436 | Bag | 499 | - | 6 | __________________________________________________________ Optimization completed. MaxObjectiveEvaluations of 30 reached. Total function evaluations: 30 Total elapsed time: 107.5758 seconds Total objective function evaluation time: 94.8686 Best observed feasible point: Method NumLearningCycles LearnRate MinLeafSize ______ _________________ _________ ___________ Bag 499 NaN 6 Observed objective function value = 2.84 Estimated objective function value = 2.8436 Function evaluation time = 6.2865 Best estimated feasible point (according to models): Method NumLearningCycles LearnRate MinLeafSize ______ _________________ _________ ___________ Bag 499 NaN 6 Estimated objective function value = 2.8436 Estimated function evaluation time = 6.8481

Mdl = RegressionBaggedEnsemble ResponseName: 'Y' CategoricalPredictors: [] ResponseTransform: 'none' NumObservations: 94 HyperparameterOptimizationResults: [1x1 BayesianOptimization] NumTrained: 499 Method: 'Bag' LearnerNames: {'Tree'} ReasonForTermination: 'Terminated normally after completing the requested number of training cycles.' FitInfo: [] FitInfoDescription: 'None' Regularization: [] FResample: 1 Replace: 1 UseObsForLearner: [94x499 logical]

The optimization searched over the methods for regression (`Bag`

and `LSBoost`

), over `NumLearningCycles`

, over the `LearnRate`

for `LSBoost`

, and over the tree learner `MinLeafSize`

. The output is the ensemble regression with the minimum estimated cross-validation loss.

### Optimize Regression Ensemble Using Cross-Validation

One way to create an ensemble of boosted regression trees that has satisfactory predictive performance is to tune the decision tree complexity level using cross-validation. While searching for an optimal complexity level, tune the learning rate to minimize the number of learning cycles as well.

This example manually finds optimal parameters by using the cross-validation option (the `'KFold'`

name-value pair argument) and the `kfoldLoss`

function. Alternatively, you can use the `'OptimizeHyperparameters'`

name-value pair argument to optimize hyperparameters automatically. See Optimize Regression Ensemble.

Load the `carsmall`

data set. Choose the number of cylinders, volume displaced by the cylinders, horsepower, and weight as predictors of fuel economy.

```
load carsmall
Tbl = table(Cylinders,Displacement,Horsepower,Weight,MPG);
```

The default values of the tree depth controllers for boosting regression trees are:

`10`

for`MaxNumSplits`

.`5`

for`MinLeafSize`

`10`

for`MinParentSize`

To search for the optimal tree-complexity level:

Cross-validate a set of ensembles. Exponentially increase the tree-complexity level for subsequent ensembles from decision stump (one split) to at most

*n*- 1 splits.*n*is the sample size. Also, vary the learning rate for each ensemble between 0.1 to 1.Estimate the cross-validated mean-squared error (MSE) for each ensemble.

For tree-complexity level $$j$$, $$j=1...J$$, compare the cumulative, cross-validated MSE of the ensembles by plotting them against number of learning cycles. Plot separate curves for each learning rate on the same figure.

Choose the curve that achieves the minimal MSE, and note the corresponding learning cycle and learning rate.

Cross-validate a deep regression tree and a stump. Because the data contain missing values, use surrogate splits. These regression trees serve as benchmarks.

rng(1) % For reproducibility MdlDeep = fitrtree(Tbl,'MPG','CrossVal','on','MergeLeaves','off', ... 'MinParentSize',1,'Surrogate','on'); MdlStump = fitrtree(Tbl,'MPG','MaxNumSplits',1,'CrossVal','on', ... 'Surrogate','on');

Cross-validate an ensemble of 150 boosted regression trees using 5-fold cross-validation. Using a tree template:

Vary the maximum number of splits using the values in the sequence $$\{{2}^{0},{2}^{1},...,{2}^{m}\}$$.

*m*is such that $${2}^{m}$$ is no greater than*n*- 1.Turn on surrogate splits.

For each variant, adjust the learning rate using each value in the set {0.1, 0.25, 0.5, 1}.

n = size(Tbl,1); m = floor(log2(n - 1)); learnRate = [0.1 0.25 0.5 1]; numLR = numel(learnRate); maxNumSplits = 2.^(0:m); numMNS = numel(maxNumSplits); numTrees = 150; Mdl = cell(numMNS,numLR); for k = 1:numLR for j = 1:numMNS t = templateTree('MaxNumSplits',maxNumSplits(j),'Surrogate','on'); Mdl{j,k} = fitrensemble(Tbl,'MPG','NumLearningCycles',numTrees, ... 'Learners',t,'KFold',5,'LearnRate',learnRate(k)); end end

Estimate the cumulative, cross-validated MSE of each ensemble.

kflAll = @(x)kfoldLoss(x,'Mode','cumulative'); errorCell = cellfun(kflAll,Mdl,'Uniform',false); error = reshape(cell2mat(errorCell),[numTrees numel(maxNumSplits) numel(learnRate)]); errorDeep = kfoldLoss(MdlDeep); errorStump = kfoldLoss(MdlStump);

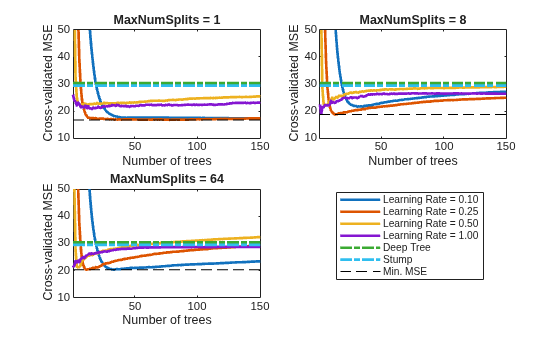

Plot how the cross-validated MSE behaves as the number of trees in the ensemble increases. Plot the curves with respect to learning rate on the same plot, and plot separate plots for varying tree-complexity levels. Choose a subset of tree complexity levels to plot.

mnsPlot = [1 round(numel(maxNumSplits)/2) numel(maxNumSplits)]; figure; for k = 1:3 subplot(2,2,k) plot(squeeze(error(:,mnsPlot(k),:)),'LineWidth',2) axis tight hold on h = gca; plot(h.XLim,[errorDeep errorDeep],'-.b','LineWidth',2) plot(h.XLim,[errorStump errorStump],'-.r','LineWidth',2) plot(h.XLim,min(min(error(:,mnsPlot(k),:))).*[1 1],'--k') h.YLim = [10 50]; xlabel('Number of trees') ylabel('Cross-validated MSE') title(sprintf('MaxNumSplits = %0.3g', maxNumSplits(mnsPlot(k)))) hold off end hL = legend([cellstr(num2str(learnRate','Learning Rate = %0.2f')); ... 'Deep Tree';'Stump';'Min. MSE']); hL.Position(1) = 0.6;

Each curve contains a minimum cross-validated MSE occurring at the optimal number of trees in the ensemble.

Identify the maximum number of splits, number of trees, and learning rate that yields the lowest MSE overall.

```
[minErr,minErrIdxLin] = min(error(:));
[idxNumTrees,idxMNS,idxLR] = ind2sub(size(error),minErrIdxLin);
fprintf('\nMin. MSE = %0.5f',minErr)
```

Min. MSE = 16.77593

`fprintf('\nOptimal Parameter Values:\nNum. Trees = %d',idxNumTrees);`

Optimal Parameter Values: Num. Trees = 78

fprintf('\nMaxNumSplits = %d\nLearning Rate = %0.2f\n',... maxNumSplits(idxMNS),learnRate(idxLR))

MaxNumSplits = 1 Learning Rate = 0.25

Create a predictive ensemble based on the optimal hyperparameters and the entire training set.

tFinal = templateTree('MaxNumSplits',maxNumSplits(idxMNS),'Surrogate','on'); MdlFinal = fitrensemble(Tbl,'MPG','NumLearningCycles',idxNumTrees, ... 'Learners',tFinal,'LearnRate',learnRate(idxLR))

MdlFinal = RegressionEnsemble PredictorNames: {'Cylinders' 'Displacement' 'Horsepower' 'Weight'} ResponseName: 'MPG' CategoricalPredictors: [] ResponseTransform: 'none' NumObservations: 94 NumTrained: 78 Method: 'LSBoost' LearnerNames: {'Tree'} ReasonForTermination: 'Terminated normally after completing the requested number of training cycles.' FitInfo: [78x1 double] FitInfoDescription: {2x1 cell} Regularization: []

`MdlFinal`

is a `RegressionEnsemble`

. To predict the fuel economy of a car given its number of cylinders, volume displaced by the cylinders, horsepower, and weight, you can pass the predictor data and `MdlFinal`

to `predict`

.

Instead of searching optimal values manually by using the cross-validation option (`'KFold'`

) and the `kfoldLoss`

function, you can use the `'OptimizeHyperparameters'`

name-value pair argument. When you specify `'OptimizeHyperparameters'`

, the software finds optimal parameters automatically using Bayesian optimization. The optimal values obtained by using `'OptimizeHyperparameters'`

can be different from those obtained using manual search.

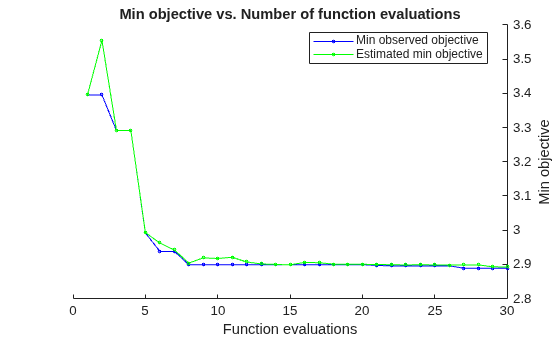

t = templateTree('Surrogate','on'); mdl = fitrensemble(Tbl,'MPG','Learners',t, ... 'OptimizeHyperparameters',{'NumLearningCycles','LearnRate','MaxNumSplits'})

|====================================================================================================================| | Iter | Eval | Objective: | Objective | BestSoFar | BestSoFar | NumLearningC-| LearnRate | MaxNumSplits | | | result | log(1+loss) | runtime | (observed) | (estim.) | ycles | | | |====================================================================================================================| | 1 | Best | 3.3955 | 0.90124 | 3.3955 | 3.3955 | 26 | 0.072054 | 3 | | 2 | Accept | 6.0976 | 4.1139 | 3.3955 | 3.5549 | 170 | 0.0010295 | 70 | | 3 | Best | 3.2914 | 6.1582 | 3.2914 | 3.2917 | 273 | 0.61026 | 6 | | 4 | Accept | 6.1839 | 1.5341 | 3.2914 | 3.2915 | 80 | 0.0016871 | 1 | | 5 | Best | 3.0777 | 0.68983 | 3.0777 | 3.078 | 29 | 0.21371 | 20 | | 6 | Best | 3.053 | 0.67831 | 3.053 | 3.0602 | 28 | 0.17554 | 16 | | 7 | Accept | 3.0584 | 0.80806 | 3.053 | 3.059 | 28 | 0.17016 | 88 | | 8 | Best | 3.042 | 0.83179 | 3.042 | 3.0536 | 25 | 0.17032 | 27 | | 9 | Accept | 3.0621 | 1.266 | 3.042 | 3.0554 | 36 | 0.1636 | 15 | | 10 | Accept | 5.6388 | 1.4955 | 3.042 | 3.0543 | 28 | 0.014623 | 15 | | 11 | Best | 2.9505 | 1.007 | 2.9505 | 3.0276 | 28 | 0.15584 | 8 | | 12 | Best | 2.9265 | 0.72854 | 2.9265 | 2.9416 | 26 | 0.15338 | 1 | | 13 | Accept | 2.9283 | 0.83648 | 2.9265 | 2.9347 | 26 | 0.15289 | 1 | | 14 | Best | 2.9231 | 0.57902 | 2.9231 | 2.9208 | 26 | 0.15209 | 1 | | 15 | Accept | 2.9237 | 0.50225 | 2.9231 | 2.921 | 23 | 0.3991 | 1 | | 16 | Accept | 4.2738 | 0.31265 | 2.9231 | 2.9228 | 10 | 0.11784 | 1 | | 17 | Accept | 3.4723 | 0.46327 | 2.9231 | 2.9228 | 13 | 0.99705 | 22 | | 18 | Accept | 3.0335 | 0.68382 | 2.9231 | 2.9229 | 33 | 0.66753 | 2 | | 19 | Accept | 2.9479 | 0.92192 | 2.9231 | 2.923 | 38 | 0.41458 | 1 | | 20 | Accept | 2.9334 | 0.93665 | 2.9231 | 2.9254 | 31 | 0.11741 | 1 | |====================================================================================================================| | Iter | Eval | Objective: | Objective | BestSoFar | BestSoFar | NumLearningC-| LearnRate | MaxNumSplits | | | result | log(1+loss) | runtime | (observed) | (estim.) | ycles | | | |====================================================================================================================| | 21 | Best | 2.9108 | 1.1799 | 2.9108 | 2.9094 | 27 | 0.44901 | 1 | | 22 | Accept | 3.1093 | 2.6527 | 2.9108 | 2.9103 | 87 | 0.94172 | 1 | | 23 | Accept | 2.9312 | 1.8159 | 2.9108 | 2.9115 | 93 | 0.43364 | 1 | | 24 | Accept | 2.9278 | 1.2727 | 2.9108 | 2.9122 | 67 | 0.54737 | 1 | | 25 | Accept | 2.9675 | 0.5484 | 2.9108 | 2.9128 | 21 | 0.51256 | 1 | | 26 | Accept | 2.9544 | 2.0405 | 2.9108 | 2.9137 | 107 | 0.55885 | 1 | | 27 | Best | 2.9075 | 3.5911 | 2.9075 | 2.9141 | 187 | 0.15431 | 1 | | 28 | Accept | 2.9226 | 3.4737 | 2.9075 | 2.9146 | 182 | 0.25656 | 1 | | 29 | Accept | 2.9082 | 7.5254 | 2.9075 | 2.9148 | 399 | 0.12749 | 1 | | 30 | Accept | 2.9105 | 5.1441 | 2.9075 | 2.9068 | 269 | 0.057805 | 1 | __________________________________________________________ Optimization completed. MaxObjectiveEvaluations of 30 reached. Total function evaluations: 30 Total elapsed time: 72.1603 seconds Total objective function evaluation time: 54.6929 Best observed feasible point: NumLearningCycles LearnRate MaxNumSplits _________________ _________ ____________ 187 0.15431 1 Observed objective function value = 2.9075 Estimated objective function value = 2.9068 Function evaluation time = 3.5911 Best estimated feasible point (according to models): NumLearningCycles LearnRate MaxNumSplits _________________ _________ ____________ 187 0.15431 1 Estimated objective function value = 2.9068 Estimated function evaluation time = 3.7399

mdl = RegressionEnsemble PredictorNames: {'Cylinders' 'Displacement' 'Horsepower' 'Weight'} ResponseName: 'MPG' CategoricalPredictors: [] ResponseTransform: 'none' NumObservations: 94 HyperparameterOptimizationResults: [1x1 BayesianOptimization] NumTrained: 187 Method: 'LSBoost' LearnerNames: {'Tree'} ReasonForTermination: 'Terminated normally after completing the requested number of training cycles.' FitInfo: [187x1 double] FitInfoDescription: {2x1 cell} Regularization: []

## Input Arguments

`Tbl`

— Sample data

table

Sample data used to train the model, specified as a table. Each
row of `Tbl`

corresponds to one observation, and
each column corresponds to one predictor variable. `Tbl`

can
contain one additional column for the response variable. Multicolumn
variables and cell arrays other than cell arrays of character vectors
are not allowed.

If

`Tbl`

contains the response variable and you want to use all remaining variables as predictors, then specify the response variable using`ResponseVarName`

.If

`Tbl`

contains the response variable, and you want to use a subset of the remaining variables only as predictors, then specify a formula using`formula`

.If

`Tbl`

does not contain the response variable, then specify the response data using`Y`

. The length of response variable and the number of rows of`Tbl`

must be equal.

**Note**

To save memory and execution time, supply `X`

and `Y`

instead
of `Tbl`

.

**Data Types: **`table`

`ResponseVarName`

— Response variable name

name of response variable in `Tbl`

Response variable name, specified as the name of the response variable in
`Tbl`

.

You must specify `ResponseVarName`

as a character
vector or string scalar. For example, if `Tbl.Y`

is the
response variable, then specify `ResponseVarName`

as
`'Y'`

. Otherwise, `fitrensemble`

treats all columns of `Tbl`

as predictor
variables.

**Data Types: **`char`

| `string`

`formula`

— Explanatory model of response variable and subset of predictor variables

character vector | string scalar

Explanatory model of the response variable and a subset of the predictor variables,
specified as a character vector or string scalar in the form
`"Y~x1+x2+x3"`

. In this form, `Y`

represents the
response variable, and `x1`

, `x2`

, and
`x3`

represent the predictor variables.

To specify a subset of variables in `Tbl`

as predictors for
training the model, use a formula. If you specify a formula, then the software does not
use any variables in `Tbl`

that do not appear in
`formula`

.

The variable names in the formula must be both variable names in `Tbl`

(`Tbl.Properties.VariableNames`

) and valid MATLAB^{®} identifiers. You can verify the variable names in `Tbl`

by
using the `isvarname`

function. If the variable names
are not valid, then you can convert them by using the `matlab.lang.makeValidName`

function.

**Data Types: **`char`

| `string`

`X`

— Predictor data

numeric matrix

Predictor data, specified as numeric matrix.

Each row corresponds to one observation, and each column corresponds to one predictor variable.

The length of `Y`

and the number of rows
of `X`

must be equal.

To specify the names of the predictors in the order of their
appearance in `X`

, use the `PredictorNames`

name-value
pair argument.

**Data Types: **`single`

| `double`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`'NumLearningCycles',500,'Method','Bag','Learners',templateTree(),'CrossVal','on'`

cross-validates an ensemble of 500 bagged regression trees using 10-fold
cross-validation.

**Note**

You cannot use any cross-validation name-value argument together with the
`OptimizeHyperparameters`

name-value argument. You can modify the
cross-validation for `OptimizeHyperparameters`

only by using the
`HyperparameterOptimizationOptions`

name-value argument.

**General Ensemble Options**

`Method`

— Ensemble aggregation method

`'LSBoost'`

(default) | `'Bag'`

Ensemble aggregation method, specified as the comma-separated pair
consisting of `'Method'`

and
`'LSBoost'`

or
`'Bag'`

.

Value | Method | Notes |
---|---|---|

`'LSBoost'` | Least-squares boosting (LSBoost) | You can specify the learning rate for shrinkage
by using the `'LearnRate'`
name-value pair argument. |

`'Bag'` | Bootstrap aggregation (bagging, for example, random forest [2]) | `fitrensemble` uses bagging
with random predictor selections at each split
(random forest) by default. To use bagging without
the random selections, use tree learners whose
`'NumVariablesToSample'` value is
`'all'` . |

For details about ensemble aggregation algorithms and examples, see Algorithms, Ensemble Algorithms, and Choose an Applicable Ensemble Aggregation Method.

**Example: **`'Method','Bag'`

`NumLearningCycles`

— Number of ensemble learning cycles

`100`

(default) | positive integer

Number of ensemble learning cycles, specified as the comma-separated
pair consisting of `'NumLearningCycles'`

and a positive
integer. At every learning cycle, the software trains one weak learner
for every template object in `Learners`

.
Consequently, the software trains
`NumLearningCycles*numel(Learners)`

learners.

The software composes the ensemble using all trained learners and
stores them in `Mdl.Trained`

.

For more details, see Tips.

**Example: **`'NumLearningCycles',500`

**Data Types: **`single`

| `double`

`Learners`

— Weak learners to use in ensemble

`'tree'`

(default) | tree template object | cell vector of tree template objects

Weak learners to use in the ensemble, specified as the comma-separated
pair consisting of `'Learners'`

and
`'tree'`

, a tree template object, or a cell vector
of tree template objects.

`'tree'`

(default) —`fitrensemble`

uses default regression tree learners, which is the same as using`templateTree()`

. The default values of`templateTree()`

depend on the value of`'Method'`

.For bagged decision trees, the maximum number of decision splits (

`'MaxNumSplits'`

) is`n–1`

, where`n`

is the number of observations. The number of predictors to select at random for each split (`'NumVariablesToSample'`

) is one third of the number of predictors. Therefore,`fitrensemble`

grows deep decision trees. You can grow shallower trees to reduce model complexity or computation time.For boosted decision trees,

`'MaxNumSplits'`

is 10 and`'NumVariablesToSample'`

is`'all'`

. Therefore,`fitrensemble`

grows shallow decision trees. You can grow deeper trees for better accuracy.

See

`templateTree`

for the default settings of a weak learner.Tree template object —

`fitrensemble`

uses the tree template object created by`templateTree`

. Use the name-value pair arguments of`templateTree`

to specify settings of the tree learners.Cell vector of

*m*tree template objects —`fitrensemble`

grows*m*regression trees per learning cycle (see`NumLearningCycles`

). For example, for an ensemble composed of two types of regression trees, supply`{t1 t2}`

, where`t1`

and`t2`

are regression tree template objects returned by`templateTree`

.

To obtain reproducible results, you must specify the `'Reproducible'`

name-value pair argument of
`templateTree`

as `true`

if
`'NumVariablesToSample'`

is not
`'all'`

.

For details on the number of learners to train, see
`NumLearningCycles`

and Tips.

**Example: **`'Learners',templateTree('MaxNumSplits',5)`

`NPrint`

— Printout frequency

`"off"`

(default) | positive integer

Printout frequency, specified as a positive integer or `"off"`

.

To track the number of *weak learners* or *folds* that
`fitrensemble`

trained so far, specify a positive integer. That
is, if you specify the positive integer *m*:

Without also specifying any cross-validation option (for example,

`CrossVal`

), then`fitrensemble`

displays a message to the command line every time it completes training*m*weak learners.And a cross-validation option, then

`fitrensemble`

displays a message to the command line every time it finishes training*m*folds.

If you specify `"off"`

, then `fitrensemble`

does not
display a message when it completes training weak learners.

**Tip**

For fastest training of some boosted decision trees, set `NPrint`

to the
default value `"off"`

. This tip holds when the classification
`Method`

is `"AdaBoostM1"`

,
`"AdaBoostM2"`

, `"GentleBoost"`

, or
`"LogitBoost"`

, or when the regression `Method`

is
`"LSBoost"`

.

**Example: **`NPrint=5`

**Data Types: **`single`

| `double`

| `char`

| `string`

`NumBins`

— Number of bins for numeric predictors

`[]`

(empty) (default) | positive integer scalar

Number of bins for numeric predictors, specified as a positive integer scalar.

If the

`NumBins`

value is empty (default), then`fitrensemble`

does not bin any predictors.If you specify the

`NumBins`

value as a positive integer scalar (`numBins`

), then`fitrensemble`

bins every numeric predictor into at most`numBins`

equiprobable bins, and then grows trees on the bin indices instead of the original data.The number of bins can be less than

`numBins`

if a predictor has fewer than`numBins`

unique values.`fitrensemble`

does not bin categorical predictors.

When you use a large training data set, this binning option speeds up training but might cause
a potential decrease in accuracy. You can try `"NumBins",50`

first, and
then change the value depending on the accuracy and training speed.

A trained model stores the bin edges in the `BinEdges`

property.

**Example: **`"NumBins",50`

**Data Types: **`single`

| `double`

`CategoricalPredictors`

— Categorical predictors list

vector of positive integers | logical vector | character matrix | string array | cell array of character vectors | `'all'`

Categorical predictors list, specified as one of the values in this table.

Value | Description |
---|---|

Vector of positive integers |
Each entry in the vector is an index value indicating that the corresponding predictor is
categorical. The index values are between 1 and If |

Logical vector |
A |

Character matrix | Each row of the matrix is the name of a predictor variable. The names must match the entries in `PredictorNames` . Pad the names with extra blanks so each row of the character matrix has the same length. |

String array or cell array of character vectors | Each element in the array is the name of a predictor variable. The names must match the entries in `PredictorNames` . |

`"all"` | All predictors are categorical. |

By default, if the predictor data is a table
(`Tbl`

), `fitrensemble`

assumes that a variable is
categorical if it is a logical vector, unordered categorical vector, character array, string
array, or cell array of character vectors. If the predictor data is a matrix
(`X`

), `fitrensemble`

assumes that all predictors are
continuous. To identify any other predictors as categorical predictors, specify them by using
the `CategoricalPredictors`

name-value argument.

**Example: **`'CategoricalPredictors','all'`

**Data Types: **`single`

| `double`

| `logical`

| `char`

| `string`

| `cell`

`PredictorNames`

— Predictor variable names

string array of unique names | cell array of unique character vectors

Predictor variable names, specified as a string array of unique names or cell array of unique
character vectors. The functionality of `PredictorNames`

depends on the
way you supply the training data.

If you supply

`X`

and`Y`

, then you can use`PredictorNames`

to assign names to the predictor variables in`X`

.The order of the names in

`PredictorNames`

must correspond to the column order of`X`

. That is,`PredictorNames{1}`

is the name of`X(:,1)`

,`PredictorNames{2}`

is the name of`X(:,2)`

, and so on. Also,`size(X,2)`

and`numel(PredictorNames)`

must be equal.By default,

`PredictorNames`

is`{'x1','x2',...}`

.

If you supply

`Tbl`

, then you can use`PredictorNames`

to choose which predictor variables to use in training. That is,`fitrensemble`

uses only the predictor variables in`PredictorNames`

and the response variable during training.`PredictorNames`

must be a subset of`Tbl.Properties.VariableNames`

and cannot include the name of the response variable.By default,

`PredictorNames`

contains the names of all predictor variables.A good practice is to specify the predictors for training using either

`PredictorNames`

or`formula`

, but not both.

**Example: **`"PredictorNames",["SepalLength","SepalWidth","PetalLength","PetalWidth"]`

**Data Types: **`string`

| `cell`

`ResponseName`

— Response variable name

`"Y"`

(default) | character vector | string scalar

Response variable name, specified as a character vector or string scalar.

If you supply

`Y`

, then you can use`ResponseName`

to specify a name for the response variable.If you supply

`ResponseVarName`

or`formula`

, then you cannot use`ResponseName`

.

**Example: **`ResponseName="response"`

**Data Types: **`char`

| `string`

`ResponseTransform`

— Function for transforming raw response values

`"none"`

(default) | function handle | function name

Function for transforming raw response values, specified as a function handle or
function name. The default is `"none"`

, which means
`@(y)y`

, or no transformation. The function should accept a vector
(the original response values) and return a vector of the same size (the transformed
response values).

**Example: **Suppose you create a function handle that applies an exponential
transformation to an input vector by using `myfunction = @(y)exp(y)`

.
Then, you can specify the response transformation as
`ResponseTransform=myfunction`

.

**Data Types: **`char`

| `string`

| `function_handle`

**Parallel Options**

`Options`

— Options for computing in parallel and setting random numbers

structure

Options for computing in parallel and setting random numbers, specified as a structure. Create
the `Options`

structure using `statset`

.

**Note**

You need Parallel Computing Toolbox™ to run computations in parallel.

This table describes the option fields and their values.

Field Name | Value | Default |
---|---|---|

`UseParallel` | Set this value to | `false` |

`UseSubstreams` | Set this value to To compute reproducibly, set
| `false` |

`Streams` | Specify this value as a `RandStream` object or cell array of such objects. Use a single object except when the `UseParallel` value is `true` and the `UseSubstreams` value is `false` . In that case, use a cell array that has the same size as the parallel pool. | If you do not specify `Streams` , `fitrensemble` uses the
default stream or streams. |

For an example using reproducible parallel training, see Train Classification Ensemble in Parallel.

For dual-core systems and above, `fitrensemble`

parallelizes
training using Intel^{®} Threading Building Blocks (TBB). Therefore, specifying the
`UseParallel`

option as `true`

might not provide a
significant speedup on a single computer. For details on Intel TBB, see https://www.intel.com/content/www/us/en/developer/tools/oneapi/onetbb.html.

**Example: **`Options=statset(UseParallel=true)`

**Data Types: **`struct`

**Cross-Validation Options**

`CrossVal`

— Cross-validation flag

`'off'`

(default) | `'on'`

Cross-validation flag, specified as the comma-separated pair
consisting of `'Crossval'`

and `'on'`

or `'off'`

.

If you specify `'on'`

, then the software implements
10-fold cross-validation.

To override this cross-validation setting, use one of these
name-value pair arguments: `CVPartition`

, `Holdout`

, `KFold`

,
or `Leaveout`

. To create a cross-validated model,
you can use one cross-validation name-value pair argument at a time
only.

Alternatively, cross-validate later by passing `Mdl`

to `crossval`

.

**Example: **`'Crossval','on'`

`CVPartition`

— Cross-validation partition

`[]`

(default) | `cvpartition`

object

Cross-validation partition, specified as a `cvpartition`

object that specifies the type of cross-validation and the
indexing for the training and validation sets.

To create a cross-validated model, you can specify only one of these four name-value
arguments: `CVPartition`

, `Holdout`

,
`KFold`

, or `Leaveout`

.

**Example: **Suppose you create a random partition for 5-fold cross-validation on 500
observations by using `cvp = cvpartition(500,KFold=5)`

. Then, you can
specify the cross-validation partition by setting
`CVPartition=cvp`

.

`Holdout`

— Fraction of data for holdout validation

scalar value in the range (0,1)

Fraction of the data used for holdout validation, specified as a scalar value in the range
(0,1). If you specify `Holdout=p`

, then the software completes these
steps:

Randomly select and reserve

`p*100`

% of the data as validation data, and train the model using the rest of the data.Store the compact trained model in the

`Trained`

property of the cross-validated model.

To create a cross-validated model, you can specify only one of these four name-value
arguments: `CVPartition`

, `Holdout`

,
`KFold`

, or `Leaveout`

.

**Example: **`Holdout=0.1`

**Data Types: **`double`

| `single`

`KFold`

— Number of folds

`10`

(default) | positive integer value greater than 1

Number of folds to use in the cross-validated model, specified as a positive integer value
greater than 1. If you specify `KFold=k`

, then the software completes
these steps:

Randomly partition the data into

`k`

sets.For each set, reserve the set as validation data, and train the model using the other

`k`

– 1 sets.Store the

`k`

compact trained models in a`k`

-by-1 cell vector in the`Trained`

property of the cross-validated model.

To create a cross-validated model, you can specify only one of these four name-value
arguments: `CVPartition`

, `Holdout`

,
`KFold`

, or `Leaveout`

.

**Example: **`KFold=5`

**Data Types: **`single`

| `double`

`Leaveout`

— Leave-one-out cross-validation flag

`"off"`

(default) | `"on"`

Leave-one-out cross-validation flag, specified as `"on"`

or
`"off"`

. If you specify `Leaveout="on"`

, then for
each of the *n* observations (where *n* is the number
of observations, excluding missing observations, specified in the
`NumObservations`

property of the model), the software completes
these steps:

Reserve the one observation as validation data, and train the model using the other

*n*– 1 observations.Store the

*n*compact trained models in an*n*-by-1 cell vector in the`Trained`

property of the cross-validated model.

`CVPartition`

, `Holdout`

,
`KFold`

, or `Leaveout`

.

**Example: **`Leaveout="on"`

**Data Types: **`char`

| `string`

**Other Regression Options**

`Weights`

— Observation weights

numeric vector of positive values | name of variable in `Tbl`

Observation weights, specified as the comma-separated pair consisting
of `'Weights'`

and a numeric vector of positive values
or name of a variable in `Tbl`

. The software weighs
the observations in each row of `X`

or
`Tbl`

with the corresponding value in
`Weights`

. The size of `Weights`

must equal the number of rows of `X`

or
`Tbl`

.

If you specify the input data as a table `Tbl`

,
then `Weights`

can be the name of a variable in
`Tbl`

that contains a numeric vector. In this
case, you must specify `Weights`

as a character
vector or string scalar. For example, if the weights vector
`W`

is stored as `Tbl.W`

, then
specify it as `'W'`

. Otherwise, the software treats all
columns of `Tbl`

, including `W`

, as
predictors or the response when training the model.

The software normalizes the values of `Weights`

to
sum to 1.

By default, `Weights`

is
`ones(`

, where
* n*,1)

*is the number of observations in*

`n`

`X`

or `Tbl`

.**Data Types: **`double`

| `single`

| `char`

| `string`

**Sampling Options**

`FResample`

— Fraction of training set to resample

`1`

(default) | positive scalar in (0,1]

Fraction of the training set to resample for every weak learner, specified as a positive
scalar in (0,1]. To use `'FResample'`

, set
`Resample`

to `'on'`

.

**Example: **`'FResample',0.75`

**Data Types: **`single`

| `double`

`Replace`

— Flag indicating to sample with replacement

`'on'`

(default) | `'off'`

Flag indicating sampling with replacement, specified as the
comma-separated pair consisting of `'Replace'`

and `'off'`

or `'on'`

.

For

`'on'`

, the software samples the training observations with replacement.For

`'off'`

, the software samples the training observations without replacement. If you set`Resample`

to`'on'`

, then the software samples training observations assuming uniform weights. If you also specify a boosting method, then the software boosts by reweighting observations.

Unless you set `Method`

to `'bag'`

or
set `Resample`

to `'on'`

, `Replace`

has
no effect.

**Example: **`'Replace','off'`

`Resample`

— Flag indicating to resample

`'off'`

| `'on'`

Flag indicating to resample, specified as the comma-separated
pair consisting of `'Resample'`

and `'off'`

or `'on'`

.

If

`Method`

is a boosting method, then:`'Resample','on'`

specifies to sample training observations using updated weights as the multinomial sampling probabilities.`'Resample','off'`

(default) specifies to reweight observations at every learning iteration.

If

`Method`

is`'bag'`

, then`'Resample'`

must be`'on'`

. The software resamples a fraction of the training observations (see`FResample`

) with or without replacement (see`Replace`

).

If you specify to resample using `Resample`

, then it is good
practice to resample to entire data set. That is, use the default setting of 1 for
`FResample`

.

**LSBoost Method Options**

`LearnRate`

— Learning rate for shrinkage

`1`

(default) | numeric scalar in (0,1]

Learning rate for shrinkage, specified as the comma-separated pair consisting of
`'LearnRate'`

and a numeric scalar in the interval (0,1].

To train an ensemble using shrinkage, set `LearnRate`

to a value less than `1`

, for example, `0.1`

is a popular choice. Training an ensemble using shrinkage requires more learning iterations, but often achieves better accuracy.

**Example: **`'LearnRate',0.1`

**Data Types: **`single`

| `double`

**Hyperparameter Optimization Options**

`OptimizeHyperparameters`

— Parameters to optimize

`'none'`

(default) | `'auto'`

| `'all'`

| string array or cell array of eligible parameter names | vector of `optimizableVariable`

objects

Parameters to optimize, specified as the comma-separated pair
consisting of `'OptimizeHyperparameters'`

and one of
the following:

`'none'`

— Do not optimize.`'auto'`

— Use`{'Method','NumLearningCycles','LearnRate'}`

along with the default parameters for the specified`Learners`

:`Learners`

=`'tree'`

(default) —`{'MinLeafSize'}`

**Note**For hyperparameter optimization,

`Learners`

must be a single argument, not a string array or cell array.`'all'`

— Optimize all eligible parameters.String array or cell array of eligible parameter names

Vector of

`optimizableVariable`

objects, typically the output of`hyperparameters`

The optimization attempts to minimize the cross-validation loss
(error) for `fitrensemble`

by varying the parameters. To control the
cross-validation type and other aspects of the optimization, use the
`HyperparameterOptimizationOptions`

name-value argument. When you use
`HyperparameterOptimizationOptions`

, you can use the (compact) model size
instead of the cross-validation loss as the optimization objective by setting the
`ConstraintType`

and `ConstraintBounds`

options.

**Note**

The values of `OptimizeHyperparameters`

override any values you
specify using other name-value arguments. For example, setting
`OptimizeHyperparameters`

to `"auto"`

causes
`fitrensemble`

to optimize hyperparameters corresponding to the
`"auto"`

option and to ignore any specified values for the
hyperparameters.

The eligible parameters for `fitrensemble`

are:

`Method`

— Eligible methods are`'Bag'`

or`'LSBoost'`

.`NumLearningCycles`

—`fitrensemble`

searches among positive integers, by default log-scaled with range`[10,500]`

.`LearnRate`

—`fitrensemble`

searches among positive reals, by default log-scaled with range`[1e-3,1]`

.`MinLeafSize`

—`fitrensemble`

searches among integers log-scaled in the range`[1,max(2,floor(NumObservations/2))]`

.`MaxNumSplits`

—`fitrensemble`

searches among integers log-scaled in the range`[1,max(2,NumObservations-1)]`

.`NumVariablesToSample`

—`fitrensemble`

searches among integers in the range`[1,max(2,NumPredictors)]`

.

Set nondefault parameters by passing a vector of
`optimizableVariable`

objects that have nondefault
values. For example,

load carsmall params = hyperparameters('fitrensemble',[Horsepower,Weight],MPG,'Tree'); params(4).Range = [1,20];

Pass `params`

as the value of
`OptimizeHyperparameters`

.

By default, the iterative display appears at the command line,
and plots appear according to the number of hyperparameters in the optimization. For the
optimization and plots, the objective function is log(1 + cross-validation loss). To control the iterative display, set the `Verbose`

field of
the `'HyperparameterOptimizationOptions'`

name-value argument. To control the
plots, set the `ShowPlots`

field of the
`'HyperparameterOptimizationOptions'`

name-value argument.

For an example, see Optimize Regression Ensemble.

**Example: **`'OptimizeHyperparameters',{'Method','NumLearningCycles','LearnRate','MinLeafSize','MaxNumSplits'}`

`HyperparameterOptimizationOptions`

— Options for optimization

`HyperparameterOptimizationOptions`

object | structure

Options for optimization, specified as a `HyperparameterOptimizationOptions`

object or a structure. This argument
modifies the effect of the `OptimizeHyperparameters`

name-value
argument. If you specify `HyperparameterOptimizationOptions`

, you must
also specify `OptimizeHyperparameters`

. All the options are optional.
However, you must set `ConstraintBounds`

and
`ConstraintType`

to return
`AggregateOptimizationResults`

. The options that you can set in a
structure are the same as those in the
`HyperparameterOptimizationOptions`

object.

Option | Values | Default |
---|---|---|

`Optimizer` |
`"bayesopt"` — Use Bayesian optimization. Internally, this setting calls`bayesopt` .`"gridsearch"` — Use grid search with`NumGridDivisions` values per dimension.`"gridsearch"` searches in a random order, using uniform sampling without replacement from the grid. After optimization, you can get a table in grid order by using the command`sortrows(Mdl.HyperparameterOptimizationResults)` .`"randomsearch"` — Search at random among`MaxObjectiveEvaluations` points.
| `"bayesopt"` |

`ConstraintBounds` | Constraint bounds for | `[]` |

`ConstraintTarget` | Constraint target for the optimization problems, specified as
| If you specify `ConstraintBounds` and
`ConstraintType` , then the default value is
`"matlab"` . Otherwise, the default value is
`[]` . |

`ConstraintType` | Constraint type for the optimization problems, specified as
| `[]` |

`AcquisitionFunctionName` | Type of acquisition function: `"expected-improvement-per-second-plus"` `"expected-improvement"` `"expected-improvement-plus"` `"expected-improvement-per-second"` `"lower-confidence-bound"` `"probability-of-improvement"`
Acquisition functions whose names include
| `"expected-improvement-per-second-plus"` |

`MaxObjectiveEvaluations` | Maximum number of objective function evaluations. If you specify multiple
optimization problems using `ConstraintBounds` , the value of
`MaxObjectiveEvaluations` applies to each optimization
problem individually. | `30` for `"bayesopt"` and
`"randomsearch"` , and the entire grid for
`"gridsearch"` |

`MaxTime` | Time limit for the optimization, specified as a nonnegative real
scalar. The time limit is in seconds, as measured by | `Inf` |

`NumGridDivisions` | For `Optimizer="gridsearch"` , the number of values in each
dimension. The value can be a vector of positive integers giving the number of
values for each dimension, or a scalar that applies to all dimensions. This
option is ignored for categorical variables. | `10` |

`ShowPlots` | Logical value indicating whether to show plots of the optimization progress.
If this option is `true` , the software plots the best observed
objective function value against the iteration number. If you use Bayesian
optimization (`Optimizer` `="bayesopt"` ), then
the software also plots the best estimated objective function value. The best
observed objective function values and best estimated objective function values
correspond to the values in the `BestSoFar (observed)` and
`BestSoFar (estim.)` columns of the iterative display,
respectively. You can find these values in the properties `ObjectiveMinimumTrace` and `EstimatedObjectiveMinimumTrace` of
`Mdl.HyperparameterOptimizationResults` . If the problem
includes one or two optimization parameters for Bayesian optimization, then
`ShowPlots` also plots a model of the objective function
against the parameters. | `true` |

`SaveIntermediateResults` | Logical value indicating whether to save the optimization results. If this
option is `true` , the software overwrites a workspace variable
named `"BayesoptResults"` at each iteration. The variable is a
`BayesianOptimization` object. If you
specify multiple optimization problems using
`ConstraintBounds` , the workspace variable is an `AggregateBayesianOptimization` object named
`"AggregateBayesoptResults"` . | `false` |

`Verbose` | Display level at the command line: `0` — No iterative display`1` — Iterative display`2` — Iterative display with additional information
For details, see the | `1` |

`UseParallel` | Logical value indicating whether to run the Bayesian optimization in parallel, which requires Parallel Computing Toolbox. Due to the nonreproducibility of parallel timing, parallel Bayesian optimization does not necessarily yield reproducible results. For details, see Parallel Bayesian Optimization. | `false` |

`Repartition` | Logical value indicating whether to repartition the cross-validation at
every iteration. If this option is A value of
| `false` |

Specify only one of the following three options. | ||

`CVPartition` | `cvpartition` object created by `cvpartition` | `Kfold=5` if you do not specify a
cross-validation option |

`Holdout` | Scalar in the range `(0,1)` representing the holdout
fraction | |

`Kfold` | Integer greater than 1 |

**Example: **`HyperparameterOptimizationOptions=struct(UseParallel=true)`

## Output Arguments

`Mdl`

— Trained regression ensemble model

`RegressionBaggedEnsemble`

model object | `RegressionEnsemble`

model object | `RegressionPartitionedEnsemble`

cross-validated model
object

Trained ensemble model, returned as one of the model objects in this table.

Model Object | Specify Any Cross-Validation Options? | `Method`
Setting | `Resample`
Setting |
---|---|---|---|

`RegressionBaggedEnsemble` | No | `'Bag'` | `'on'` |

`RegressionEnsemble` | No | `'LSBoost'` | `'off'` |

`RegressionPartitionedEnsemble` | Yes | `'LSBoost'` or
`'Bag'` | `'off'` or
`'on'` |

The name-value pair arguments that control cross-validation
are `CrossVal`

, `Holdout`

,
`KFold`

, `Leaveout`

, and
`CVPartition`

.

To reference properties of `Mdl`

, use dot notation. For
example, to access or display the cell vector of weak learner model objects
for an ensemble that has not been cross-validated, enter
`Mdl.Trained`

at the command line.

If you specify `OptimizeHyperparameters`

and
set the `ConstraintType`

and `ConstraintBounds`

options of
`HyperparameterOptimizationOptions`

, then `Mdl`

is an
*N*-by-1 cell array of model objects, where *N* is equal
to the number of rows in `ConstraintBounds`

. If none of the optimization
problems yields a feasible model, then each cell array value is `[]`

.

`AggregateOptimizationResults`

— Aggregate optimization results

`AggregateBayesianOptimization`

object

Aggregate optimization results for multiple optimization problems, returned as an `AggregateBayesianOptimization`

object. To return
`AggregateOptimizationResults`

, you must specify
`OptimizeHyperparameters`

and
`HyperparameterOptimizationOptions`

. You must also specify the
`ConstraintType`

and `ConstraintBounds`

options of `HyperparameterOptimizationOptions`

. For an example that
shows how to produce this output, see Hyperparameter Optimization with Multiple Constraint Bounds.

## Tips

`NumLearningCycles`

can vary from a few dozen to a few thousand. Usually, an ensemble with good predictive power requires from a few hundred to a few thousand weak learners. However, you do not have to train an ensemble for that many cycles at once. You can start by growing a few dozen learners, inspect the ensemble performance and then, if necessary, train more weak learners using`resume`

.Ensemble performance depends on the ensemble setting and the setting of the weak learners. That is, if you specify weak learners with default parameters, then the ensemble can perform poorly. Therefore, like ensemble settings, it is good practice to adjust the parameters of the weak learners using templates, and to choose values that minimize generalization error.

If you specify to resample using

`Resample`

, then it is good practice to resample to entire data set. That is, use the default setting of`1`

for`FResample`

.After training a model, you can generate C/C++ code that predicts responses for new data. Generating C/C++ code requires MATLAB Coder™. For details, see Introduction to Code Generation.

## Algorithms

For details of ensemble aggregation algorithms, see Ensemble Algorithms.

If you specify

`'Method','LSBoost'`

, then the software grows shallow decision trees by default. You can adjust tree depth by specifying the`MaxNumSplits`

,`MinLeafSize`

, and`MinParentSize`

name-value pair arguments using`templateTree`

.For dual-core systems and above,

`fitrensemble`

parallelizes training using Intel Threading Building Blocks (TBB). For details on Intel TBB, see https://www.intel.com/content/www/us/en/developer/tools/oneapi/onetbb.html.

## References

[1] Breiman, L. “Bagging Predictors.”
*Machine Learning*. Vol. 26, pp. 123–140, 1996.

[2] Breiman, L. “Random Forests.”
*Machine Learning*. Vol. 45, pp. 5–32, 2001.

[3] Freund, Y. and R. E. Schapire. “A Decision-Theoretic
Generalization of On-Line Learning and an Application to Boosting.” *J.
of Computer and System Sciences*, Vol. 55, pp. 119–139,
1997.

[4] Friedman, J. “Greedy function approximation: A
gradient boosting machine.” *Annals of Statistics*, Vol. 29,
No. 5, pp. 1189–1232, 2001.

[5] Hastie, T., R. Tibshirani, and J. Friedman. *The
Elements of Statistical Learning* section edition, Springer, New York,
2008.

## Extended Capabilities

### Automatic Parallel Support

Accelerate code by automatically running computation in parallel using Parallel Computing Toolbox™.

`fitrensemble`

supports parallel training
using the `'Options'`

name-value argument. Create options using `statset`

, such as `options = statset('UseParallel',true)`

.
Parallel ensemble training requires you to set the `'Method'`

name-value
argument to `'Bag'`

. Parallel training is available only for tree learners, the
default type for `'Bag'`

.

To perform parallel hyperparameter optimization, use the `UseParallel=true`

option in the `HyperparameterOptimizationOptions`

name-value argument in
the call to the `fitrensemble`

function.

For more information on parallel hyperparameter optimization, see Parallel Bayesian Optimization.

For general information about parallel computing, see Run MATLAB Functions with Automatic Parallel Support (Parallel Computing Toolbox).

### GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Usage notes and limitations:

`fitrensemble`

does not support bootstrap aggregation. You can specify the name-value argument`Method`

only as`"LSBoost"`

.If you use

`templateTree`

to create a learner template object or cell vector of learner template objects, you can specify the name-value arguments`Surrogate`

and`PredictorSelection`

only as`"off"`

and`"allsplits"`

, respectively.If you use

`templateTree`

and the data contains categorical predictors, you can specify the name-value argument`NumVariablesToSample`

only as`"all"`

.`fitrensemble`

fits the model on a GPU if at least one of the following applies:The input argument

`X`

is a`gpuArray`

object.The input argument

`Y`

is a`gpuArray`

object.The input argument

`Tbl`

contains`gpuArray`

predictor or response variables.

If you use

`templateTree`

to specify`MaxNumSplits`

, note that`fitrensemble`

might not execute faster on a GPU than a CPU for deeper decision trees.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

## Version History

**Introduced in R2016b**

## MATLAB 명령

다음 MATLAB 명령에 해당하는 링크를 클릭했습니다.

명령을 실행하려면 MATLAB 명령 창에 입력하십시오. 웹 브라우저는 MATLAB 명령을 지원하지 않습니다.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
