# Build a Low-Pass Filter by Using Fixed-Point Data

This example shows how to build a Stateflow® chart that uses fixed-point data to implement a low-pass Butterworth filter. By designing the filter with fixed-point data instead of floating-point data, you can simulate your model using less memory. For more information, see Fixed-Point Data in Stateflow Charts.

### Build the Fixed-Point Butterworth Filter

The Low-Pass Filter chart is a stateless flow chart that accepts one input and provides one output. The chart contains these data symbols:

`x`

—**Scope**:`Input`

,**Type**:`Inherit:Same as Simulink`

`y`

—**Scope**:`Output`

,**Type**:`fixdt(1,16,10)`

`x_n1`

—**Scope**:`Local`

,**Type**:`fixdt(1,16,12)`

`y_n1`

—**Scope**:`Local`

,**Type**:`fixdt(1,16,10)`

`b0`

—**Scope**:`Parameter`

,**Type**:`fixdt(1,16,15)`

`b1`

—**Scope**:`Parameter`

,**Type**:`fixdt(1,16,15)`

`a1`

—**Scope**:`Parameter`

,**Type**:`fixdt(1,16,15)`

The values of `b0`

, `b1`

, and `a1`

are the coefficients of the low-pass Butterworth filter.

To build the Low-Pass Filter chart:

Create a Simulink® model with an empty Stateflow chart by entering

`sfnew`

at the MATLAB® command prompt.In the Stateflow chart, add a flow chart with a single branch that assigns values to

`y`

,`x_n1`

, and`y_n1`

.Add input, output, local, and parameter data to the chart, as described in Add Stateflow Data.

### Define the Model Callback Function

Before loading the model, MATLAB calls the `butter`

(Signal Processing Toolbox) function to compute the values for the parameters `b0`

, `b1`

, and `a1`

. The function constructs a first-order low-pass Butterworth filter with a normalized cutoff frequency of `(2*pi*Fc/(Fs/2))`

radians per second, where:

The sampling frequency is

`Fs`

= 1000 Hz.The cutoff frequency is

`Fc`

= 50 Hz.

The function output `B`

contains the numerator coefficients of the filter in descending powers of `z`

. The function output `A`

contains the denominator coefficients of the filter in descending powers of `z`

.

Fs = 1000; Fc = 50; [B,A] = butter(1,2*pi*Fc/(Fs/2)); b0 = B(1); b1 = B(2); a1 = A(2);

To define the preload callback for the model:

In the

**Modeling**tab, under**Setup**, select**Model Settings**>**Model Properties**.In the Model Properties dialog box, on the

**Callbacks**tab, select**PreLoadFcn**.Enter the MATLAB code for the preload function call.

Click

**OK**.

To load the parameter values to the MATLAB workspace, save, close, and reopen the model.

### Add Other Blocks to the Model

To complete the model, add a Sine Wave (Simulink) block, a Data Type Conversion (Simulink) block, and a Scope (Simulink) block. Connect and label the blocks according to this diagram.

**Sine Wave block**

The Sine Wave block outputs a floating-point signal. The block has these settings:

**Sine type**:`Time based`

**Time**:`Use simulation time`

**Amplitude**:`1`

**Bias**:`0`

**Frequency**:`2*pi*Fc`

**Phase**:`0`

**Sample time**:`1/Fs`

**Interpret vector parameters as 1-D**:`On`

**Data Type Conversion block**

The Data Type Conversion block converts the floating-point signal from the Sine Wave block to a fixed-point signal. By converting the signal to a fixed-point type, you can simulate your model using less memory. The block has these settings:

**Output minimum**:`[]`

**Output maximum**:`[]`

**Output data type**:`fixdt(1,16,14)`

**Lock output data type setting against changes by the fixed-point tools**:`Off`

**Input and output to have equal**:`Real World Value (RWV)`

**Integer rounding mode**:`Floor`

**Saturate on integer overflow**:`Off`

**Sample time**:`-1`

**Scope block**

The Scope block has two input ports that connect to the input and output signals for the Low-Pass Filter chart. To display the two signals separately, select a scope layout with two rows and one column.

### Set Model Configuration Parameters

Because none of the blocks in the model have a continuous sample time, use a discrete solver with these configuration parameters:

**Stop time**:`0.1`

**Type**:`Fixed-step`

**Solver**:`discrete (no continuous states)`

**Fixed-step size (fundamental sample time)**:`1/Fs`

To configure the model:

In the

**Modeling**tab, under**Setup**, select**Model Settings**.In the

**Solver**pane, set the discrete solver parameters.Click

**OK**.

### Run the Model

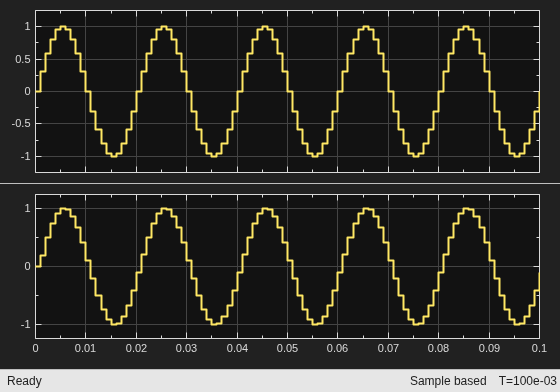

When you simulate the model, the Scope block displays two signals. The top signal shows the fixed-point version of the sine wave input to the chart. The bottom signal corresponds to the filtered output from the chart. The filter removes high-frequency values from the signal but allows low-frequency values to pass through the chart unchanged.
