Detect Faults in Aircraft Elevator Control System

This example uses:

This example shows how to design a fault detection, isolation, and recovery (FDIR) application for a pair of aircraft elevators controlled by redundant actuators. This model uses the same fault detection control logic as the Avionics subsystem of the Aerospace Blockset™ example HL-20 Project with Optional FlightGear Interface (Aerospace Blockset).

Elevator Control System

A typical aircraft has two elevators, one on each side of the fuselage, attached on the horizontal tails. To enhance the safety of the aircraft, the elevator control system contains these redundant parts:

Four independent hydraulic actuators (two actuators per elevator).
Three hydraulic circuits that drive the actuators. Each outer actuator has a dedicated hydraulic circuit. The inner actuators share a hydraulic circuit.
Two primary flight control units (PFCU).
Two control modules per actuator: full range control law and limited/reduced range control law.

If the aircraft is flying perfectly level, then the actuator position should maintain a constant value. The fault detection system registers a failure in an actuator if:

The position of the actuator increases or decreases by 10 cm from this zero point.
The actuator changes position rapidly (for instance, if the position changes at least 20 cm in 0.01 seconds).

The fault detection system also registers a fault in one of the hydraulic circuits if the pressure is out of bounds or if the pressure changes rapidly. In this example, the fault detection system checks that:

The pressure in the hydraulic circuit is between 500 kPa and 2 MPa.
The pressure changes no more than 100 kPa in 0.01 seconds.

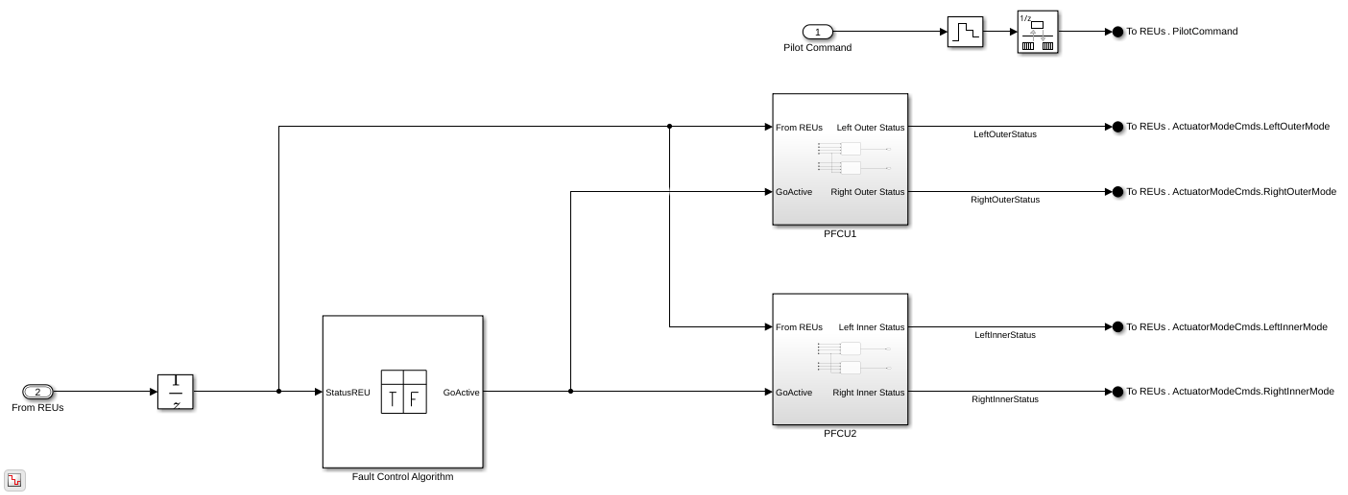

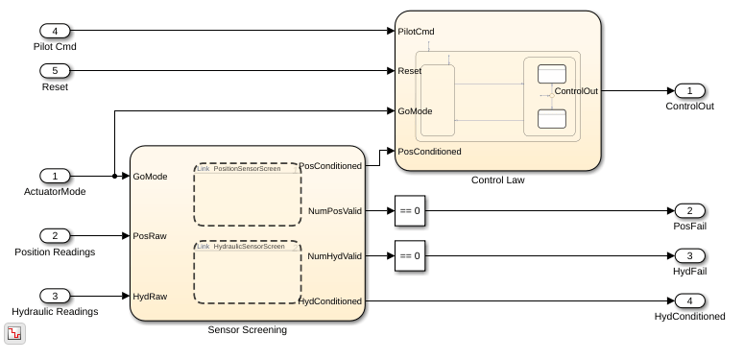

Fault Detection Control Logic

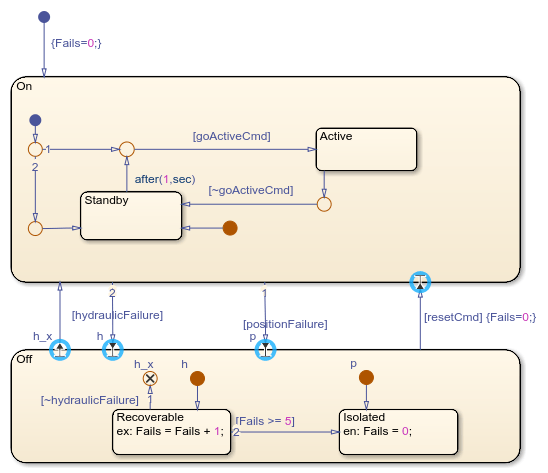

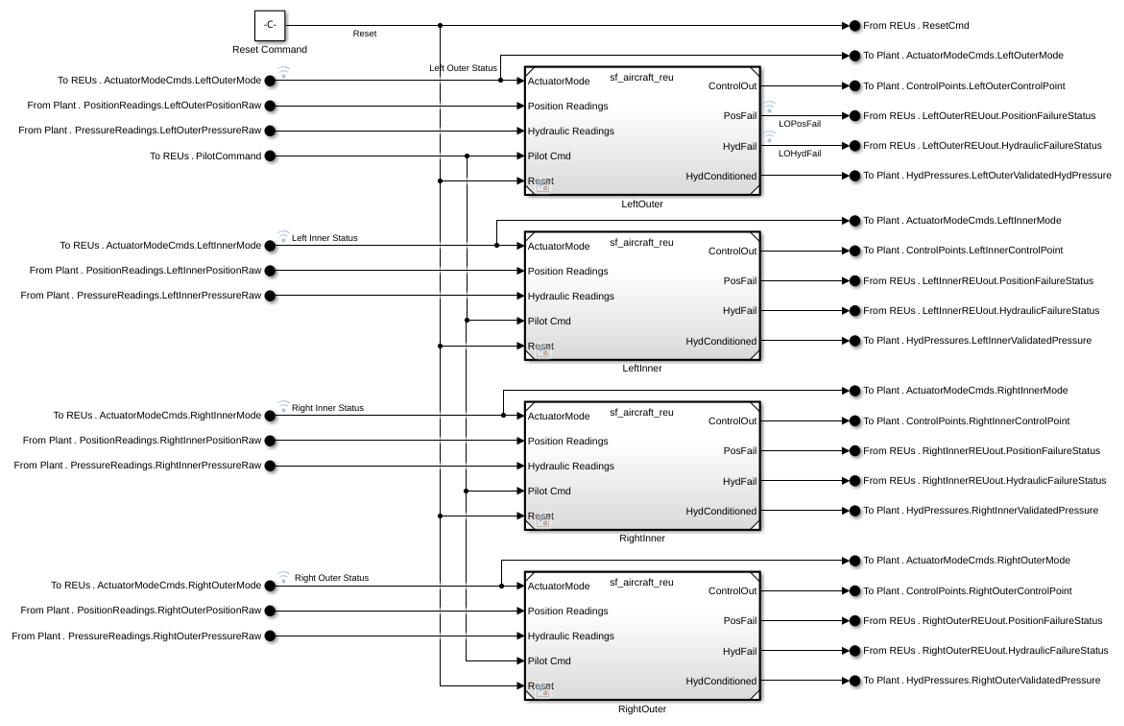

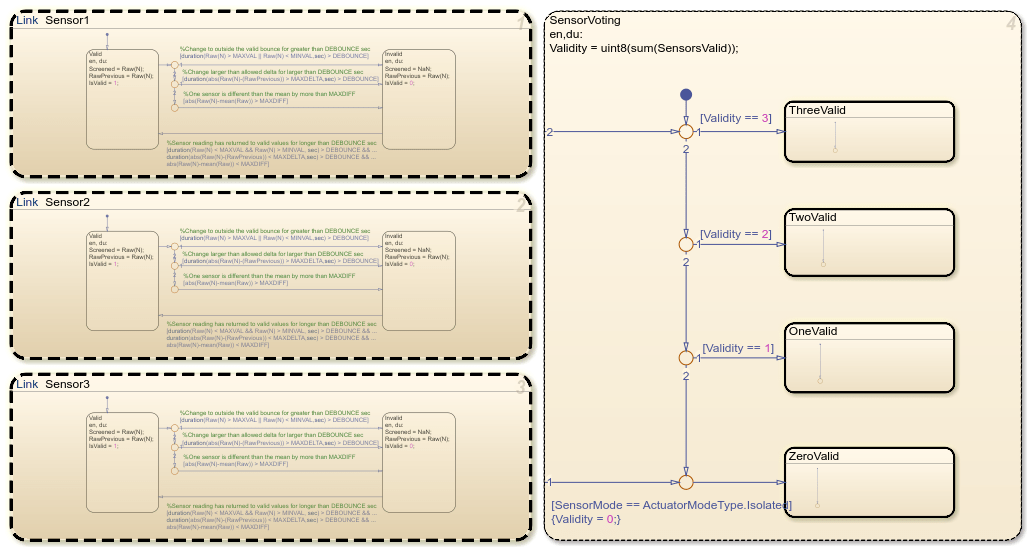

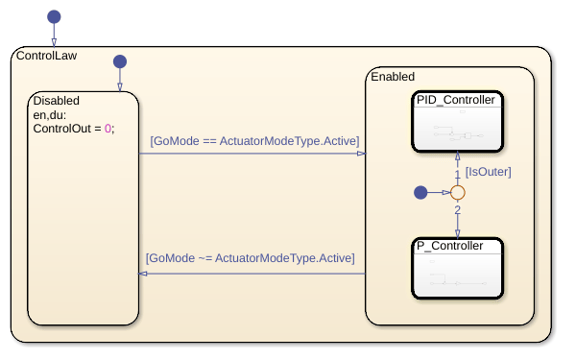

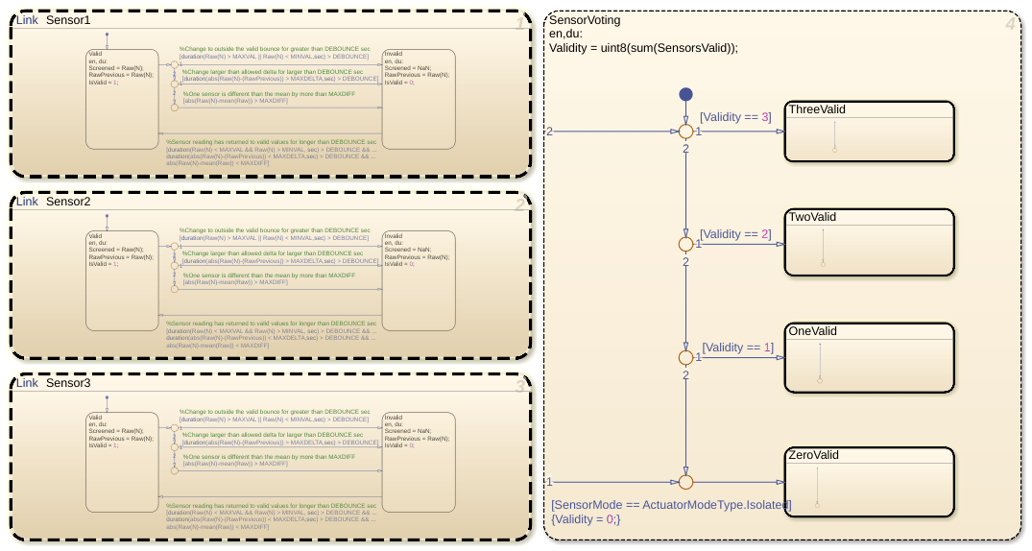

The Stateflow® chart Mode Logic defines the fault detection logic for the elevator control system. The chart contains a parallel substate for each actuator in the system. Each actuator can be in one of five modes: Passive, Standby, Active, Off, and Isolated. These operating modes are represented as substates of the parallel states.

By default, the outer actuators start in Active mode and the inner actuators start in Standby mode. If a failure is detected in the outer actuators or in the hydraulic circuits that are connected to them, the fault detection system responds by disabling the outer actuators and activating the inner actuators.

Inject Failures Into Fault Detection System

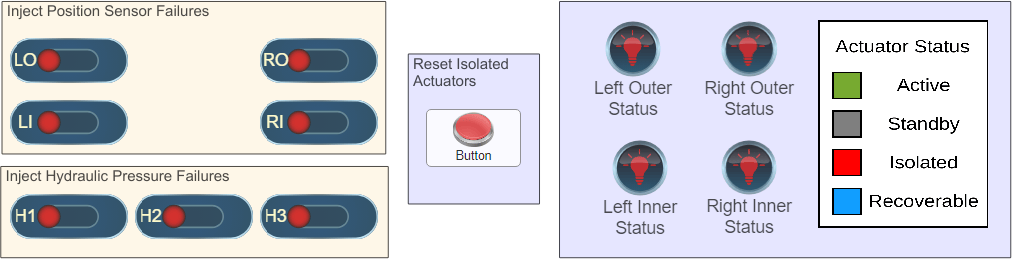

To experiment with the model, during simulation, you can introduce hydraulic circuit and actuator position failures into the fault detection system through the Failure Injection UI.

For example, to inject a failure in Hydraulic Circuit 1, select the H1 check box and click Update. The UI runs this MATLAB® code to communicate with the Simulink® model:

function Inject_failure_Callback(hObject,eventdata,handles)

mname = gcs;

...

blockname = mname+ ...
    "/Signal conditioning and failures /Hydraulic Pressures/Measured "+ ...
    newline+"Hydraulic system 1 pressures/Hydraulic pressure/H1_fail";
val = get(handles.H1,"Value");

if val
    set_param(blockname,value="1");
else
    set_param(blockname,value="0");
end

...

end

This code turns on a switch in the Signal conditioning subsystem that causes the fault detection system to register a fault in the hydraulic circuit.

The chart Mode Logic responds to failures in the hydraulic circuits and actuators by using truth table functions and event broadcasting. For example, if the fault detection system registers an isolated failure in Hydraulic Circuit 1, then:

The truth table function L_switch broadcasts the event go_off to the substate LO.
The substate LO enters the Off mode and sends the event E to the substate LI.
Because the substate LO is no longer in the Active mode, LI enters the Active mode.
Because the substate LI is now in the active mode, RI enters the Active mode and sends a second event E to the substate RO.
The substate RO enters the Standby mode.

After the fault detection systems registers a failure in Hydraulic Circuit 1, the left outer actuator is turned off, the right outer actuator is placed on standby, and the inner actuators are activated.

Recover from Hydraulic Failures

The fault detection control logic enables the system to recover from a hydraulic circuit failure. For example, to bring the Hydraulic Circuit 1 back online, in the Failure Injection UI, clear the H1 check box and click Update. In the chart, the condition !u.low_press[0] becomes true, so the substate LO transitions from the Off mode to the Standby mode. As a result, the left outer actuator can then be activated in the event that the fault detection system registers another failure later in the simulation.

Isolate Actuators After Failures

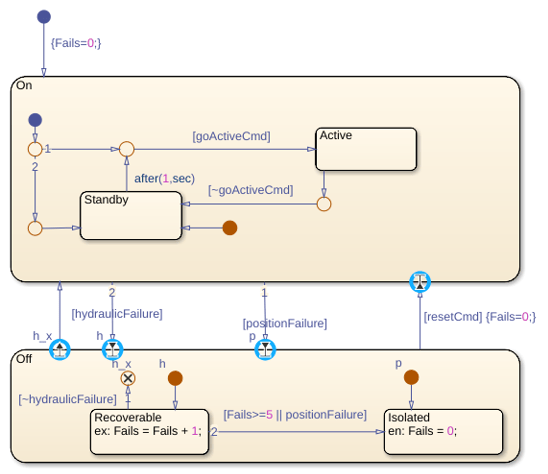

When the fault detection system registers a failure in one of the actuators, that actuator can no longer be activated. In the chart Mode Logic, the failure of an actuator is represented by the substate Isolated. This substate has no outgoing transitions so once an actuator enters the Isolated state, it remains in that state for the rest of the simulation.
