## Detect Data Changes by Using Requirements Table Blocks

*Since R2022a*

Requirements Table blocks can detect changes in the values of data between time steps. You can use change detection operators to determine when data changes to or from a value.

### Change Detection Operators

To detect changes in data, use the operators listed in this table.

Operator | Syntax | Description |
---|---|---|

`hasChanged` | `tf = hasChanged(data_name)` | Returns `1` (`true` ) if the value of
`data_name` at the beginning of the current time step is different
from the value of `data_name` at the beginning of the previous time
step. Otherwise, the operator returns `0`
(`false` ). |

`hasChangedFrom` | `tf = hasChangedFrom(data_name,value)` | Returns `1` (`true` ) if the value of
`data_name` was equal to the specified `value` at
the beginning of the previous time step and is a different value at the beginning of
the current time step. Otherwise, the operator returns `0`
(`false` ). |

`hasChangedTo` | `tf = hasChangedTo(data_name,value)` | Returns `1` (`true` ) if the value of
`data_name` was not equal to the specified `value`
at the beginning of the previous time step and is equal to `value` at
the beginning of the current time step. Otherwise, the operator returns
`0` (`false` ). |

The input argument `data_name`

is data defined in the Requirements
Table block, specified as a:

Scalar

Matrix or an element of a matrix

Structure or a field in a structure

Valid combination of structure fields or matrix elements

For the `hasChangedFrom`

and `hasChangedTo`

operators, the argument `value`

must be an expression that resolves to a
value that is comparable with `data_name`

. For example, if
`data_name`

is a matrix, then `value`

must resolve to a
matrix value with the same dimensions as `data_name`

.

### Example of Requirements Table Block with Change Detection

This example shows how the operators `hasChanged`

, `hasChangedFrom`

, and `hasChangedTo`

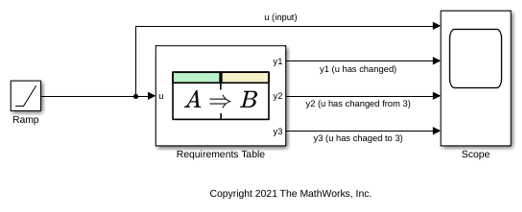

detect specific changes in an input signal. In this example, a Ramp (Simulink) block sends a discrete, increasing time signal to a Requirements Table block.

The model uses a fixed-step solver with a step size of `1`

. The signal increments by `1`

every time step. The block checks the input `u`

for these changes:

Changes from the previous time step

A change from the value

`3`

A change to the value

`3`

To check the signal, the block calls three change detection operators and specifies six requirements. Each change detection operator determines the value of the output data `y1`

, `y2`

, and `y3`

.

If

`hasChanged(u)`

is`true`

,`y1`

equals`1`

. Otherwise,`y1`

equals`0`

.If

`hasChangedFrom(u,3)`

is`true`

,`y2`

equals`1`

. Otherwise,`y2`

equals`0`

.If

`hasChangedTo(u,3)`

is`true`

,`y3`

equals`1`

. Otherwise,`y3`

equals`0`

.

During simulation, the Scope (Simulink) block shows the input and output signals for the block.

The value of

`u`

increases by`1`

every time step.The value of

`y1`

changes from`0`

to`1`

at time`t = 1`

. The value of`y1`

remains`1`

because`u`

continues to change at each subsequent time step.The value of

`y2`

changes from`0`

to`1`

at time`t = 4`

when the value of`u`

changes from`3`

to`4`

. The value of`y2`

returns to`0`

after one time step.The value of

`y3`

changes from`0`

to`1`

at time`t = 3`

when the value of`u`

changes from`2`

to`3`

. The value of`y3`

returns to`0`

after one time step.
