setlinio

Save linear analysis points to Simulink model, Linear Analysis Plots block, or Model Verification block

Syntax

setlinio(mdl,io)

setlinio(blockpath,io)

oldio = setlinio(___)

Description

setlinio(mdl,io) writes the analysis points specified in io to the Simulink^® model mdl.

setlinio(blockpath,io) sets the specified analysis points to the specified Linear Analysis Plots block or Model Verification block.

oldio = setlinio(___) returns the current set of analysis points in the model or block and replaces them with io using any of the previous syntaxes.

Examples

Set Analysis Points in Simulink Model

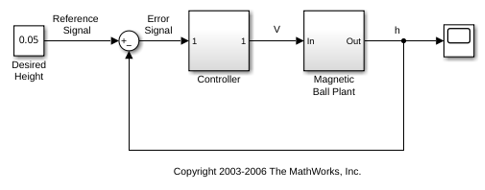

Open Simulink model.

model = 'magball';
open_system(model)

Create a vector of analysis points for linearizing the plant model:

• Input perturbation at the output of the Controller block

• Open-loop output at the output of the Magnetic Ball Plant block

io(1) = linio('magball/Controller',1,'input');
io(2) = linio('magball/Magnetic Ball Plant',1,'openoutput');

Write the analysis points to the magball model.

setlinio(model,io);

The analysis points in io are added to the model as annotations. You can then save the model to store the analysis points with the model.

Set Analysis Points in Linear Analysis Plots Block

Open Simulink model.

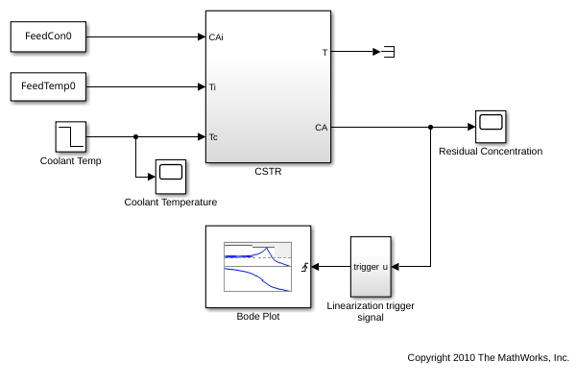

open_system('scdcstr')

Create analysis points for finding the transfer function between the coolant temperature and the residual concentration.

• Input perturbation at the output of the Coolant Temp block

• Output measurement at the CA output of the CSTR block

io(1) = linio('scdcstr/Coolant Temp',1,'input');
io(2) = linio('scdcstr/CSTR',2,'output');

Set the analysis points in the Bode Plot block.

setlinio('scdcstr/Bode Plot',io);

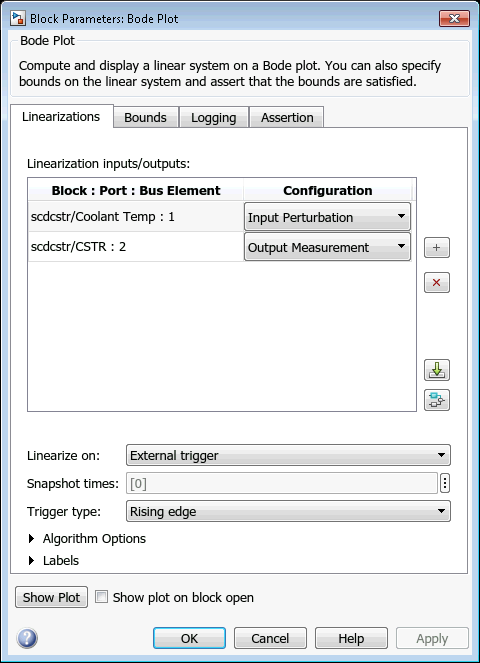

View the analysis points in the Bode Plot Block Parameters dialog box.

open_system('scdcstr/Bode Plot')

During simulation, the software linearizes the model using the specified analysis, and plots the magnitude and phase responses for the resulting linear system.

Save Old Analysis Points When Storing New Analysis Points

Open Simulink model.

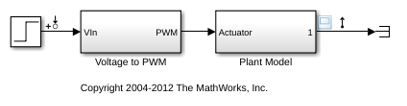

mdl = 'scdpwm';
open_system(mdl)

This model is configured with analysis points for finding the combined transfer function of the PWM and plant blocks.

Create analysis points for finding the transfer function of just the plant model.

io(1) = linio('scdpwm/Voltage to PWM',1,'input');
io(2) = linio('scdpwm/Plant Model',1,'output');

Store the analysis points to the model, and save the previous analysis point configuration.

oldio = setlinio(mdl,io)

2x1 vector of Linearization IOs:
--------------------------
1. Linearization input perturbation located at the following signal:
- Block: scdpwm/Step
- Port: 1
2. Linearization output measurement located at the following signal:
- Block: scdpwm/Plant Model
- Port: 1

Input Arguments

mdl — Simulink model name

character vector | string

Simulink model name, specified as a character vector or string. The model must be in the current working folder or on the MATLAB^® path.

If the model is not open or loaded into memory, setlinio loads the model into memory.

io — Analysis point set

linearization I/O object | vector of linearization I/O objects

Analysis point set, specified as a linearization I/O object or a vector of linearization I/O objects.

Each linearization I/O object has the following properties:

Property	Description
Active	Flag indicating whether to use the analysis point for linearization, specified as one of the following: 'on' — Use the analysis point for linearization. This value is the default option. 'off' — Do not use the analysis point for linearization. Use this option if you have an existing set of analysis points and you want to linearize a model with a subset of these points.
Block	Full block path of the block with which the analysis point is associated, specified as a character vector.
PortNumber	Output port with which the analysis point is associated, specified as an integer.
Type	Analysis point type, specified as one of the following: 'input' — Input perturbation 'output' — Output measurement 'loopbreak' — Loop break 'openinput' — Open-loop input 'openoutput' — Open-loop output 'looptransfer' — Loop transfer 'sensitivity' — Sensitivity 'compsensitivity' — Complementary sensitivity For more information on analysis point types, see Specify Portion of Model to Linearize.
BusElement	Bus element name with which the analysis point is associated, specified as a character vector or '' if the analysis point is not a bus element.
Description	User-specified description of the analysis point, which you can set for convenience, specified as a character vector.

blockpath — Linear Analysis Plots block or Model Verification block

character vector | string

Linear Analysis Plots block or Model Verification block, specified as a character vector or string that contains its full block path. The model that contains the block must be in the current working folder or on the MATLAB path.

For more information on:

• Linear analysis plot blocks, see Visualization During Simulation.

• Model verification blocks, see Model Verification.

Output Arguments

oldio — Old analysis point set

linearization I/O object | vector of linearization I/O objects

Old analysis point set, returned as a linearization I/O object or a vector of linearization I/O objects.

Alternative Functionality

Simulink Model

You can also specify analysis points directly in a Simulink model. For more information, see Specify Portion of Model to Linearize in Simulink Model.

Version History

Introduced before R2006a
