C Function

Integrate and call external C/C++ code from a Simulink model

Since R2020a

Libraries:
Simulink / User-Defined Functions

Description

The C Function block integrates and calls external C/C++ code from a Simulink^® model. Use this block to define external code and customize the integration of your code by preprocessing or postprocessing the data. In addition, you can specify customized code for simulation and C code generation. You can conditionally call functions defined in your code, and you can also call multiple functions in one block. Using this block, you can initialize persistent data and pass it to an external function.

The C Function block supports initializing persistent data and calling external functions from the block dialog box. Persistent data can include an object of a C++ class defined in your custom code. See Interface with C++ Classes Using C Function Block. The block supports only initializing and terminating persistent data. The block does not support updating the data during simulation. To model a dynamic system with continuous states, use an S-Function block. To learn more about S-functions, see What Is an S-Function?

Define the source code and supporting files to be called by the C Function block in the Simulation Target pane of the Model Configuration Parameters dialog box. See Model Configuration Parameters: Simulation Target.

Note

C99 is the standard version of C language supported for custom C code integration into Simulink.

Call C Library Functions

You can call these C Math Library functions directly from the C Function block.

`abs`	`acos`	`asin`	`atan`	`atan2`	`ceil`
`cos`	`cosh`	`exp`	`fabs`	`floor`	`fmod`
`labs`	`ldexp`	`log`	`log10`	`pow`	`sin`
`sinh`	`sqrt`	`tan`	`tanh`

When you call these functions, double precision applies unless all the input arguments are explicitly single precision. When a type mismatch occurs, a cast of the input arguments to the expected type replaces the original arguments. For example, if you call the sin function with an integer argument, a cast of the input argument to a floating-point number of type double replaces the original argument.

To call other C library functions, create and call an external wrapper function that calls the C library function.

Call the abs, fabs, and labs Functions

Interpretation of the abs, fabs, and labs functions in C Function block goes beyond the standard C version to include integer and floating-point arguments:

If x is an integer, the standard C function abs applies to x, or abs(x).
If x is a double, the standard C function labs applies to x, or labs(x).
If x is a single, the standard C function fabs applies to x, or fabs(x).

Code Replacement Library (CRL) Based on Type

The call to the function should call the correct CRL based on the type of data passed into the function. If no CRL is specified, the call to the function should call to type-specific library. The CRL for C99 generates a type-specific function. For example:

Type passed in	Code generation call
`sin(doubleIn)`	`sin(doubleIn)`
`sin(floatIn)`	`sinf(floatIn)`

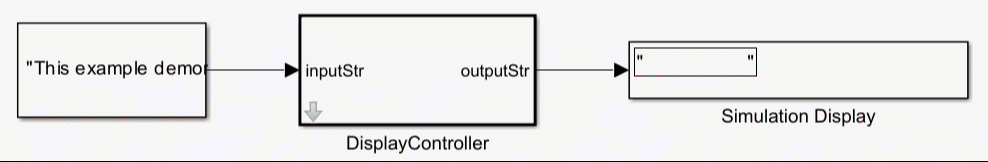

Examples

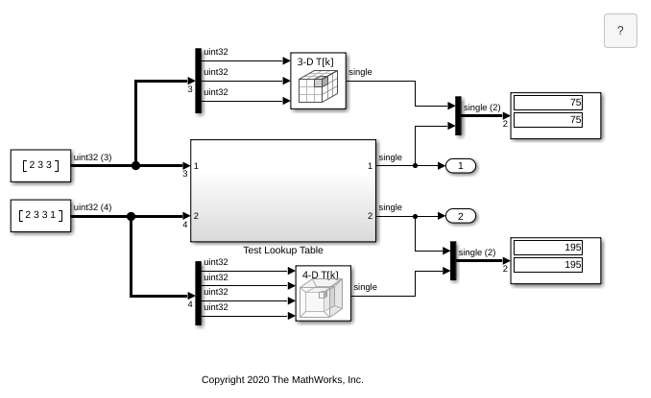

Call Legacy Lookup Table Functions Using C Function Block

Use the C Function block to call legacy C functions that implement N-dimensional table lookups.

Open Script

Modify States of a C Function Block Using Persistent Symbols

Define an initial persistent value to cache in the block.

Open Model

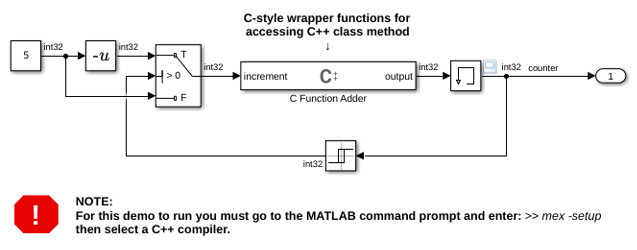

Call C++ Class Methods Using a C-style Wrapper Function from a C Function Block

Use the C Function block to call C++ class methods using a C-style wrapper function.

Open Model

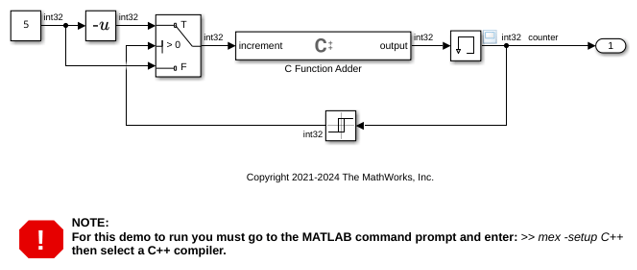

Call C++ Class Methods Directly from a C Function Block

Call C++ Class Methods Directly From a C Function Block.

Open Script

Limitations

These features of Simulink are not compatible with the C Function block.

Simulink Coverage™
Only execution coverage is measured.
Simulink Code Inspector™
Simulink Design Verifier™

These limitations apply to the C code that you specify in a C Function block.

Local static variables using the static keyword are not supported. To cache values across time steps, define a symbol as Persistent in the Symbols table of the block dialog box.
You cannot #include files in the code. Files containing external functions must be specified in the Simulation Target pane of the Configuration Parameters window.
Taking the address of a Constant symbol is not supported.
Directly calling C library functions other than the C Math Library functions listed above under Call C Library Functions is not supported. To call other C library functions, create and call a wrapper function that calls the C library function.

Ports

Input

expand all

Port_1 — Input port
scalar | vector | matrix

The number of input ports is determined by the number of symbols with Input or InputOutput scope defined in the Symbols table in the block parameters dialog box. Each input port label is the same as the name of the Input or InputOutput symbol unless you change it by editing the Label field in the Symbols table of the block dialog box.

Output

expand all

Port_1 — Output port
scalar | vector | matrix

The number of output ports is determined by the number of symbols with Output or InputOutput scope defined in the Symbols table in the block parameters dialog box. Each output port label is the same as the name of the Output or InputOutput symbol unless you change it by editing the Label field in the Symbols table of the block dialog box.

Parameters

expand all

Output Code — Output code
character vector | string scalar

Output code that the block executes at each time step during simulation, specified as a character vector or string scalar. For example, you can call a function from external C code, make modifications to the results, and perform operations to pass the results to other blocks.

Programmatic Use

Block Parameter: OutputCode

Type: character vector or string scalar

Value: "" | C code

Default: ""

Start Code — Initialization code
character vector | string scalar

Initialization code that the block executes one time at the start of simulation, specified as a character vector or string scalar. For example, you can initialize persistent symbols.

Programmatic Use

Block Parameter: StartCode

Type: character vector or string scalar

Value: "" | C code

Default: ""

Initialize Conditions Code — Reinitialization code
character vector | string scalar

Reinitialization code for the block to execute when enabling a subsystem or model in which the block is placed, specified as a character vector or string scalar. The code executes one time at the start of simulation, and if the block is inside a subsystem or model containing an Enable block with the States when enabling parameter set to reset, the code also executes each time the subsystem or model switches from disabled to enabled. See Using Enabled Subsystems. You can use this code, for example, to set an initial output value or reset the value of a persistent variable.

Programmatic Use

Block Parameter: InitializeConditionsCode

Type: character vector or string scalar

Value: "" | C code

Default: ""

Terminate Code — Termination code
character vector | string scalar

Termination code that the block executes one time at the end of simulation, specified as a character vector or string scalar. For example, use this code to free the memory cached on persistent symbols specified as void pointers.

Programmatic Use

Block Parameter: TerminateCode

Type: character vector or string scalar

Value: "" | C code

Default: ""

Symbols — Symbols and symbol properties
table

Symbols and symbol properties used in the C code, specified as a table. You must enter the following attributes of each symbol in the table:

Name — Symbol name in the code.
If the symbol represents a C++ class object, the Name field serves as a call to the class constructor:
```
ObjectName(Argument1,Argument2,...)
```
Scope — Scope of the symbol. These scopes are available:
- Input — Input to the block.
- Output — Output to the block.
- InputOutput — Both input and output to the block.
  Use the InputOutput scope to map an input passed by a pointer in your C code. Ports created using an InputOutput scope have the same name for input and output ports. InputOutput scope enables buffer reuse for input and output ports. Buffer reuse may optimize memory use and improve code simulation and code generation efficiency, depending on the signal size and the block layout. Limitations include:
  - An InputOutput symbol cannot be used in Start Code, Initialize Conditions Code, or Terminate Code.
  - InputOutput symbols do not support the void* data type.
  - InputOutput symbols do not support size() expressions.
- Parameter — Block parameter that appears on the block parameter mask. The parameter name is defined by the Label of the symbol.
- Persistent — Persistent block data, which retains its value from one time step to the next during simulation.
  You can define a void pointer using the Persistent scope. A void pointer is a pointer that can store any type of data that you create or allocate.

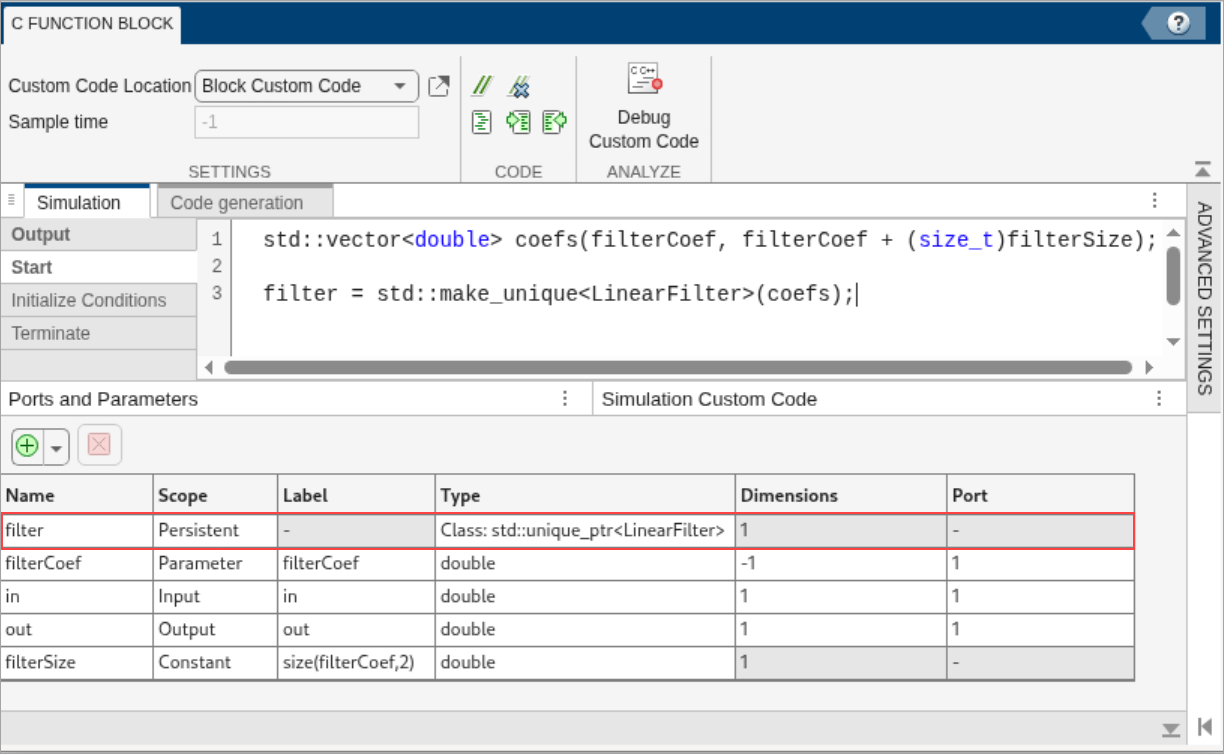

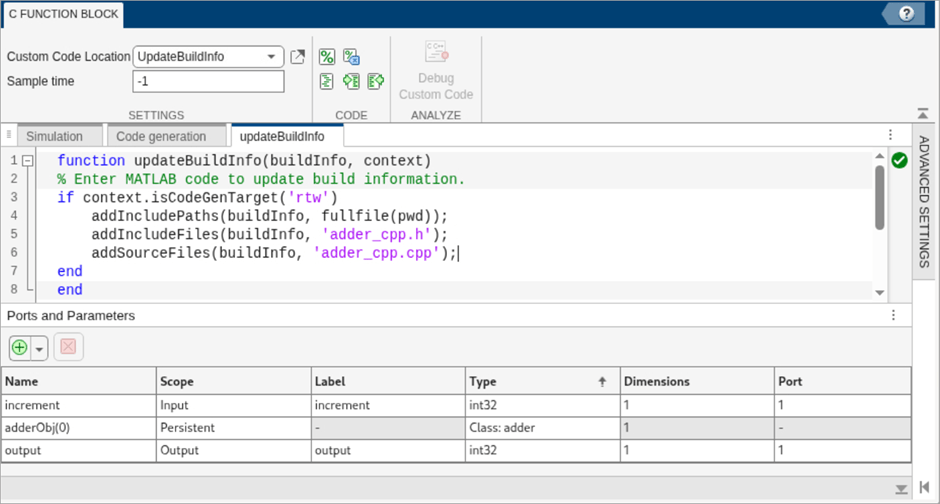

  You can instantiate an object of a C++ class defined in your custom code by defining a symbol with Persistent scope and using Class: ClassName as the Type for the symbol. See Interface with C++ Classes Using C Function Block.
- Constant — Constant value, defined using value-size or numeric expressions.
Label — Label of the symbol. For a symbol with Input, InputOutput, or Output scope, the label appears as the port name on the block. For a symbol with Parameter scope, the label appears on the block parameter mask. If the scope is Constant, the label is the constant expression. You cannot define a label for Persistent scope symbols.

Type — Data type of the symbol. Select a data type from the drop-down list or specify a custom data type.

C++ class types defined in your custom code are supported, as are Simulink.Bus, Simulink Enum, and Simulink.AliasType types. Enter the Type as shown in this table.

Custom type	Specification in Type field
C++ class	`Class:``C++ClassName`
`Simulink.Bus`	`Bus:``BusTypeName`
`Simulink.Enum`	`Enum:``EnumTypeName`
`Simulink.AliasType`	`AliasTypeName`

Size — Size of the symbol data. You can use a size expression to define the size of an output or use -1 to inherit size.
Port — Port index of the symbol. For an Input, InputOutput, or Output symbol, Port specifies the port index on the block of the port or ports corresponding to the symbol. For a Parameter symbol, Port specifies the order that the symbol appears in the block parameter mask.

Programmatic Use

Block Parameter: SymbolSpec

Type: SymbolSpec object

Value: SymbolSpec object

Default: Empty array of Symbol objects

Sample time — Sample period
`-1` (default) | scalar | vector

Sample period, specified in seconds. See Types of Sample Time and Specify Sample Time. If the block defines persistent symbols, you cannot specify a continuous sample time.

Programmatic Use

Block Parameter: SampleTime

Type: string scalar or character vector

Default: "-1"

Block Characteristics

Data Types	`Boolean^a` \| `bus^a` \| `double^a` \| `enumerated^a` \| `fixed point^a` \| `integer^a` \| `single^a`
Direct Feedthrough	`no`
Multidimensional Signals	`yes`
Variable-Size Signals	`no`
Zero-Crossing Detection	`no`
^a Actual data type or capability support depends on block implementation.
