Ideal Transformer

Ideal transformer in electrical systems

•

Libraries:
Simscape / Foundation Library / Electrical / Electrical Elements

Description

The Ideal Transformer block models an ideal power-conserving transformer, described with the following equations:

$$V1=N·V2$$

$$I2=N·I1$$

where:

• V1 is the primary voltage.

• V2 is the secondary voltage.

• I1 is the current flowing into the primary + terminal.

• I2 is the current flowing out of the secondary + terminal.

• N is the winding ratio.

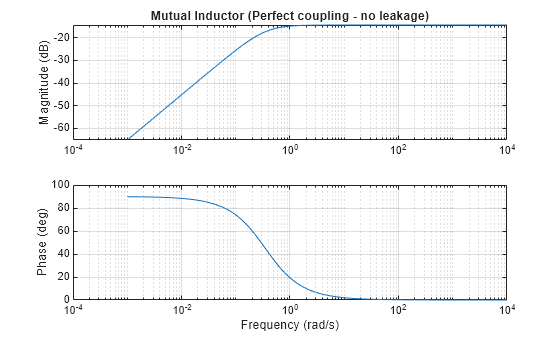

Use this block to represent either an AC transformer or a solid-state DC to DC converter. To model a transformer with inductance and mutual inductance terms, use the Mutual Inductor block.

The two electrical networks connected to the primary and secondary windings must each have their own Electrical Reference block.

Variables

To set the priority and initial target values for the block variables prior to simulation, use the Initial Targets section in the block dialog box or Property Inspector. For more information, see Set Priority and Initial Target for Block Variables.

Nominal values provide a way to specify the expected magnitude of a variable in a model. Using system scaling based on nominal values increases the simulation robustness. Nominal values can come from different sources, one of which is the Nominal Values section in the block dialog box or Property Inspector. For more information, see Modify Nominal Values for a Block Variable.

Examples

Full-Wave Bridge Rectifier

An ideal AC transformer plus full-wave bridge rectifier. It converts 120 volts AC to 12 volts DC. The transformer has a turns ratio of 14, stepping the supply down to 8.6 volts rms, i.e. 8.6*sqrt(2) = 12 volts pk-pk. The full-wave bridge rectifier plus capacitor combination then converts this to DC. The resistor represents a typical load.

• Open Model

Ports

Conserving

1+ — Primary winding positive terminal

electrical

Electrical conserving port associated with the positive terminal of the primary winding.

1- — Primary winding negative terminal

electrical

Electrical conserving port associated with the negative terminal of the primary winding.

2+ — Secondary winding positive terminal

electrical

Electrical conserving port associated with the positive terminal of the secondary winding.

2- — Secondary winding negative terminal

electrical

Electrical conserving port associated with the negative terminal of the secondary winding.

Parameters

Winding ratio — Ratio of primary coil turns to secondary coil turns

1 (default) | positive scalar

Winding ratio of the transformer, which is the ratio of primary coil turns to secondary coil turns.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2007a
