visualizeAlgebraicTopologyTree

R2026b

Visualize tree node of algebraic topology

Since R2026b

Syntax

figure = visualizeAlgebraicTopologyTree(eisfom)

Description

figure = visualizeAlgebraicTopologyTree(eisfom) plots the algebraic topology tree of the EISModel object, eisfom.

Examples

Visualize Circuit Topology as Tree of Series and Parallel Connections

Create a fractional-order equivalent circuit as a resistor in series with a parallel resistor-capacitor network.

eisfom = eisModel("R0+(R1,C1)")

eisfom =
EISModel with properties:

CircuitTopology: "R0+(R1,C1)"
NumParameters: 3
ParameterList: ["R0" "R1" "C1"]
ParameterValues: [0.0250 0.0035 150]
CircuitImpedance: "(R0 + ((R1 * (1/(i*w*C1))) / (R1 + (1/(i*w*C1)))))"
ParameterList: ["R0" "R1" "C1"]

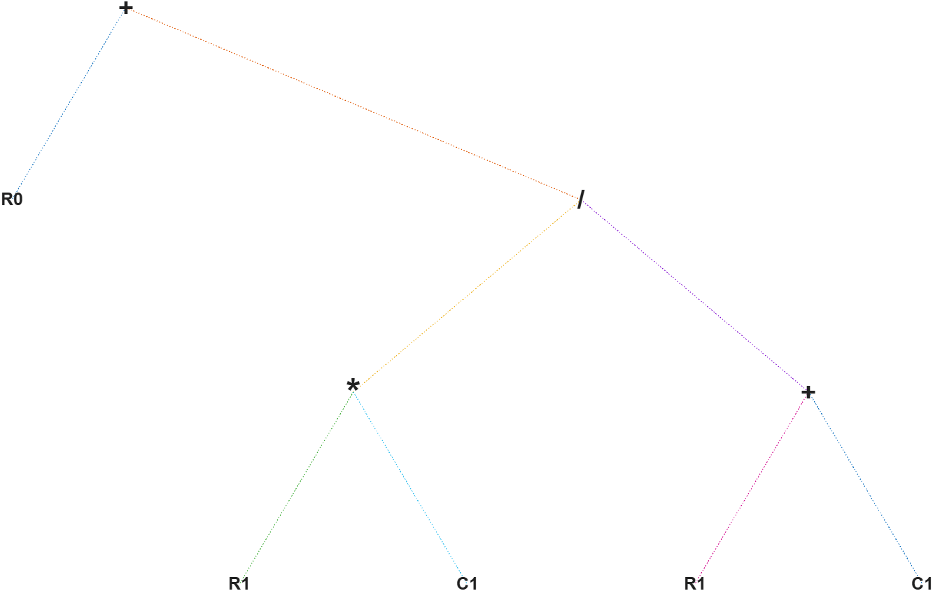

Visualize the circuit topology as an algebraic tree.

Handle = visualizeAlgebraicTopologyTree(eisfom);

Input Arguments

eisfom — Fractional-order equivalent circuit model

EISModel object

Fractional-order equivalent circuit model used to plot the algebraic topology tree, specified as an EISModel object.

Output Arguments

figure — Plot of the algebraic topology tree

Figure object

Figure representing the algebraic topology tree of the eisfom input argument.

Version History

Introduced in R2026b
