satellite

Add satellites to satellite scenario

Description

example

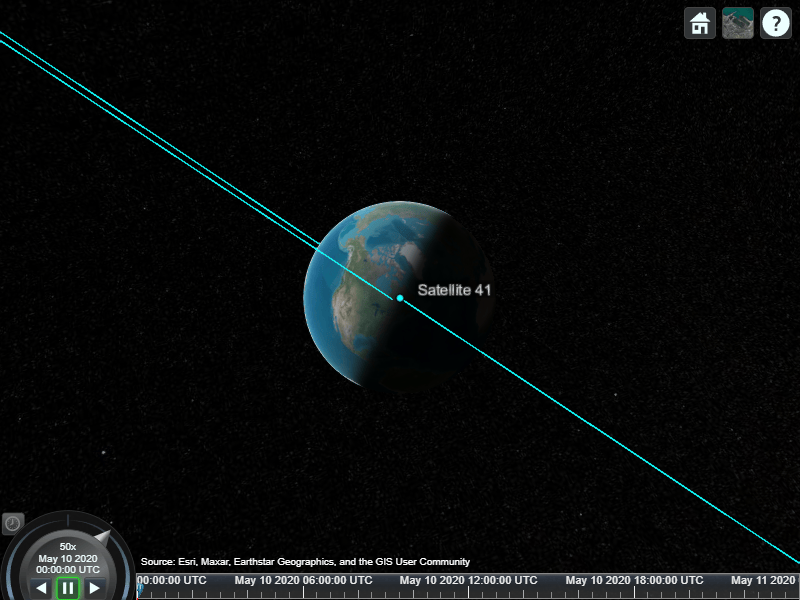

sat = satellite(scenario,file) adds a Satellite object from file to the satellite scenario specified by scenario. The yaw (z) axes of the satellites point toward nadir and the roll (x) axes of the satellites align with their respective inertial velocity vectors.

satellite(scenario,semimajoraxis,eccentricity,inclination,RAAN,argofperiapsis,trueanomaly) adds a Satellite object from Keplerian elements defined in the Geocentric Celestial Reference Frame (GCRF) to the satellite scenario.

example

satellite(scenario,positiontable) adds a Satellite object from position data specified in positiontable (timetable object) to the scenario. This function creates a Satellite with OrbitPropagator="ephemeris".

example

satellite(scenario,positiontable) adds a Satellite object from position data specified in positiontable to the scenario.

example

satellite(scenario,positiontable,velocitytable) adds a Satellite object from position data specified in positiontable (timetable object) and velocity data specified in velocitytable (timetable object) to the scenario. This function creates a Satellite with OrbitPropagator="ephemeris".

satellite(scenario,positiontimeseries) adds a Satellite object from position data specified in positiontimeseries to the scenario. This function creates a Satellite with OrbitPropagator="ephemeris".

satellite(scenario,positiontimeseries,velocitytimeseries) adds a Satellite object to the scenario from position (in meters) data specified in positiontimeseries (timeseries object) and velocity (in meters/second) data specified in velocitytimeseries (timeseries object). This function creates a Satellite with OrbitPropagator="ephemeris".

satellite(___,Name,Value) specifies options using one or more name-value arguments in addition to any input argument combination from previous syntaxes.

sat = satellite(___) returns a vector of handles to the added satellites. Specify any input argument combination from previous syntaxes.

Note

When the AutoSimulate property of the satelliteScenario is false, you can modify the satellite only when the SimulationStatus is NotStarted. You can use the restart function to reset SimulationStatus to NotStarted, but doing so erases the simulation data.

Examples

collapse all

Add four satellites to the satellite scenario from a position timetable to a satellite scenario and visualize their trajectories.

Create a default satellite scenario object.

sc = satelliteScenario;

Load a satellite ephemeris timetable, assuming the data is in the GCRF coordinate frame.

load("timetableSatelliteTrajectory.mat","positionTT");

Add the satellites to the scenario.

sat = satellite(sc,positionTT);

Visualize the trajectories of the satellites.

play(sc);

Create a satellite scenario object.

sc = satelliteScenario;

Load the satellite ephemeris timetable in the Earth Centered Earth Fixed (ECEF) coordinate frame.

load("timetableSatelliteTrajectory.mat","positionTT","velocityTT");

Add four satellites to the scenario.

sat = satellite(sc,positionTT,velocityTT,"CoordinateFrame","ecef");

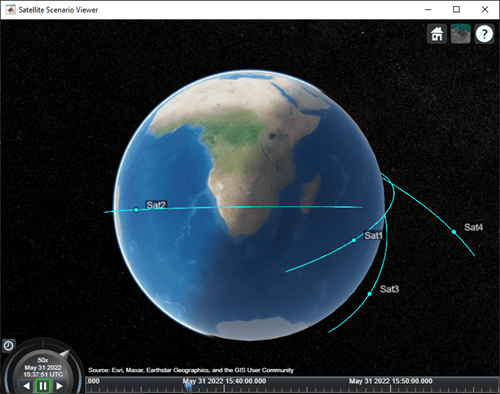

Visualize the trajectories of the satellites.

play(sc);

Create satellite scenario and add ground stations from latitudes and longitudes.

startTime = datetime(2020, 5, 1, 11, 36, 0);
stopTime = startTime + days(1);
sampleTime = 60;
sc = satelliteScenario(startTime, stopTime, sampleTime);
lat = [10];
lon = [-30];
gs = groundStation(sc, lat, lon);

Add satellites using Keplerian elements.

semiMajorAxis = 10000000;
eccentricity = 0;
inclination = 10;
rightAscensionOfAscendingNode = 0;
argumentOfPeriapsis = 0;
trueAnomaly = 0;
sat = satellite(sc, semiMajorAxis, eccentricity, inclination, ...
        rightAscensionOfAscendingNode, argumentOfPeriapsis, trueAnomaly);

Add access analysis to the scenario and obtain the table of intervals of access between the satellite and the ground station.

ac = access(sat, gs);
intvls = accessIntervals(ac)
intvls=8×8 table
       Source              Target          IntervalNumber         StartTime                EndTime           Duration    StartOrbit    EndOrbit
    _____________    __________________    ______________    ____________________    ____________________    ________    __________    ________

    "Satellite 2"    "Ground station 1"          1           01-May-2020 11:36:00    01-May-2020 12:04:00      1680          1            1
    "Satellite 2"    "Ground station 1"          2           01-May-2020 14:20:00    01-May-2020 15:11:00      3060          1            2
    "Satellite 2"    "Ground station 1"          3           01-May-2020 17:27:00    01-May-2020 18:18:00      3060          3            3
    "Satellite 2"    "Ground station 1"          4           01-May-2020 20:34:00    01-May-2020 21:25:00      3060          4            4
    "Satellite 2"    "Ground station 1"          5           01-May-2020 23:41:00    02-May-2020 00:32:00      3060          5            5
    "Satellite 2"    "Ground station 1"          6           02-May-2020 02:50:00    02-May-2020 03:39:00      2940          6            6
    "Satellite 2"    "Ground station 1"          7           02-May-2020 05:59:00    02-May-2020 06:47:00      2880          7            7
    "Satellite 2"    "Ground station 1"          8           02-May-2020 09:06:00    02-May-2020 09:56:00      3000          8            9

Play the scenario to visualize the ground stations.

play(sc)

Create a satellite scenario with a start time of 02-June-2020 8:23:00 AM UTC, and the stop time set to one day later. Set the simulation sample time to 60 seconds.

startTime = datetime(2020,6,02,8,23,0);
stopTime = startTime + days(1);
sampleTime = 60;
sc = satelliteScenario(startTime,stopTime,sampleTime);

Add two satellites to the scenario using their Keplerian elements.

semiMajorAxis = [10000000; 15000000];
eccentricity = [0.01; 0.02];
inclination = [0; 10];
rightAscensionOfAscendingNode = [0; 15];
argumentOfPeriapsis = [0; 30];
trueAnomaly = [0; 20];

sat = satellite(sc, semiMajorAxis, eccentricity, inclination, ...
    rightAscensionOfAscendingNode, argumentOfPeriapsis, trueAnomaly)
sat =
  1×2 Satellite array with properties:

    Name
    ID
    ConicalSensors
    Gimbals
    Transmitters
    Receivers
    Accesses
    GroundTrack
    Orbit
    OrbitPropagator
    MarkerColor
    MarkerSize
    ShowLabel
    LabelFontSize
    LabelFontColor

View the satellites in orbit and the ground tracks over one hour.

show(sat)
groundTrack(sat,'LeadTime',3600)
ans=1×2 object
  1×2 GroundTrack array with properties:

    LeadTime
    TrailTime
    LineWidth
    TrailLineColor
    LeadLineColor
    VisibilityMode

play(sc)

Set up the satellite scenario.

startTime = datetime(2021,8,5);
stopTime = startTime + days(1);
sampleTime = 60;                                      % seconds
sc = satelliteScenario(startTime,stopTime,sampleTime);

Add satellites to the scenario from a SEM almanac file.

sat = satellite(sc,"gpsAlmanac.txt","OrbitPropagator","gps");

Visualize the GPS constellation.

v = satelliteScenarioViewer(sc);

Input Arguments

collapse all

Satellite scenario, specified as a satelliteScenario object.

Type of the file, specified as a character vector or a string scalar. The file can be a TLE file or a SEM almanac file and must exist in the current folder, in a folder on the MATLAB® path, or it must include a full or relative path to a file.

For more information on TLE files, see Two Line Element (TLE) Files.

Data Types: char | string

Keplerian elements defined in the GCRF, specified as a comma-separated list of vectors. The Keplerian elements are:

  • semimajoraxis – This vector defines the semimajor axis of the orbit of the satellite. Each value is equal to half of the longest diameter of the orbit.

  • eccentricity – This vector defines the shape of the orbit of the satellite.

  • inclination – This vector defines the angle between the orbital plane and the xy-plane of the GCRF for each satellite in the range [0,180].

  • RAAN (right ascension of ascending node) – This element defines the angle between the xy-plane of the GCRF and the direction of the ascending node, as seen from the Earth's center of mass for each satellite in the range [0,360). The ascending node is the location where the orbit crosses the xy-plane of the GCRF and goes above the plane.

  • argofperiapsis (argument of periapsis) – This vector defines the angle between the direction of the ascending node and the periapsis, as seen from the Earth's center of mass in the range [0,360). Periapsis is the location on the orbit that is closest to the Earth's center of mass for each satellite.

  • trueanomaly – This vector defines the angle between the direction of the periapsis and the current location of the satellite, as seen from the Earth's center of mass for each satellite in the range [0,360).

Note

All angles defined outside the specified range is automatically converted to the corresponding value within the acceptable range.

For more information on Keplerian elements, see Orbital Elements.

Position data in meters, specified as a timetable created using the timetable function or table function. The positiontable has exactly one monotonically increasing column of rowTimes (datetime or duration) and either:

  • One or more columns of variables, where each column contains data for an individual satellite over time.

  • One column of 2-D data, where the length of one dimension must equal 3 and the remaining dimension defines the number of satellites in the ephemeris.

  • One column of 3-D data, where the length of one dimension must equal 3, one dimension is a singleton, and the remaining dimension defines the number of satellites in the ephemeris.

If rowTimes values are of type duration, time values are measured relative to the current scenario StartTime property. The timetable VariableNames property are used by default if no names are provided as an input. Satellite states are assumed to be in the GCRF unless a CoordinateFrame name-value argument is provided. States are held constant in GCRF for scenario timesteps outside of the time range of positiontable.

Data Types: table | timetable

Velocity data in meters/second, specified as a timetable created using the timetable function or the table function. The velocitytable has exactly one monotonically increasing column of rowTimes (datetime or duration), and either:

  • One or more columns of variables, where each column contains data for an individual satellite over time.

  • One column of 2-D data, where the length of one dimension must equal 3 and the remaining dimension defines the number of satellites in the ephemeris.

  • One column of 3-D data, where the length of one dimension must equal 3, one dimension is a singleton, and the remaining dimension defines the number of satellites in the ephemeris.

If rowTimes values are of type duration, time values are measured relative to the current scenario StartTime property. The timetable VariableNames are used by default if no names are provided as an input. Satellite states are assumed to be in the GCRF unless a CoordinateFrame name-value argument is provided. States are held constant in GCRF for scenario timesteps outside of the time range of velocitytable.

Data Types: table | timetable

Position data in meters, specified as a timeseries object or a tscollection object.

  • If the Data property of the timeseries or tscollection object has two dimensions, one dimension must equal 3, and the other dimension must align with the orientation of the time vector.

  • If the Data property of the timeseries or tscollection has three dimensions, one dimension must equal 3, either the first or the last dimension must align with the orientation of the time vector, and the remaining dimension defines the number of satellites in the ephemeris.

    When timeseries.TimeInfo.StartDate is empty, time values are measured relative to the current scenario StartTime property. The timeseries Name property (if defined) is used by default if no names are provided as inputs. Satellite states are assumed to be in the GCRF unless a CoordinateFrame name-value pair is provided. States are held constant in GCRF for scenario timesteps outside of the time range of positiontimeseries.

Data Types: timeseries | tscollection

Velocity data in meters/second, specified as a timeseries object or a tscollection object.

  • If the Data property of the timeseries or tscollection object has two dimensions, one dimension must equal 3, and the other dimension must align with the orientation of the time vector.

  • If the Data property of the timeseries or tscollection has three dimensions, one dimension must equal 3, either the first or the last dimension must align with the orientation of the time vector, and the remaining dimension defines the number of satellites in the ephemeris.

    When timeseries.TimeInfo.StartDate is empty, time values are measured relative to the current scenario StartTime property. The timeseries Name property (if defined) is used by default if no names are provided as inputs. Satellite states are assumed to be in the GCRF unless a CoordinateFrame name-value pair is provided. States are held constant in GCRF for scenario timesteps outside of the time range of velocitytimeseries.

Data Types: timeseries | tscollection

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: 'Name'='MySatellite' sets the satellite name to 'MySatellite'.

Satellite state coordinate frame, specified as the comma-separated pair consisting of 'CoordinateFrame' and one of these values:

  • "inertial" — For timeseries or timetable data, specifying this value accepts the position and velocity in the GCRF frame.

  • "ecef" — For timeseries or timetable data, specifying this value accepts the position and velocity in the ECEF frame.

  • "geographic" — For timeseries or timetable data, specifying this value accepts the position [lat, lon, altitude], where lat and lon are latitude and longitude in degrees, and altitude is the height above the World Geodetic System 84 (WGS 84) ellipsoid in meters.

    Velocity is in the local NED frame.

Dependencies

To enable this name value argument, ephemeris data inputs (timetable or timeseries).

Data Types: string | char

GPS week number, specified as a datetime scalar. The GPS week number specifies the reference date that the function uses when counting weeks defined in the SEM almanac file. If you do not specify GPSweekepoch, the function uses the datetime scalar that coincides with the latest GPS week number rollover date before the start time.

This argument applies only if you use a SEM almanac file. If you specify GPSweekepoch and you are not using a SEM almanac file, the function ignores the argument value.

Data Types: string | char

Satellite scenario viewer, specified as a scalar, vector, or array of satelliteScenarioViewer objects. If the AutoSimulate property of the scenario is false, adding a satellite to the scenario disables any previously available timeline and playback widgets.

You can set this property only when calling the satellite function. After you call satellite, this property is read-only.

satellite name, specified as a comma-separated pair consisting of 'Name' and a string scalar, string vector, character vector or a cell array of character vectors.

  • If only one satellite is added, specify Name as a string scalar or a character vector.

  • If multiple satellites are added, specify Name as a string scalar, character vector, string vector or a cell array of character vectors. All satellites added as a string scalar or a character vector are assigned the same specified name. The number of elements in the string vector or cell array of character vector must equal the number of satellites being added. Each satellite is assigned the corresponding name from the vector or cell array.

In the default value, idx is the ID of the satellites added by the satellite object function.

Data Types: char | string

This property is read-only.

Set OrbitPropagator on satellite object creation.

Name of the orbit propagator used for propagating the satellite position and velocity, specified as "sgp4", "sdp4", "two-body-keplerian", "ephemeris", or "gps". The value depends on how you specify the satellite.

  • Timetable, table, timeseries, or tscollectionOrbitPropagator is "ephemeris".

  • SEM almanac file — OrbitPropagator can be any value except "ephemeris". The initialization is performed using the "gps" orbit propagator.

  • TLE file — OrbitPropagator can be "two-body-keplerian", "sgp4", or "sdp4". If the orbital period is less than 225 minutes, the initialization is performed using "sgp4". Otherwise, the initialization is performed using "sdp4".

  • Keplerian elements — OrbitPropagator can be "two-body-keplerian", "sgp4", or "sdp4".

If the satellite is initialized using a timetable, table, timeseries object, or tscollection object, the default propagator is "ephemeris". If the initialization is performed using a SEM almanac file, the default propagator is "gps". Otherwise, if the orbital period is less than 225 minutes, the default propagator is "sgp4", else "sdp4".

OrbitPropagator is not available for ephemeris data inputs (timetable or timeseries). In these cases, satellite automatically selects "ephemeris" orbit propagator.

Output Arguments

collapse all

Satellite in the scenario, returned as a Satellite object belonging to the satellite scenario specified by scenario.

You can modify the Satellite object by changing its property values.

Version History

Introduced in R2021a
