slreportgen.report.CFunction Class
Namespace: slreportgen.report
Description
Use an object of the slreportgen.report.CFunction
class to report on a
C Function
block.
By default, a CFunction
object reports:
A table that includes the Description parameter and any custom mask parameters
A table that lists the contents of the Symbols parameter
Sections for the C code defined by the Output Code, Start Code, and Terminate Code parameters
Use the object properties to exclude or modify the reported information.
Note
To use a CFunction
reporter in a report, you must create the report using
the slreportgen.report.Report
class.
The slreportgen.report.CFunction
class is a handle
class.
Creation
Description
creates a rptr
= slreportgen.report.CFunctionCFunction
object with default property values. You must specify
the C Function block to report by setting the Object
property. Use other properties to specify report options.
specifies the C Function block to report and sets the rptr
= slreportgen.report.CFunction(cFunctionBlock
)Object
property to cFunctionBlock
.
sets properties using name-value arguments. For example, rptr
= slreportgen.report.CFunction(Name=Value
)rptr =
slreportgen.report.CFunction(Object="slrgex_cfunction/C Function")
sets the
Object
property to "slrgex_cfunction/C Function"
. You can specify multiple
name-value arguments.
Properties
Object
— Simulink® C Function block to report
[]
(default) | string scalar | character vector | handle | slreportgen.report.BlockResult
object
Simulink C Function block to report, specified as one of these values:
A string scalar or character vector that contains the path of a C Function block
A handle to a C Function block
An
slreportgen.finder.BlockResult
object that represents the block
Note
If you use a finder to find C Function blocks and add the results
directly to a report, the blocks are reported using
slreportgen.report.CFunction
reporters, instead of
slreportgen.report.SimulinkObjectProperties
reporters.
IncludeObjectProperties
— Whether to include table of block parameters
true
(default) | false
Whether to include a table of block parameters, specified as true
or false
. If this property is true
, the reporter
generates a table that includes the Description parameter and any
custom mask parameters, by default. The Output Code,
Start Code, Terminate Code, and
Symbols parameters are not included in this table because they
are reported in separate sections. Use the ObjectPropertiesReporter
property of this reporter to specify the
parameters that the table includes or to customize the table format. If the parameters
are empty, the reporter does not generate a table.
Data Types: logical
IncludeSymbols
— Whether to include symbols table
true
(default) | false
Whether to include a table of the symbols used by the C Function
block, specified as true
or false
.
Data Types: logical
IncludeOutputCode
— Whether to include output code
true
(default) | false
Whether to include the C code used to compute the outputs of the C
Function block, specified as true
or
false
.
Data Types: logical
IncludeStartCode
— Whether to include start code
true
(default) | false
Whether to include the C code used to compute the state of the C
Function block at the start of the simulation, specified as
true
or false
.
Data Types: logical
IncludeTerminateCode
— Whether to include terminate code
true
(default) | false
Whether to include the C code that the C Function block executes when it terminates,
specified as true
or false
.
Data Types: logical
IncludeInitializeConditionsCode
— Whether to include initialize code
true
(default) | false
Whether to include initialization C code that executes whenever the C
Function block is enabled, specified as true
or
false
. If this property is true
, the reporter
includes the condition initialization code in the report. If the C
Function block does not define condition initialization code, nothing is added
to the report.
Data Types: logical
ObjectPropertiesReporter
— Formatter for block properties table
slreportgen.report.SimulinkObjectProperties
object
Formatter for the C Function block properties table, specified as an
slreportgen.report.SimulinkObjectProperties
object. The default value of this
property is an empty slreportgen.report.SimulinkObjectProperties
object. You can customize the
appearance of the block properties table by modifying the properties of the default
object or by replacing it with another SimulinkObjectProperties
object.
You can specify the properties to display in this table by using the
Properties
property of the
SimulinkObjectProperties
object. If Properties
is
empty, the reporter automatically determines which properties to display based on the C
Function block parameters.
SymbolsReporter
— Formatter for symbols table
mlreportgen.report.BaseTable
object
Formatter for the table of symbols used by the C Function block, specified as an
mlreportgen.report.BaseTable
object. The default value of this property is an
empty BaseTable
object with the StyleName
property
set to "CFunctionSymbolsTable"
. You can customize the appearance of
the table of symbols by modifying the properties of the default object or by replacing
it with another BaseTable
object. Any content added to the title property
of the BaseTable
object appears before the default generated table title
in the report.
CodeTitleFormatter
— Paragraph formatter for code section titles
mlreportgen.dom.Paragraph
object
Paragraph formatter for the titles of the output, start, and terminate code sections
of the report, specified as an mlreportgen.dom.Paragraph
object. The
default value of this property is an empty Paragraph
object with the
StyleName
property set to "CFunctionCodeTitle"
.
You can customize the appearance of the code section titles by modifying the properties
of the default object or by replacing it with another Paragraph
object. Any content added to the Paragraph
object in this property
appears before the code titles in the report.
CodeFormatter
— Formatter for C code
mlreportgen.dom.Preformatted
object
Formatter for the C code in the output, start and terminate code sections of the
report, specified as an mlreportgen.dom.Preformatted
object. The default value of this property is an
empty Preformatted
object with StyleName
set to
"CFunctionCode"
. You can customize the appearance of the C code by
modifying the properties of the default object or by replacing it with another
Preformatted
object. Any content added to the
Preformatted
object in this property appears before the formatted code
in the report.
CodeTypePolicy
— Type of C code to include
"both"
(default) | "simulation"
| "code generation"
Since R2024a
Type of C code to include, specified as "both"
,
"simulation"
, or "code generation"
. This
property applies only if a C Function block is configured to use different C code in
generated code than it uses for simulation. Otherwise this property is ignored.
"both"
(default) — Include C code used during simulation and C code used in generated code."simulation"
— Include only C code used during simulation."code generation"
— Include only C code used in generated code.
Data Types: char
| string
TemplateSrc
— Source of template for reporter
[]
(default) | character vector | string scalar | reporter or report | DOM document or document part
Source of the template for this reporter, specified in one of these ways:
Character vector or string scalar that specifies the path of the file that contains the template for this reporter
Reporter or report whose template is used for this reporter or whose template library contains the template for this reporter
DOM document or document part whose template is used for this reporter or whose template library contains the template for this reporter
The specified template must be the same type as the report to which you
append this report. For example, for a Microsoft® Word report, TemplateSrc
must be a Word reporter template.
If the TemplateSrc
property is empty, this reporter uses the
default reporter template for the output type of the report.
TemplateName
— Name of template for this reporter
character vector | string scalar
Name of the template for this reporter, specified as a character vector or string scalar.
The template for this reporter must be in the template library of the template specified by
the TemplateSrc
property of this reporter.
Data Types: char
| string
LinkTarget
— Hyperlink target for this reporter
[]
(default) | character vector | string scalar | mlreportgen.dom.LinkTarget
object
Hyperlink target for this reporter, specified as a character vector or string scalar
that specifies the link target ID, or an mlreportgen.dom.LinkTarget
object. A character vector or string scalar
value converts to a LinkTarget
object. The link target immediately
precedes the content of this reporter in the output report.
Methods
Public Methods
slreportgen.report.CFunction.createTemplate | Create C Function block reporter template |
slreportgen.report.CFunction.customizeReporter | Create subclass of slreportgen.report.CFunction
class |
slreportgen.report.CFunction.getClassFolder | Get location of folder that contains the
slreportgen.report.CFunction class definition file |
copy | Create copy of a Simulink reporter object and make deep copies of certain property values |
getImpl | Get implementation of reporter |
Examples
Report on a C Function Block
This example generates a report that includes information about a C Function block used in a model.
Import the Report API packages so that you do not have to use long, fully qualified class names.
import mlreportgen.report.* import slreportgen.report.*
Create a report.
rpt = slreportgen.report.Report("output","pdf");
Load a model that has a C Function block.
model_name = "slrgex_cfunction"; cFcnObj = "slrgex_cfunction/C Function"; load_system(model_name);
Create a chapter reporter.
chapter = Chapter(cFcnObj);
Create a C Function block reporter. By default, the reporter includes the Output Code, Start Code, Terminate Code, and Symbols parameters, as well as any other block parameters in the report. The Terminate Code parameter of the C Function block in this example is empty.
rptr = CFunction(cFcnObj);
Add the C Function reporter to the chapter and chapter to the report.
append(chapter,rptr); append(rpt,chapter);
Close and view the report.
close(rpt); close_system(model_name); rptview(rpt);

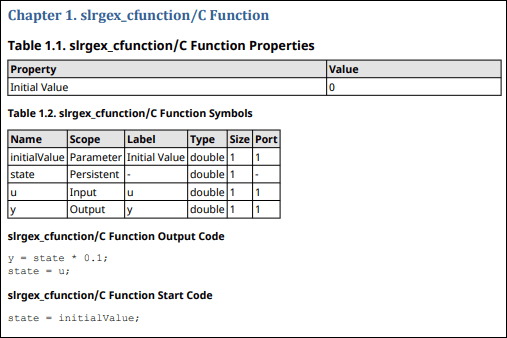

Here is the C Function block information in the report:
Version History
Introduced in R2021bR2024a: Choose which C code to include when reporting a C Function block
If your C Function block is configured to use different C code in
generated code than it uses for simulation, you can now choose which C code to report. You
can include generated code only, simulation code only, or both generated and simulation code
by setting the slreportgen.report.CFunction
CodeTypePolicy.
