mlreportgen.report.BaseTable Class

Namespace: mlreportgen.report
Superclasses: mlreportgen.report.Reporter

Create table reporter

Description

Use an object of the mlreportgen.report.BaseTable class to create a reporter for a table that has a title.

The mlreportgen.report.BaseTable class is a handle class.

Class Attributes

HandleCompatible

true

Creation

Description

table = mlreportgen.report.BaseTable creates an empty table reporter. Use the reporter properties to specify the table content, title, style, and width.

table = mlreportgen.report.BaseTable(content) creates a table reporter and sets the Content property to content.

table = mlreportgen.report.BaseTable(Name=Value) sets properties using name-value pairs. You can specify multiple name-value pair arguments in any order.

Properties

Title — Table title

character vector | string scalar | ...

Table title, specified as one of these values:

• String scalar or character vector

• DOM element object

• 1-by-N or N-by-1 array of strings or DOM element objects

• 1-by-N or N-by-1 cell array of strings, character vectors, or DOM element objects

• Hole reporter returned by the getTitleReporter method

If the title value is inline content, which is content included in a paragraph, the table reporter uses a template stored in its template library to format the title. The template automatically numbers the table title using a format that depends on whether the table is in a numbered or unnumbered chapter.

• A table in a numbered chapter has a title text prefix of the form "Table N.M" where N is the chapter number and M is the table number in the chapter. For example, the prefix for the third table in the second chapter of the report is Table 2.3.

• A table in unnumbered chapter has a title text prefix of the form "Table N" where N is 1 for the first table in the report, 2 for the second table, and so on.

In many non-English locales, the title prefix is translated to the language and format of the locale. See the Locale property of mlreportgen.report.Report for a list of translated locales.

Content — Table content

mlreportgen.dom.Table object | mlreportgen.dom.FormalTable object | mlreportgen.dom.MATLABTable object | ...

Table content, specified as one of these values:

• mlreportgen.dom.Table object

• mlreportgen.dom.FormalTable object

• mlreportgen.dom.MATLABTable object

• Two-dimensional array or cell array of DOM or built-in MATLAB^® objects

• Hole reporter returned by getContentReporter method

Use the BaseTable constructor or add method to set this property. You cannot set it directly.

TableStyleName — Style to apply to table

character vector | string scalar

Name of the style to apply to the table, specified as a character vector or string scalar. The specified style must be a table style defined in the template used by the report to which you append this table or in the template of a reporter added to the report.

If TableStyleName is empty, the table style is the default table style defined by the template of the reporter, which is a grid.

Data Types: char | string

TableWidth — Width of the table

[] | character vector | string scalar

Width of this table, specified as a character vector or string scalar that consists of a number followed by an abbreviation of a unit of measurement. Valid abbreviations are:

• "px" — pixels

• "cm" — centimeters

• "in" — inches

• "mm" — millimeters

• "pc" — picas

• "pt" — points

Data Types: char | string

MaxCols — Maximum number of columns to display per table slice

Inf (default) | positive integer

Maximum number of columns to display per table slice, specified as Inf or as a positive integer. If the value of this property is Inf, all original table columns are included in a single table. A MaxCols value greater than or equal to the number of table columns also produces a single table with all columns. Large table data sets may be illegible. Set this property to the number of columns from the original table that fit legibly on a page. To determine an optimal value, iterate setting the MaxCols value and viewing the report.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

RepeatCols — Number of initial columns to repeat per slice

0 (default) | positive integer

Number of initial columns to repeat per slice, specified as 0 or a positive integer. A nonzero number, n, repeats the first n columns of the original table in each slice. The MaxCols property value includes the RepeatCols property value. For example, if MaxCols is 6 and RepeatCols is 2, each table slice has a total of six columns with the first two columns repeated from the original table.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

TableSliceTitleStyleName — Name of style applied to sliced table title

[] (default) | character vector | string scalar

Name of the custom style to apply to the titles of table slices, specified as a string or a character vector. The specified style must be defined in the report to which this reporter is added. If this property is empty ('', "", or []), the slice titles use the default style defined in the reporter template.

Data Types: char | string

TableEntryUpdateFcn — Update table entries callback

[] (default) | function handle

Update table entries callback, specified as a function handle. The callback function accepts an mlreportgen.dom.TableEntry object as the input argument. Appending the BaseTable object to a report triggers the callback function once for each table entry before the table is appended to the report. Use this function to customize the appearance of table entries based on the content of the entries. For example, see Customize Table Entries by Content in a PDF Report.

Attributes:

GetAccess	public
SetAccess	public

TemplateSrc — Source of template for reporter

[] (default) | character vector | string scalar | reporter or report | DOM document or document part

Source of the template for this reporter, specified in one of these ways:

• Character vector or string scalar that specifies the path of the file that contains the template for this reporter

• Reporter or report whose template is used for this reporter or whose template library contains the template for this reporter

• DOM document or document part whose template is used for this reporter or whose template library contains the template for this reporter

The specified template must be the same type as the report to which you append this report. For example, for a Microsoft^® Word report, TemplateSrc must be a Word reporter template. If the TemplateSrc property is empty, this reporter uses the default reporter template for the output type of the report.

TemplateName — Name of template for this reporter

character vector | string scalar

Name of the template for this reporter, specified as a character vector or string scalar. The template for this reporter must be in the template library of the template specified by the TemplateSrc property of this reporter.

Data Types: char | string

LinkTarget — Hyperlink target for this reporter

[] (default) | character vector | string scalar | mlreportgen.dom.LinkTarget object

Hyperlink target for this reporter, specified as a character vector or string scalar that specifies the link target ID, or an mlreportgen.dom.LinkTarget object. A character vector or string scalar value converts to a LinkTarget object. The link target immediately precedes the content of this reporter in the output report.

Methods

Public Methods

Method	Purpose
mlreportgen.report.BaseTable.createTemplate	Create table template
mlreportgen.report.BaseTable.customizeReporter	Create custom base table reporter class
mlreportgen.report.BaseTable.getClassFolder	Get base table class definition file location
getContentReporter	Get base table content hole reporter
getTitleReporter	Get base table title reporter
getImpl	Get implementation of reporter
copy	Create copy of reporter object and make deep copies of property values that reference a reporter, ReporterLayout, or DOM element object

Examples

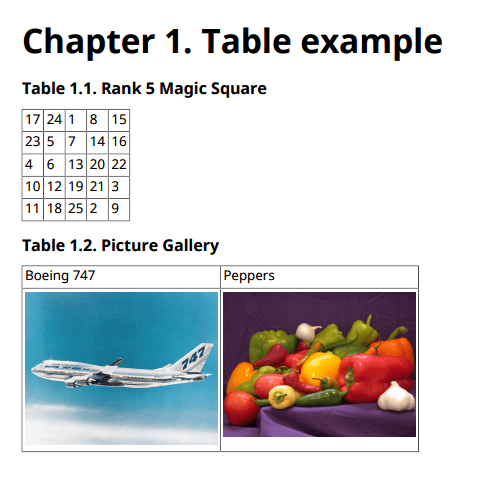

Add Tables with Titles to a Report

Add two tables that have titles to a report. The first table is a rank 5 magic square. The second table includes two images.

Run the following command to access the supporting files used in this example.

openExample('rptgen/MatlabReportGeneratorSupportFilesExample');

import mlreportgen.report.*
import mlreportgen.dom.*

rpt = Report("tables");
chapter = Chapter();
chapter.Title = "Table example";
add(rpt,chapter);

table = BaseTable(magic(5));
table.Title = "Rank 5 Magic Square";
add(rpt,table);

add(rpt,Paragraph());
imgSize = {Height("2in"),Width("2in")};
img1 = Image(which("b747.jpg"));
img1.Style = imgSize;
img2 = Image(which("peppers.png"));
img2.Style = imgSize;
table = BaseTable({"Boeing 747" "Peppers"; img1, img2});
table.Title = "Picture Gallery";
add(rpt,table);

delete(gcf);
rptview(rpt);

Customize Table Entries by Content in a PDF Report

This example shows how to customize table entries, based on the content of the entries when using an mlreportgen.report.BaseTable reporter. You can run this example only on MATLAB$${}^{\circledR }$$ version R2022a or later.

Import these packages, so that you do not have to use long, fully qualified class names.

import mlreportgen.dom.*
import mlreportgen.report.*

Create a table with student names and grades.

Student_names = ["Charlie","Sarah","John","Teena","Alfred","Emma","Bill","Tyler"]';
Student_grades = [83,42,75,98,78,49,91,88]';
studentsTable = FormalTable(["Student Name","Student Grade"],[Student_names,Student_grades]);
studentsTable.Header.Style{end+1} = BackgroundColor("silver");
studentsTable.Width = "250pt";

Create an mlreportgen.dom.BaseTable reporter with the students table.

baseTabReporter = BaseTable(studentsTable);

Assign a handle of the callback function tabEntryUpdateCB, that is defined in the file tabEntryUpdateCB.mlx, to the TableEntryUpdateFcn property of the reporter.

Use the command edit tabEntryUpdateCB in the command line to see the code of the callback function.

baseTabReporter.TableEntryUpdateFcn = @tabEntryUpdateCB;

Create an mlreportgen.dom.Report of type PDF, then append the base table reporter to the report.

document = Report("Update_table_entries_example_report","pdf");
append(document,baseTabReporter);

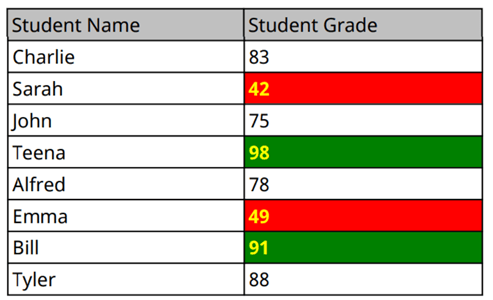

Close and view the report.

close(document);
rptview(document);

Version History

Introduced in R2017b
