# assembleFEMatrices

Assemble finite element matrices

## Syntax

## Description

assembles finite element matrices using the input
time or solution specified in the
`FEM`

= assembleFEMatrices(___,`state`

)`state`

structure array. The
function uses the `time`

field of
the structure for time-dependent models and the
solution field `u`

for nonlinear
models. You can use this argument with any of the
previous syntaxes.

## Examples

### Finite Element Matrices for 2-D Problem

Create a PDE model for the Poisson equation on an L-shaped membrane with zero Dirichlet boundary conditions.

model = createpde; geometryFromEdges(model,@lshapeg); specifyCoefficients(model,m=0,d=0,c=1,a=0,f=1); applyBoundaryCondition(model,"dirichlet", ... edge=1:model.Geometry.NumEdges, ... u=0);

Generate a mesh and obtain the default finite element matrices for the problem and mesh.

generateMesh(model,Hmax=0.2); FEM = assembleFEMatrices(model)

`FEM = `*struct with fields:*
K: [401x401 double]
A: [401x401 double]
F: [401x1 double]
Q: [401x401 double]
G: [401x1 double]
H: [80x401 double]
R: [80x1 double]
M: [401x401 double]

### Specified Set of Finite Element Matrices

Make computations faster by specifying which finite element matrices to assemble.

Create an `femodel`

object for steady-state thermal analysis and include the geometry of the built-in function `squareg`

.

model = femodel(AnalysisType="thermalSteady", ... Geometry=@squareg);

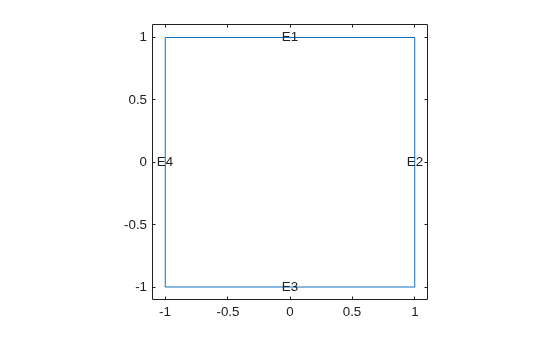

Plot the geometry with the edge labels.

```
pdegplot(model,EdgeLabels="on")
xlim([-1.1 1.1])
ylim([-1.1 1.1])
```

Specify the thermal conductivity of the material and the internal heat source.

```
model.MaterialProperties = ...
materialProperties(ThermalConductivity=0.2);
model.FaceLoad = faceLoad(Heat=10);
```

Set the boundary conditions.

model.EdgeBC([1,3]) = edgeBC(Temperature=100);

Generate a mesh.

model = generateMesh(model);

Assemble the stiffness and mass matrices.

`FEM_KM = assembleFEMatrices(model,"KM")`

`FEM_KM = `*struct with fields:*
K: [1529x1529 double]
M: [1529x1529 double]

Now, assemble the finite element matrices M, K, A, and F.

`FEM_MKAF = assembleFEMatrices(model,"MKAF")`

`FEM_MKAF = `*struct with fields:*
M: [1529x1529 double]
K: [1529x1529 double]
A: [1529x1529 double]
F: [1529x1 double]

The four matrices M, K, A, and F correspond to discretized versions of the PDE coefficients m, c, a, and f. These four matrices also represent the domain of the finite-element model of the PDE. Instead of specifying them explicitly, you can use the `domain`

argument.

`FEMd = assembleFEMatrices(model,"domain")`

`FEMd = `*struct with fields:*
M: [1529x1529 double]
K: [1529x1529 double]
A: [1529x1529 double]
F: [1529x1 double]

The four matrices Q, G, H, and R, correspond to discretized versions of q, g, h, and r in the Neumann and Dirichlet boundary condition specification. These four matrices also represent the boundary of the finite-element model of the PDE. Use the `boundary`

argument to assemble only these matrices.

`FEMb = assembleFEMatrices(model,"boundary")`

`FEMb = `*struct with fields:*
H: [74x1529 double]
R: [74x1 double]
G: [1529x1 double]
Q: [1529x1529 double]

### Finite Element Matrices with `nullspace`

and `stiff-spring`

Methods

Create a PDE model for the Poisson equation on an L-shaped membrane with zero Dirichlet boundary conditions.

model = createpde; geometryFromEdges(model,@lshapeg); specifyCoefficients(model,m=0,d=0,c=1,a=0,f=1); applyBoundaryCondition(model,"dirichlet", ... Edge=1:model.Geometry.NumEdges, ... u=0);

Generate a mesh.

generateMesh(model,Hmax=0.2);

Obtain the finite element matrices after imposing the boundary condition using the null-space approach. This approach eliminates the Dirichlet degrees of freedom and provides a reduced system of equations.

`FEMn = assembleFEMatrices(model,"nullspace")`

`FEMn = `*struct with fields:*
Kc: [321x321 double]
Fc: [321x1 double]
B: [401x321 double]
ud: [401x1 double]
M: [321x321 double]

Obtain the solution to the PDE using the `nullspace`

finite element matrices.

un = FEMn.B*(FEMn.Kc\FEMn.Fc) + FEMn.ud;

Compare this result to the solution given by `solvepde`

. The two solutions are identical.

u1 = solvepde(model); norm(un - u1.NodalSolution)

ans = 0

Obtain the finite element matrices after imposing the boundary condition using the stiff-spring approach. This approach retains the Dirichlet degrees of freedom, but imposes a large penalty on them.

`FEMs = assembleFEMatrices(model,"stiff-spring")`

`FEMs = `*struct with fields:*
Ks: [401x401 double]
Fs: [401x1 double]
M: [401x401 double]

Obtain the solution to the PDE using the stiff-spring finite element matrices. This technique gives a less accurate solution.

us = FEMs.Ks\FEMs.Fs; norm(us - u1.NodalSolution)

ans = 0.0098

### Finite Element Matrices for Time-Dependent Problem

Assemble finite element matrices for the first and last time steps of a transient structural problem.

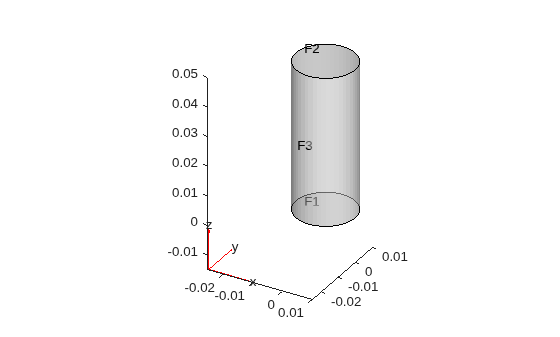

Create the geometry and plot a cylinder geometry.

```
gm = multicylinder(0.01,0.05);
addVertex(gm,Coordinates=[0,0,0.05]);
pdegplot(gm,FaceLabels="on",FaceAlpha=0.5)
```

Create an `femodel`

object for transient structural analysis and include the geometry in the model.

model = femodel(AnalysisType="structuralTransient", ... Geometry=gm);

Specify Young's modulus and Poisson's ratio.

model.MaterialProperties = ... materialProperties(YoungsModulus=201E9, ... PoissonsRatio=0.3, ... MassDensity=7800);

Specify that the bottom of the cylinder is a fixed boundary.

`model.FaceBC(1) = faceBC(Constraint="fixed");`

Create a function specifying a harmonic pressure load.

function Tn = sinusoidalLoad(load,location,state,Frequency,Phase) if isnan(state.time) Tn = NaN*(location.nx); return end if isa(load,"function_handle") load = load(location,state); else load = load(:); end % Transient model excited with harmonic load Tn = load.*sin(Frequency.*state.time + Phase); end

Apply the harmonic pressure on the top of the cylinder.

```
Pressure = 5e7;
Frequency = 50;
Phase = 0;
pressurePulse = @(location,state) ...
sinusoidalLoad(Pressure,location,state,Frequency,Phase);
model.FaceLoad(2) = faceLoad(Pressure=pressurePulse);
```

Specify the zero initial displacement and velocity.

```
model.CellIC = cellIC(Displacement=[0;0;0], ...
Velocity=[0;0;0]);
```

Generate a linear mesh.

`model = generateMesh(model,GeometricOrder="linear");`

Assemble the finite element matrices for the initial time step.

tlist = linspace(0,1,300); state.time = tlist(1); FEM_domain = assembleFEMatrices(model,state)

`FEM_domain = `*struct with fields:*
K: [6645x6645 double]
A: [6645x6645 double]
F: [6645x1 double]
Q: [6645x6645 double]
G: [6645x1 double]
H: [252x6645 double]
R: [252x1 double]
M: [6645x6645 double]

Pressure applied at the top of the cylinder is the only time-dependent quantity in the model. To model the dynamics of the system, assemble the boundary-load finite element matrix G for the initial, intermediate, and final time steps.

```
state.time = tlist(1);
FEM_boundary_init = assembleFEMatrices(model,"G",state)
```

`FEM_boundary_init = `*struct with fields:*
G: [6645x1 double]

```
state.time = tlist(floor(length(tlist)/2));
FEM_boundary_half = assembleFEMatrices(model,"G",state)
```

`FEM_boundary_half = `*struct with fields:*
G: [6645x1 double]

```
state.time = tlist(end);
FEM_boundary_final = assembleFEMatrices(model,"G",state)
```

`FEM_boundary_final = `*struct with fields:*
G: [6645x1 double]

### Finite Element Matrices for Nonlinear Problem

Assemble finite element matrices for a heat transfer problem with temperature-dependent thermal conductivity.

Create a 2-D geometry by drawing one rectangle the size of the block and a second rectangle the size of the slot.

r1 = [3 4 -.5 .5 .5 -.5 -.8 -.8 .8 .8]; r2 = [3 4 -.05 .05 .05 -.05 -.4 -.4 .4 .4]; gdm = [r1; r2]';

Subtract the second rectangle from the first to create the block with a slot.

g = decsg(gdm,'R1-R2',['R1'; 'R2']');

Create an `femodel`

object for steady-state thermal analysis and include the geometry in the model.

model = femodel(AnalysisType="thermalSteady", ... Geometry=g);

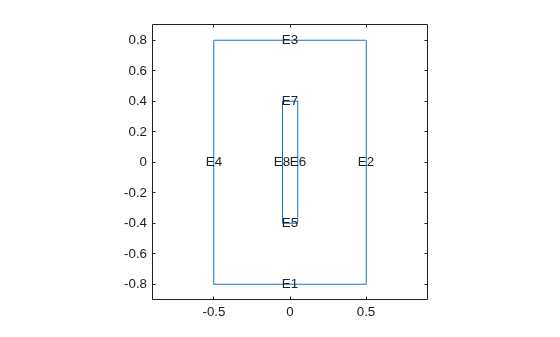

Plot the geometry.

```
pdegplot(model,EdgeLabels="on");
axis([-.9 .9 -.9 .9]);
```

Set the temperature on the left edge to 100 degrees. Set the heat flux out of the block on the right edge to -10. The top and bottom edges and the edges inside the cavity are all insulated: there is no heat transfer across these edges.

model.EdgeBC(6) = edgeBC(Temperature=100); model.EdgeLoad(1) = edgeLoad(Heat=-10);

Specify the thermal conductivity of the material as a simple linear function of temperature `u`

.

```
k = @(~,state) 0.7+0.003*state.u;
model.MaterialProperties = ...
materialProperties(ThermalConductivity=k);
```

Specify the initial temperature.

model.FaceIC = faceIC(Temperature=0);

Generate a mesh.

model = generateMesh(model);

Calculate the steady-state solution.

Rnonlin = solve(model);

Because the thermal conductivity is nonlinear (depends on the temperature), compute the system matrices corresponding to the converged temperature. Assign the temperature distribution to the `u`

field of the `state`

structure array. Because the `u`

field must contain a row vector, transpose the temperature distribution.

state.u = Rnonlin.Temperature.';

Assemble finite element matrices using the temperature distribution at the nodal points.

`FEM = assembleFEMatrices(model,"nullspace",state)`

`FEM = `*struct with fields:*
Kc: [1285x1285 double]
Fc: [1285x1 double]
B: [1308x1285 double]
ud: [1308x1 double]
M: [1285x1285 double]

Compute the solution using the system matrices to verify that they yield the same temperature as `Rnonlin`

.

u = FEM.B*(FEM.Kc\FEM.Fc) + FEM.ud;

Compare this result to the solution given by `solve`

.

norm(u - Rnonlin.Temperature)

ans = 1.8555e-06

## Input Arguments

`model`

— Model object

`femodel`

object | `PDEModel`

object | `ThermalModel`

object | `StructuralModel`

object | `ElectromagneticModel`

object

**Note**

Domain-specific structural, heat transfer, and electromagnetic workflows are not recommended. New features might not be compatible with these workflows. For help migrating your existing code to the unified finite element workflow, see Migration from Domain-Specific to Unified Workflow.

Model object, specified as an
`femodel`

object,
`PDEModel`

object,
`ThermalModel`

object,
`StructuralModel`

object, or
`ElectromagneticModel`

object.

`assembleFEMatrices`

does
not support assembling FE matrices for 3-D
magnetostatic analysis.

**Example: **```
model =
femodel
```

**Example: **```
model =
createpde
```

`bcmethod`

— Method for including boundary conditions

`"none"`

(default) | `"nullspace"`

| `"stiff-spring"`

Method for including boundary conditions, specified as `"none"`

,
`"nullspace"`

, or
`"stiff-spring"`

. For more
information, see Algorithms.

**Example: **`FEM = assembleFEMatrices(model,"nullspace")`

**Data Types: **`char`

| `string`

`matrices`

— Matrices to assemble

matrix identifiers | `"boundary"`

| `"domain"`

Matrices to assemble, specified as:

Matrix identifiers, such as

`"F"`

,`"MKF"`

,`"K"`

, and so on — Assemble the corresponding matrices. Each uppercase letter represents one matrix:`K`

,`A`

,`F`

,`Q`

,`G`

,`H`

,`R`

,`M`

, and`T`

. You can combine several letters into one character vector or string, such as`"MKF"`

.`"boundary"`

— Assemble all matrices related to geometry boundaries.`"domain"`

— Assemble all domain-related matrices.

**Example: **```
FEM =
assembleFEMatrices(model,"KAF")
```

**Data Types: **`char`

| `string`

`state`

— Time for time-dependent models and solution for nonlinear models

structure array

Time for time-dependent models and solution for nonlinear models, specified in a structure array. The array fields represent the following values:

`state.time`

contains a nonnegative number specifying the time value for time-dependent models.`state.u`

contains a solution matrix of size*N*-by-*Np*that can be used to assemble matrices in a nonlinear problem setup, where coefficients are functions of`state.u`

. Here,*N*is the number of equations in the system, and*Np*is the number of nodes in the mesh.

**Example: **```
state.time = tlist(end);
FEM =
assembleFEMatrices(model,"boundary",state)
```

## Output Arguments

`FEM`

— Finite element matrices

structural array

Finite element matrices, returned as a structural array. Use the `bcmethod`

and `matrices`

arguments to
specify which finite element matrices you want to
assemble.

The fields in the structural array depend
on `bcmethod`

:

If the value is

`"none"`

, then the fields are`K`

,`A`

,`F`

,`Q`

,`G`

,`H`

,`R`

, and`M`

.If the value is

`"nullspace"`

, then the fields are`Kc`

,`Fc`

,`B`

,`ud`

, and`M`

.If the value is

`"stiff-spring"`

, then the fields are`Ks`

,`Fs`

, and`M`

.

The fields in the structural array also
depend on `matrices`

:

If the value is

`boundary`

, then the fields are all matrices related to geometry boundaries.If the value is

`domain`

, then the fields are all domain-related matrices.If the value is a matrix identifier or identifiers, such as

`"F"`

,`"MKF"`

,`"K"`

, and so on, then the fields are the corresponding matrices.

For more information, see Algorithms.

## Algorithms

Partial Differential Equation Toolbox™ solves equations of the form

$$m\frac{{\partial}^{2}u}{\partial {t}^{2}}+d\frac{\partial u}{\partial t}-\nabla \xb7\left(c\otimes \nabla u\right)+au=f$$

and eigenvalue equations of the form

$$\begin{array}{l}-\nabla \xb7\left(c\otimes \nabla u\right)+au=\lambda du\\ \text{or}\\ -\nabla \xb7\left(c\otimes \nabla u\right)+au={\lambda}^{2}mu\end{array}$$

with the Dirichlet boundary conditions, **hu** = **r**, and
Neumann boundary conditions, $$n\text{\hspace{0.17em}}\xb7\text{\hspace{0.17em}}\left(c\otimes \nabla u\right)+qu=g$$.

`assembleFEMatrices`

returns the following full finite element matrices and
vectors that represent the corresponding PDE problem:

`K`

is the stiffness matrix, the integral of the discretized version of the`c`

coefficient.`M`

is the mass matrix, the integral of the discretized version of the`m`

or`d`

coefficients.`M`

is nonzero for time-dependent and eigenvalue problems.`A`

is the integral of the discretized version of the`a`

coefficient.`F`

is the integral of the discretized version of the`f`

coefficient. For thermal, electromagnetic, and structural problems,`F`

is a source or body load vector.`Q`

is the integral of the discretized version of the`q`

term in a Neumann boundary condition.`G`

is the integral of the discretized version of the`g`

term in a Neumann boundary condition. For structural problems,`G`

is a boundary load vector.The

`H`

and`R`

matrices come directly from the Dirichlet conditions and the mesh.

### Imposing Dirichlet Boundary Conditions

The `"nullspace"`

technique eliminates
Dirichlet conditions from the problem using a linear algebra
approach. It generates the combined finite-element matrices
`Kc`

, `Fc`

, `B`

, and vector `ud`

corresponding to the reduced system
`Kc*u = Fc`

, where ```
Kc =
B'*(K + A + Q)*B
```

, and ```
Fc =
B'*((F + G)-(K + A + Q)*ud)
```

. The
`B`

matrix spans the null space
of the columns of `H`

(the Dirichlet
condition matrix representing `h*ud = r`

).
The `R`

vector represents the Dirichlet
conditions in `H*ud = R`

. The
`ud`

vector has the size of the
solution vector. Its elements are zeros everywhere except at
Dirichlet degrees-of-freedom (DoFs) locations where they
contain the prescribed values.

From the `"nullspace"`

matrices, you can
compute the solution `u`

as

```
u = B*(Kc\Fc) +
ud
```

.

If you assembled a particular set of matrices, for example
`G`

and `M`

, you
can impose the boundary conditions on `G`

and `M`

as follows. First, compute the
nullspace of columns of `H`

.

```
[B,Or] = pdenullorth(H);
ud = Or*((H*Or\R)); % Vector with known value of the constraint DoF.
```

Then use the `B`

matrix as follows. To
eliminate Dirichlet degrees of freedom from the load vector
`G`

, use:

GwithBC = B'*G

To eliminate Dirichlet degrees of freedom from mass matrix, use:

M = B'*M*B

You can eliminate Dirichlet degrees of freedom from other vectors and matrices using the same technique.

The `"stiff-spring"`

technique converts
Dirichlet boundary conditions to Neumann boundary conditions
using a stiff-spring approximation. It returns a matrix
`Ks`

and a vector
`Fs`

that together represent a
different type of combined finite element matrices. The
approximate solution is `u = Ks\Fs`

.
Compared to the `"nullspace"`

technique,
the `"stiff-spring"`

technique generates
matrices more quickly, but generally gives less accurate
solutions.

### Degrees of Freedom (DoFs)

If the number of nodes in a model is
`NumNodes`

, and the number of equations is
`N`

, then the length of column
vectors `u`

and `ud`

is
`N*NumNodes`

. The toolbox assigns
the IDs to the degrees of freedom in `u`

and `ud`

:

Entries from 1 to

`NumNodes`

correspond to the first equation.Entries from

`NumNodes+1`

to`2*NumNodes`

correspond to the second equation.Entries from

`2*NumNodes+1`

to`3*NumNodes`

correspond to the third equation.

The same approach applies to all other entries, up to
`N*NumNodes`

.

For example, in a 3-D structural model, the length of a solution
vector `u`

is
`3*NumNodes`

. The first
`NumNodes`

entries correspond to
the `x`

-displacement at each node, the next
`NumNodes`

entries correspond to
the `y`

-displacement, and the next
`NumNodes`

entries correspond to
the `z`

-displacement.

### Thermal, Structural, and Electromagnetic Analysis

In thermal analysis, the `m`

and
`a`

coefficients are zeros. The
thermal conductivity maps to the `c`

coefficient. The product of the mass density and the
specific heat maps to the `d`

coefficient.
The internal heat source maps to the `f`

coefficient. The temperature on a boundary corresponds to
the Dirichlet boundary condition term `r`

with `h = 1`

. Various forms of boundary
heat flux, such as the heat flux itself, emissivity, and
convection coefficient, map to the Neumann boundary
condition terms `q`

and
`g`

.

In structural analysis, the `a`

coefficient is
zero. Young's modulus and Poisson's ratio map to the
`c`

coefficient. The mass density
maps to the `m`

coefficient. The body loads
map to the `f`

coefficient. Displacements,
constraints, and components of displacement along the axes
map to the Dirichlet boundary condition terms
`h`

and `r`

.
Boundary loads, such as pressure, surface tractions, and
translational stiffnesses, correspond to the Neumann
boundary condition terms `q`

and
`g`

. When you specify the damping
model by using the Rayleigh damping parameters
`Alpha`

and
`Beta`

, the discretized damping
matrix `C`

is computed by using the mass
matrix `M`

and the stiffness matrix
`K`

as ```
C = Alpha*M +
Beta*K
```

. Hysteretic (structural) damping
contributes to the stiffness matrix `K`

,
which becomes complex.

In electrostatic and magnetostatic analyses, the
`m`

, `a`

, and
`d`

coefficients are zeros. The
relative permittivity and relative permeability map to the
`c`

coefficient. The charge
density and current density map to the `f`

coefficient. The voltage and magnetic potential on a
boundary correspond to the Dirichlet boundary condition term
`r`

with ```
h =
1
```

.

**Note**

Assembling FE matrices does not work for harmonic analysis and 3-D magnetostatic analysis.

## Version History

**Introduced in R2016a**

### R2024a: FE matrices for `femodel`

The function accepts `femodel`

objects used in Unified Modeling.

### R2020b: FE matrices for time-dependent and nonlinear models

The function now can assemble matrices using input time or solution for a time-dependent or nonlinear model, respectively. It also can assemble a subset of matrices, such as updated load only or stiffness only, to save computation time.

### R2019a: FE matrices for thermal and structural models

The function accepts thermal and structural models with time- and solution-independent coefficients.

## See Also

### Objects

### Functions

## MATLAB 명령

다음 MATLAB 명령에 해당하는 링크를 클릭했습니다.

명령을 실행하려면 MATLAB 명령 창에 입력하십시오. 웹 브라우저는 MATLAB 명령을 지원하지 않습니다.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
