interpolate
설명
예제
여러 웨이포인트를 기준으로 navPath 생성하기
Dubins 공간에서 여러 웨이포인트를 기준으로 navPath
객체를 생성합니다.
dubinsSpace = stateSpaceDubins([0 25; 0 25; -pi pi])
dubinsSpace = stateSpaceDubins with properties: SE2 Properties Name: 'SE2 Dubins' StateBounds: [3x2 double] NumStateVariables: 3 Dubins Vehicle Properties MinTurningRadius: 1
pathobj = navPath(dubinsSpace)
pathobj = navPath with properties: StateSpace: [1x1 stateSpaceDubins] States: [0x3 double] NumStates: 0 MaxNumStates: Inf
waypoints = [8 10 pi/2; 7 14 pi/4; 10 17 pi/2; 10 10 -pi]; append(pathobj,waypoints)
정확히 250개의 점을 포함하도록 경로를 보간합니다.
interpolate(pathobj,250)

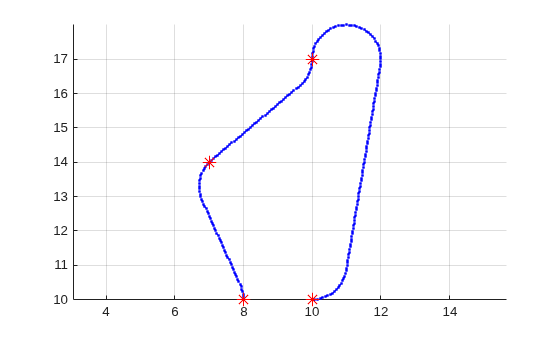

보간된 경로와 원래 웨이포인트를 시각화합니다.
figure grid on axis equal hold on plot(pathobj.States(:,1),pathobj.States(:,2),".b") plot(waypoints(:,1),waypoints(:,2),"*r","MarkerSize",10)
경로의 길이를 계산합니다.
len = pathLength(pathobj);
disp("Path length = " + num2str(len))
Path length = 19.4722
SE(3) 상태공간에서 여러 웨이포인트를 기준으로 navPath
생성하기
도시 블록의 3D 점유 맵을 작업 공간으로 불러옵니다. 장애물이 없는 셀로 간주할 임계값을 지정합니다.
mapData = load("dMapCityBlock.mat");
omap = mapData.omap;
omap.FreeThreshold = 0.5;
장애물 주변에서 안전하게 작동할 수 있도록 점유 맵을 확장하여 완충 지대를 추가합니다.
inflate(omap,1)
상태 변수의 범위가 지정된 SE(3) state space 객체를 생성합니다.
ss = stateSpaceSE3([0 220;0 220;0 100;inf inf;inf inf;inf inf;inf inf]);
SE(3) 상태공간에서 여러 웨이포인트를 기준으로 navPath
객체를 생성합니다.
path = navPath(ss); waypoints = [40 180 15 0.7 0.2 0 0.1; 55 120 20 0.6 0.2 0 0.1; 100 100 25 0.5 0.2 0 0.1; 130 90 30 0.4 0 0.1 0.6; 150 33 35 0.3 0 0.1 0.6]; append(path,waypoints)
정확히 250개의 점을 포함하도록 경로를 보간합니다.
interpolate(path,250)
보간된 경로와 원래 웨이포인트를 시각화합니다.

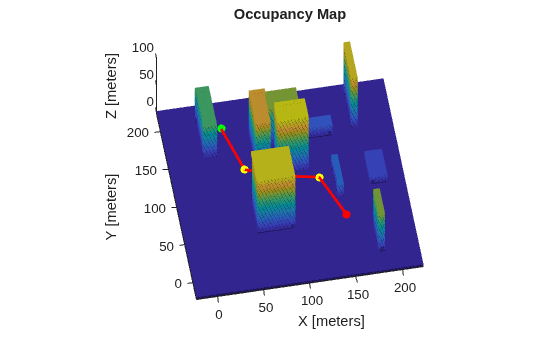

show(omap) axis equal view([-10 55]) hold on % Start state scatter3(waypoints(1,1),waypoints(1,2),waypoints(1,3),"g","filled") % Goal state scatter3(waypoints(end,1),waypoints(end,2),waypoints(end,3),"r","filled") % Intermediate waypoints scatter3(waypoints(2:end-1,1),waypoints(2:end-1,2), ... waypoints(2:end-1,3),"y","filled") % Path plot3(path.States(:,1),path.States(:,2),path.States(:,3), ... "r-",LineWidth=2)
경로의 길이를 계산합니다.
len = pathLength(path);
disp("Path length = " + num2str(len))
Path length = 204.1797
