findall
모든 그래픽스 객체 찾기
설명
h = findall(
는 objhandles
)objhandles
의 그래픽스 객체와 그 후손을 모두 반환합니다. findall
함수는 findobj
와 달리 HandleVisibility
속성이 'off'
로 설정된 경우에도 객체를 반환합니다.
예제
가시적 핸들 또는 숨겨진 핸들이 있는 Figure 찾기
Figure를 3개 만듭니다. 마지막 Figure의 HandleVisibility
속성을 'off'
로 설정합니다.
f1 = figure; f2 = figure; f3 = figure('HandleVisibility','off');
그래픽스 객체 계층 구조에 있는 가시적 핸들 또는 숨겨진 핸들의 개수를 표시합니다. 사용자마다 결과는 여기에 표시된 것과 다를 수 있습니다.
h1 = findall(groot); disp(numel(h1))
4
보이는 Figure 또는 숨겨진 Figure를 모두 찾습니다.
h2 = findall(groot,'Type','figure')
h2 = 3x1 Figure array: Figure (3) Figure (2) Figure (1)
findobj
함수를 사용하여 Figure를 찾으려고 시도하면 MATLAB®은 f1
과 f2
만 반환합니다.
h3 = findobj('Type','figure')
h3 = 2x1 Figure array: Figure (2) Figure (1)
숨겨진 핸들이 있는 객체 찾기
Figure 내에 있는 Text
객체에는 숨겨진 핸들이 있습니다. findall
을 사용하여 숨겨진 핸들을 반환합니다.

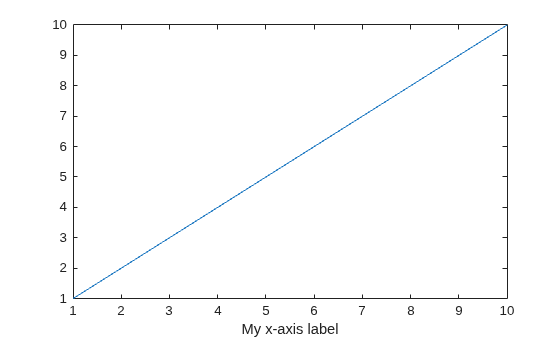

플롯이 있는 Figure를 만듭니다. 그런 다음 x축 레이블을 만듭니다.
plot(1:10)
txt = xlabel('My x-axis label');
txt
의 HandleVisibility
속성이 'off'
로 설정되어 있는지 확인합니다.
txt.HandleVisibility
ans = 'off'
findall
을 사용하여 x축 레이블의 Text
객체를 반환합니다.
h1 = findall(gcf,'Type','text')
h1 = Text (My x-axis label) with properties: String: 'My x-axis label' FontSize: 11 FontWeight: 'normal' FontName: 'Helvetica' Color: [0.1500 0.1500 0.1500] HorizontalAlignment: 'center' Position: [5.5000 0.4452 -1.0000] Units: 'data' Use GET to show all properties
Text
객체는 숨겨져 있으므로 findobj
함수를 사용하여 찾을 수 없습니다.
h2 = findobj(gcf,'Type','text')
h2 = 0x0 empty GraphicsPlaceholder array.
Text 객체 찾기
findall
을 사용하여 모든 Text
객체 또는 특정 속성을 갖는 Text
객체를 반환합니다.
플롯이 있는 Figure를 만듭니다. 그런 다음, 좌표축에 레이블을 지정하고 제목을 추가합니다. 제목의 색을 파란색으로 설정합니다.
plot((1:10).^2) xlabel('x') ylabel('y') title('y = x^2','Color','b')
현재 Figure에 있는 모든 Text
객체를 반환합니다.
h1 = findall(gcf,'Type','text')
h1 = 3x1 Text array: Text (y = x^2) Text (x) Text (y)
이번에는 모든 파란색 Text
객체를 반환합니다.
h2 = findall(gcf,'Type','text','Color','b')
h2 = Text (y = x^2) with properties: String: 'y = x^2' FontSize: 11 FontWeight: 'bold' FontName: 'Helvetica' Color: [0 0 1] HorizontalAlignment: 'center' Position: [5.5000 100.7725 0] Units: 'data' Use GET to show all properties
입력 인수
objhandles
— 검색될 객체
그래픽스 객체로 구성된 배열
검색될 객체로, 그래픽스 객체로 구성된 배열로 지정됩니다. findall
은 입력 배열 objhandles
에 있는 객체와 그 후손을 그래픽스 객체 계층 구조에서 모두 검색합니다.
예: h = findall(groot)
는 그래픽스 객체 계층 구조에 있는 가시적 핸들과 숨겨진 핸들을 모두 반환합니다.
prop
— 속성 이름
문자형 벡터 | string형 스칼라
속성 이름으로, 문자형 벡터 또는 string형 스칼라로 지정됩니다. 자세한 내용은 그래픽스 객체 속성 항목을 참조하십시오.
예: h = findall(gcf,'Type','text')
는 현재 Figure에서 Type
속성이 'text'
로 설정된 모든 객체를 반환합니다.
value
— 속성값
스칼라 | 배열
속성값으로, 스칼라 또는 배열로 지정됩니다.
팁
findall
에서 사용할 검색 설정을 사용자 지정하기 위해objhandles
뒤에findobj
함수의 입력값 조합이 오도록 할 수 있습니다. 예를 들면 다음과 같습니다.h = findall(groot,prop1,value1,'-not',prop2,value2,'-property',prop3)
버전 내역
R2006a 이전에 개발됨
