atan
Inverse tangent in radians
Syntax
Description
Y = atan(
returns the Inverse Tangent
(tan-1) of the elements of X
)X
in radians.
The function accepts both real and complex inputs.
For real values of
X
,atan(X)
returns values in the interval [-π/2, π/2].For complex values of
X
,atan(X)
returns complex values.
Examples
Inverse Tangent of a Value
Inverse Tangent of a Vector of Complex Values
Find the inverse tangent of the elements of vector x
. The atan
function acts on x
element-wise.
x = [0.5i 1+3i -2.2+i]; Y = atan(x)
Y = 1×3 complex
0.0000 + 0.5493i 1.4615 + 0.3059i -1.2019 + 0.1506i

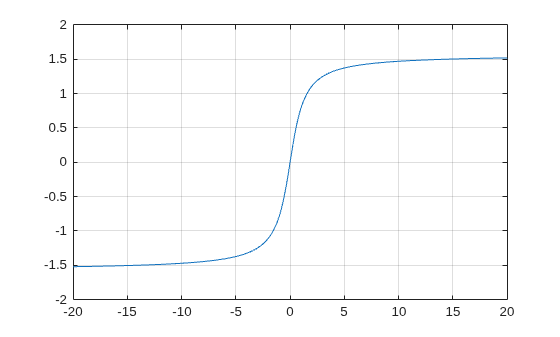

Plot the Inverse Tangent Function
Plot the inverse tangent function over the interval .
x = -20:0.01:20;
plot(x,atan(x))
grid on
Input Arguments
X
— Tangent of angle
scalar | vector | matrix | multidimensional array | table | timetable
Tangent of angle, specified as a scalar, vector, matrix, multidimensional array,
table, or timetable. The atan
operation is element-wise when
X
is nonscalar.
Data Types: single
| double
| table
| timetable
Complex Number Support: Yes
More About
Inverse Tangent
The inverse tangent is defined as
This definition of the atan
function returns angles in radians within
the interval [-π/2, π/2]. To find the four-quadrant inverse tangent, where the returned
angles are in the interval [-π, π], use atan2
.
Extended Capabilities
Tall Arrays
Calculate with arrays that have more rows than fit in memory.
The
atan
function fully supports tall arrays. For more information,
see Tall Arrays.
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.
Thread-Based Environment
Run code in the background using MATLAB® backgroundPool
or accelerate code with Parallel Computing Toolbox™ ThreadPool
.
This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
The atan
function
fully supports GPU arrays. To run the function on a GPU, specify the input data as a gpuArray
(Parallel Computing Toolbox). For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Distributed Arrays
Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.
This function fully supports distributed arrays. For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).
Version History
Introduced before R2006aR2023a: Perform calculations directly on tables and timetables
The atan
function can calculate on all variables within a table or
timetable without indexing to access those variables. All variables must have data types
that support the calculation. For more information, see Direct Calculations on Tables and Timetables.
