Add Labels and Annotations to Map Axes
Map axes objects are a type of axes object, similar to axes objects, geographic axes objects, and polar axes objects. As a result, you can use map axes with many MATLAB® graphics functions. This example shows how to convey information about your map by adding a title, a legend, text, and data tips.
By default, most plotting functions reset many of the axes properties. This example retains the plots and customizations in the axes by setting the hold state of the axes to
on. Alternatively, you can customize the axes after plotting.
Create a map using a projected CRS that is appropriate for Southeast Asia. Create the
projcrs object using the ESRI code
figure p = projcrs(102030,Authority="ESRI"); newmap(p) hold on
Provide geographic context for the map by displaying a subset of a shapefile containing world land areas. Avoid displaying the land areas in the legend by setting the
HandleVisibility property to
land = readgeotable("landareas.shp"); subland = land([1:2,5:18,20:end],:); geoplot(subland,HandleVisibility="off",FaceColor=[0.7 0.7 0.7],EdgeColor=[0.65 0.65 0.65])

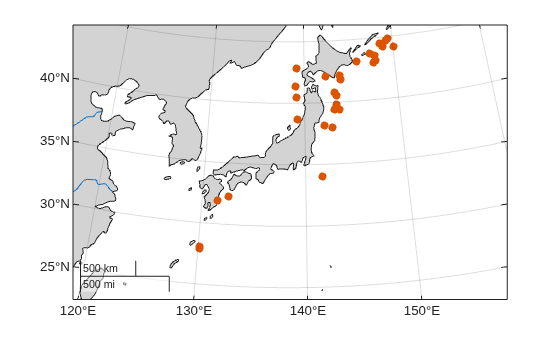

Display world rivers using blue lines.
rivers = readgeotable("worldrivers.shp"); geoplot(rivers,Color=[0 0.4470 0.7410])
Display the locations of tsunamis events using a scatter chart. Prepare to add data tips to the scatter chart by returning the
Scatter object as
tsunamis = readgeotable("tsunamis.shp",CoordinateSystemType="geographic"); lat = tsunamis.Shape.Latitude; lon = tsunamis.Shape.Longitude; s = geoscatter(lat,lon,"filled",MarkerFaceColor=[0.8500 0.3250 0.0980]);
Adjust the geographic limits.
geolimits([-20 20],[90 170])
Add a title using the
title("Map of Southeast Asia")

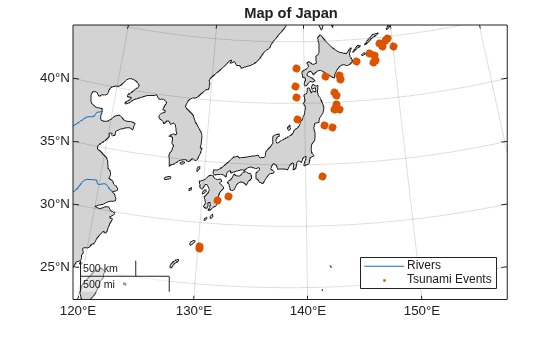

Add a legend with descriptions for the lines and scatter chart. Specify the legend labels as inputs to the
legend function. For more information about adding legends to axes, see Add Legend to Graph.
legend(["Rivers", "Tsunami Events"],Location="northeast")
Change Font Size
MapAxes objects have properties that you can use to customize the appearance of the axes. For example, the
FontSize property controls the font size of the title, tick labels, and scale bar, as well as any legends or color bars associated with the axes.

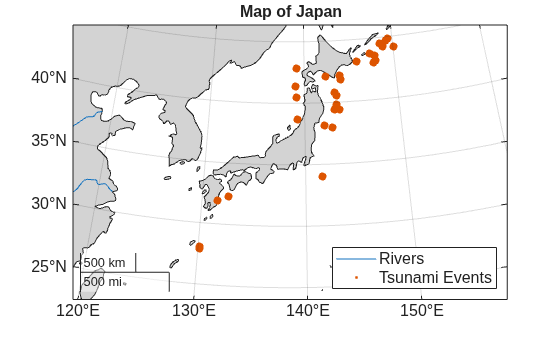

Access the current
MapAxes object and then set the
mx = gca; mx.FontSize = 12;

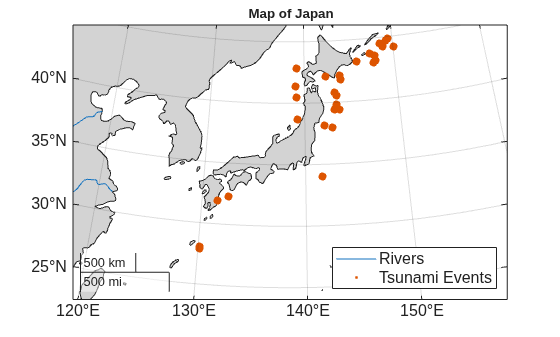

To change the font size of only the title, set the
FontSize property of the title.
mx.Title.FontSize = 10;
Add text to the map. Specify the location for the text using latitude-longitude coordinates. For more information about adding text to axes, see Add Text to Chart.
Add Data Tips
Display the coordinates of a tsunami event by adding a data tip. Specify the scatter chart and latitude-longitude coordinates as inputs to the
dt = datatip(s,-11.1,118.4,Location="southeast");

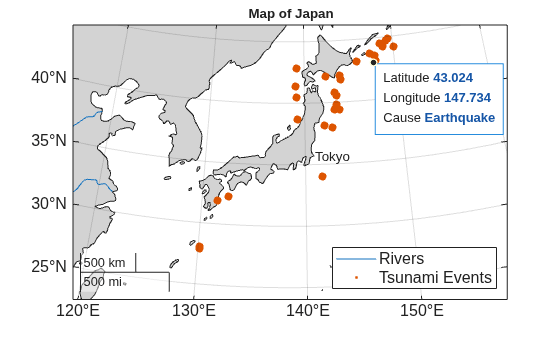

Display the cause of the tsunami event in the data tip by adding a new row to the data tip template. For more information about customizing data tips, see Create Custom Data Tips.
dtRow = dataTipTextRow("Cause",tsunamis.Cause); s.DataTipTemplate.DataTipRows(end+1) = dtRow;
