modefilt

2-D and 3-D mode filtering

Description

example

B = modefilt(A) performs mode filtering on the 2-D image or 3-D volume A. Each output pixel in B contains the mode (most frequently occurring value) in the neighborhood around the corresponding pixel in A. If A is 2-D, modefilt uses a 3-by-3 mode filter. If A is 3-D, modefilt uses a 3-by-3-by-3 mode filter. modefilt pads A by mirroring border elements.

Mode filtering can be useful for processing categorical data, where other types of filtering, such as median filtering, are not available.

B = modefilt(A,filtsize) also specifies the size of the filter neighborhood. filtsize is a vector of positive, odd integers. When A is 2-D, specify filtsize as a 1-by-2 vector. When A is 3-D, specify filtsize as a 1-by-3 vector.

B = modefilt(___,padopt) also specifies how modefilt pads array boundaries.

Examples

collapse all

Load an image (img) and the corresponding categorical labeled version of the image (label) into the workspace.

load buildingPixelLabeled;

View the original image, img.

imshow(img)

View the categorical labeled image, label. The categorical image labels four separate categories: sky, grass, building, and sidewalk. For viewing, convert these categories to colors using the label2rgb function.

imshow(label2rgb(label))

Perform mode filtering on the categorical labeled image, label, using the default filter size and padding method.

 b = modefilt(label);

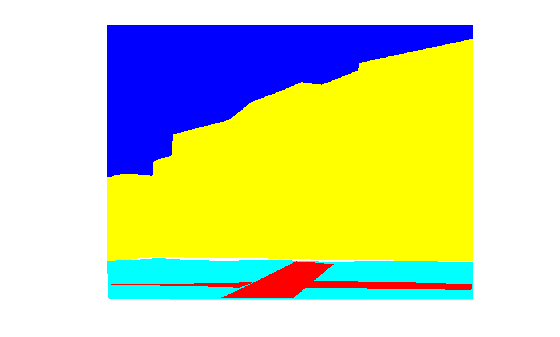

View the filtered categorical labeled image, b. In the filtered image, the edges between labeled regions are more distinct.

 figure
 imshow(label2rgb(b));

Read a labeled volume of an MRI. The volume is stored in the workspace variable label.

load(fullfile(toolboxdir('images'),'imdata','BrainMRILabeled', ...
    'labels','label_001.mat'));

Display the labeled volume. For clarity, add a title to the display.

ViewPnl = uipanel(figure,'Title','Labeled Volume');
labelvolshow(label,'Parent',ViewPnl);

Perform mode filtering on the labeled volume, specifying the size of the filter.

labelOut = modefilt(label,[5 5 5]);

Display the filtered labeled volume. For clarity, add a title to the display.

ViewPnlFiltered = uipanel(figure,'Title','Mode Filtered Labeled Volume');

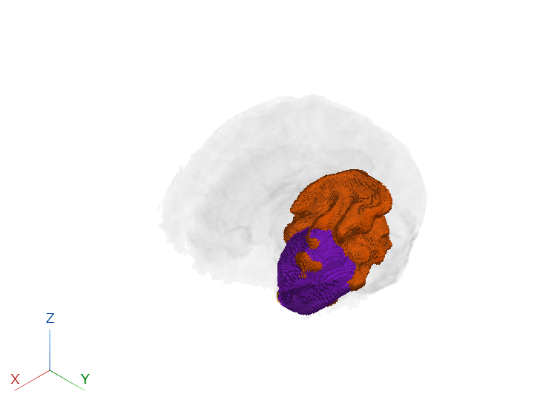

labelvolshow(labelOut,'Parent',ViewPnlFiltered);

Input Arguments

collapse all

2-D image or 3-D volume, specified as a categorical, logical, or numeric array.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical | categorical

Size of filter, specified as a vector of positive odd integers. For 2-D images, specify a vector of the form [height width]. The default for 2-D images is [3 3]. For 3-D volumes, specify a vector of the form [height width depth]. The default for 3-D volumes is [3 3 3].

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Padding method, specified as one of the following values.

ValueDescription
'symmetric'Pad array with a mirror reflection of itself.
'replicate'Pad array by repeating border elements.
'zeros'Pad array with 0s for numeric data or with <undefined>s for categorical data.

Example: labelOut = modefilt(label,'replicate');

Data Types: char | string

Output Arguments

collapse all

Filtered image or volume, returned as a numeric array of the same size and class as the input image A.

Tips

  • When the neighborhood has more than one pixel in a tie for the mode value, the function uses the following tie-breaking algorithm:

    • If the center pixel is one of the mode values in the tie, the function uses this value.

    • If the center pixel is not one of the mode values in the tie, the function uses the mode with the smallest numeric value.

    • For categorical input, the function chooses the first category (among the categories tied for mode) that appears in the list returned by categories(A).

  • modefilt treats RGB images as 3-D volumes. To do channel-wise filtering of an RGB image, specify filtsize as [3 3 1], as in this code: b = modefilt(a,[3 3 1]); .
