ahrs10filter

Height and orientation from MARG and altimeter readings

Since R2019a

Description

The ahrs10filter object fuses MARG and altimeter sensor data to estimate device height and orientation. MARG (magnetic, angular rate, gravity) data is typically derived from magnetometer, gyroscope, and accelerometer sensors. The filter uses an 18-element state vector to track the orientation quaternion, vertical velocity, vertical position, MARG sensor biases, and geomagnetic vector. The ahrs10filter object uses an extended Kalman filter to estimate these quantities.

Creation

Description

FUSE = ahrs10filter returns an extended Kalman filter object, FUSE, for sensor fusion of MARG and altimeter readings to estimate device height and orientation.

FUSE = ahrs10filter('ReferenceFrame',RF) returns an extended Kalman filter object that estimates device height and orientation relative to the reference frame RF. Specify RF as 'NED' (North-East-Down) or 'ENU' (East-North-Up). The default value is 'NED'.

example

FUSE = ahrs10filter(___,Name,Value) sets each property Name to the specified Value. Unspecified properties have default values.

Properties

expand all

Sample rate of the IMU in Hz, specified as a positive scalar.

Data Types: single | double

Multiplicative process noise variance from the gyroscope in (rad/s)2, specified as positive real finite numbers.

Data Types: single | double

Multiplicative process noise variance from the accelerometer in (m/s2)2, specified as positive real finite numbers.

Data Types: single | double

Multiplicative process noise variance from the gyroscope bias in (rad/s2)2, specified as positive real finite numbers.

Data Types: single | double

Multiplicative process noise variance from the accelerometer bias in (m/s2)2, specified as positive real finite numbers.

Data Types: single | double

Additive process noise for geomagnetic vector in μT2, specified as positive real finite numbers.

Data Types: single | double

Additive process noise for magnetometer bias in μT2, specified as positive real finite numbers.

Data Types: single | double

State vector of the extended Kalman filter. The state values represent:

StateUnitsIndex
Orientation (quaternion parts)N/A1:4
Altitude (NED or ENU)m5
Vertical Velocity (NED or ENU)m/s6
Delta Angle Bias (XYZ)rad/s7:9
Delta Velocity Bias (XYZ)m/s10:12
Geomagnetic Field Vector (NED or ENU)μT13:15
Magnetometer Bias (XYZ)μT16:18

The default initial state corresponds to an object at rest located at [0 0 0] in geodetic LLA coordinates.

Data Types: single | double

State error covariance for the Kalman filter, specified as an 18-by-18-element matrix of real numbers.

Data Types: single | double

Object Functions

predictUpdate states using accelerometer and gyroscope data for ahrs10filter
fusemagCorrect states using magnetometer data for ahrs10filter
fusealtimeterCorrect states using altimeter data for ahrs10filter
correctCorrect states using direct state measurements for ahrs10filter
residualResiduals and residual covariances from direct state measurements for ahrs10filter
residualmagResiduals and residual covariance from magnetometer measurements for ahrs10filter
residualaltimeterResiduals and residual covariance from altimeter measurements for ahrs10filter
poseCurrent orientation and position estimate for ahrs10filter
resetReset internal states for ahrs10filter
stateinfoDisplay state vector information for ahrs10filter
tuneTune ahrs10filter parameters to reduce estimation error
copyCreate copy of ahrs10filter

Examples

collapse all

Load logged sensor data, ground truth pose, and initial state and initial state covariance. Calculate the number of IMU samples per altimeter sample and the number of IMU samples per magnetometer sample.

load('fuse10exampledata.mat', ...
     'imuFs','accelData','gyroData', ...
     'magnetometerFs','magData', ...
     'altimeterFs','altData', ...
     'expectedHeight','expectedOrient', ...
     'initstate','initcov');

imuSamplesPerAlt = fix(imuFs/altimeterFs);
imuSamplesPerMag = fix(imuFs/magnetometerFs);

Create an AHRS filter that fuses MARG and altimeter readings to estimate height and orientation. Set the sampling rate and measurement noises of the sensors. The values were determined from datasheets and experimentation.

filt = ahrs10filter('IMUSampleRate',imuFs, ...
                    'AccelerometerNoise',0.1, ...
                    'State',initstate, ...
                    'StateCovariance',initcov);

Ralt = 0.24;
Rmag = 0.9;

Preallocate variables to log height and orientation.

numIMUSamples = size(accelData,1);
estHeight = zeros(numIMUSamples,1);
estOrient = zeros(numIMUSamples,1,'quaternion');

Fuse accelerometer, gyroscope, magnetometer and altimeter data. The outer loop predicts the filter forward at the fastest sample rate (the IMU sample rate).

for ii = 1:numIMUSamples

    % Use predict to estimate the filter state based on the accelometer and
    % gyroscope data.
    predict(filt,accelData(ii,:),gyroData(ii,:));

    % Magnetometer data is collected at a lower rate than IMU data. Fuse
    % magnetometer data at the lower rate.
    if ~mod(ii,imuSamplesPerMag)
        fusemag(filt,magData(ii,:),Rmag);
    end

    % Altimeter data is collected at a lower rate than IMU data. Fuse
    % altimeter data at the lower rate.
    if ~mod(ii, imuSamplesPerAlt)
        fusealtimeter(filt,altData(ii),Ralt);
    end

    % Log the current height and orientation estimate.
    [estHeight(ii),estOrient(ii)] = pose(filt);
end

Calculate the RMS errors between the known true height and orientation and the output from the AHRS filter.

pErr = expectedHeight - estHeight;
qErr = rad2deg(dist(expectedOrient,estOrient));

pRMS = sqrt(mean(pErr.^2));
qRMS = sqrt(mean(qErr.^2));

fprintf('Altitude RMS Error\n');
Altitude RMS Error
fprintf('\t%.2f (meters)\n\n',pRMS);
	0.38 (meters)

Visualize the true and estimated height over time.

t = (0:(numIMUSamples-1))/imuFs;
plot(t,expectedHeight);hold on
plot(t,estHeight);hold off
legend('Ground Truth','Estimated Height','location','best')
ylabel('Height (m)')
xlabel('Time (s)')
grid on

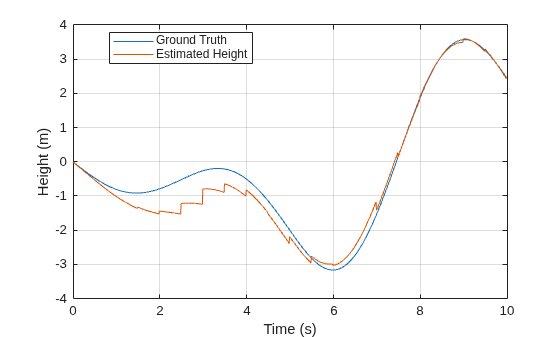

Figure contains an axes object. The axes object with xlabel Time (s), ylabel Height (m) contains 2 objects of type line. These objects represent Ground Truth, Estimated Height.


fprintf('Quaternion Distance RMS Error\n');
Quaternion Distance RMS Error
fprintf('\t%.2f (degrees)\n\n',qRMS);
	2.93 (degrees)
